Electric Motor for Concrete Vibrator
- Category: Concrete Vibrator >>>
- Supplier: Liaocheng Yangfine Machinery Co. Ltd.
Share on (60131887548):
Product Overview
Description

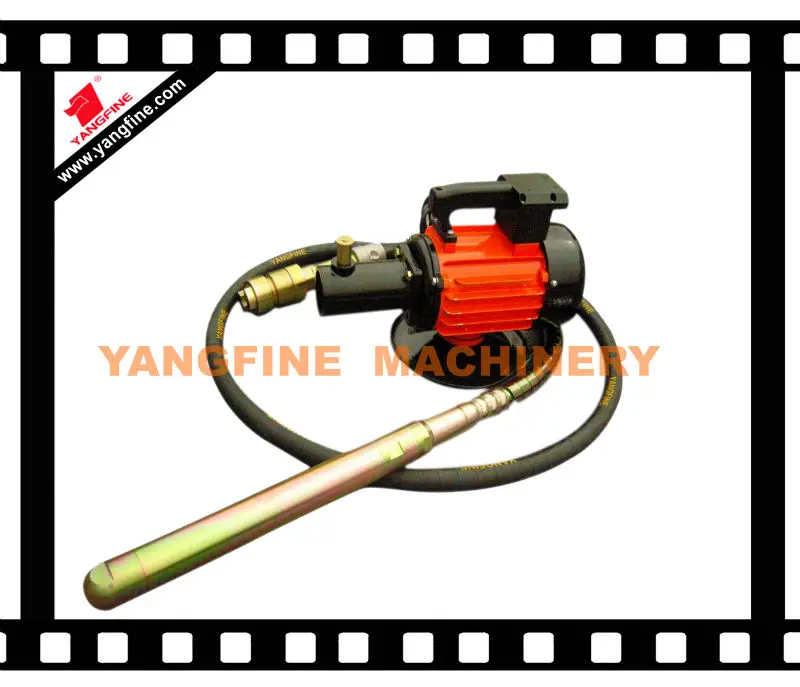

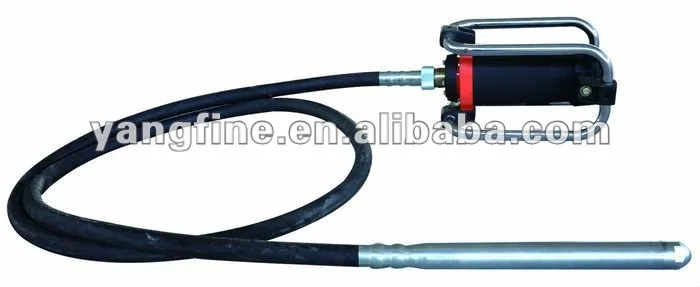

Electric Motor for Concrete Vibrator
USE the pendulume principle ,,,,,,

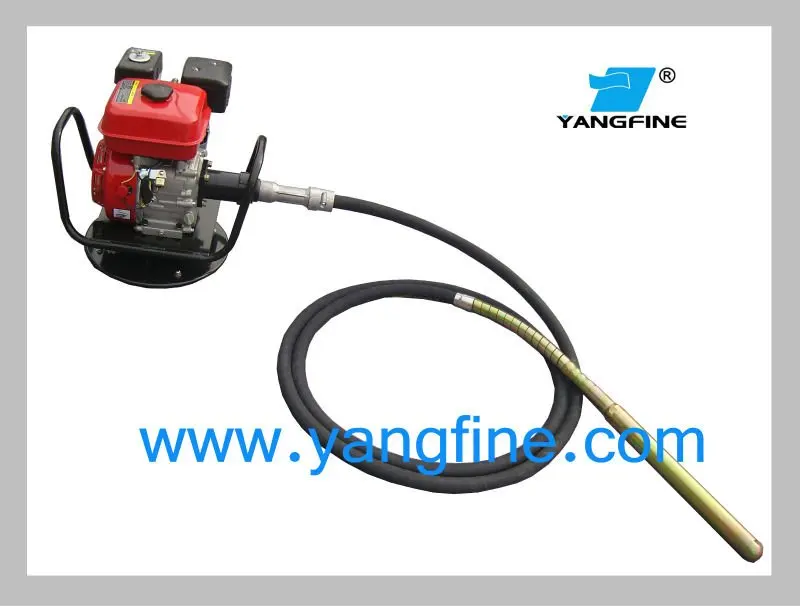

3000rpm of the drive unit translate viathe flexible shaft into 12000 vibrators per minute in the poker head ,the low output speed ensures high reliability and extended service life,can be driven by electrical motor, petrol or diesel engine.with standerd poker diameters.
Festures:Long life span,easy to maintaince,low noise,it is popular in the market.
Model | Vibrator Head Dia.*Length | Vibrating Frequency (VPM) | Rotational Speed (RPM) | Vibrating Amplitude (mm) | Diameter of Flexible Hose (mm) | Diameter of Flexible Shaft (mm) | Length (M) | Weight (kg) |
YFJS-32 | 32*388 | 12,000~14,000 | 3,000~3,600 | 1.4 | 30 | 10 | 6M (5-8M) | 12 |
YFJS-38 | 38*465 | 1.6 | 30 | 10 | 14.5 | |||
YFJS-45 | 45*470 | 2.0 | 30 | 10 | 16 | |||
YFJS-60 | 60*473 | 2.4 | 32 | 13 | 21 |
