water tank switches/water tank float switch system/level sensor for water tank
- Category: >>>
- Supplier: Yueqing Sonor Imp. & Exp. Co. Ltd.
Share on (60131940609):
Product Overview
Description
14 years manufacture experience
Certificated:CE&RoHS
Paypal is OK.
Material:SUS304,SUS316L,PP,PVDF,PTFE
Working temperature:125℃ or customized
Pressure:1MPa,1.5MPa, 2Mpa
Length:35mm----6000mm
Our factory can provide below 450 ° C Liquid float controller , all kinds of non-standard flanges, different sizes
If the products is not your expecting,please tell me your detail requirements.
Customized Float Switches
Product Description
Working Systems
float switch Working principle
When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float
ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.

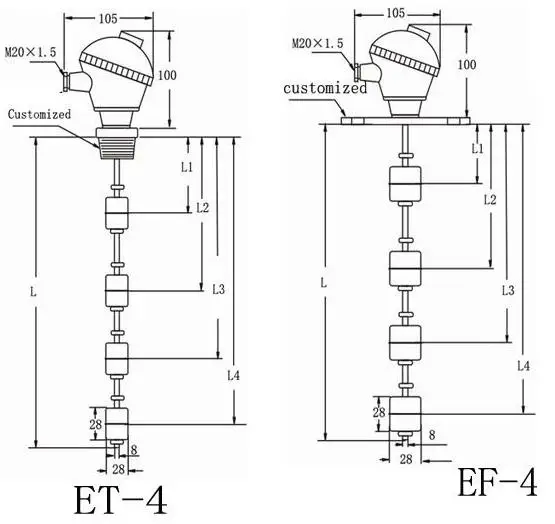

Float switch installation: magnetic stainless water leveler control/water level control
Stainless float switch data: magnetic stainless water leveler control/water level control
Data Scan: | 1A1 | 2A1 |
Max Contact Rating | 10W | 50W |
Max Switching Voltage | 100VDC | 220VDC |
Max Switching Current | 0.5A | 1.5A |
Mac Breakdown Voltage | 220VDC | 300VDC |
Max Carry Current | 1.0A | 3.0A |
Max Contact Resistance | 100mΩ | 100mΩ |
Temperature Rating | -30~+125℃ | -30~+125℃ |
Float Ball Material | SS304,SS316 | SS304,SS316 |
Float Body Material | SS304,SS316 | SS304,SS316 |
water tank leve
