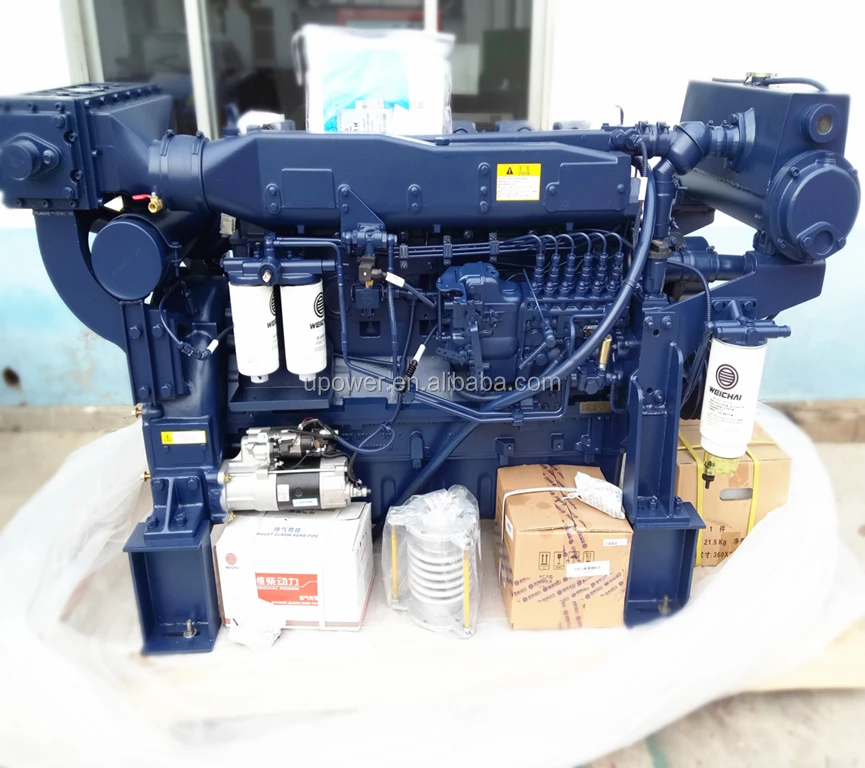

WP6C series diesel engine marine


Specifications for WP6C diesel engine marine
Item | Unit | engine type | ||||
WP6C122-15 | WP6C142-18 | WP6C156-21 | WP6C140-23 | |||
intake mode | turbocharged | |||||
number of cylinders | 6 | |||||
Bore X Stroke | 105×130 | |||||
displacement | L | 6.75 | ||||
compression ratio | 18 | |||||
power | KW | 90 | 105 | 115 | 103 | |
speed | r/min | 1500 | 1800 | 2100 | 2300 | |
min. fuel oil consumption | g/(KW.h) | 200 | ||||
fuel consumption @ rated power | g/(KW.h) | ≤215 | ≤220 | ≤225 | ≤230 | |
lub oil and fuel consumption ratio | % | ≤0.3 | ||||
cooling mode | sea and fresh water duel-circulation cooling system | |||||
start mode | electric start | |||||
net weight | kg | 700±50 | ||||
rotation direction of crankshaft (seen from the free end) | C.W. | |||||
Dimension | length | mm | 1350 | |||
width | mm | 770 | ||||
height | mm | 965 | ||||

WP6C Diesel Engine Marine Application

| Ship Parameter | Marine Boat Engine Parameter | |||
| Ship Length(m) | 12 | Type | WP6C165-18 | |
| Molded Breadth(m) | 2.6 | |||
| Molded Deep(m) | 1.25 | Rated Power | 122(Kw) | |
| Draught(m) | 0.561 | |||
| Displacement Tonnage(t) | 6.772 | Rated speed | 1800(r/min) | |
| Speed(kn) | 18 | |||
Customer satisfaction is our aim. We aim to our customers' satisfaction.
1, the domestic 10 service centers, 63 special service stations. All-weather, all-round, 24 hours a day throughout the year.
2, set up 22 service offices overseas, more than 100 special service stations, the establishment of overseas parts distribution center, forming a complete international service network.



New products from manufacturers at wholesale prices
