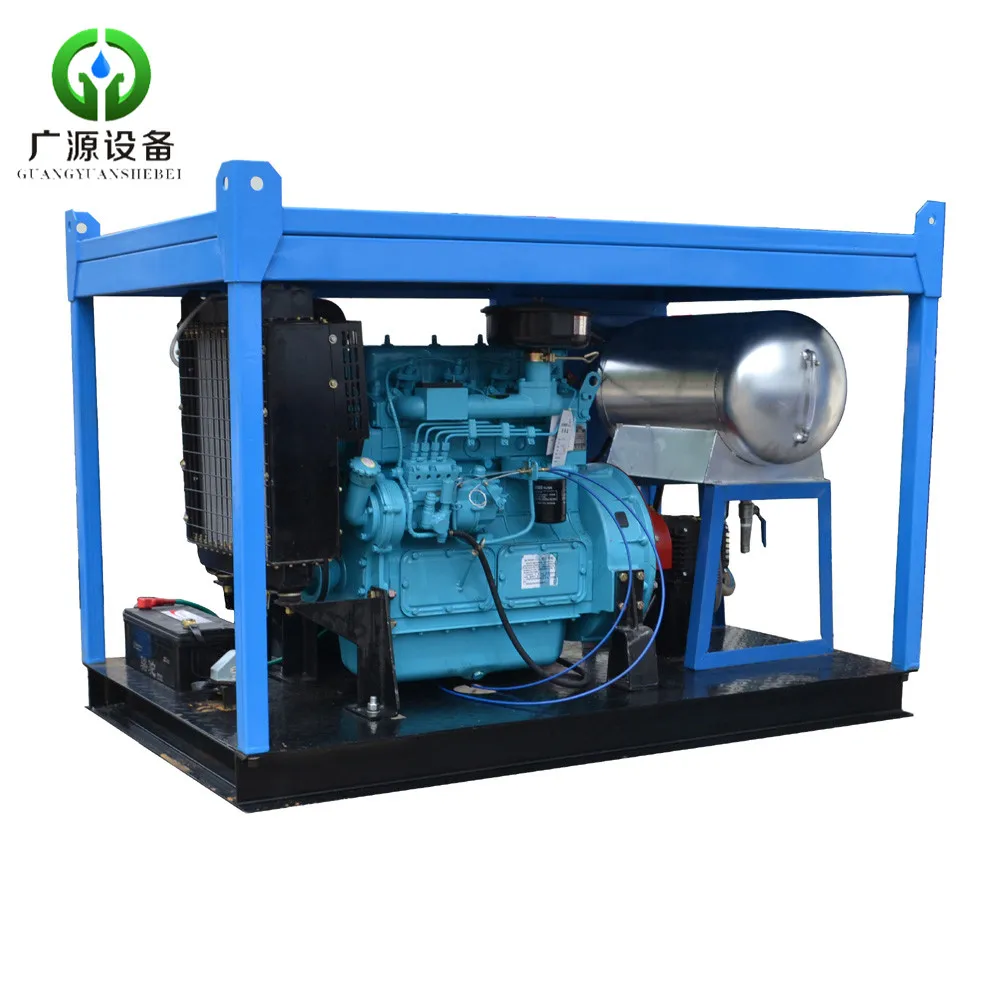

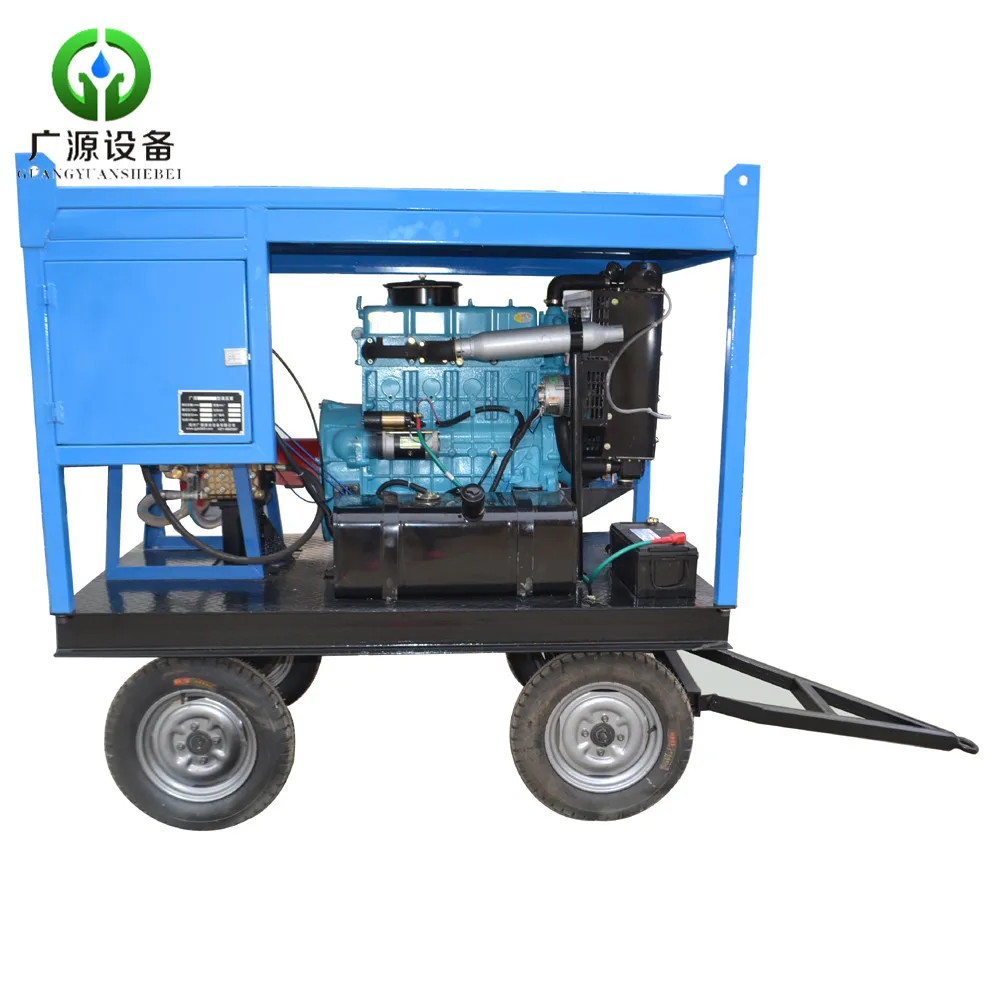

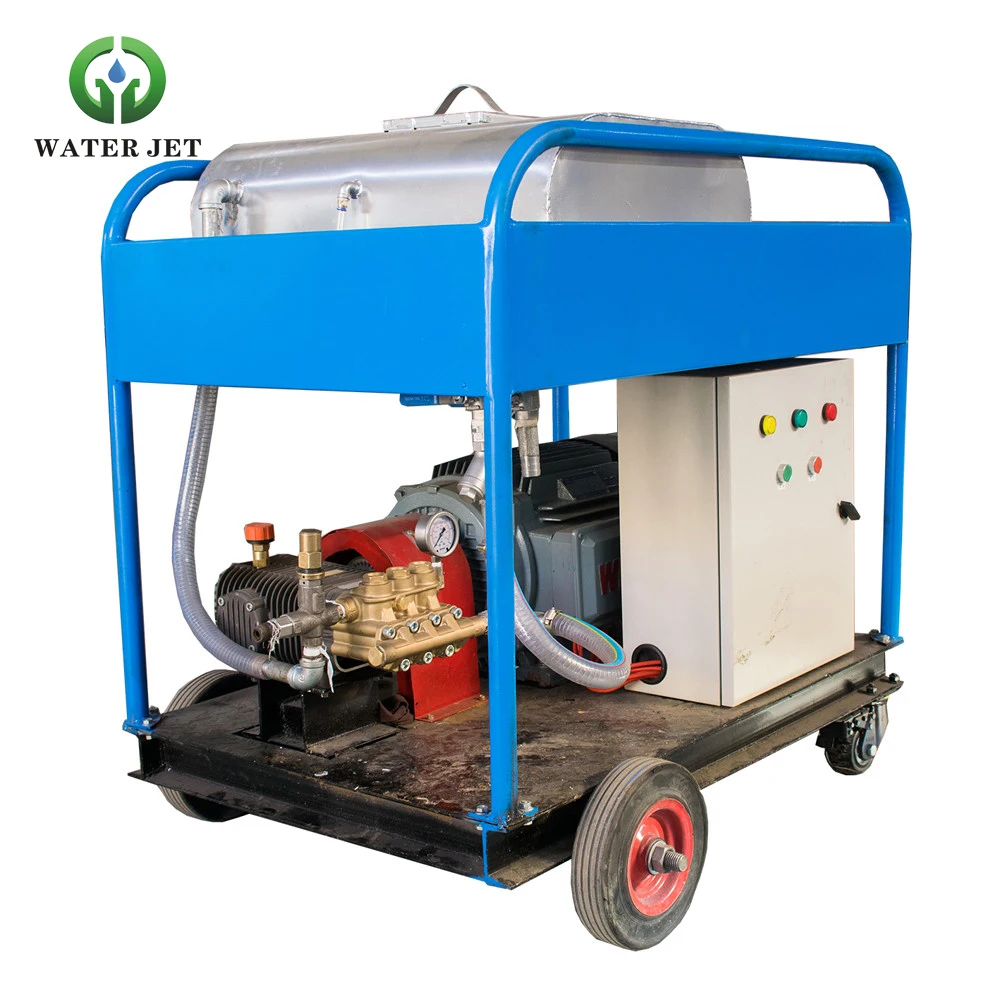

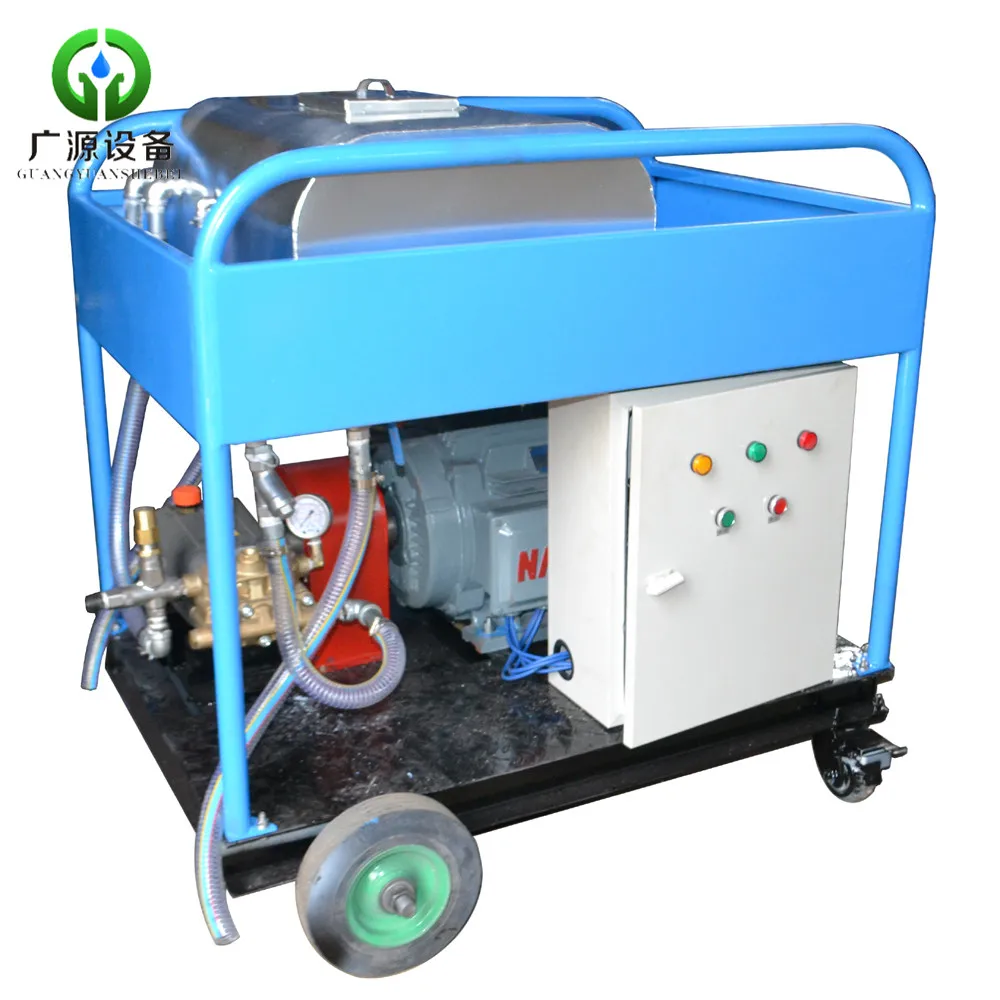

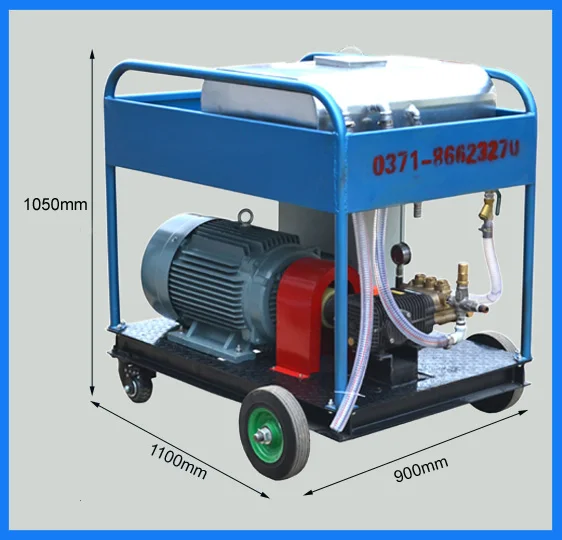

500bar Electric Engine Paint Rust Removal High Pressure Water Jet Blaster Scale Washing Machine
- Category: >>>
- Supplier: Zhengzhou Guangyuan Cleaning Equipment Co. Ltd.
Share on (60132448766):
Product Overview
Description
Product Description
Specifications:
Max pressure: 500bar
Water flow: 23 L/min
Engine: electric motor drive 22kw; 3 phase
or diesel engine. Power: 30 kw, 4-cylinder;
Electric-powered: Typically used indoors because there are no fumes and they are quieter.
Diesel-powered: Self contained and portable so they can be used in the field (no electric cords); all you need is water.
Water flow: 23 L/min
Engine: electric motor drive 22kw; 3 phase
or diesel engine. Power: 30 kw, 4-cylinder;
Electric-powered: Typically used indoors because there are no fumes and they are quieter.
Diesel-powered: Self contained and portable so they can be used in the field (no electric cords); all you need is water.
GYB-1 Main Features:
1.High pressure pump imported from Italy UDOR, copper pump head, ceramic plunger;
2.The pressure regulating valve is stainless steel body, alloy valve core;
3.Resistance of high temperature,high pressure, corrosion;
4.Small size and light weight, easy to move and operate;
5.Pure high-pressure water physical cleaning, no need to add any chemical agents, environmental protection and pollution-free.
High endurance, can be used for 24 hours continuous working;
2.The pressure regulating valve is stainless steel body, alloy valve core;
3.Resistance of high temperature,high pressure, corrosion;
4.Small size and light weight, easy to move and operate;
5.Pure high-pressure water physical cleaning, no need to add any chemical agents, environmental protection and pollution-free.
High endurance, can be used for 24 hours continuous working;
Product Paramenters
speed of motor(r/min) | 1480 | Stroke(mm) | 95 | |||||||||||
Reduction ratio (i) | 3.65 | speed of pump (r/min) | 405 | |||||||||||
Power (KW) | 30 | 37 | 45 | 55 | 75 | 90 | Plunger diameter (mm) | |||||||
Rate Flow | Rate Pressure (Bar) | |||||||||||||
m3/h | L/min | |||||||||||||
2.4 | 40 | 370 | 460 | 22 | ||||||||||
3 | 50 | 300 | 360 | 450 | 25 | |||||||||
3.42 | 57 | 260 | 320 | 400 | 500 | 26 | ||||||||
3.9 | 65 | 230 | 280 | 350 | 450 | 28 | ||||||||
4.5 | 75 | 200 | 250 | 300 | 380 | 500 | 30 | |||||||
5.1 | 85 | 170 | 220 | 260 | 340 | 450 | 500 | 32 | ||||||
6.12 | 102 | 150 | 180 | 220 | 280 | 360 | 430 | 35 | ||||||
8.1 | 135 | 110 | 140 | 170 | 210 | 280 | 330 | 40 | ||||||
10.2 | 170 | 90 | 110 | 140 | 170 | 240 | 280 | 45 | ||||||
Application
1.Pipe pressure test, hose pressure test, hydro pressure test, etc.
2.Shipyard rust removal, paint removal
3.Breweries yeast, sediments and fermentation residues on vats, pipe and facilities cleaning.
4.Aviation: expansion joints, grease, rubber and hydraulic fluid on runways cleaning.
5.hydropower station/ dam/dike concrete work treating.
6.Casting clean scale removal rust removal paint, removal sand.
7.Industrial pipe cleaning, such as starch factory, cement plant, etc…
2.Shipyard rust removal, paint removal
3.Breweries yeast, sediments and fermentation residues on vats, pipe and facilities cleaning.
4.Aviation: expansion joints, grease, rubber and hydraulic fluid on runways cleaning.
5.hydropower station/ dam/dike concrete work treating.
6.Casting clean scale removal rust removal paint, removal sand.
7.Industrial pipe cleaning, such as starch factory, cement plant, etc…
Customized service
Customization Options:
We understand that different industries and cleaning requirements may have specific needs. Therefore, we offer customization options, allowing customers to tailor the machine to their unique requirements, including pressure settings, nozzle configurations, and accessories.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhengzhou GuangYuan Cleaning Equipment Co.,Ltd. Is a manufacturer for high pressure water jetting machine, founded in 2012, is committed to explore the field of a high pressure water jet market brand. Our company is located in Henan Province, China.
We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. 15kw electric sewer pipeline cleaner, which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc. Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.
We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. 15kw electric sewer pipeline cleaner, which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc. Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.
Certifications
FAQ
1.Are you trading company or manufacturer?
--We are manufacturer here for over 15 years. Producing commercial high pressure cleaner.
2. How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;
3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What's your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It's according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What's your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin), FA(Form A), FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What's the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
--We are manufacturer here for over 15 years. Producing commercial high pressure cleaner.
2. How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;
3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What's your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It's according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What's your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin), FA(Form A), FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What's the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
