FB 80 Air compressor pressure switch 3 phase

Product Overview

Description

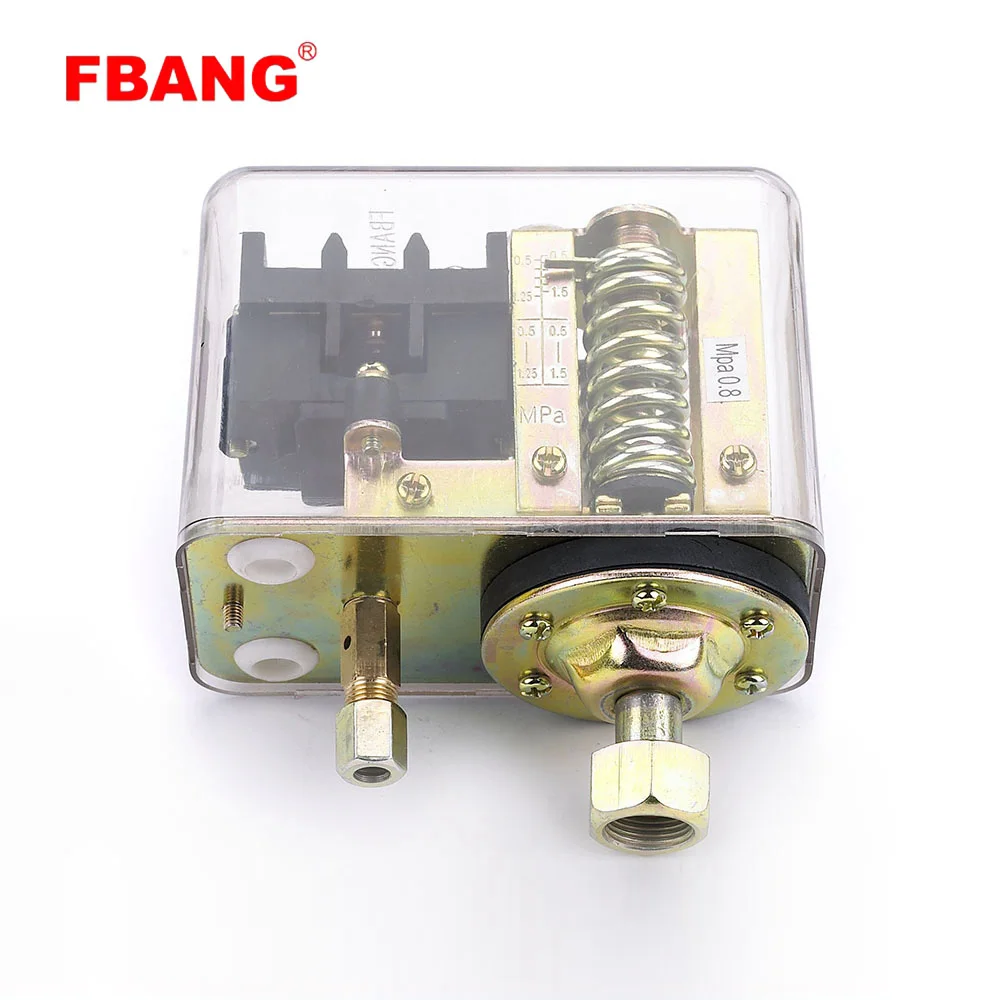

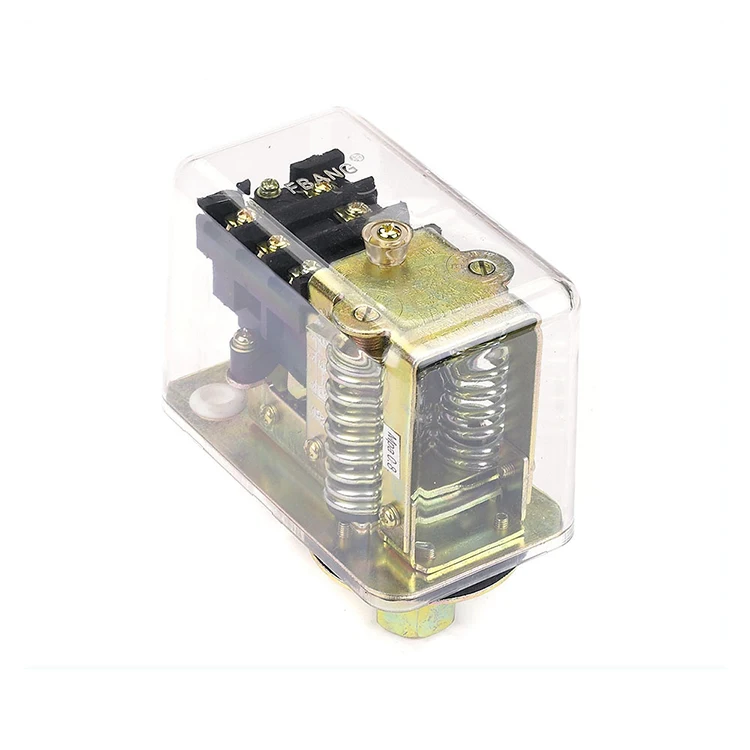

FB-80 Air compressor pressure switch 3-phase

FB80 pressure switches are used to regulate the tank pressure between two preset values on a 3 phase electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load. On-Off knob for manual cutting off the compressor.



MODEL	FB80
Media	Air
Operating Pressure Range	4bar~12.5bar
Differential Pressure	2bar-3bar
Factory Setting	5bar~8bar/5.5bar-8bar/9bar-12bar
Operating Temperature Range	-30~55C° C
Electrical Rating	380V, 20A, 50Hz
Contact Arrangement	Normal Close(NC)
Port	One port or Four ports available
Pipe Fittings	G1/4, G3/8 or 1/4, 3/8 NPT Female



























Other Pressure Settings and Differential Pressure are available on request.

Conversion: 1Mpa =10bar,1bar = 14.5PSI, 1Kgf/cm2 = 14.2PSI
