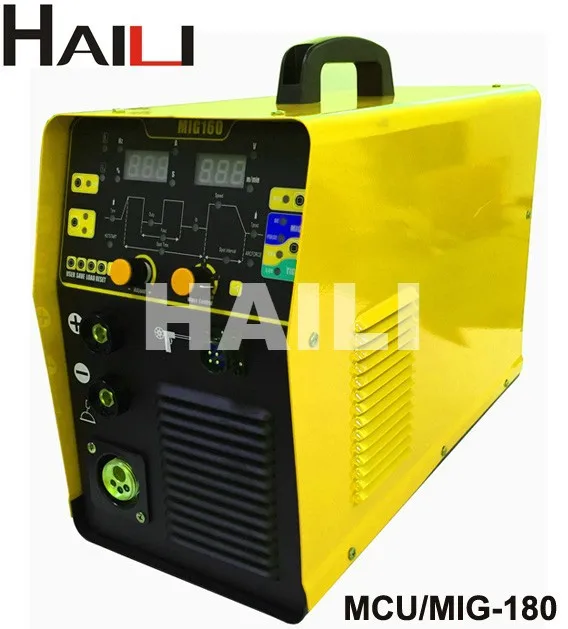

HAILI цифровой MCU DC инвертор IGBT MIG/LIFT TIG/MMA многопроцессорный MIG сварочный аппарат (MIG/MCU 180)

Product Overview

Description

DC Inverter IGBT MCU MIG/TIG/MMA 3 In 1 Welder



Features:

1), Adopt High performance MCU digital technology, and IGBT & advanced PWM inverter technology;

2), DC MIG, Single Pulse MIG, Lift-TIG, MMA,Spot, 2T/4T, 10 Sets customized Program Store multi-process functions.

3), ARC force, hot start can be adjusted in the MMA function; Gas time can be adjusted for TIG function or MIG function;

4),Since it has Wide Voltage Function, it is easier to be working from 150V-270V, that’s to say, it can be working together with Generator or Poor voltage situation;

5), Synergic Home Function automatically manages ideal voltage while only adjusting wire feed speed;

6),Compact, light weight, little splash, portable, Compatible Power Generator, Intelligent Protection, over-voltage, low-voltage, over-current, over-heat etc.



APPLICATION:

1.Application to automobile manufacturing,engineering machiniery,shipbuilding industry,

Aviation and agricultural machinery ,etc

2.Apply to general carbon steel,excellent carbon steel,low alloy steel,conducting butt welding,

Lap welding and fillet welding of all space position.

3.Apply to :Φ0.8-1.2mm welding wire,fixed location welding,various kinds of thin thickness of the common parts, frame and auto industry.



Technical specification:

Model:MCU/MIG-180

Welding Function	MIG TIG, MMA	Rated input current(A)	28.0 20.9 33.5	No load voltage(V)	64
Input Voltage(V)	220/230/240	Rated input power(KW)	5.0 3.7 5.8	Current range(A)	5-180
Duty cycle(25°C 10min)	180A   50% 170A   60% 140A   100%	Duty cycle(40°C 10min)	180A   30% 125A   60% 100A   100%	Insulation class	F
Dimensions (L*W*H mm)	440*215*405	Net weight(kg)	14	Protection class	IP23S
