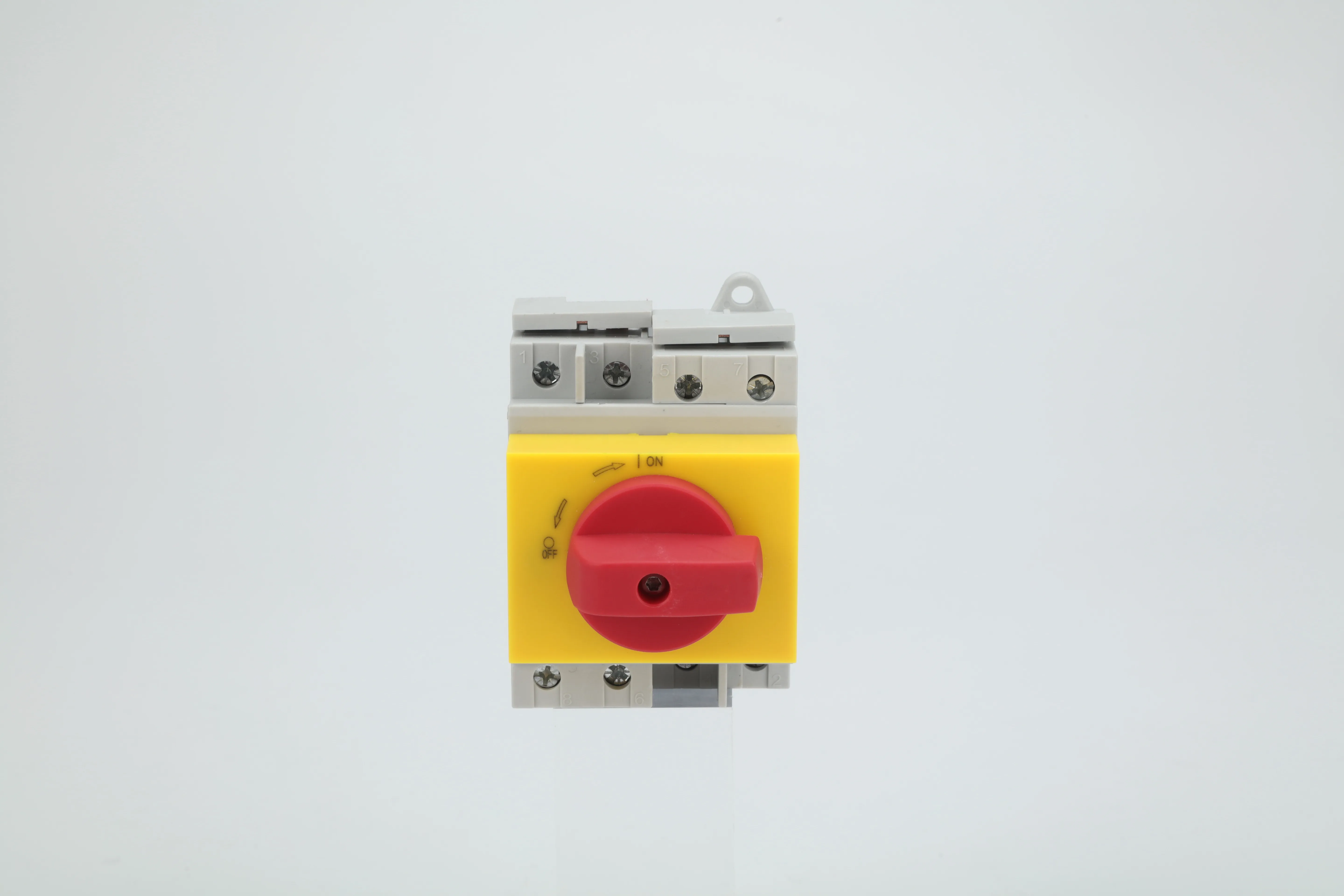

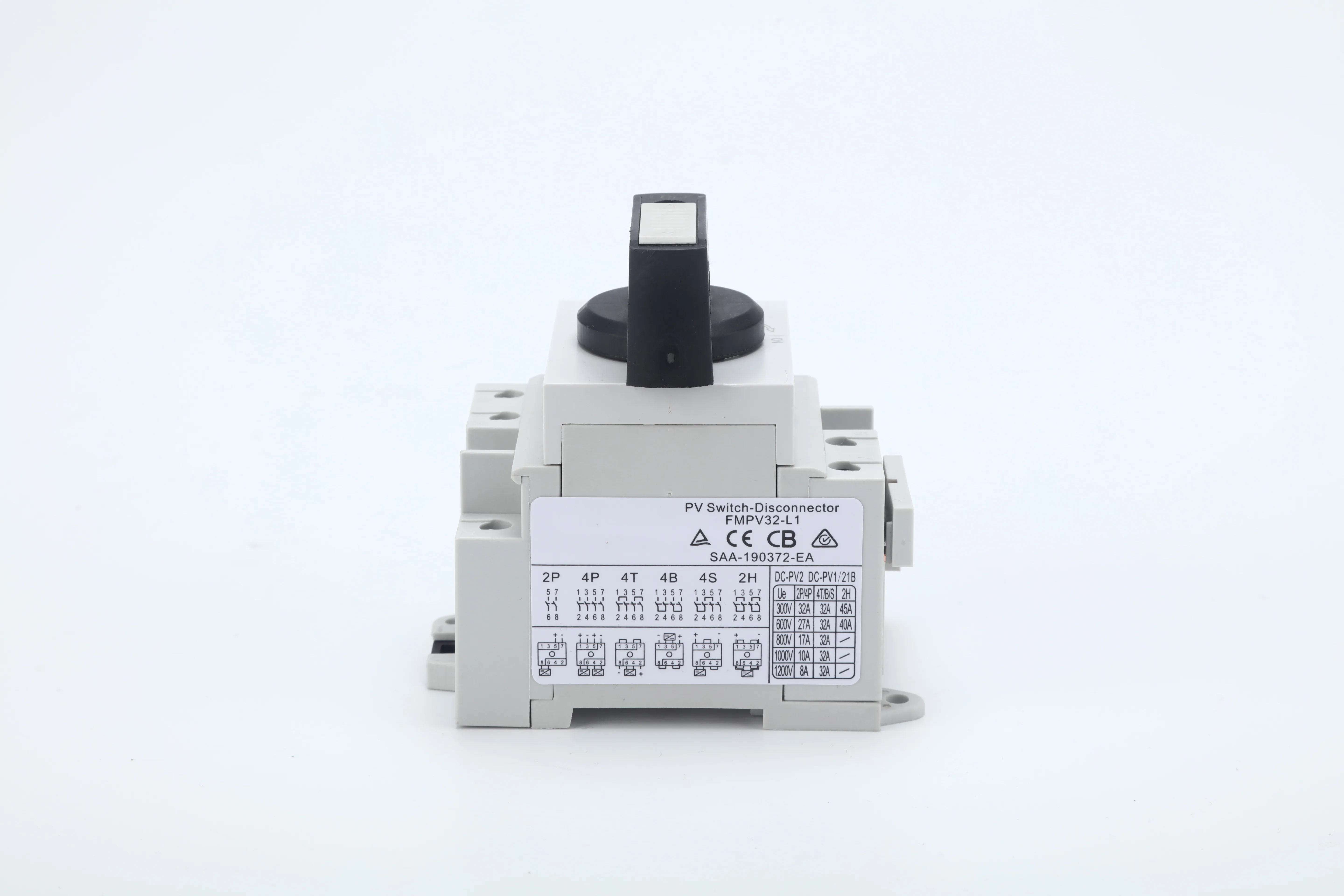

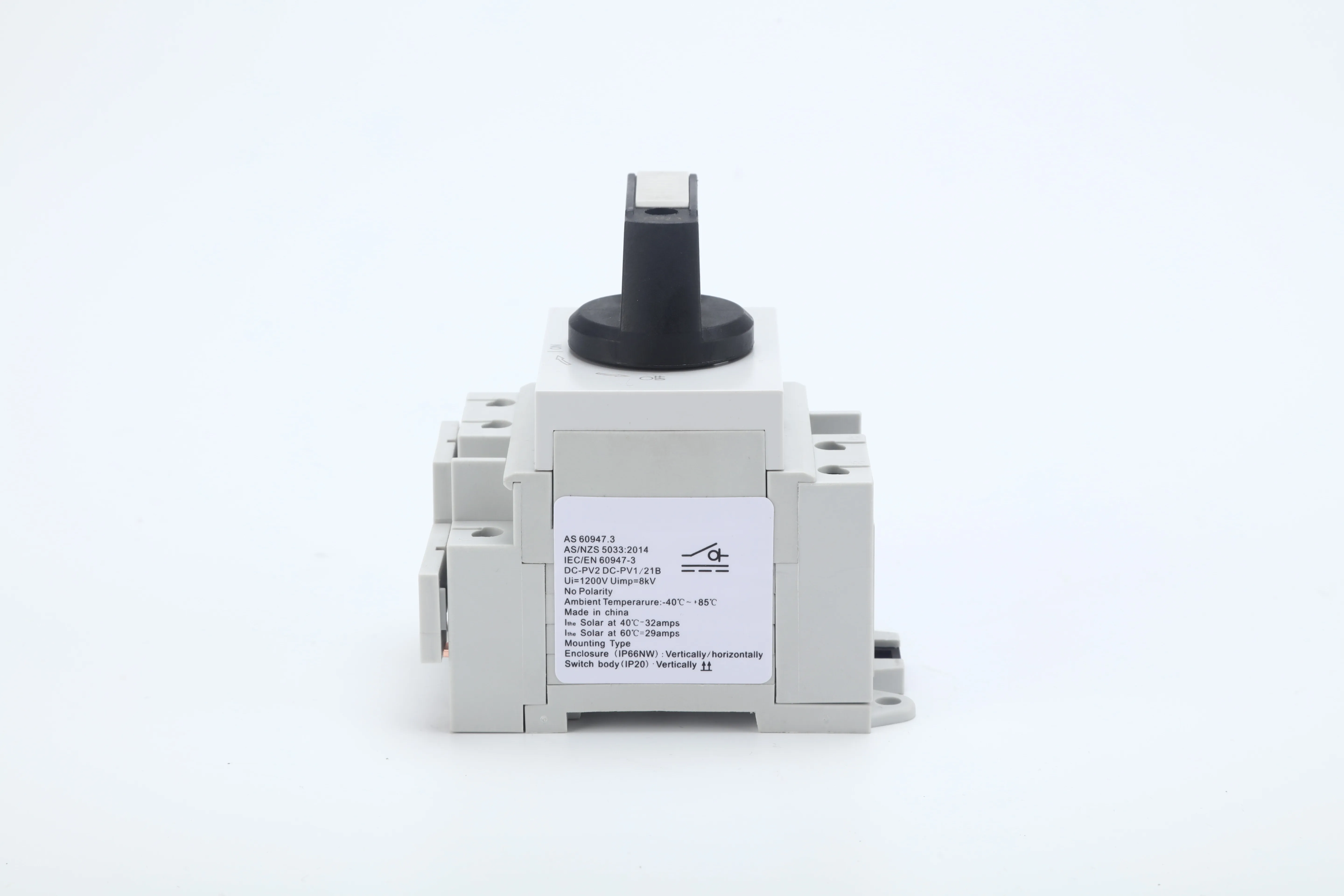

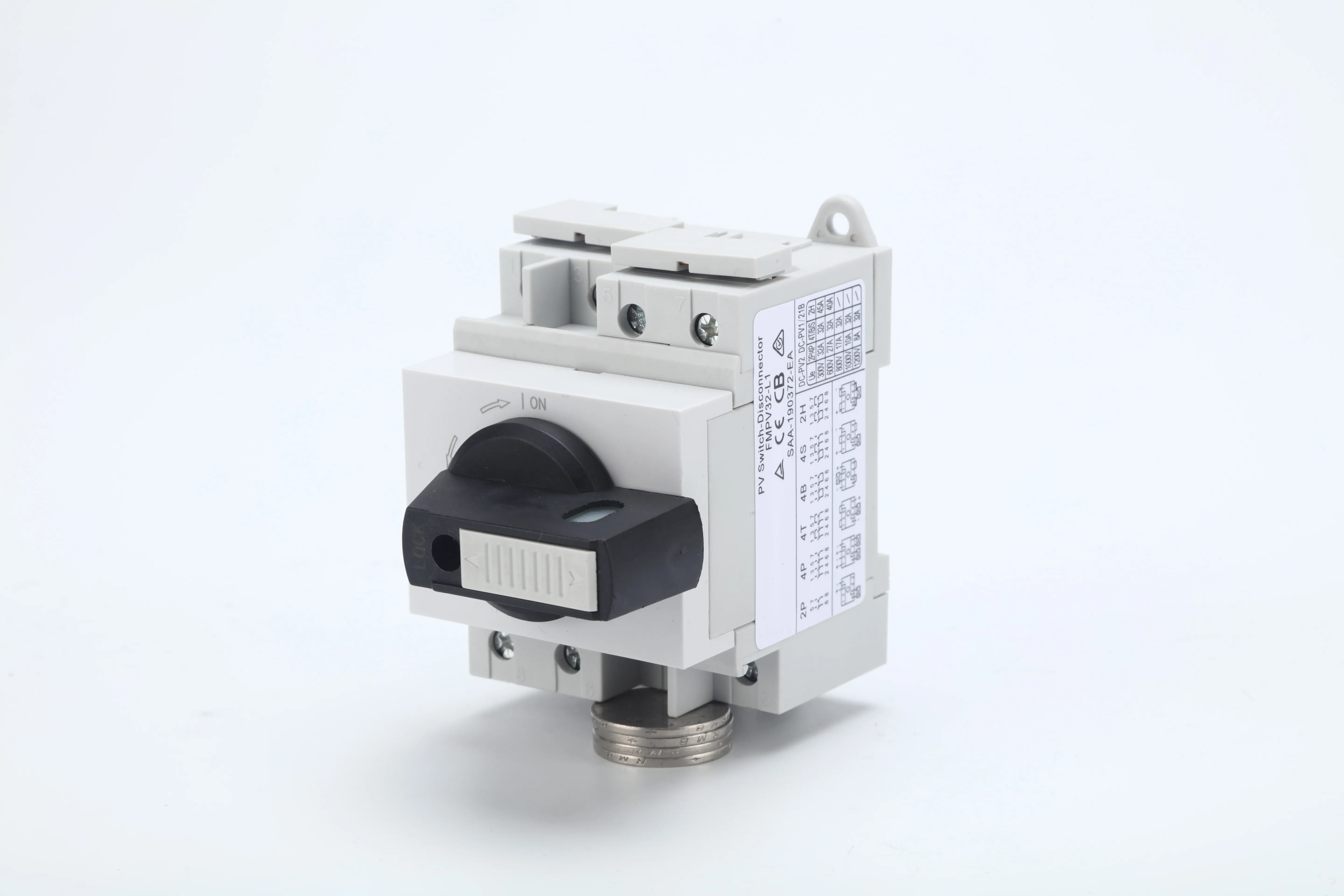

1200V DC PV2 Solar Switch Disconnector/PV Isolator

Product Introduction

The FMPV-L1 series DC Isolator switch is applied to 1-20 KW residential or commercial photovoltaic system, placed between photovoltage modules and inverters. Arcing time is less than 8ms, that keeps solar system much safer. To ensure its stability and long service life, our products are made by components with optimum quality. Max voltage is up to 1200VDC. It holds a safe lead among similar products.

Key Features

IP20 Protection Level

Din rail mounted

The handle can be locked in the "OFF" position

Standard: IEC60947-3, AS60947.3

DC-PV2, DC-PV1, DC-21B

16A,25A & 32A all rated up to 1200V DC.

FMPV-L1  1200VDC Isolator Switch

Product Show







Delivery

With years of export experience along with excellent quality, advanced services and competitive prices, We usually deliver the goods in 7-20days.

We can also custom according to your orders.
