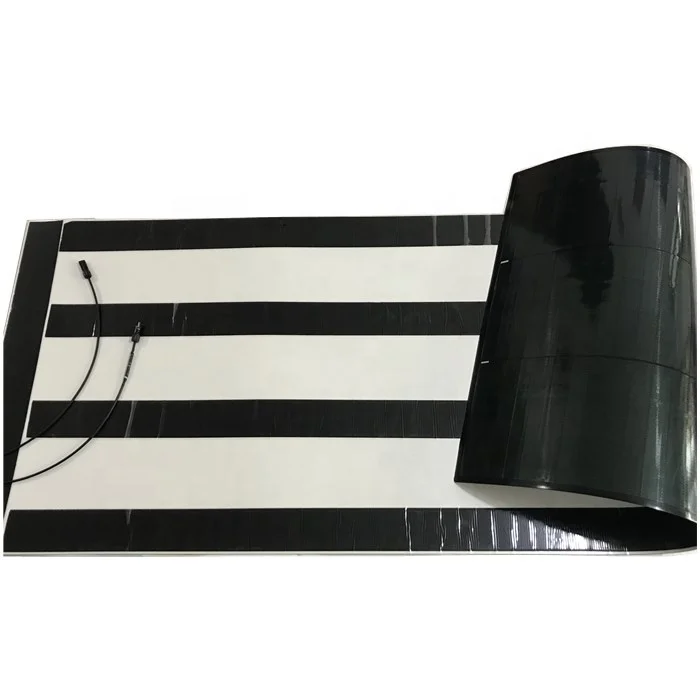

280W/69.3V cigs flexible thin film solar panel for on grid PV system
- Category: >>>
- Supplier: Jinan Lin Quan Import And Export Co. Ltd.
Share on (60133843846):
Product Overview
Description
Product Description
MiaSolé unique solar cells and modules are the key to the world’s most powerful lightweight flexible thin-film CIGS solar modules. These modules are ideal for a wide variety of applications not suitable for fragile, heavy, rigid silicon modules.
MiaSolé is the producer of powerful, lightweight, shatterproof and flexible solar cells. The innovative solar cell is based on the highest efficiency thin–film technology available today, and its flexible cell architecture makes it ideal for a wide variety of solutions ranging from off-grid transportation solutions to commercial roofing solar panels to flexible mobile devices.
Why flexible Solar:
Flexible lightweight shatterproof solar cells and modules can go where rigid breakable glass modules can’t. This makes it possible to add solar energy generation to curved surfaces, vehicles, structures such as carports and storage facilities, floating reservoir covers, landfill membrane covers, low load capacity roofs, as well as mobile devices and many other applications.
Why flexible Solar:
Flexible lightweight shatterproof solar cells and modules can go where rigid breakable glass modules can’t. This makes it possible to add solar energy generation to curved surfaces, vehicles, structures such as carports and storage facilities, floating reservoir covers, landfill membrane covers, low load capacity roofs, as well as mobile devices and many other applications.
Specification
FLEX-03NL-260W | FLEX-03NL-270W | FLEX-03NL-280W | FLEX-03NL-290W | ||||
Cpacity rating(Pmax) | 260W | 270W | 280W | 290W | |||
Tolerance of Pmax(%) | +10 / -0% | +10 / -0% | +10 / -0% | +10 / -0% | |||
Module aperture area efficiency(%) | 14.4% | 15.0% | 15.5% | 16.1% | |||
Maximum Power Voltage(Vmpp) | 67.3V | 68.3V | 69.3V | 70.3V | |||
Maximum Power Current(Impp) | 3.88A | 3.96A | 4.04A | 4.13A | |||
Open Circuit Voltage(Voc) | 86.2V | 86.8V | 87.3V | 87.9V | |||
Short Circuit Current(Isc) | 4.70A | 4.70A | 4.70A | 4.70A | |||
Maximum Series Fuse Rating(A) | 10A | 10A | 10A | 10A | |||
Maximum System Voltage(IEC/UL) | 1000/1000 | ||||||
Dimension(mm) | 5910 mm Length* 348 mm Width * 2.5 mm Thickness | ||||||
Maximum at J-Box(mm) | 17 mm | ||||||
Weight(Module without adhesive) | 3.6 KG | ||||||
Weight(Module with adhesive) | 4.3 KG | ||||||
Weight/Area (Module without adhesive) | 1.7 kg/m2 | ||||||
Weight/Area (Module with adhesive) | 2.1 kg/m2 | ||||||
Junction Box Type | IP 68 | ||||||
Cable connections | Amphenol H4 (MC4 compatible) | ||||||
Cell type | Copper Indium Gallium Diselenide (CIGS) | ||||||
Warranty | 5 year workmanship, 10/25 year power output | ||||||
Certification | UL 1703, IEC 61646, IEC 61730, cUL 1703, IEC 62716 | ||||||

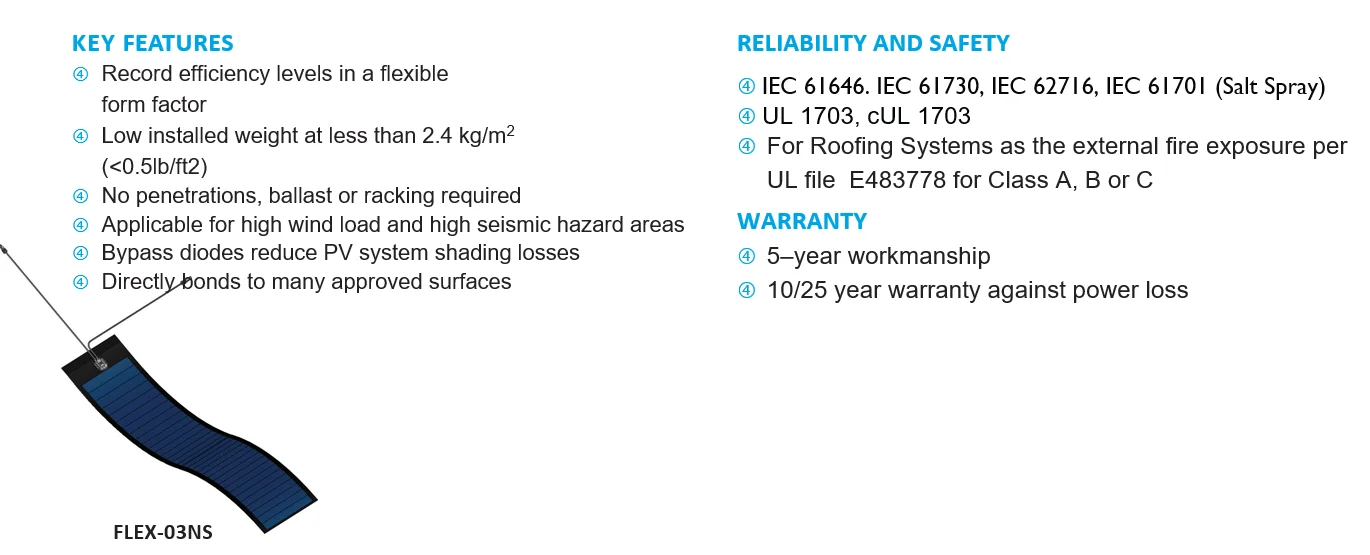

Features
1.Lightweight: Less than 2.4 kg/m2 (<0.5 lb/ft2 ). Because FLEX–02 modules are so much lighter than heavy rigid silicon panels mounted with racks, they are the best solution for building structures with low dead load and environmental load limitations (suchas snow). The modules are also ideal for other structures, such as autos, trucks, and RVs, that are not constructed to support the weight of traditional solar panels.
2. Powerful: MiaSolé FLEX modules are the highest efficiency flexible thin-film CIGS modules in production today, providing the highest power density per kilogram in a commercially available solar module. Our aperture efficiencies are as high as 17%,providing over four times the power generation per kilogram of silicon. In the future, efficiencies of up to 20% are expected.
2. Powerful: MiaSolé FLEX modules are the highest efficiency flexible thin-film CIGS modules in production today, providing the highest power density per kilogram in a commercially available solar module. Our aperture efficiencies are as high as 17%,providing over four times the power generation per kilogram of silicon. In the future, efficiencies of up to 20% are expected.
3. Easy to Install: MiaSolé FLEX modules use peel-and-stick application. This eliminates penetrations into the structure, reducing the chance of leaks. Peel-and-stick application also allows for installation on surfaces such as autos, trucks, and RVs where racks would not be feasible, and lowers the balance-of-systems (BOS) costs and complexity when mounting FLEX modules on rooftops.
4. Flexible: MiaSolé FLEX modules conform to curved surfaces, enabling solar power generation on surfaces not suited to traditional rigid silicon panels.
5. Shatterproof: FLEX modules are shatterproof, and won't break if struck by debris.
6. Resistant to Natural Disasters: MiaSolé modules are thin (2.5mm) and adhere directly to surfaces, providing excellent wind and seismic resistance.
7. Reliable: MiaSolé modules' unique redundant interconnect design enables industry-leading reliability.
4. Flexible: MiaSolé FLEX modules conform to curved surfaces, enabling solar power generation on surfaces not suited to traditional rigid silicon panels.
5. Shatterproof: FLEX modules are shatterproof, and won't break if struck by debris.
6. Resistant to Natural Disasters: MiaSolé modules are thin (2.5mm) and adhere directly to surfaces, providing excellent wind and seismic resistance.
7. Reliable: MiaSolé modules' unique redundant interconnect design enables industry-leading reliability.

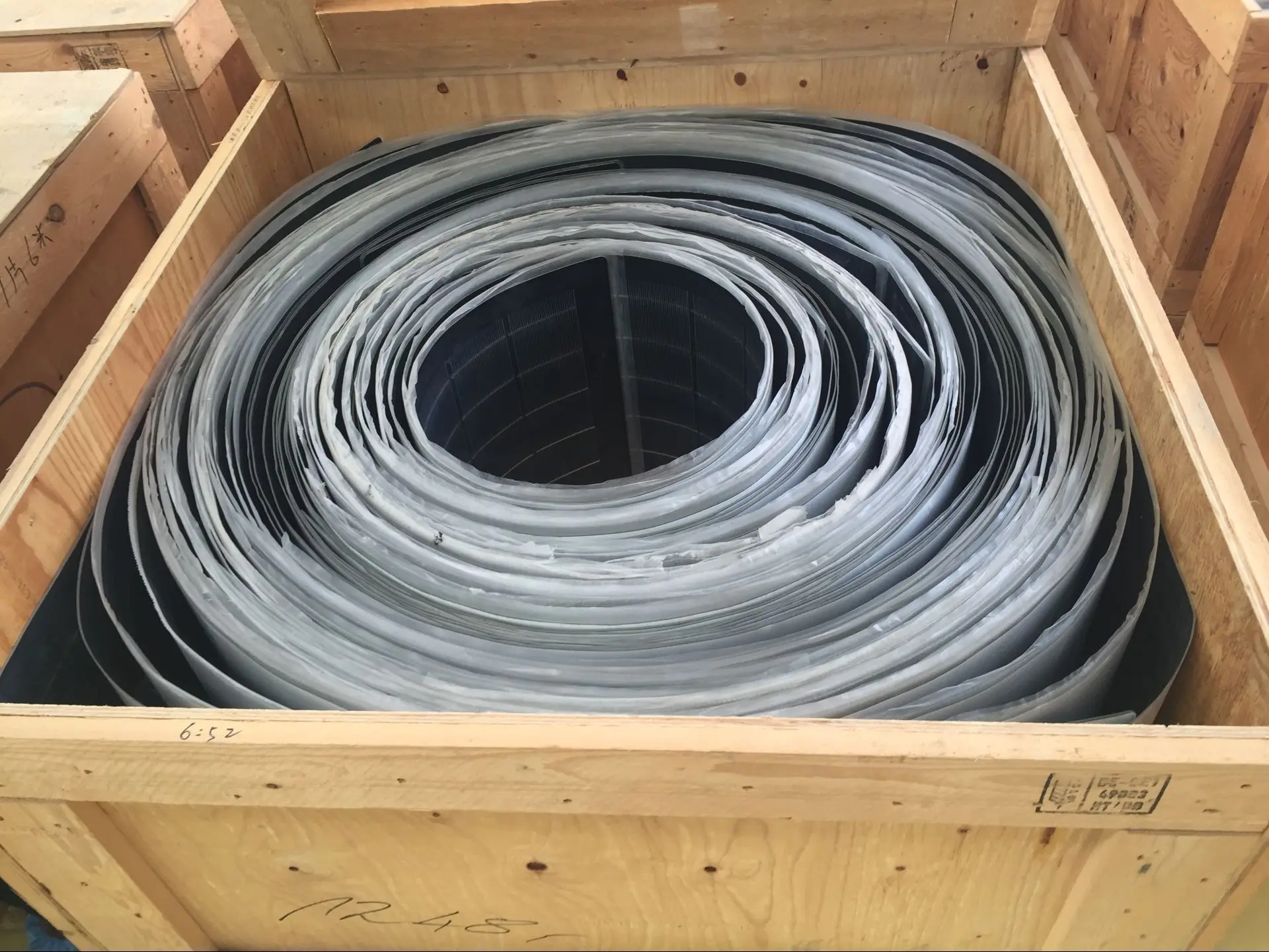

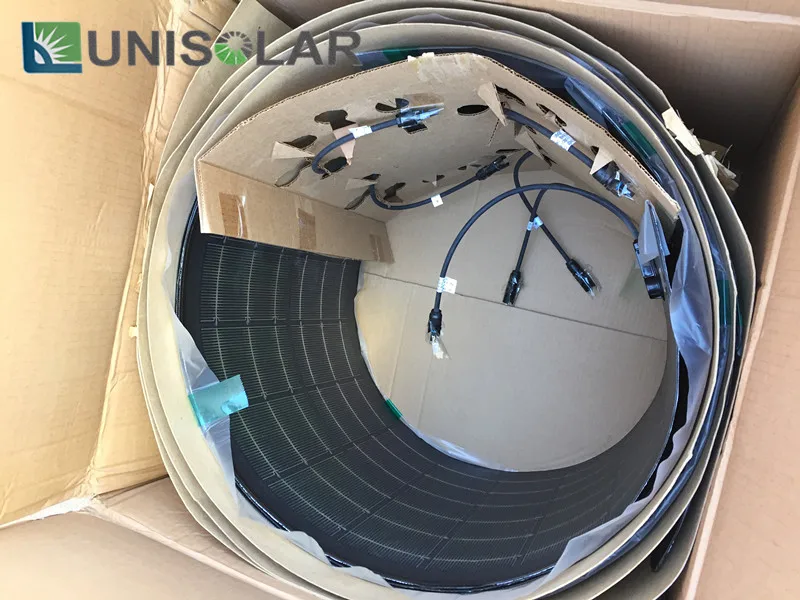

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Application
Title goes here.
Membrane Roof Systems
Metal Roofing Systems
Geomembrane Covers for Water Reservoirs and Landfills
Carport
Marine/boat/ship.....
Company Profie
ABOUT US:
UNISOLAR is registered brand of Jinan Linquan Import and Export Co., Ltd.
Following official authorization from Hanergy from year 2015, UNISOLAR is focusing on overseas marketing for high efficiency Miasole Flexible Solar Panels.
UNISOLAR is registered brand of Jinan Linquan Import and Export Co., Ltd.
Following official authorization from Hanergy from year 2015, UNISOLAR is focusing on overseas marketing for high efficiency Miasole Flexible Solar Panels.

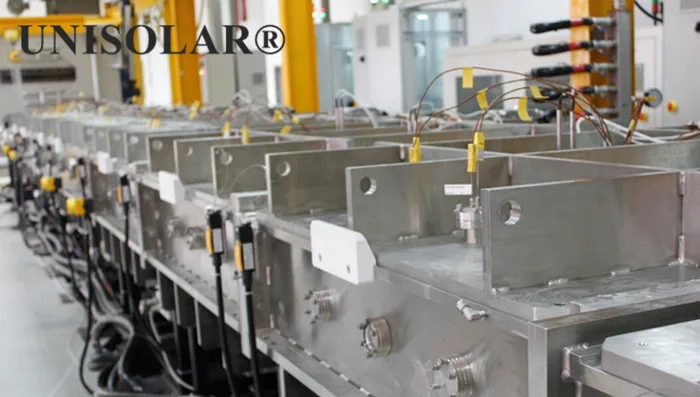

Production base situated in Zibo, Shandong, CHINA, UNISOLAR has become the leading exporter for powerful, lightweight, shatterproof and flexible solar cells. The innovative solar cell is based on the highest efficiency thin–film technology available today, and its flexible cell architecture makes it ideal for a wide variety of solutions ranging from off-grid transportation solutions to commercial roofing solar panels to flexible mobile devices.
