Factory Direct sales !!! 24kw 50kw Isuzu Diesel Engine For Sale

Product Overview

Description

Factory direct sales,  produced by our own factory

we can supply competitive price to you, welcome to inquiry



------ The characteristics of isuzu diesel engine for sale



1)Brand: Isuzu

2)High Quality,cheapest price
3)Certification:ISO9001:2000
4)Rated power:24kw-50kw
5)water cooled diesel engine

6)High efficiency,low fuel consumption

7)Factory direct sales



Reliability



The crankshaft is made of alloy steel forging. the life 3 times is long more than ordinary nodular cast iron crankshaft.



We make cooperation with the AVL company,we have completed the cylinder cooling waterway improvement design.And completely solved the problem of the cylinder body thermal deformation in design of the Japanese.



For our engine the water cooling tank is top up to 50℃,which can be applied to high temperature dry tropical subtropical regions.



Economy



With 93 mm bore also low emission an high compression ratio, the minimum fuel consumption rate is not higher than 215g/kw.h.



The pump chamber of oil pump adopts the integral casting technology. the pump end achieve higher pressure as well as better fuel atomization effect.



We adopt the ball omega combustor design patent technology of Austrian AVL company, the mixture of oil and  gas in the cylinder more fully, GAC electrically controlled system.





GAC Electrically controlled system



Our engine have the function of over speed protection, over load protection function, make the engine has higher security.



We use of pure digital circuit system on a chip, actuators, controllers. Integrated design method, make the products with high corrosion resistance and shock resistance. At ambient temperature -40℃-85℃ can be reliable work.



For our engine, we can achieve the idle speed condition and calibration condition changed each other, by setting the transformation for the speed of 1500rpm and 1800rpm will be achieved on the same engine, which can satisfy different market needs.



Steady-state adjusted rate of 1% or less, speed fluctuation of 0.25% or less, a sharp rise in the whole engine performance indicators.



Get a quick and efficient by GAC global service network technical support.



The engine of 4JB1T model at 3000rpm adopt the new VE jet pump, with compact structure, and effectively omprove the power machine which adopt a plunger oil, make each cylinder oil supply more evenly, run more smoothly, more reliable for the quality.







------ Isuzu diesel engine



     1.selection table



2. Technical Parameters: 4JB1 for example

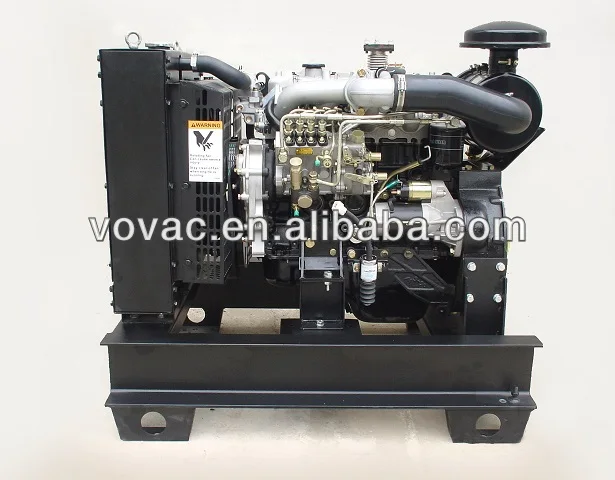

3. Exterior Figure: for 4JB1 series

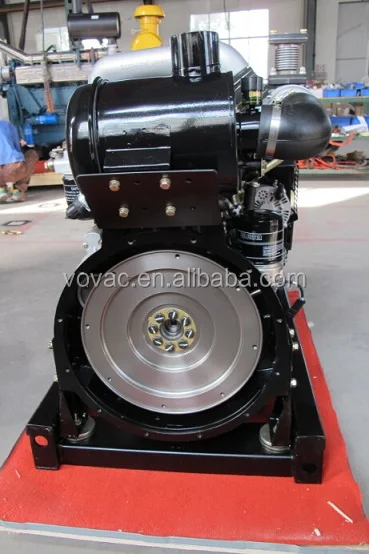

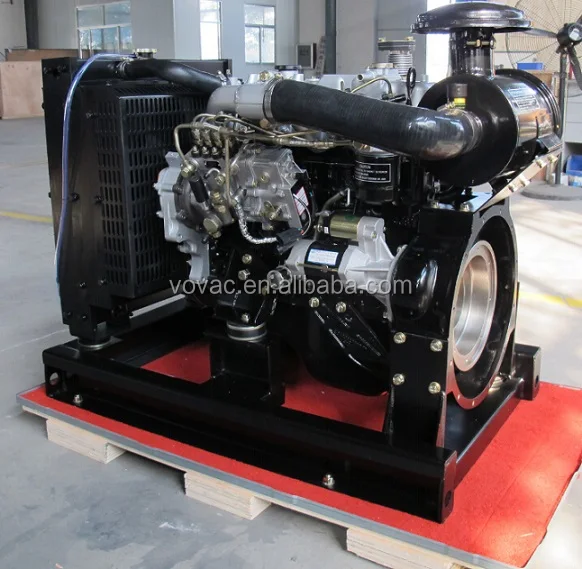

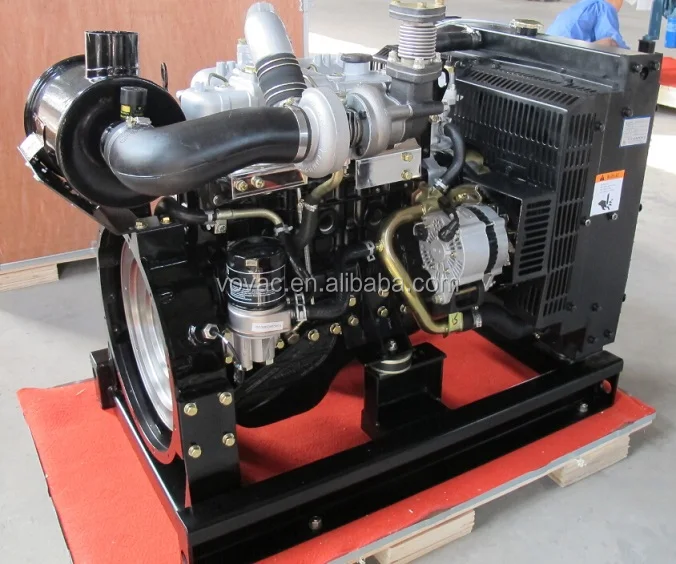

 ------ Isuzu diesel engine Pictures







------ Application/ Usage: for diesel generator,diesel water pump ,or connect with clutch for stationary power

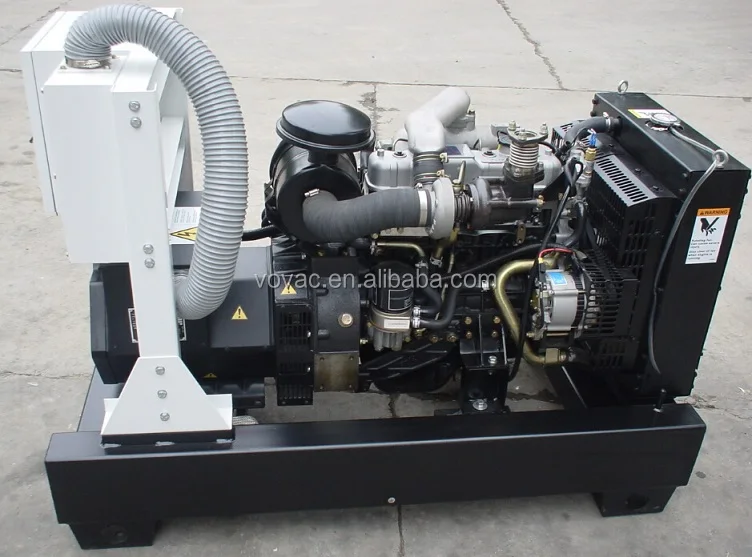

                               Isuzu Diesel generator

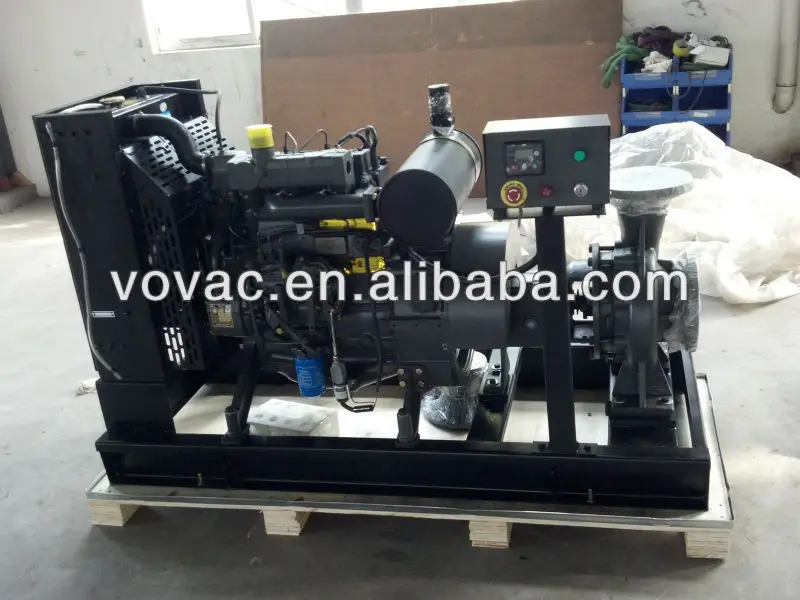

                                                                      Isuzu Diesel Water Pump

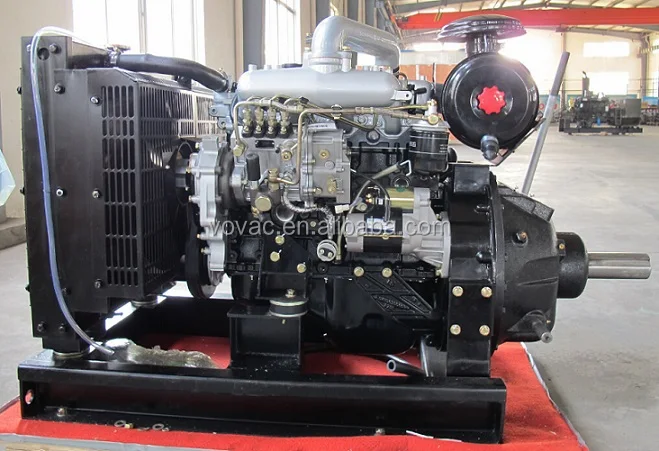

Isuzu diesel engine with clutch



 ------ Technical Parameters of Isuzu Generator                         For example: 24kw



Model of Diesel Generator	VI24GF
Prime /Max Output(kw)	24/26.4
Rated voltage (V)	220/380V
Rated frequency (Hz)	50HZ
Type	open type
Model of Diesel Engine	Isuzu 4JB1T
Rated Output	28KW
Rated Speed (r/min)	1500rpm
Starting Method	12V DC Electrical motor
Governing Method	Electric governing
Intake Method	Turbocharged
Cylinders	4.L
Type	closed water cooling,in-line,4 stroke,humid liner,direct injection
Bore/stroke	93/102mm
Displacement	2.771L
Fuel consumption(g/kW.h)	6.5L/H
Model of Alternator	JSA184L9
Rated Power(KW)	25KW
Rated Frequency	50HZ/1500rpm
Power Factor(cosφ)	0.8(lag)
Excitation	Brushless
Connection	3phase-4wire
Control System	low/over speed, Battery charger fail;Urgent shut down; Low oil pressure; High water temperature; Starting failure;Loss of speed signal; and so on.
Delivery Time	about 20 working days after received 30%deposit











------ Contact information



If you are interested in our isuzu diesel engine products,pls contact us, more information will be supplied.
