PLCC 2 IR 850 LED
AP3528L-20EIR85
Product Description
Features
•Top view, Wide view angle, IR PLCC 2 package SMD LED .
•EIA STD package, packing in 8mm tape on 7" diameter reels
•Compatible with automatic Pick & Place equipment.
•Compatible with IR Reflow soldering and TTW soldering.
•Pb free product and acceptable lead-free process.
•Meet RoHS Green Product
•EIA STD package, packing in 8mm tape on 7" diameter reels
•Compatible with automatic Pick & Place equipment.
•Compatible with IR Reflow soldering and TTW soldering.
•Pb free product and acceptable lead-free process.
•Meet RoHS Green Product

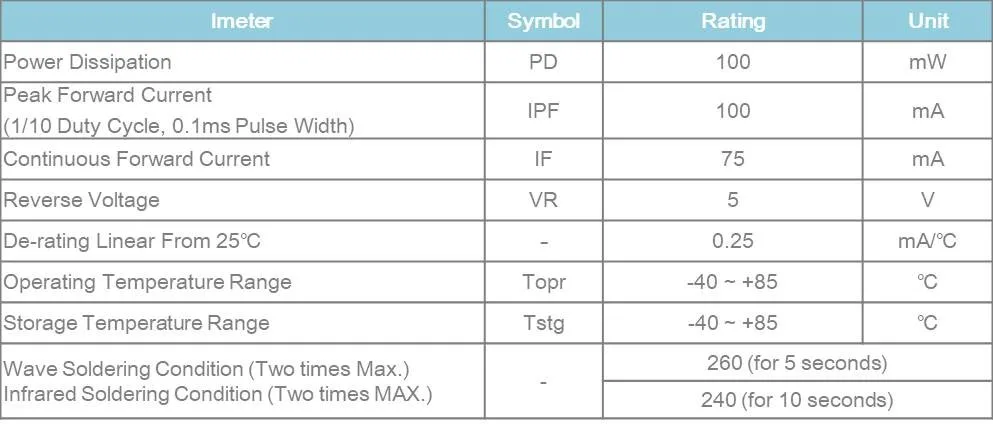

Absolute Maximum Ratings (Ta=25℃)

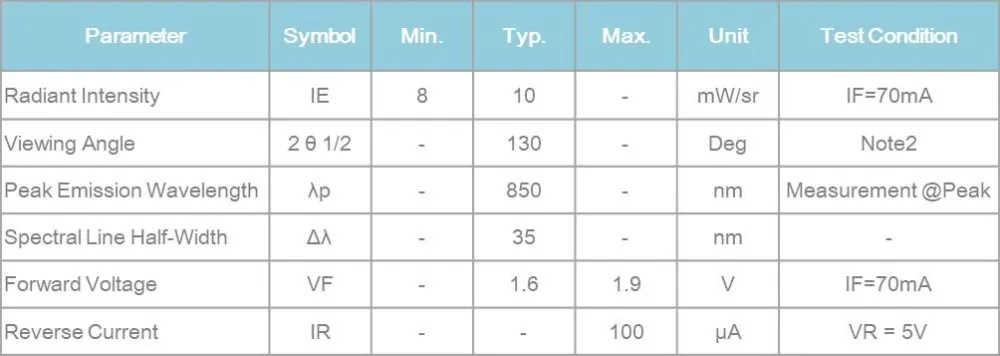

Electro-Optical Characteristics (Ta=25℃)

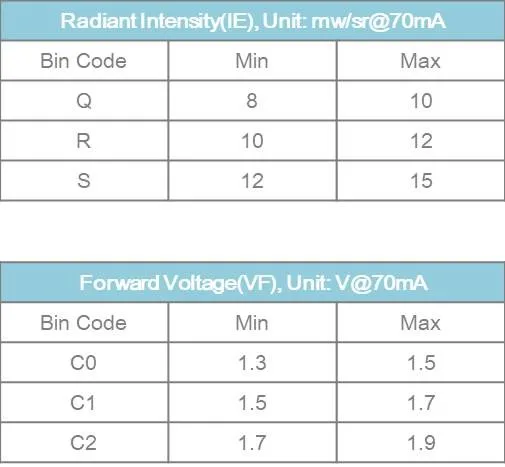

Bin Code List
Package Dimension

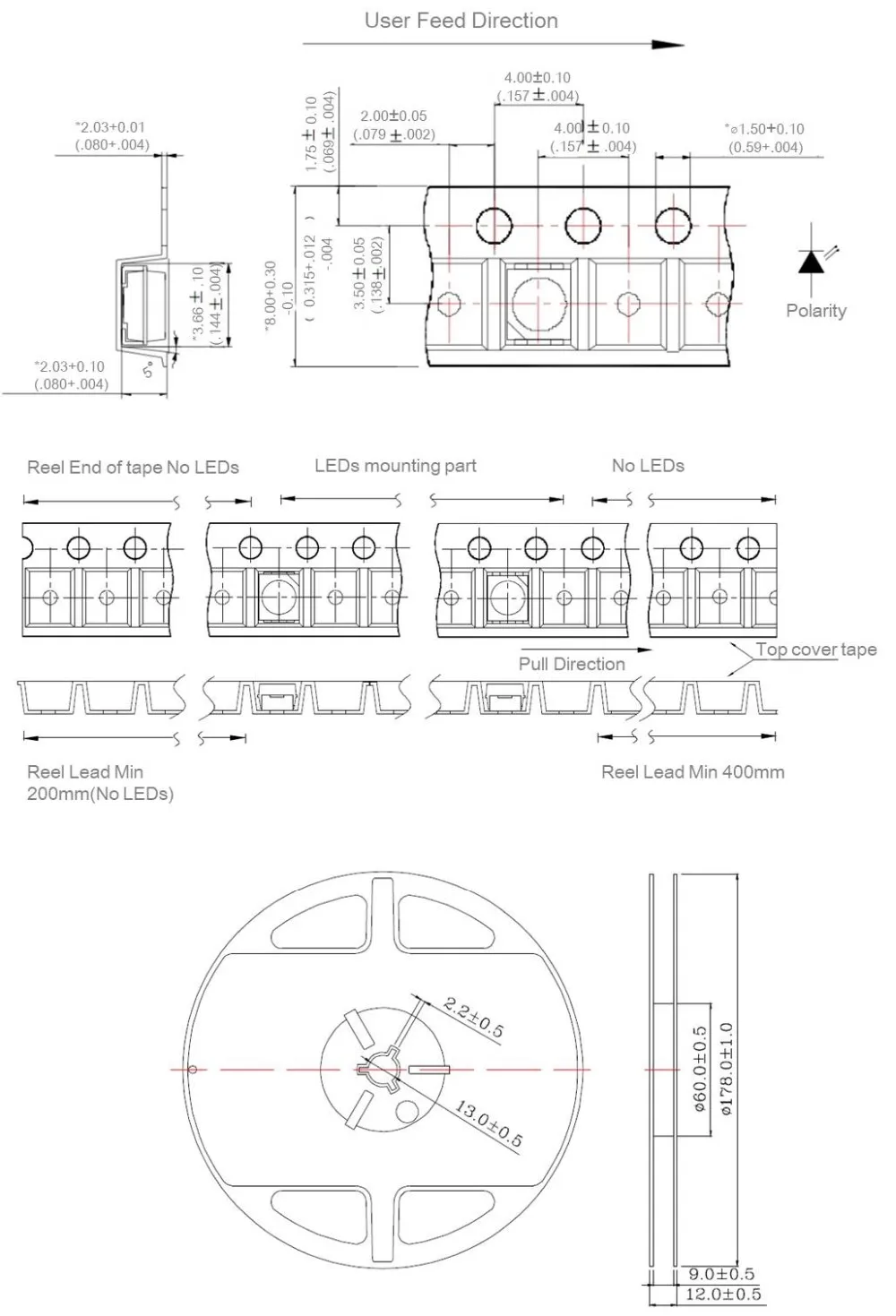

Tape Dimensions
Max.2000 pcs Per Reel
