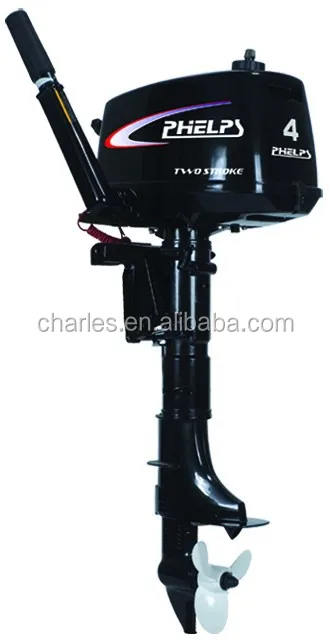

Yamabisi two stroke 4hp gasoline outboard engine with long or short shaft

Model

Unit

T4BML

T4BMS

Overall length

mm(in.)

635(25)

Overall Width

mm(in.)

362(14.3)

Overall Height

mm(in.)

1245(49)

1115(43.9)

Transom Height

mm(in.)

571(22.5)

444(17.5)

Weight

Kg

20

19

Full throttle Operating Range

r/min

4500~5500

Maximun Output

Kw(hp)@r/min

2.9(4)@5000

Idling Speed(neutral)

r/min

1100~1200

Engine Type

2-STROKE

Cylinders

1

Displacement

cm3

83

Bore*Stroke

mm(in.)

50.0*45.0(1.97*1.77)

Ignition System

CDI

Control System

Tiller Control

Starting System

Manual Start

Gear Positions

Forward-Neutral-Reverse

Gear Ratio

2.08(27/13)

Trim and tilt system

Manual tilt

Fuel tank Capacity

L

28

Engine oil capacity

(without oil filter)

(Fuel:oil ration:50:1)

Gear oil Capacity

cm3

320

Propeller Spec.

In

3-7 1/7"×7"

Packing

L*W*H

1245*635*362

1115*635*362

20GP

PCS

100

114

40HQ

PCS

242

273

Packed with soild foam, good strong carton, pallet for sample order

B=BACK CONTROL,M=MANUAL START,S=SHORT SHAFT,L=LONG SHAFT

Our Marine Engine Rang

Two stroke: 2.5HP ,4HP, 5HP, 8HP, 9.9HP, 15HP and 40HP motors

Four stroke, 2.5HP, 4HP, 5HP, 9.9HP, 15HP
