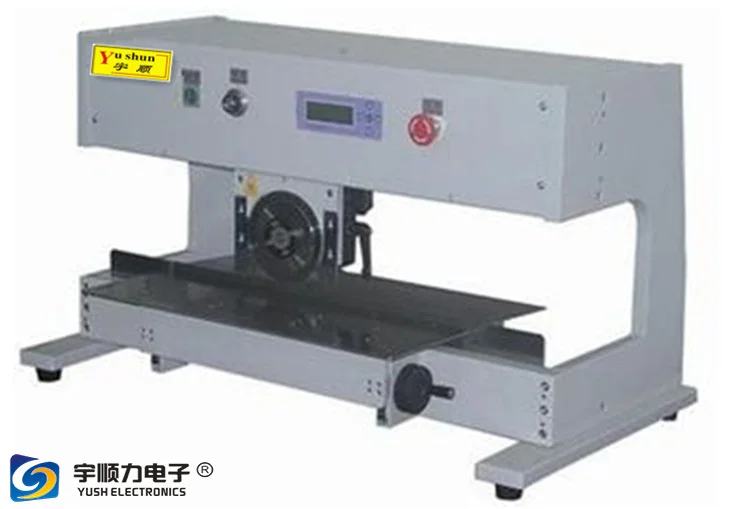

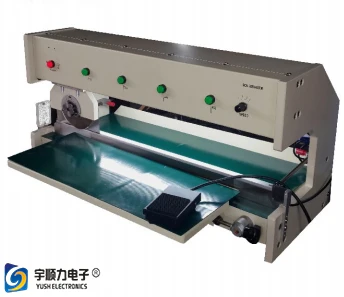

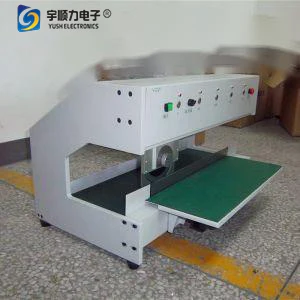

pcb guillotine/ pcb lead cutter/ pcb lead cutting machine [YSV 1A]

Product Overview

Description

pcb lead cutting machine specifications:



Model:   YSV-1A
length (mm): 460 or 600
speed (mm/s): 100/200/300/500
thickness(mm): 0.6-3.5
power supply(v):  110/220
Size(mm): 770*510*450
weight: 55kg





(YSV-1A) features:

1.Separate pre-scored PCB assembly without stress on either PCB or component
2.One touch programming of cut length with digital display
3.Separating speed is adjusted by a rotary knob
4.Handle Intermittent scoring or cut-outs
5,Board with projected component can be cut precisely
6.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7.Optional PCB conveyor belt to remove finished board
8.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out



Competitive Advantage:



1.YSV-1A  pcb cutting machine original manufacturers

2. Day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Depanel Experts, the provision of professional PCB sub-programme
