PLC Control auto Inspector & Rewinder,Re reeling and Doctoring Machine, Inspection Rewind Machinery

Product Overview

Description





Description:

PLC Control auto Inspector & Rewinder,Re-reeling and Doctoring Machine, Inspection Rewind Machinery  XMY-A(1300)



Equipment supply:

1	Unwind motor	5.5kw	ABB
2	LPC	ELPC68SR	Dongdianyan	Taiwan
3	Linear rail	BRH30A	ABBA	Taiwan
4	Traction motor	2.2kw	ABB
5	Traction frequency inverter	2.2kw	YASKAWA	Japan
6	Traction roller	Ø120 rubber roller	Zhuoshi	China
7	Guide roller	Ø100 Al roller	Guangtai	China
8	Rewinding motor	5.5kw	ABB
9	Rewind & unwind frequency inverter	5.5kw	YASKAWA	Japan
10	Touch screen	MT6100iV2	WEINVIEW	Taiwan
11	PLC	AFPX series	Panasonic	Japan
12	Pneumatic equipment		AIRTAC	Taiwan
13	Electric-magnetic valve	AV310-08-24V	AIRTAC	Taiwan
14	Encoder	ENC-1-600-1	AUTONICS	Korea
15	Bearing		NSK	Japan
16	Timing belt, wheel		Fulong	China
17	Pressure sensor	MT1041-30	METTLER	USA
18	Pressure regulating valve	IR2020-02	SMC	Japan
19	Stroboscope	DT-02	Hangzhou	China
20	Image scanning system(optional)		SHUANGYUAN	China





Application:

This machine is suitable for BOPP, PET,PE, CPP, PVC and combined film and paper with same properties.



Features:



1.The complete machine is equipped with imported PLC, and with a touch screen and man-machine interface in



operation.

2. The unwinding transmission is governed by a frequency inverter vector adjusting vector motor, and PLC can



automatically calculate the unwinding diameter, which can achieve the unwinding tension controlling constantly.

3. The traction transmission adopts frequency vector inverter adjusting vector motor; achieving constantly controlling the linear speed.

4. The rolling transmission is driven by a vector frequency motor and floating roller system and PLC can automatically calculate the unwinding diameter, achieving the unwinding tension conical controlling. Adopting floating roller to control tension that can real achieve the rolling of zero tension, to solve the problem of printing picture inverse adhibit and material strengthen because of the heavy tension.

5. The system is equipped with an auto flasher in order to observe the printing patterns. If the printing defects of

 the printing patterns are observed in eyes, please press the button to automatically return to the defect point.

6. The system can calculate the meters, measure the roller diameter, protect the machine when the feeding material roller becomes smallest and the collecting roller becomes largest, and protect the machine when it is short of materials.

7. The rewinding and unwinding device adopts shaft-free core (also called air shaft feeding), which is feed material through clipping closely by a thread rod, and the width adjustment is done electrically as well.

8. The edge correcting device is static with the movement routine ranging to 120mm.

9.It can install slitting device.

10. The design of this machine is integrated the electric, mechanical, and pneumatic technology, and with a complete security protecting device.



Technical Parameter:

Width of Material :	1300mm
Diameter of Material:	Φ800mm
Diameter of Paper core:	Φ76mm  Φ152mm
Verifying Speed :	300m /min
Width of Finished Products :	30-1300mm
Slitting Precision:	0.5mm
Weight :	4500kg
Total Power:	15kw
Overall Dimension(LxWxH)(mm):	W2900*D2400*H2150

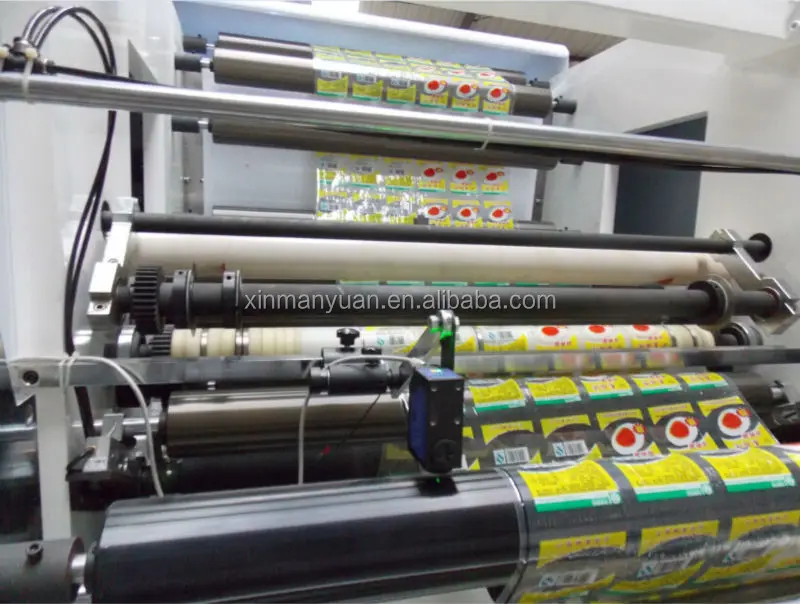

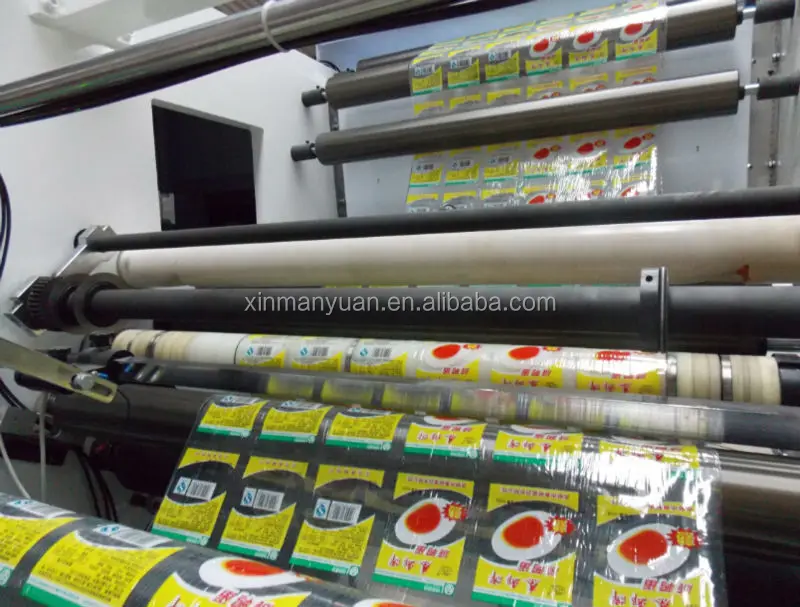

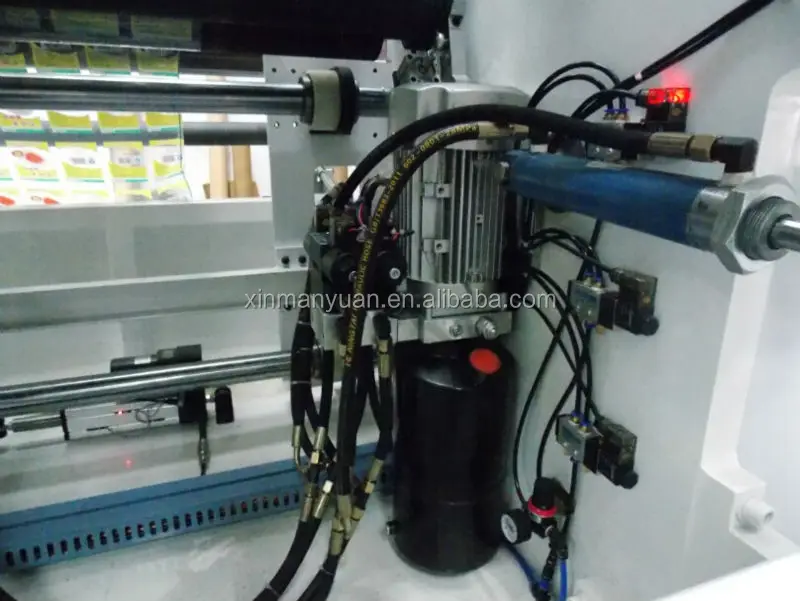

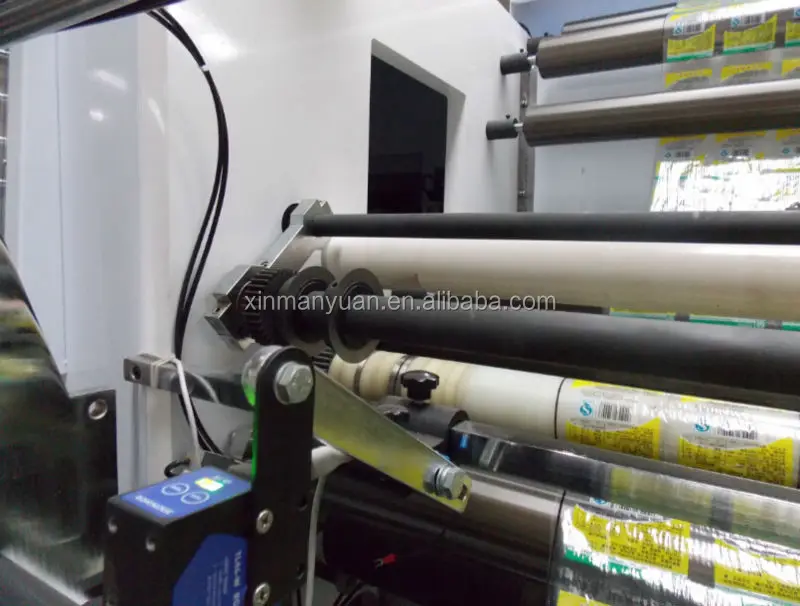

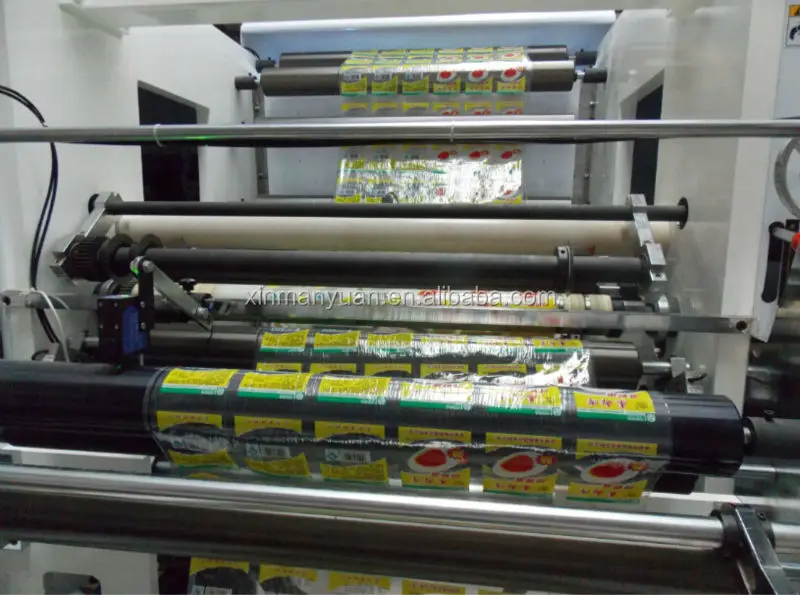

More photos:





Certification:

After-service:

1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
