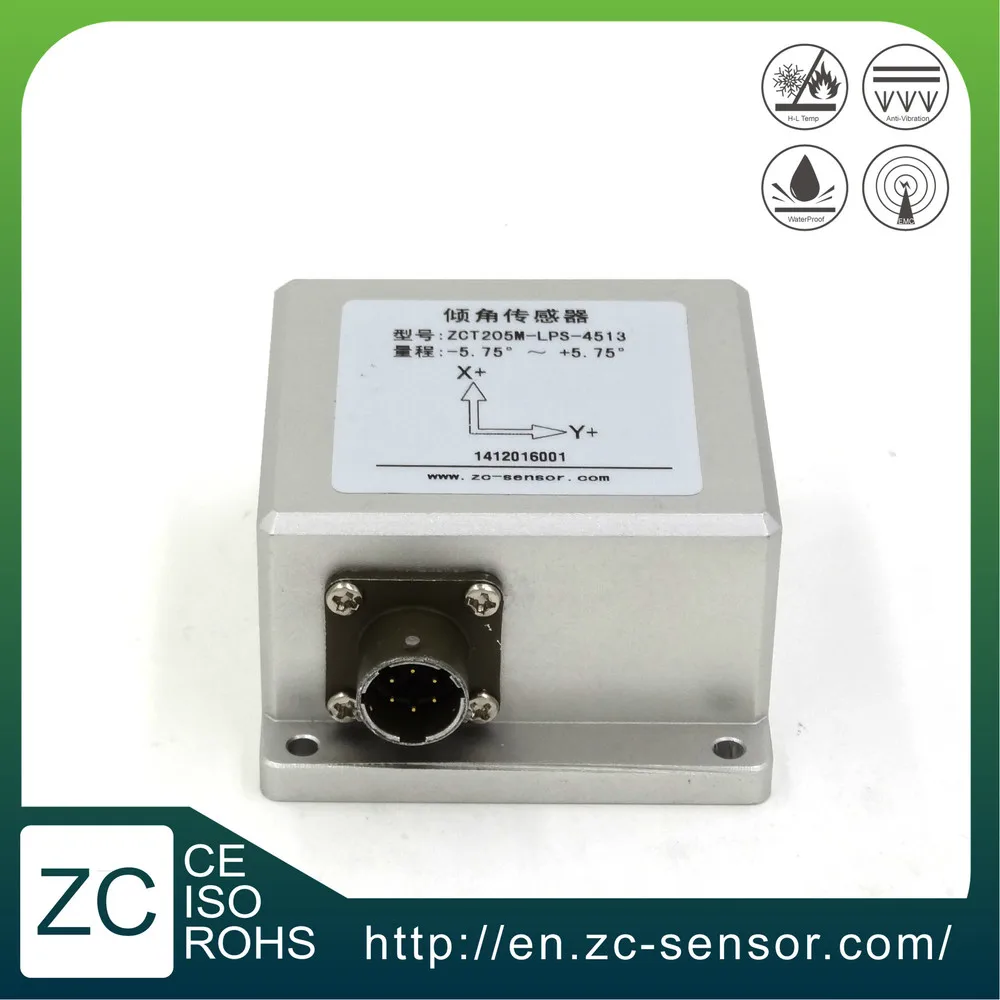

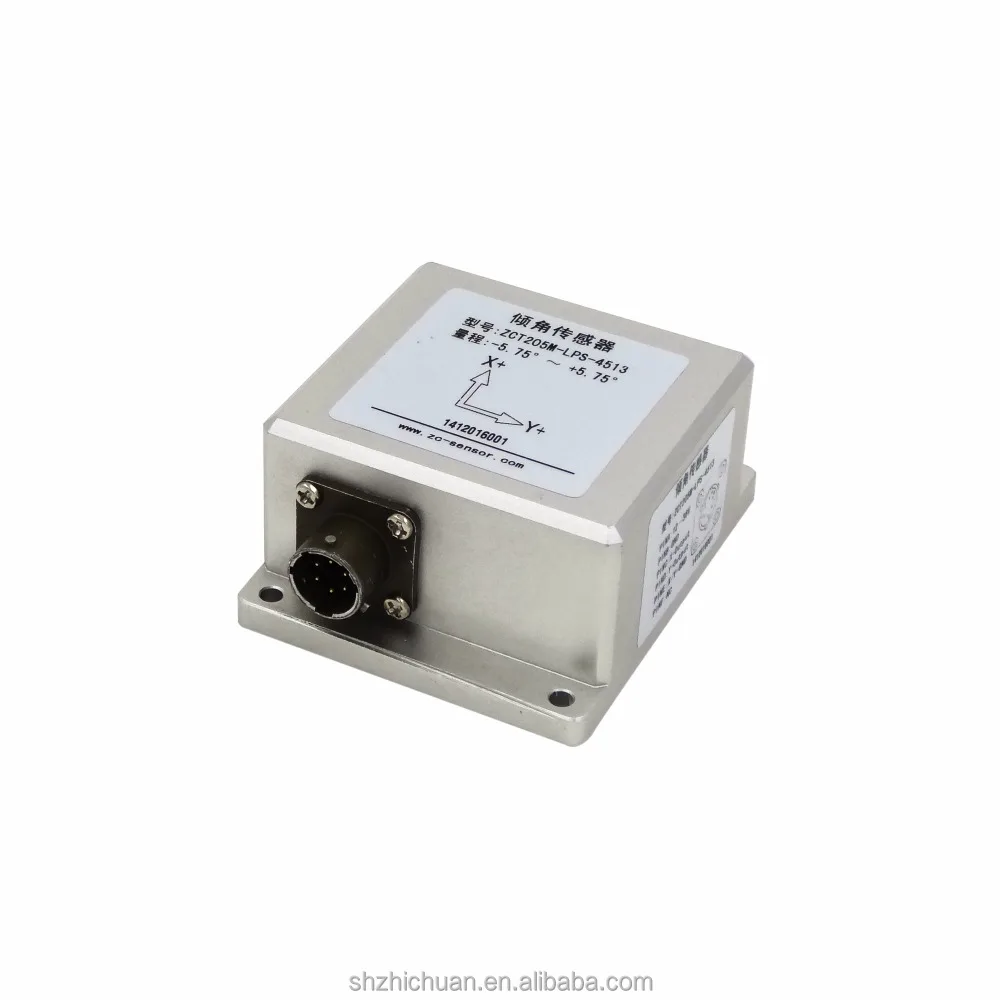

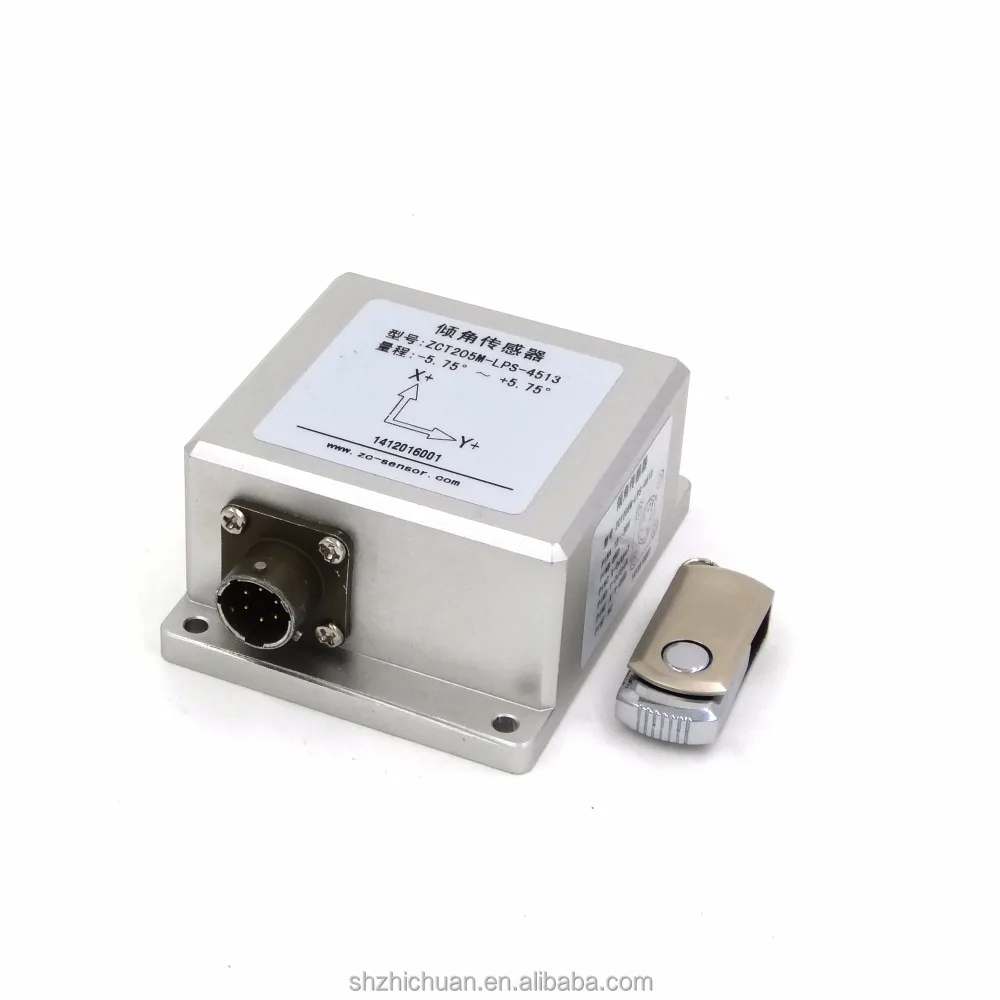

ZC Highly recommended georadar angle sensor (ZCT205M LPS 4513)
- Category: >>>
- Supplier: Shanghai Zhichuan Electronic Tech Co. Ltd. [Shanghai China]Shanghai
Share on (60135248715):
Product Overview
Description
| I General description ZCT205M-LPS-4513, a 2-axis, high accuracy and current output interface georadar angle sensor. Is researched and produced by Shanghai Zhichuan Electronic Tech. Co., Ltd. It is standard three-wire 4-20mA analog current output, which is strong anti-jam and can be used to long distance signal transmission. |
II Features | III Applications |
Industrial devices entirely Stable and reliable performance Shockproof, anti-seismic Housing protection:IP65 | Construction machinery and vehicle Safe control and inclining monitor |
IV Technical specification (Unless otherwise specified, the following parameters were measured at room temperature 25°C)
| item | condition | Min. | Type | Max. | unit |
Operating parameter | Supply voltage *1* |
| 10 |
| 30 | V(DC) |
Quiescent current | VCC=24V |
| 25 | 30 | mA | |
Operating temperature |
| -40 |
| 85 | ℃ | |
Performance parameter | Measuring range*2* |
| -5.75 |
| 5.75 | ° |
resolution |
|
| 0.001 |
| ° | |
Non-linearity *3* | VCC=24V Load resistance100Ω |
| ±0.1 |
| %/FS | |
sensitivity |
| 1.3897 | 1.3913 | 1.3929 | mA/° | |
Zero temperature drift | -40 ~ +85℃ |
| ±0.002 | ±0.004 | °/℃ | |
Cross-axis sensitivity |
|
| ±0.2 | ±0.3 | % | |
load resistance | VCC=24V |
|
| 600 | Ω | |
zero | 0° | 11.713 | 12 | 12.287 | mA | |
Others | size |
|
| 85*70*40 |
| mm |
Cable length |
| 0.4 | 0.5 | 0.6 | m |
*1* In normal operation state, make sure the supply voltage is in the allowable range, and 24Vol is introduced.
*2* The georadar angle sensor should be installed horizontally.
*3* Non-linearity means the deviation between output curve and the best fitting line in the measuring range.
Our Services
Our service of CE Certificate IP 67 cheap and high quality 4~20mA output sensor
1.Experienced staffs answer all your questions in fluent English.
2.Customizde design is available.OEM products are welcomed.
3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers
Company Information
Company and product information related of CE Certificate IP 67 cheap and high quality 4~20mA output sensor
We are the manufacture of tilt sensor and georadar angle sensor in shanghai china.Our sensor is based on MEMS technology. As a professional manufacturer of tilt sensor in China, we can provide following service for you:
1. Good quality product
2. On-time delivery
3. Custom- order service
4. Competitive price
Certificate:
