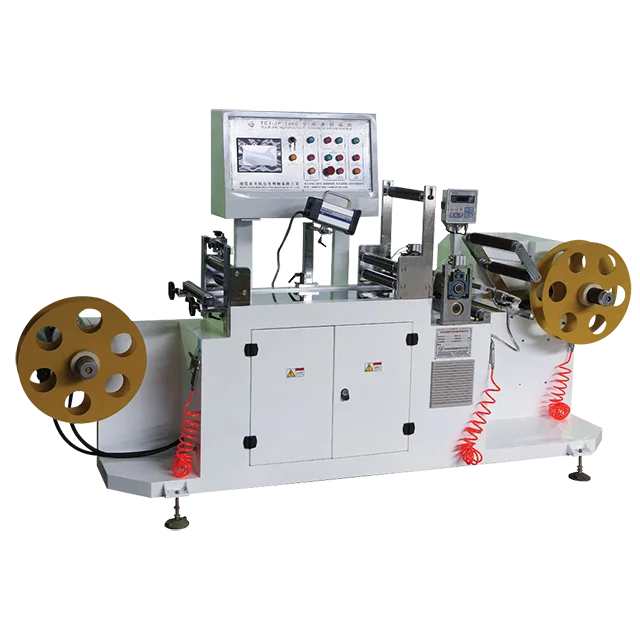

TCJ JP 300C PVC PET Sleeve Label Rewinding Doctoring Machine Label Plastic Film Roll Rewinding Machine
- Category: >>>
- Supplier: Ruian Tiancheng Packing Machinery Co. Ltd.
Share on (60135436161):
Product Overview
Description
Banner
Products Description
PRODUCT NAME | High Speed Shrink Sleeve Label Rewinding Machine | |||
PRODUCT ROLE | Is specialized in inspecting the sleeve tube seaming label which was sealed by the sleeve label sealing machine. Through the inspection & rewinding, we can check the sealing quality ,printing quality etc. | |||
PARAMETER | Raw material | PVC,PET,PET-G SHRINKABLE TUBE FILM | ||
Max. unwinding width | 300mm | |||
Max. unwinding diameter | Φ750mm | |||
Max. inspection speed | 300m/min | |||
Max. rewinding diameter | Φ750mm | |||
Max. rewinding width | 300mm | |||
Range of oscillation | ±25mm | |||
Precision | ±0.1mm | |||
Total machine power | 4kw | |||
Voltage | 3phase 380V 50hz China.(Depend on customer) | |||
Measurement | 2600mm*1020mm*1520mm(L*W*H) | |||
FEATURE | Unwinding system | 1. 3inch airshaft | ||
2. Automatic unwinding tension controlling system | ||||
Inspecting system | 3.Inspecting by air inflation, air out, machine stop automatically | |||
4.Flash light for inspection keeping the same speed with machine | ||||
Rewinding system | 5.3inch airshaft | |||
6. Automatic Rewinding tension controlling system | ||||
7. Oscillation system: rewinding shaft automatically swing left and right to avoid the middle overlap and loose. | ||||
8.meter-counter and static eliminating cord is included | ||||
9. Fully safety guarded to "CE" standards and with CE certificate | ||||
Optional: 10. Reverse winding system is optional | ||||
