Taidacent DC 5V 9V 12V 24V Carbon Monoxide Gas Detector MQ2 MQ 2 Smoke Detector Sensor Module
- Category: >>>
- Supplier: Shenzhen Taida Century Technology Co. Ltd.
Share on (60135603918):
Product Overview
Description
Taidacent DC 5V 9V 12V 24V Carbon Monoxide Gas Detector MQ2 MQ-2 Smoke Detector Sensor Module
This module can detect smoke concentration, and a smoke detection threshold can be set when using it. When the smoke sensor detects that the ambient smoke density is greater than the set smoke threshold, the relay closes and the alarm indicator lights up, and the buzzer sounds an alarm; when the smoke sensor detects that the ambient smoke density drops below the set smoke threshold, the relay turns off At the same time, the alarm indicator will be off, and the buzzer will stop alarming.
Parameter
1: Working voltage: DC 5-30V.

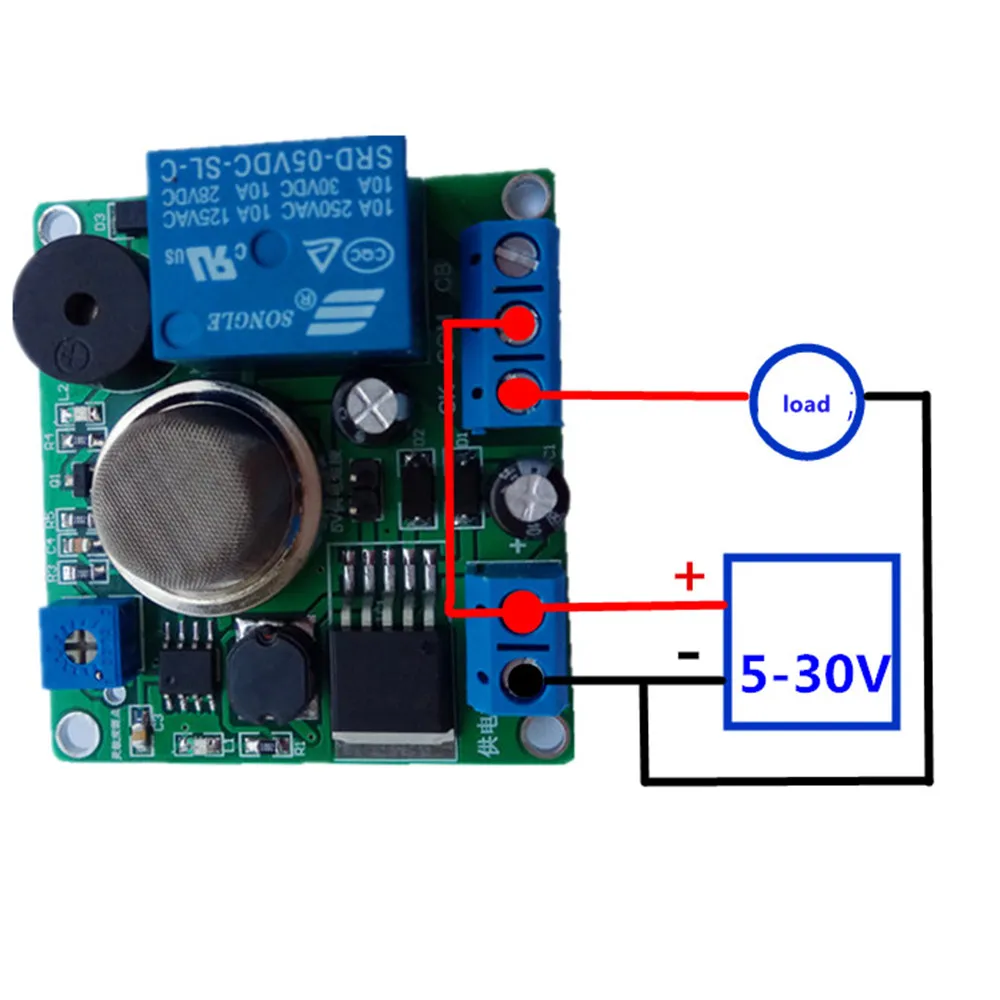

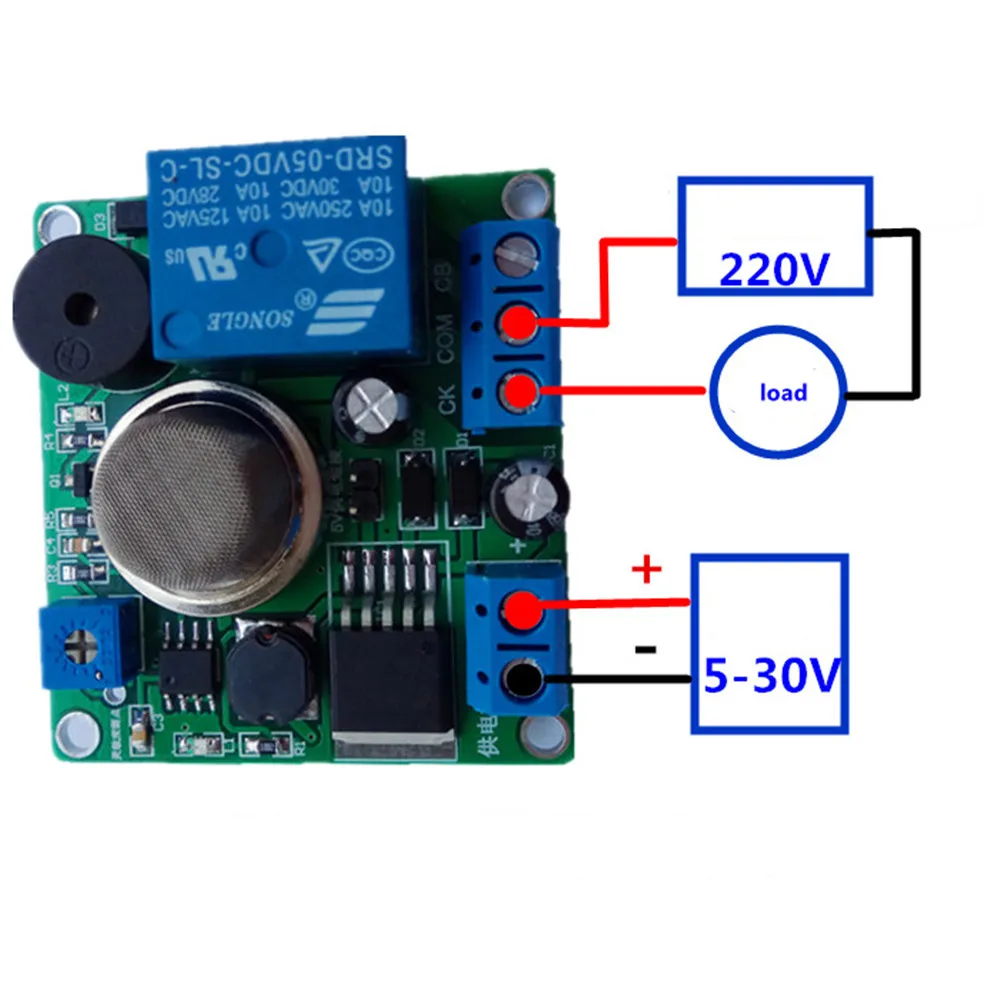

2: Output capability: It can control equipment within AC 220V10A or DC 30V10A.
3: The quiescent current is 20mA, and the dynamic current is 50mA.
4: With anti-reverse connection protection, the board will not be burnt if the power supply is connected reversely.
5: Service life: more than 100,000 times, working temperature: -40----85℃
6: Board size 49*45*20mm,
7: Positioning holes: the spacing is 44mm long and 40mm wide, the hole diameter is 2.5mm from the outer frame, and the hole diameter is 3mm.
2: Output capability: It can control equipment within AC 220V10A or DC 30V10A.
3: The quiescent current is 20mA, and the dynamic current is 50mA.
4: With anti-reverse connection protection, the board will not be burnt if the power supply is connected reversely.
5: Service life: more than 100,000 times, working temperature: -40----85℃
6: Board size 49*45*20mm,
7: Positioning holes: the spacing is 44mm long and 40mm wide, the hole diameter is 2.5mm from the outer frame, and the hole diameter is 3mm.

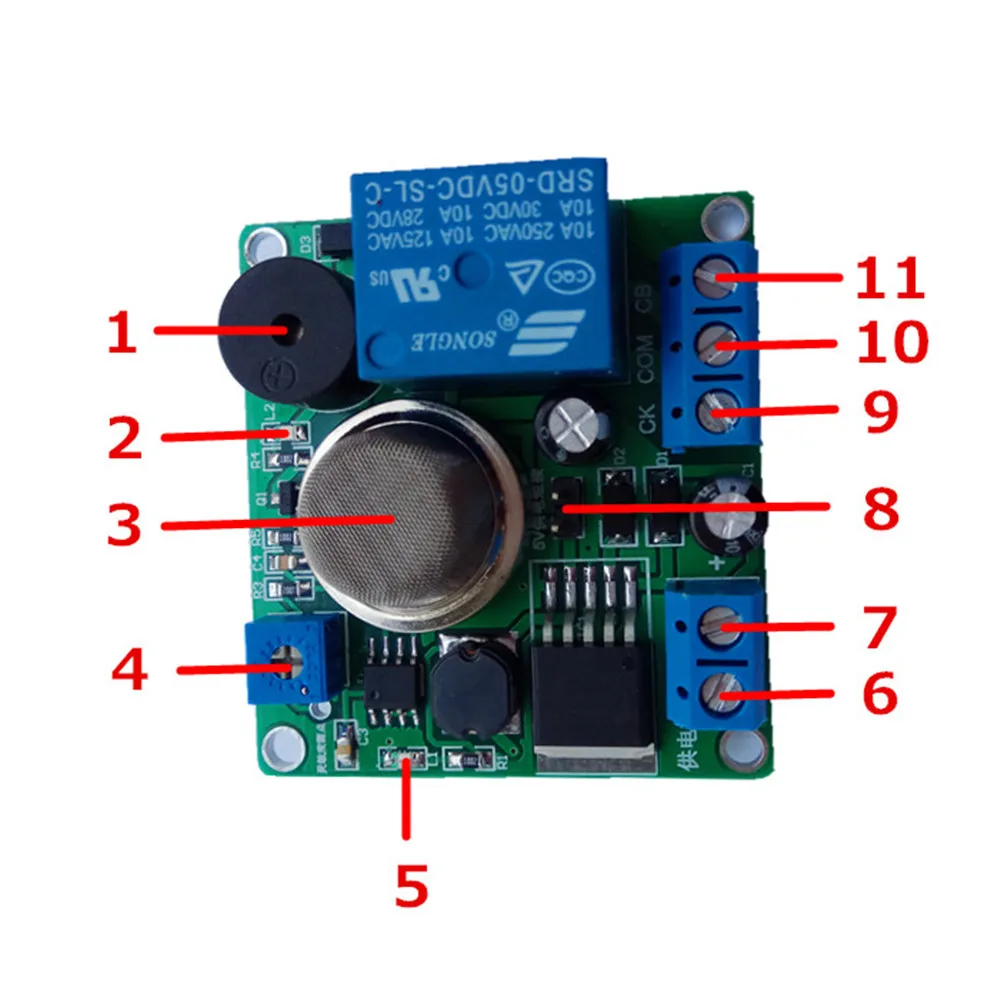

Pin discription
【1】 Alarm buzzer
[2] Status indicator light, the indicator light is on, the buzzer alarms and the relay is closed (9 and 10 are closed, 10 and 11 are open). The indicator light is off, the buzzer stops alarming and the relay is disconnected (9 and 10 are disconnected, and 10 and 11 are closed).
[3] Smoke detection sensor, try to keep the smoke sensor close to the smoke, so that the detection is more accurate
[4] The smoke concentration detection setting knob, rotate clockwise to provide the smoke concentration threshold; turn counterclockwise to reduce the smoke concentration threshold.
[5] Power indicator, it will stay on after power is supplied
[6] Negative pole of power supply
[7] Power supply positive
[8] The working power supply rotates, the two pins of DC 5-7V are plugged in with a shorting cap, and the two pins of DC 7-30V are disconnected.
【9】Relay normally open pin
【10】Relay common pin
【11】Relay normally closed foot
[2] Status indicator light, the indicator light is on, the buzzer alarms and the relay is closed (9 and 10 are closed, 10 and 11 are open). The indicator light is off, the buzzer stops alarming and the relay is disconnected (9 and 10 are disconnected, and 10 and 11 are closed).
[3] Smoke detection sensor, try to keep the smoke sensor close to the smoke, so that the detection is more accurate
[4] The smoke concentration detection setting knob, rotate clockwise to provide the smoke concentration threshold; turn counterclockwise to reduce the smoke concentration threshold.
[5] Power indicator, it will stay on after power is supplied
[6] Negative pole of power supply
[7] Power supply positive
[8] The working power supply rotates, the two pins of DC 5-7V are plugged in with a shorting cap, and the two pins of DC 7-30V are disconnected.
【9】Relay normally open pin
【10】Relay common pin
【11】Relay normally closed foot
Product Description
Specification
item | value |
Model Number | TDJLMQ2RELY |
Type | Safety Controllers & Module |
Place of Origin | China |
Guangdong | |
Brand Name | Taidacent |
Usage | smoke alarm |
Output | Relay output |
Description | MQ2 GAS SENSOR |
