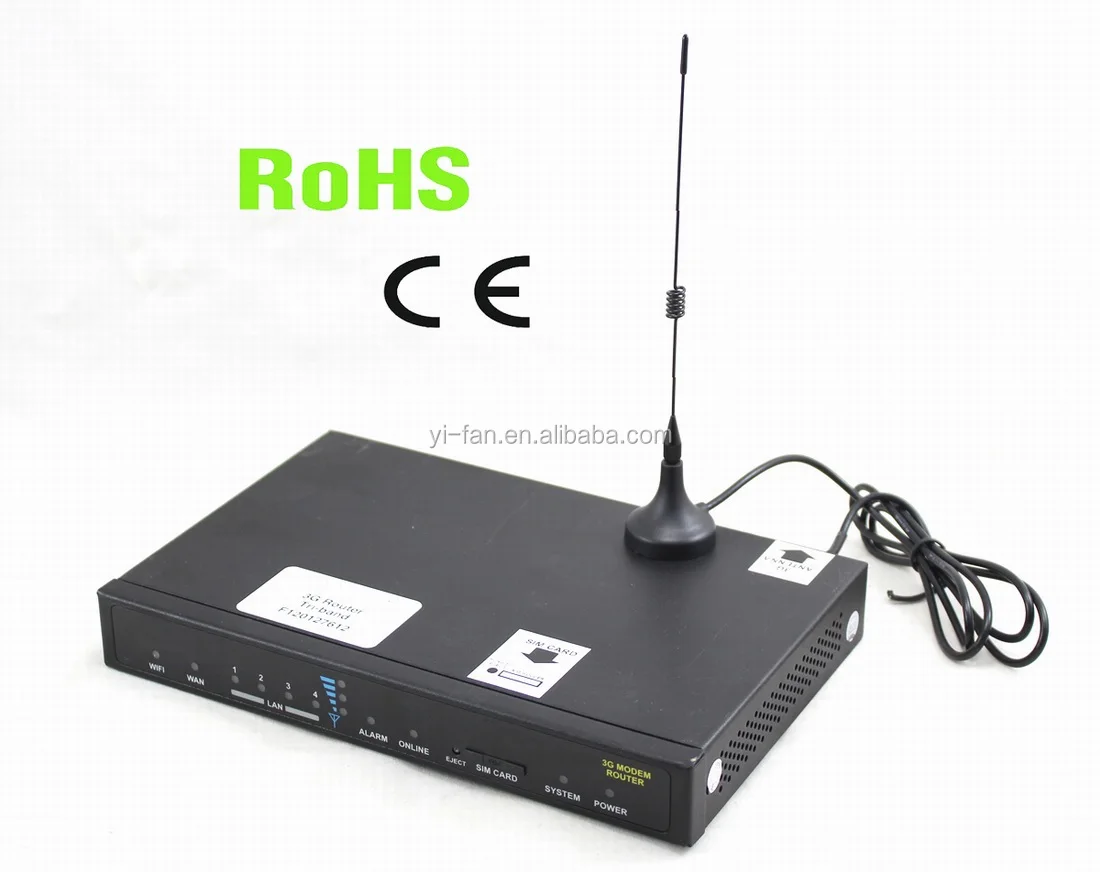

100M high speed F3A36 4G TDD FDD Router for M2M application
- Category: >>>
- Supplier: Xiamen Yifan Communication Technology Co. Ltd.
Share on (60135752378):
Product Overview
Description
F3A36 4G LTE FDD TDD ROUTER TECHNICAL SPECIFICATION
F3A36 Industrial 4G LTE FDD TDD ROUTER is a kind of cellular terminal device that provides large data transmission function by public LTE/WCDMA network.
It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect devices to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

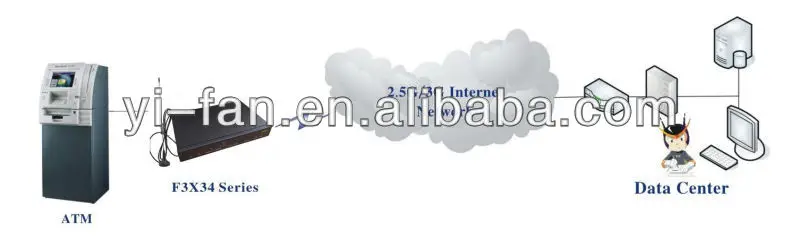

It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
| Main Features | 1. Support multiple WAN access methods, including static ip, DHCP, L2TP, PPTP,PPPOE,3G/HSPA/4G.
2. Support double link backup between WCDMA and WAN(PPPOE, ADSL) (optional)
3. Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
4. Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
5. Support local and remote firmware upgrade,import and export configure file.
6. Support NTP, RTC embedded.
7. Support mulitiple DDNS provider service
8. Support VLANs, MAC Address clone, PPPoE Server
9. WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge and WDS(optional) mode.
10. WIFI support WEP,WPA,WPA2 encryption,Support RADIUS authentication and MAC address filter.
11. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
12. Support APN/VPDN
13. Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.
14. Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
15. Schedule Reboot, etc.
| ||||||
| WIFI Specification | Standard | IEEE802.11b/g/n | |||||
| Bandwidth | IEEE802.11b/g: 54Mbps (max), IEEE802.11n: 300Mbps (max) | ||||||
| Security | WEP, WPA, WPA2, etc. WPS (optional) | ||||||
| TX power | 16-17dBm(11g), 18-20dBm(11b) | ||||||
| RX sensitivity | <-72dBm@54Mpbs | ||||||
| Hardware System | CPU | Industrial 32bits CPU | |||||
| FLASH | 16MB(Extendable to 64MB) | ||||||
| SRAM | 64MB | ||||||

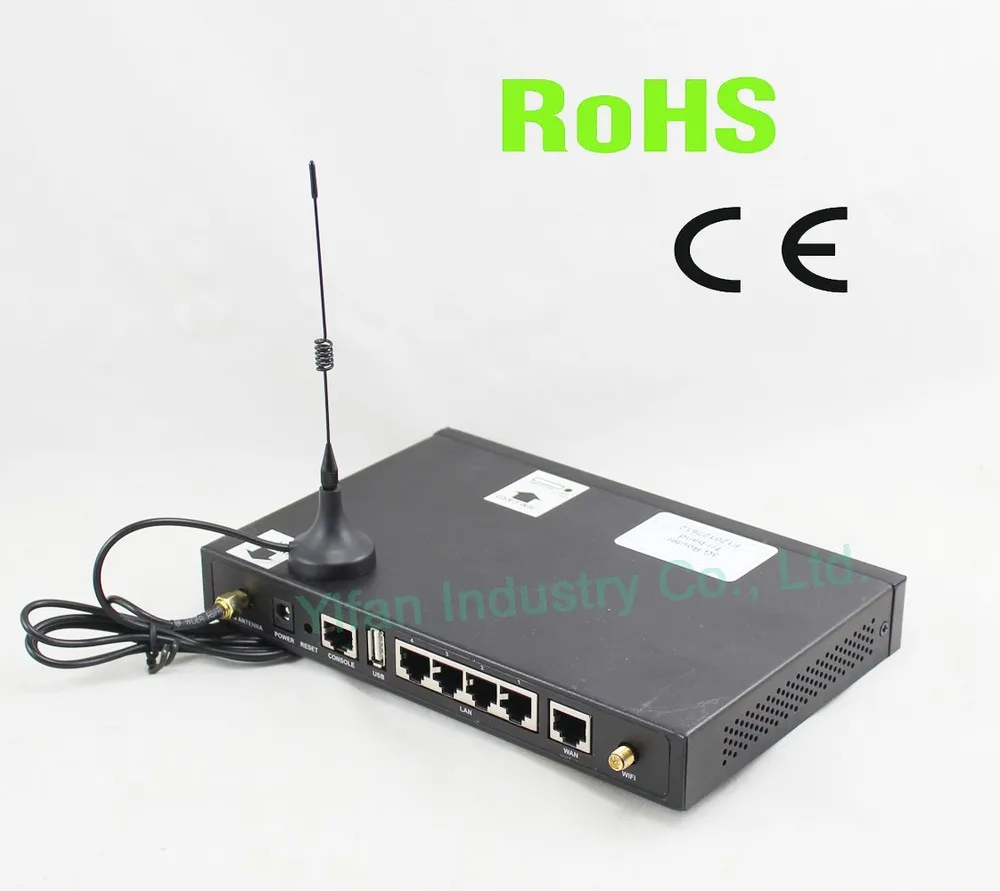

| Interface Type | WAN | 1x10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | |||||
| LAN | 4x10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | ||||||
| Serial | 1xRS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps | ||||||
| Indicator | "Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WLAN""Signal Strength" | ||||||
| Antenna | Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) | ||||||
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | ||||||
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection | ||||||
| Reset | Restore the router to its original factory default settings | ||||||
| USB | Standard A type USB host interface (reserved) | ||||||
| Interface |
| ||||||
| Power Input | Standard Power | DC 12V/1.5A | |||||
| Power Range | DC 5~35V | ||||||
| Consumption | <450mA (12V) | ||||||
| Physical Characteristics | Housing | Iron, providing IP30 protection | |||||
| Dimensions | 206x135x28 mm | ||||||
| Weight | 790g | ||||||
| Environmental Limits | |||||||
| Operating Temperature | -35~+75ºC(-31~+167°F) | ||||||
| Storage Temperature | -40~+85ºC(-40~+185°F) | ||||||
| Operating Humidity | 95% ( Non-condensing) | ||||||
4G Router Cellular Specification
Cellular Module | Industrial cellular module |
Standard and Band | Support LTE FDD Band 1/3/7/8 TDD Band 38/39/40/41 WCDMA 850/900/2100Mhz TD-SCDMA 1880-1920/2010-2025(A/F) EVDO/CDMA 800Mhz GPRS 850/900/1800/1900Mhz |
Bandwidth |
LTE(DL: 100Mbps,UL:50Mbps)/HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+: 21Mbps(Download speed) 5.76Mbps(Upload speed)
|
TX power | <32dBm |
RX sensitivity | <-93.3dBm |

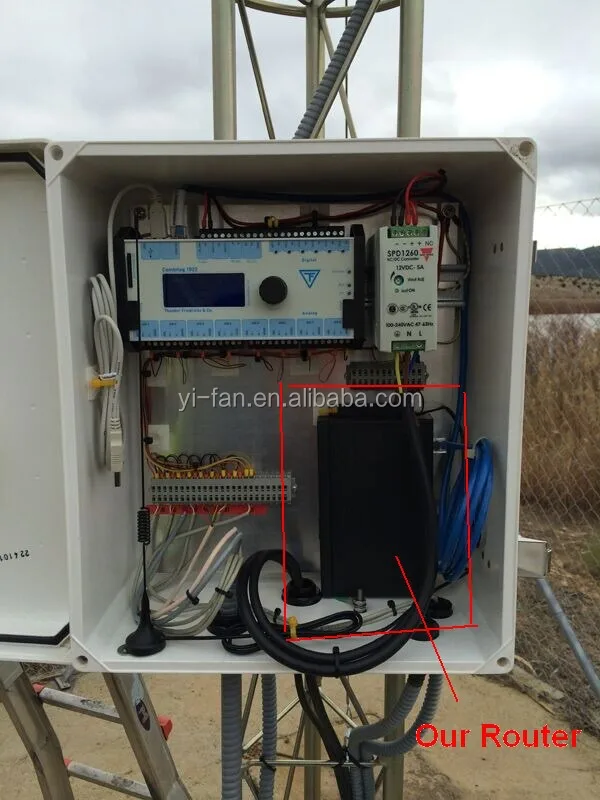

On-Site Installation Picture
