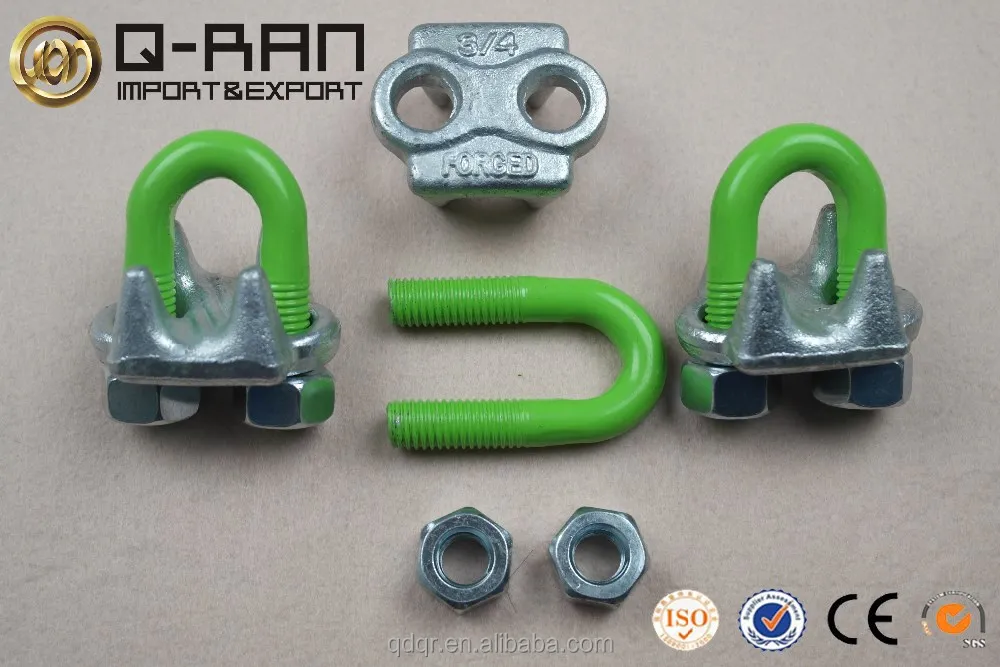

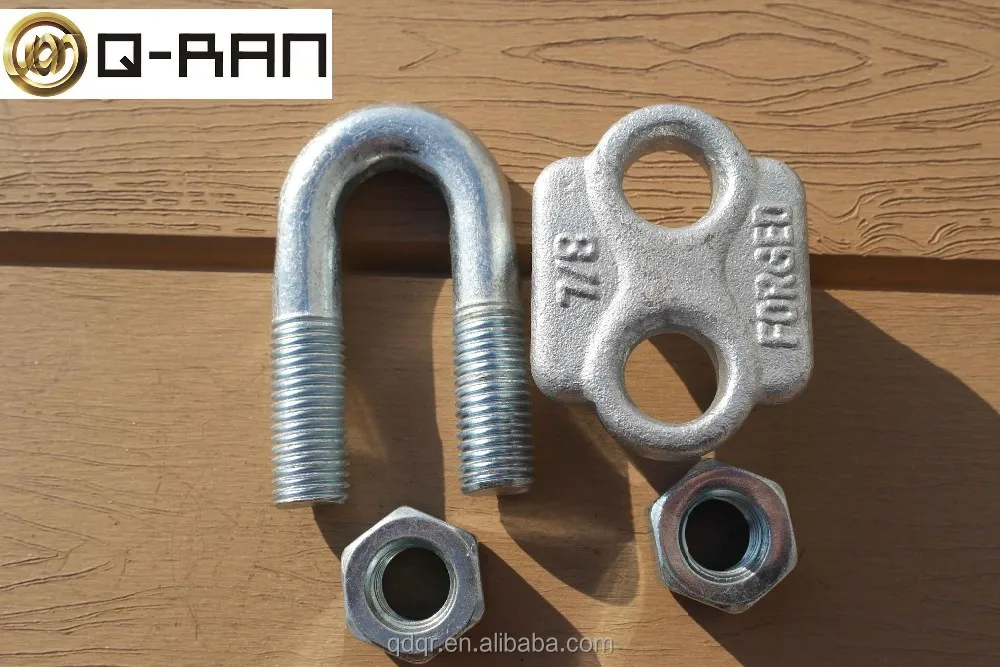

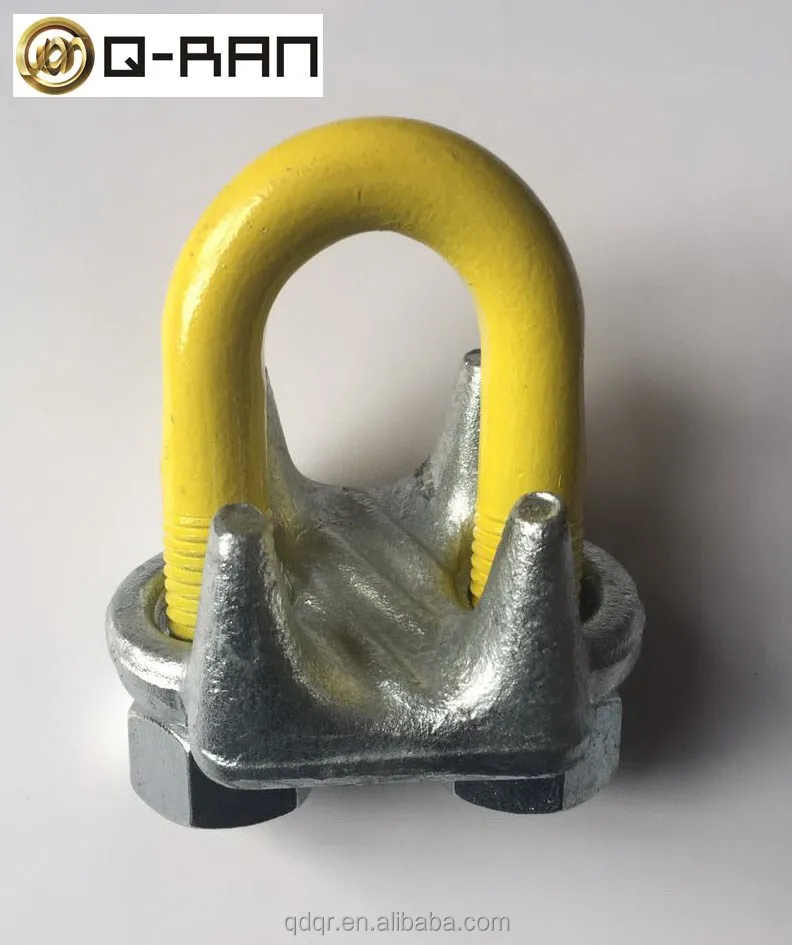

Drop Forged Galvanized Iron Wire Clip Adjustable Wire Rope Clamp
- Category: >>>
- Supplier: Qingdao Q-Ran Import & Export Co. Ltd.
Share on (60135819083):
Product Overview
Description
Drop Forged Galvanized Iron Wire Clip Adjustable Wire Rope Clamp
Product Description
Drop Forged Galvanized Iron Wire Clip Adjustable Wire Rope Clamp
1.Commodity Name:US Type Drop Forged Wire Rope Clip
2.Category :Rigging hardware
3.Origin :China mainland
4.Type :US type
6.Material :Carbon Steel
7.Surface :Electric galvanized, Hot dip galvanized,Powder coating
8.Process :Drop Forged
9.Size :From 1/8" To 3-1/2"
Dimensions for Drop Forged Galvanized Iron Wire Clip Adjustable Wire Rope Clamp
SIZE(IN) | DIMENSIONS(IN) | WEIGHT PER 100 LBS | ||||||
| A | B | C | D | E | G | H | ||
| 1/8 | 0.22 | 0.72 | 0.44 | 0.47 | 0.37 | 0.81 | 0.99 | 6 |
| 3/16 | 0.25 | 0.97 | 0.56 | 0.56 | 0.5 | 0.94 | 1.18 | 10 |
| 1/4 | 0.31 | 1.03 | 0.5 | 0.75 | 0.66 | 1.19 | 1.43 | 19 |
| 5/16 | 0.38 | 1.38 | 0.75 | 0.88 | 0.73 | 1.31 | 1.66 | 28 |
| 3/8 | 0.44 | 1.5 | 0.75 | 1 | 0.91 | 1.63 | 1.94 | 48 |
| 7/16 | 0.5 | 1.88 | 1 | 1.19 | 1.13 | 1.91 | 2.28 | 78 |
| 1/2 | 0.5 | 1.88 | 1 | 1.19 | 1.13 | 1.91 | 2.28 | 80 |
| 9/16 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 2.06 | 2.5 | 109 |
| 5/8 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 2.06 | 2.5 | 110 |
| 3/4 | 0.62 | 2.75 | 1.44 | 1.5 | 1.39 | 2.25 | 2.84 | 142 |
| 7/8 | 0.75 | 3.12 | 1.62 | 1.75 | 1.58 | 2.44 | 3.16 | 212 |
| 1 | 0.75 | 3.5 | 1.81 | 1.88 | 1.77 | 2.63 | 3.47 | 252 |
| 1-1/8 | 0.75 | 3.88 | 2 | 2 | 1.91 | 2.81 | 3.59 | 283 |
| 1-1/4 | 0.88 | 4.44 | 2.22 | 2.31 | 2.17 | 3.13 | 4.13 | 438 |
| 1-3/8 | 0.88 | 4.44 | 2.22 | 2.38 | 2.31 | 3.13 | 4.19 | 442 |
| 1-1/2 | 0.88 | 4.94 | 2.38 | 2.59 | 2.44 | 3.41 | 4.44 | 544 |
| 1-5/8 | 1 | 5.31 | 2.62 | 2.75 | 2.66 | 3.63 | 4.75 | 704 |
| 1-3/4 | 1.13 | 5.75 | 2.75 | 3.06 | 2.92 | 3.81 | 5.24 | 934 |
| 2 | 1.25 | 6.44 | 3 | 3.38 | 3.28 | 4.44 | 5.88 | 1300 |
| 2-1/4 | 1.25 | 7.13 | 3.19 | 3.38 | 3.19 | 4.56 | 6.38 | 1600 |
| 2-1/2 | 1.25 | 7.69 | 3.44 | 4.13 | 3.69 | 4.05 | 6.63 | 1900 |
| 2-3/4 | 1.25 | 8.31 | 3.56 | 4.38 | 4.88 | 5 | 6.88 | 2300 |
| 3 | 1.5 | 9.19 | 3.88 | 4.75 | 4.44 | 5.31 | 7.61 | 3100 |
| 3-1/2 | 1.5 | 10.75 | 4.5 | 5.5 | 6 | 6.19 | 8.38 | 4000 |
Packaging & Shipping
1.Safety Carton and pallet,sack and pallet,according to customers requirement.
2.Within 30-60 Days on Request.
Process
Process for Drop Forged Galvanized Iron Wire Clip Adjustable Wire Rope Clamp

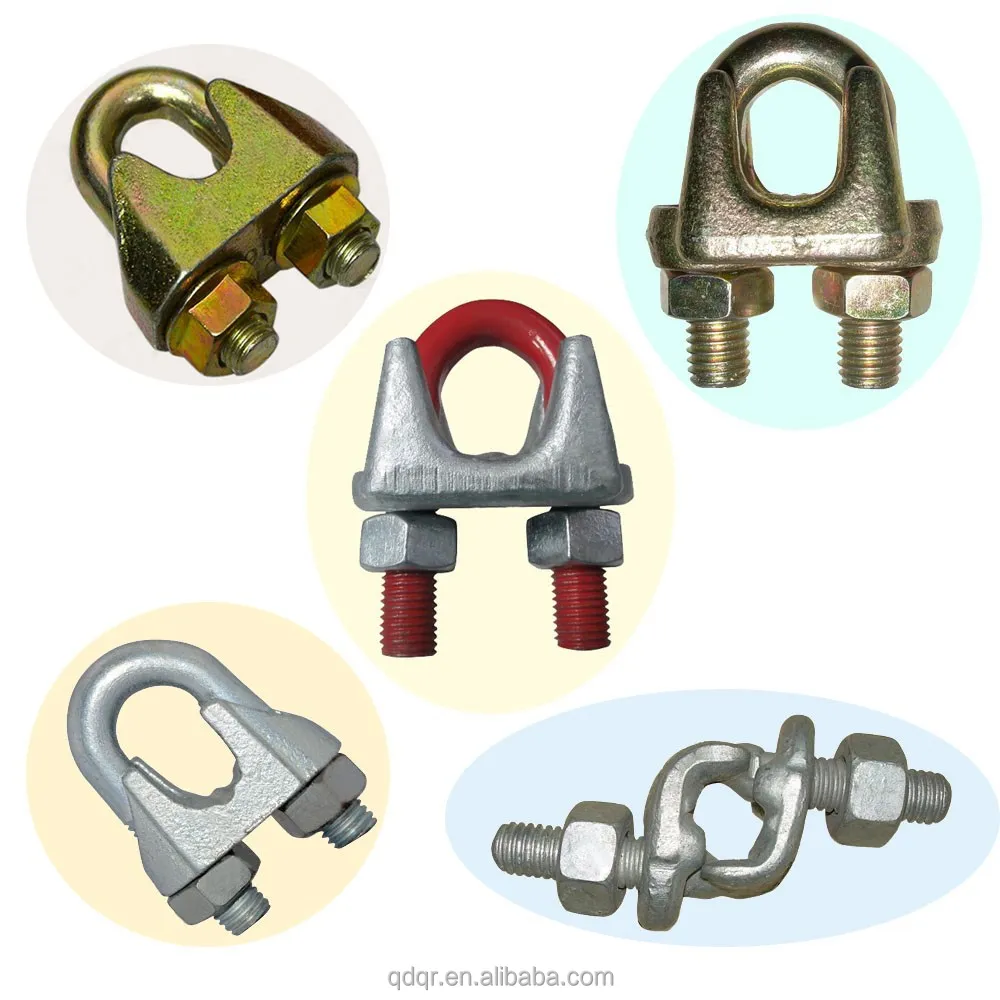

Product Uses
Our Main Products
Qingdao Q-RAN import & export co., ltd is major in producing and sale rigging hardware,such as shackle,eyebolt,eye nut,wire rope clip,turnbuckle and so on.
