Tobee Effluent Handling
$12,600

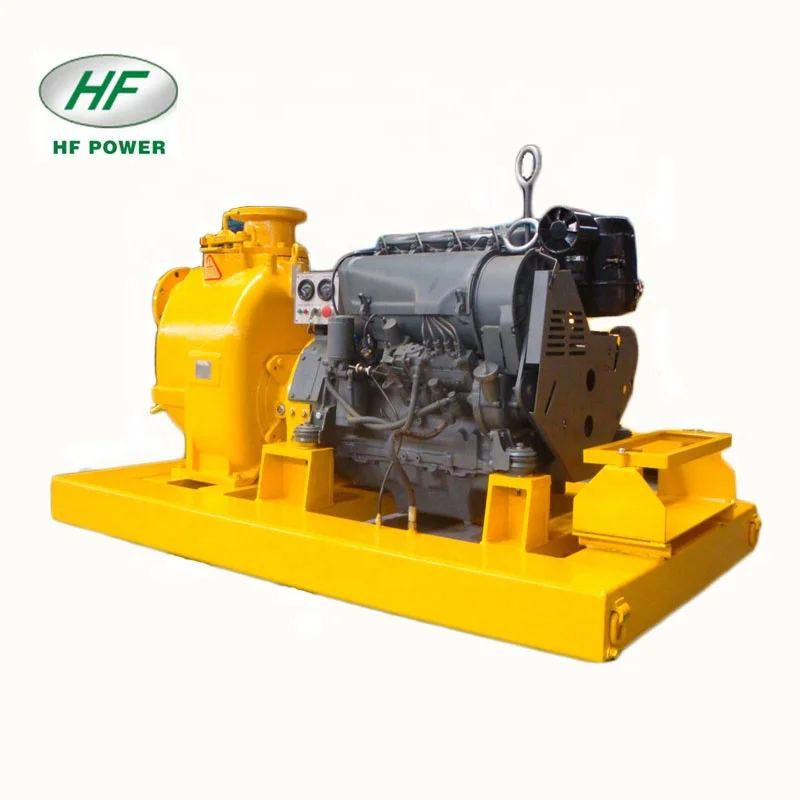

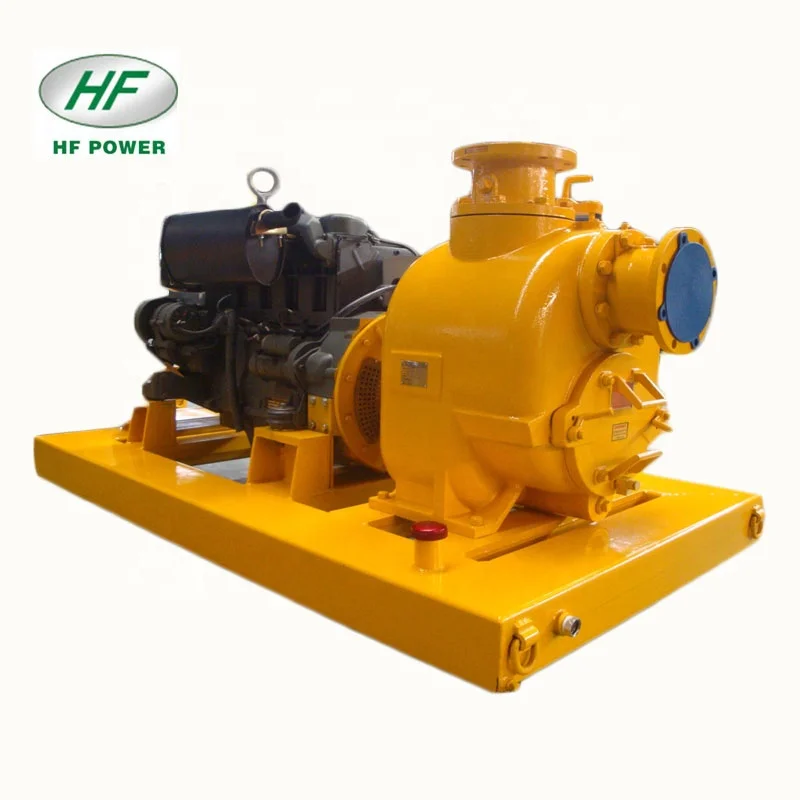

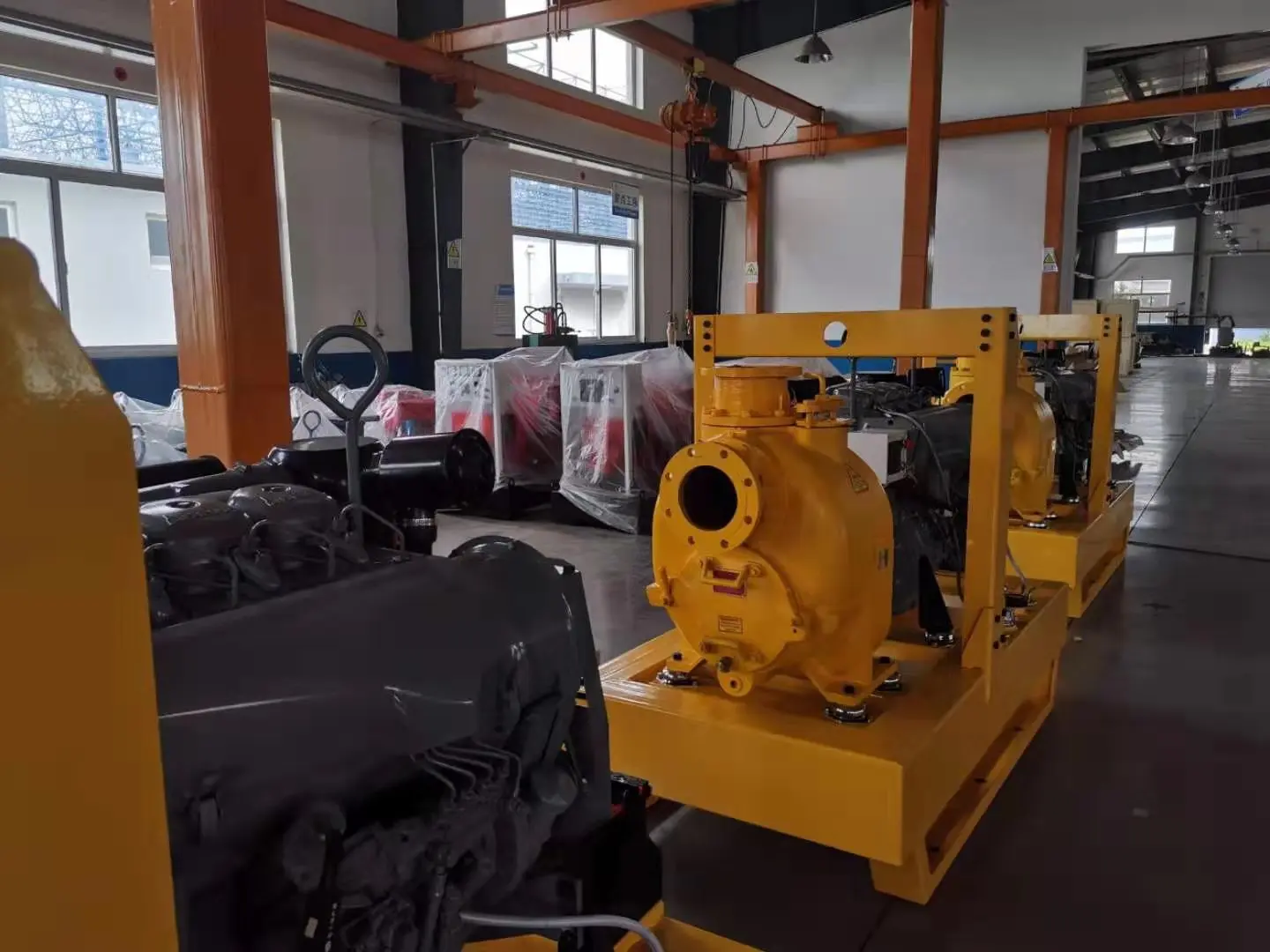

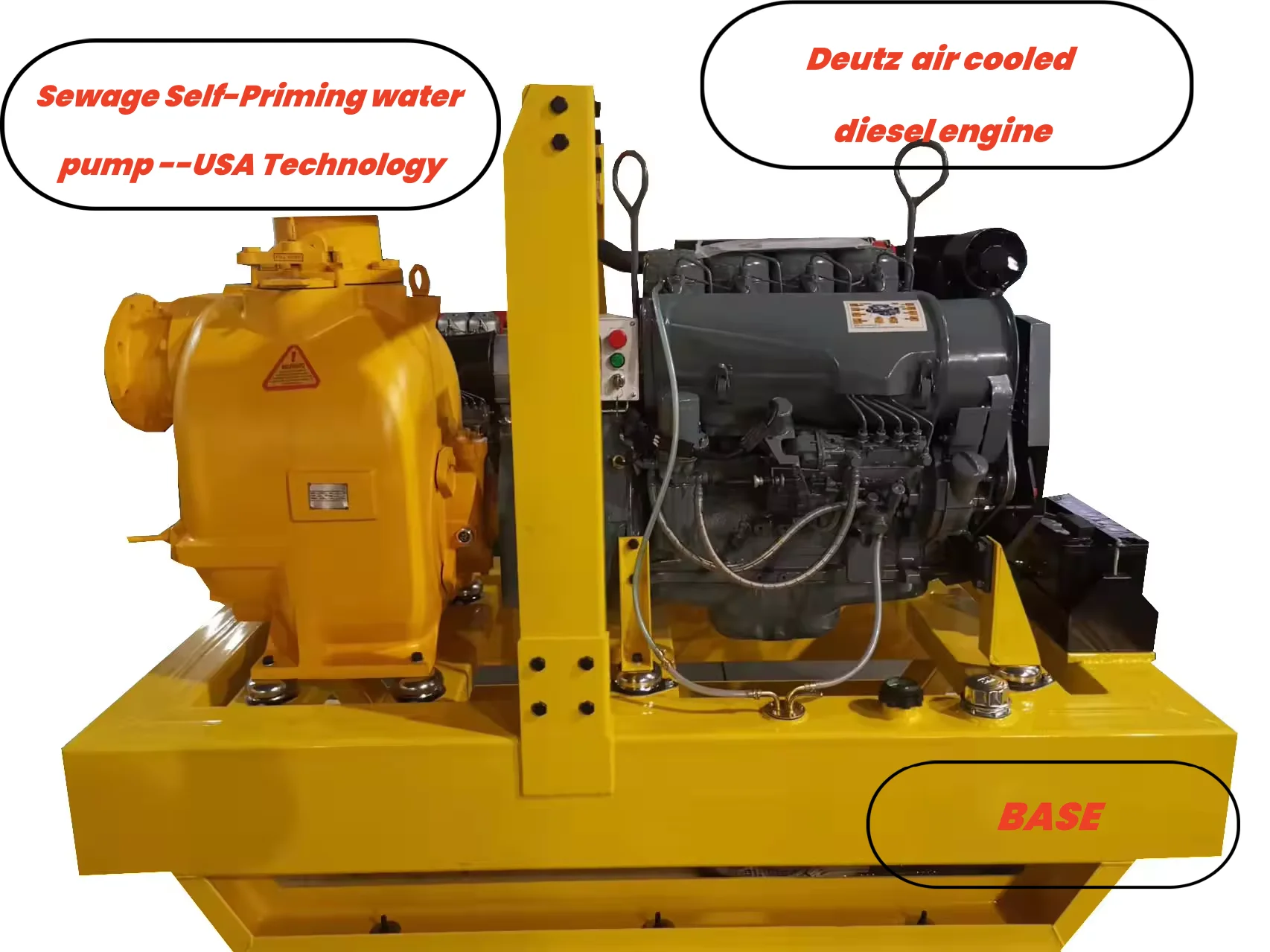

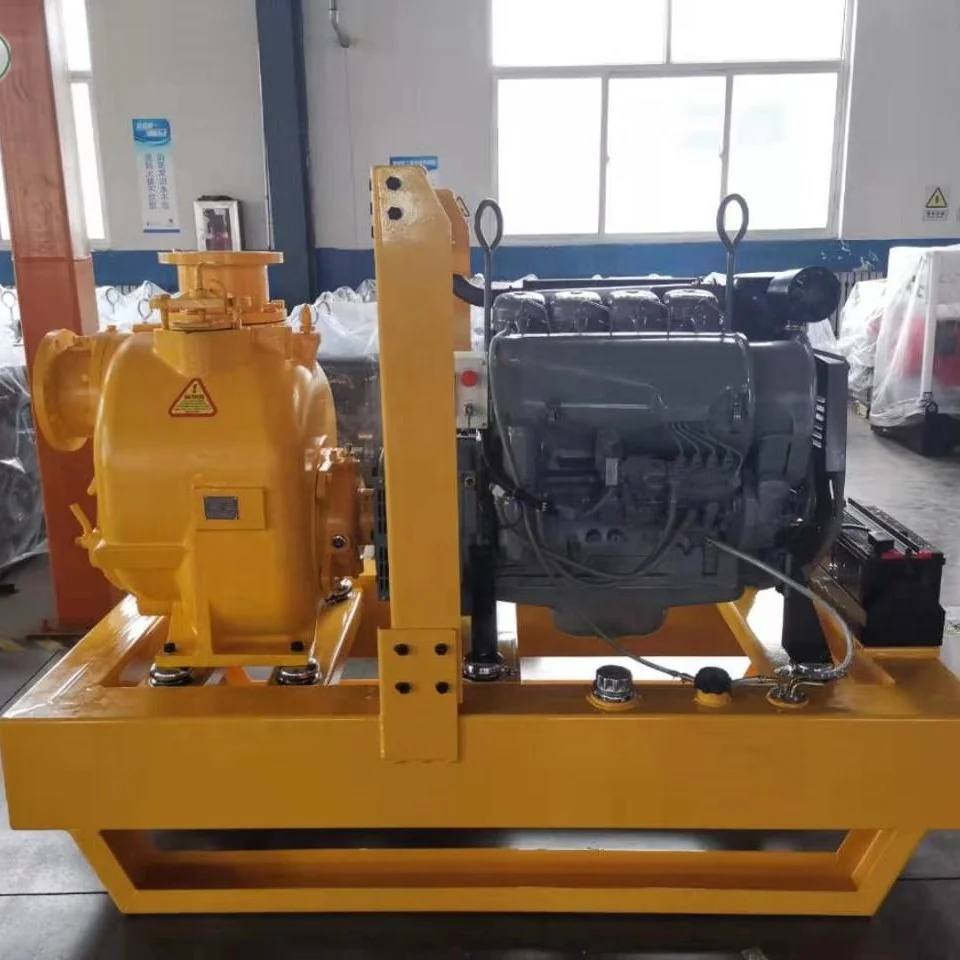

Stationary type self priming diesel engine water pump set for industrial sewage
- Category: >>>
- Supplier: Shijiazhuang Houfeng Trading Co. Ltd.
Share on (60135948828):
Product Overview
Description

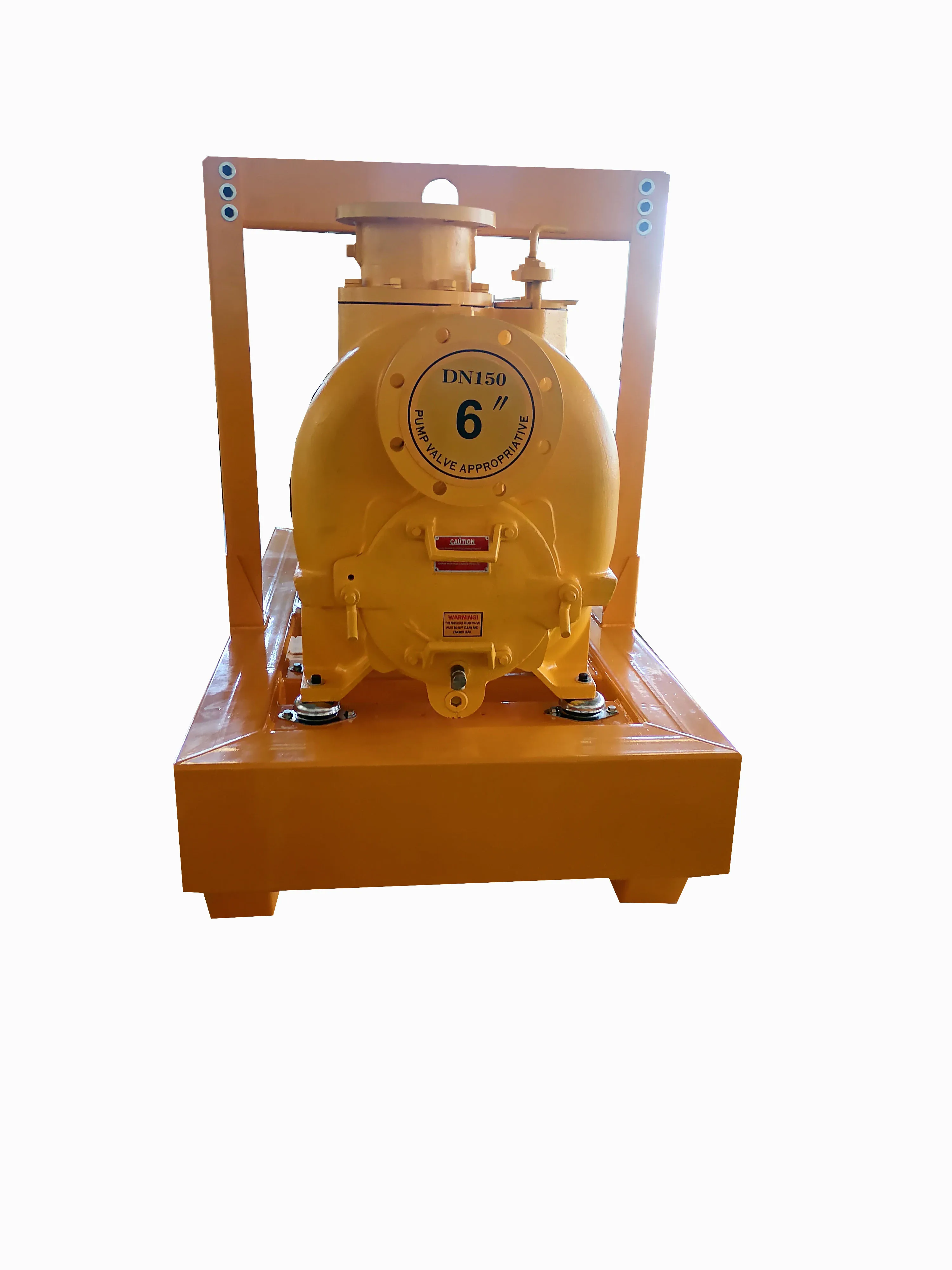

HFST-6"water pump sets specification | ||||||||||||||||
Pump details | ||||||||||||||||
Pump model | HFST-6” | |||||||||||||||
Max. Pump flow rate | 335m3/h | |||||||||||||||
Max. Pump head | 33m | |||||||||||||||
Inlet and outet flanges | 6" x 6" (150mm) | |||||||||||||||
Pump shaft size | φ38.1*127 | |||||||||||||||
Solid size | 3inch | |||||||||||||||
Dimension | 3228.5*1668*1799.5(mm) | |||||||||||||||
Weight | 1314kg | |||||||||||||||
Engine details | ||||||||||||||||
Brand | Deutz | |||||||||||||||
Model | F4L912（32kw/1550rpm) | |||||||||||||||
Type | in-line, 4-cylinder, 4cycle diesel engine | |||||||||||||||
Bore*stroke | 100*120(mm) | |||||||||||||||
Displacement | 3.770 Liters | |||||||||||||||
Compression ration | 17 | |||||||||||||||
Cooling way | air cooled | |||||||||||||||
Combustion system | direct injection | |||||||||||||||
Aspiration | natural intake | |||||||||||||||
Direction of rotation | counterclockwise(face to flywheel end) | |||||||||||||||
Fuel consumption ratio | 236.6g/kwh(limit value) | |||||||||||||||
Oil consumption ratio | 2.04g/kwhh(limit value) | |||||||||||||||
Lubricant capacity | 9.5L Liters | |||||||||||||||
Net weight | 400kg | |||||||||||||||
Overall dimension | 852*664*799(mm) | |||||||||||||||

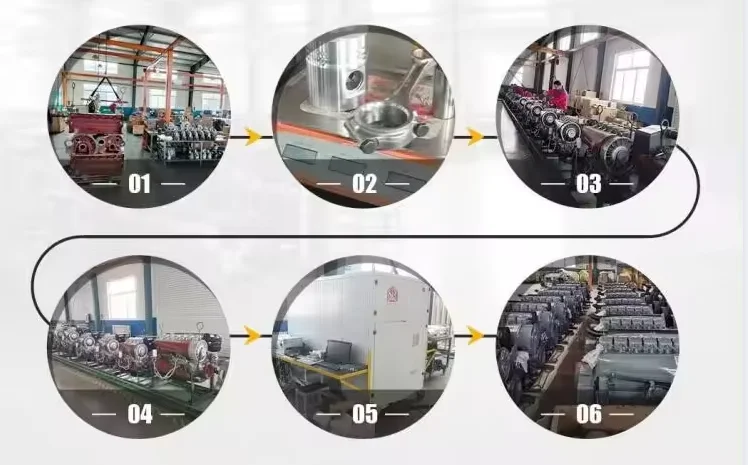

Ⅰ-----Engine Production
Include many engine model and brand,depend on your requirements

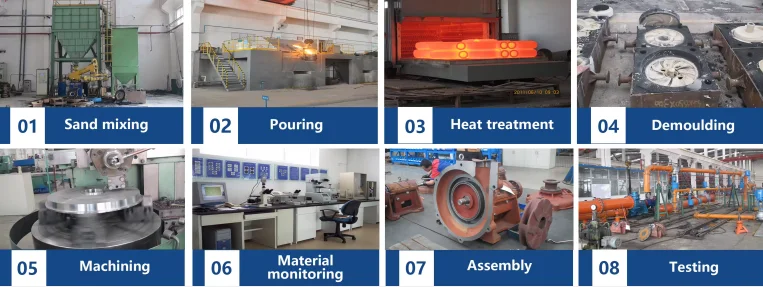

Ⅱ-----Pump production
Include many pump model.
333

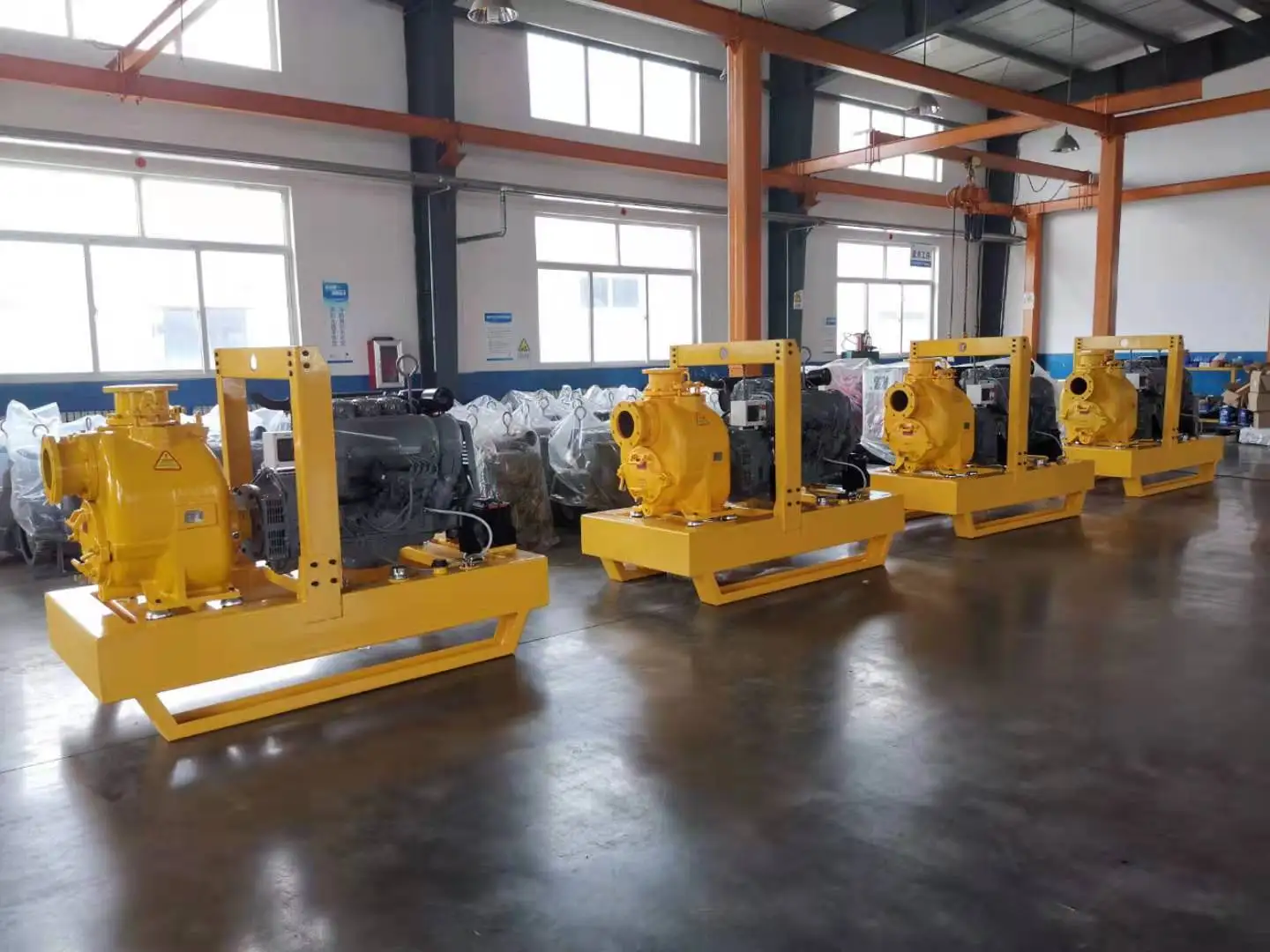

Ⅲ-----many types water pump set
Ⅲ-----many types water pump set
IN USA
IRRIGATION USE
In ECUADOR
IRRIGATION
In CHINA
MUNICIPAL USE
IN INDONESIA
SAND PUMPING USE
IN CONGO
WATER PUMP USE
IN CHILE
WATER PUMP USE
IN UAE
IN SAUDI ARABIA
IN ZAMBIA
