CE certificated 6 core 0.22mm high quality alarm cable

Product Overview

Description

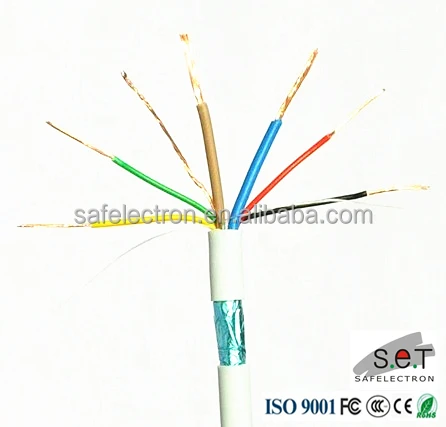

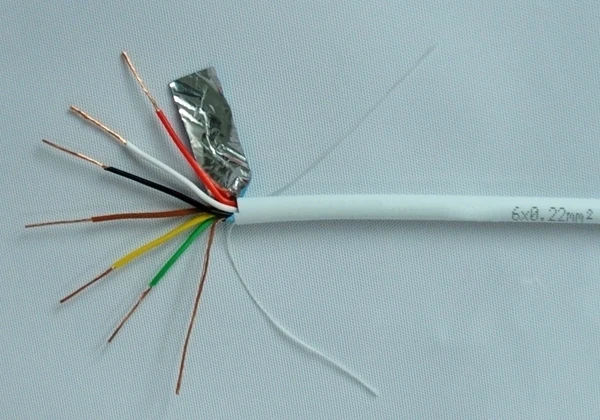

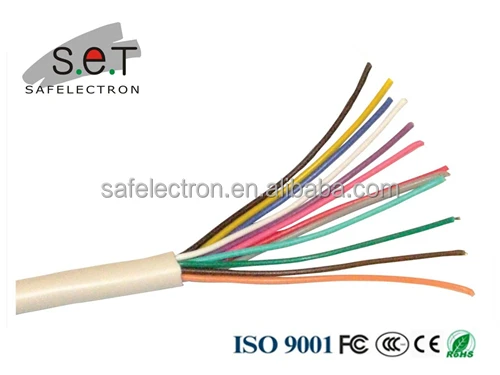

CE certificated 6 core 0.22mm high quality alarm cable





1, Alarm cables  (Unshielded)



CE certificated 6 core 0.22mm high quality alarm cable



Conductor:  CCA, TC, BC, Tinned CCA are available, 7*0.20mm
Cable core:  From 2 core to 24 cores
Insulation:   PVC
Rip cord:    Yes
Shield or unshield
Shield have drain wire,
PVC jacket: PVC.



	Nom.DC Resistance per Conductor@20		6.43Ohms/Kft.nom.
	CapacitanceBetween Conductors@1KHZ		35pF/ft.nom.
	Operating Voltage		300V/RMS max
	Temperature Rating		-20oC to 60oC
Normal area		Structure		Insulation dia.	Approx overall dia.
(mm2)		(mm)		(mm)	(mm)
4x0.22		4x7/0.20		1.0	3.5
6x0.22		6x7/0.20		1.0	4.1
8x0.22		8x7/0.20		1.0	4.5
10x0.22		10x7/0.20		1.0	5.2
12x0.22		12x7/0.20		1.0	5.6
14x0.22		14x7/0.20		1.0	5.8
2x0.34		2x7/0.25		1.3	3.5
4x0.34		4x7/0.25		1.3	4.2
6x0.34		6x7/0.25		1.3	4.8
8x0.34		8x7/0.25		1.3	5.5
10x0.34		10x7/0.25		1.3	6.2



CE certificated 6 core 0.22mm high quality alarm cable

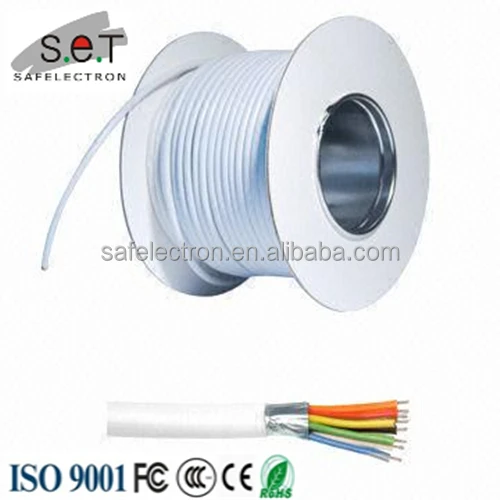

2, Alarm cables (Shielded Type)

4C x 0.22	4CX7/0.20mmOFC   I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:3.5mm PVC
6C x 0.22	6CX7/0.20mmOFC   I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.1mm PVC
8C x 0.22	8CX7/0.20mmOFC   I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.5mm PVC
10C x 0.22	10CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.0mm PVC
12C x 0.22	12CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.6mm PVC
14C x 0.22	14CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.8mm PVC



CE certificated 6 core 0.22mm high quality alarm cable

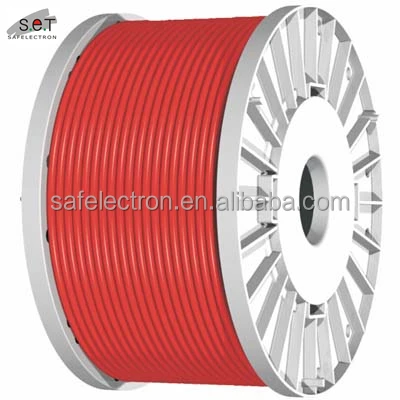

3, Fire Alarm Cables

Specifications
Fire Resistant Cable Silicone Insulation
Low smoke Halogen Free PVC sheath
Aluminium Foil Screen
Tinned Copper Drain Wire
Fire Resistant Cable Silicone Insulation

Applications
Cables are designed, manufactured and tested for general application in power supply and signal wiring, for emergency circuit and fire circuit control.

Operating temperature -40° C to +90° C
(for insulated conductors only: Max 200° C).



Area mm2	Conductor No. of strands (mm)	Nominal Cable Diametre (mm)	Conductor Resistance ohm/km @20oc
1.5	7 / 0.53	3.3	12.1
2.5	7 / 0.67	3.75	7.41
4	7 / 0.85	4.3	4.61
6	7 / 1.04	5	3.08
10	7 / 1.35	6.8	1.83



No. of Cores	2	2	2	2	3	3	3	4	4	4
Conductor Area (mm)	1	1.5	2.5	4	1	1.5	2.5	1	1.5	2.5
No. of Wires	1	1	7	7	1	1	7	1	1	7
Nominal Diametre of Conductor (mm)	1.13	1.37	0.67	0.85	1.13	1.37	0.67	1.13	1.37	0.67
Nominal Insulation Thickness (mm)	0.6	0.7	0.8	0.8	0.6	0.7	0.8	0.6	0.7	0.8
Nominal OD (mm)	8.05	8.4	10.05	11.4	8.55	9.15	11.1	9.2	10.2	11.65
Min. Bend Radius (mm)	50	60	70	80	60	70	80	60	70	80
Cable Weight (kg/km)	79.8	98.3	146.4	213.5	93.6	121	178	120.1	148.2	210.7
Max Conductor Resist. 20oC ohm/km	18.1	12.1	7.41	4.61	18.1	12.1	7.41	18.1	12.1	7.41
Max Conductor Resist. 70oC ohm/km	21.7	14.5	8.8	5.5	21.7	14.5	8.8	21.7	14.5	8.8
Capacitance (Adjacent Cores) PF/km	85	95	100	100	85	95	100	85	95	100
Capacitance (Core to Screen) PF/km	170	180	190	190	170	180	190	170	180	190





 2,Standard: CE, IEC 60331-23/60332-3 ,ROHS
3,Original Factory production
4, Fire resistan



1.Specifications :  CE certificated 6 core 0.22mm high quality alarm cable



1. Conductor :  2 solid single core, bare copper or 30% CCA  ,

2. Insulation: Fire resistant PVC

3. With PET  tap

4. Earth wire:Tinned copper

5. With aluminium foil shielded

6. Jacket: Fire resistant PVC

7. Voltage Rating: 300V /600V

8. Other Cores: 2, 4, 6, 8, 12, 14,16,18,20





• Inner Packing:
100m/roll, 200m/roll,300m/roll,100yards/roll;200yards/roll;300yards/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum







• Outer Packing:
Wooden drum, carton box, pull out box
Or according to client's request.





Safelectron Our other products:



Cat5e, cat6 network Lan cable, UTP/FTP, Indoor/outdoor







Speaker cable, speaker wire, OFC / CCA



CCTV cable, RG59+POWER, RG59 Siamese.
