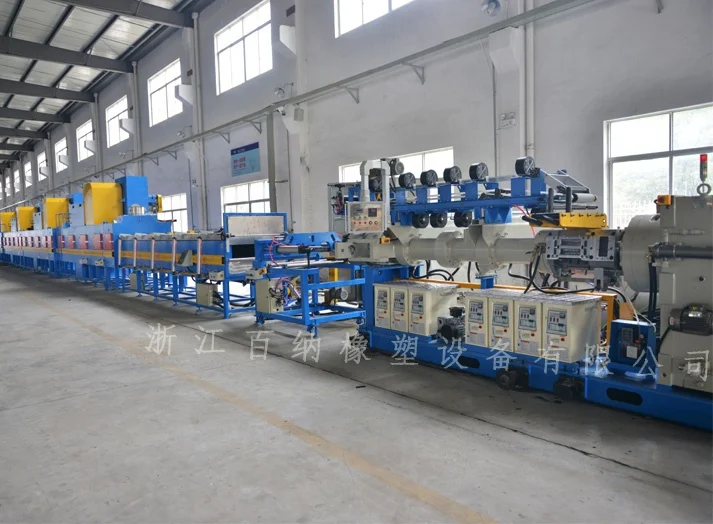

NBR and PVC rubber A/C insulation sponge foam production line
- Category: >>>
- Supplier: Zhejiang Baina Rubber & Plastic Equipment Co. Ltd.
Share on (60136152741):
Product Overview
Description
Parameter
Our production line has the model:
| Item | Quantity (set) |
| 1. 150 mm cold feed vacuum extruder+sheet head/hose head | 1 |
| 2. Infrared curing oven (6m) | 1 |
| 3. hot air curing oven(6m) | 7 |
| 4. 4m transmission system | 2 |
| 5. Automatic sheet cutter & trimming machine | 1 |
Various types of basic parameters:
| Item | Diameter of screw (mm) | L/D ratio | Speed of screw (r/min) | Driving power (KW) | Max output of production (kg/h) | Weight (kg) |
150mm 20D (vacuum) | 150 | 20:1 | 0-45 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16:1 | 0-45 | 132 | 800 | 6500 |
120mm 20D (vacuum) | 120 | 20:1 | 0-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16:1 | 0-50 | 110 | 600 | 5200 |
90mm 20D (vacuum) | 90 | 20:1 | 0-55 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16:1 | 0-55 | 55 | 280 | 3200 |
75mm 20D (vacuum) | 75 | 20:1 | 0-55 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16:1 | 0-55 | 37 | 140 | 1200 |
| 50mm 12D | 50 | 12:1 | 2-70 | 7.5 | 50 | 600 |
Product details
More products
 |  |  | |||||
 |  |  | |||||
Packing
Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service,with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: standard export wooden pallet.
Exhibition
About us
Zhejiang Baina Rubber Equipment Co., Ltd. is a research, development, production and sales of rubber equipment manufacturing company, in cooperation with Zhejiang University is committed to the study of microwave technology, the company registered capital of 30,000,000 yuan, more than 6800 million yuan of fixed assets . An annual output of more than 120 sets of assembly line .plant is currently an area of 1.4 Square, factory area of more than 20,000 square.
Our company is cooperated wih zhejiang university in the research of developing rubber microwave vulcanization systerm successfully, which is driven by active metal roller and have been applied for a patent.
The salt bath vulcanization device has been the unique technique achieved successfully by our own research and development at home, the capability of the salt recovery system is well-known among the same competitors overseas for its envoirnmental protecting, engery saving and sewage disposal. The equipment has been applied for several patents.
Our company has also applied a patent for the Steel edge for rubber vulcanization technique.
Baina is endeavouring in research and development of the new products and is willing to solve technical difficuties through joint efforts with other companies in the same field at home and abroad. We have PLC controlled four compound microwave vulcanization production line ,salt bath vulcanization production line and rubber strips production line etc. devises to meet different needs of our customers and we also train technical workers of our customers for free.
rubber machine ( NBR&PVC insulation sheet production line ) to produce insulation sponge sheet
rubber machine ( NBR&PVC insulation sheet production line )
1. extruder model :150mm cold-feediong vacuum extruder
2. vulcnaiztaion channel width : 1.6m
3. max. width of sheet : 1.2 m
4. PLC copntrol line
5.6 hoses in one time
please send us e-mail or call us to get full detailed quotation, any questions you have, feel free to ask!
