China manufacturer powder particle heat treatment quartz rotary tube furnace
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60136299133):
Product Overview
Description
China Manufacturer Powder Particle Heat Treatment Quartz Rotary Tube Furnace
Our Services
Product Description

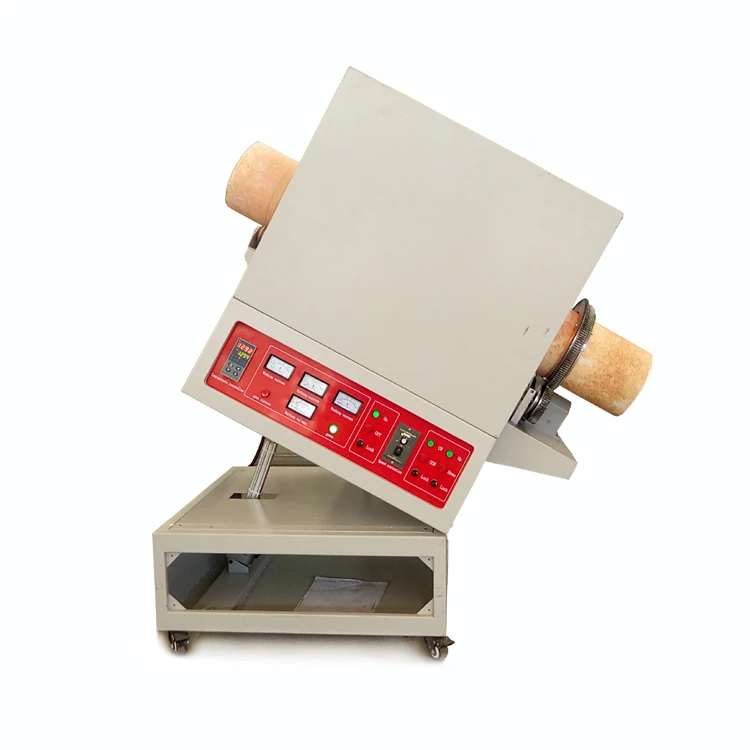

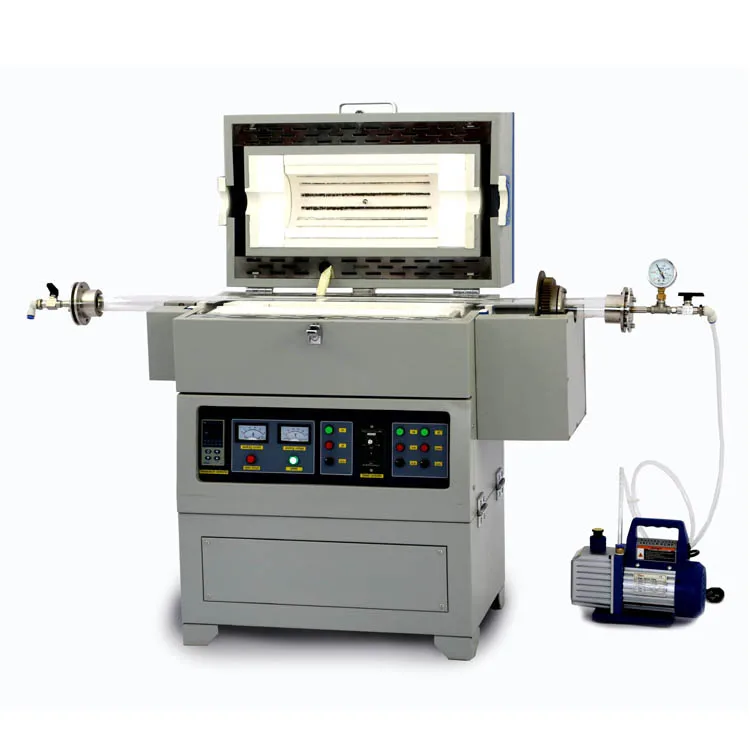

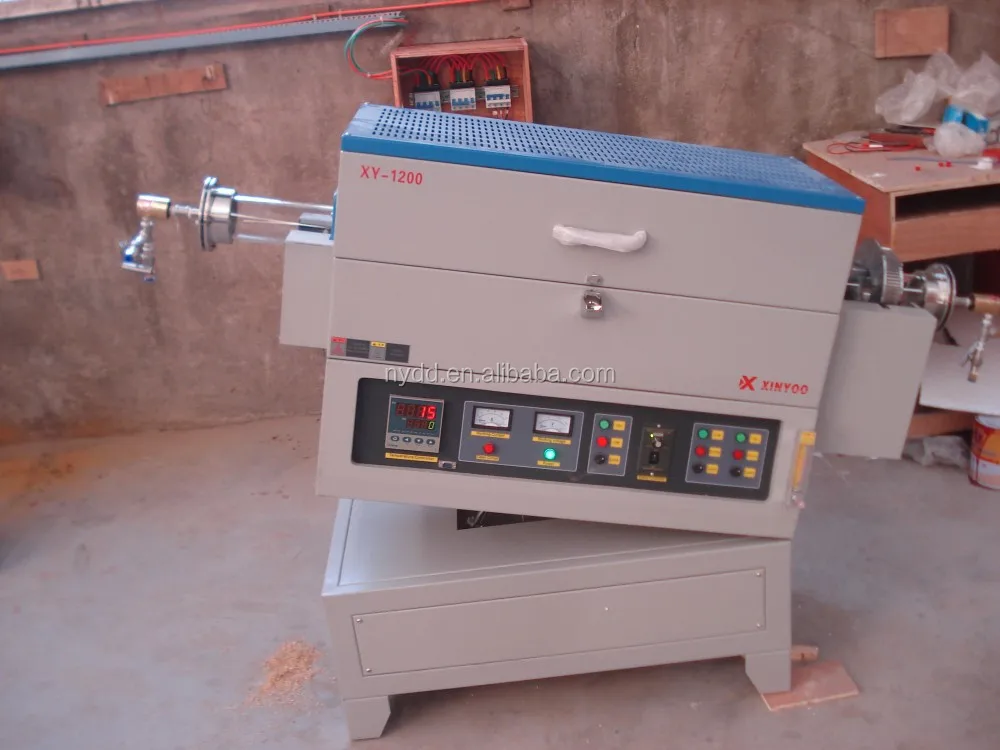

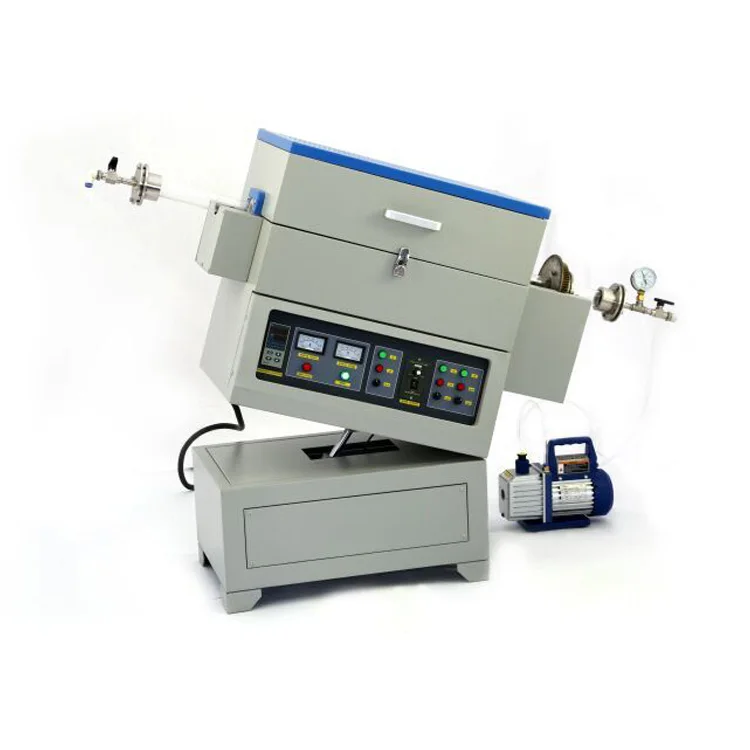

XY-1200RTF rotary tube furnace is designed for calcining inorganic compound with better uniformity,especially excellent for preparing Li-Ion battery cathode materials with conductive coating, such as LiFePO3,LiMnNiO3,etc in R&D Laboratory.
Mainly used in metallurgy, glass, heat treatment, lithium anode and cathode materials, new energy, abrasives and other industries to determine the material under a certain atmosphere of professional equipment.
Technology parameter
Product application: Widely used in enterprises and institutions scientific research and small batch production, as well as colleges and universities involved in scientific research and teaching of ceramics, metallurgy, electronics, glass, chemical, machinery, refractory materials, new material development, special materials, building materials in the field.
The detail specifications of China manufacturer powder particle heat treatment quartz rotary tube furnace
| Max.temperature | 1200C |
| Working temperature | 0-1100C |
| Tube diameter | 100mm or as your requirement |
| Tube heating length | 400mm |
| Tube material | High quality 99% quartz tube |
| Heat element | Resistance wire |
| voltage and frequency | 220v 50Hz/60Hz |
| Heating rate | 0-20C/min |
| Temperature accuracy | ±1°C |
| Thermocouple | K type |
Rotary system | Tube rotate speed:0-10 RPM The tube can rotate 360 degrees,electric gear drive Push button control switch |

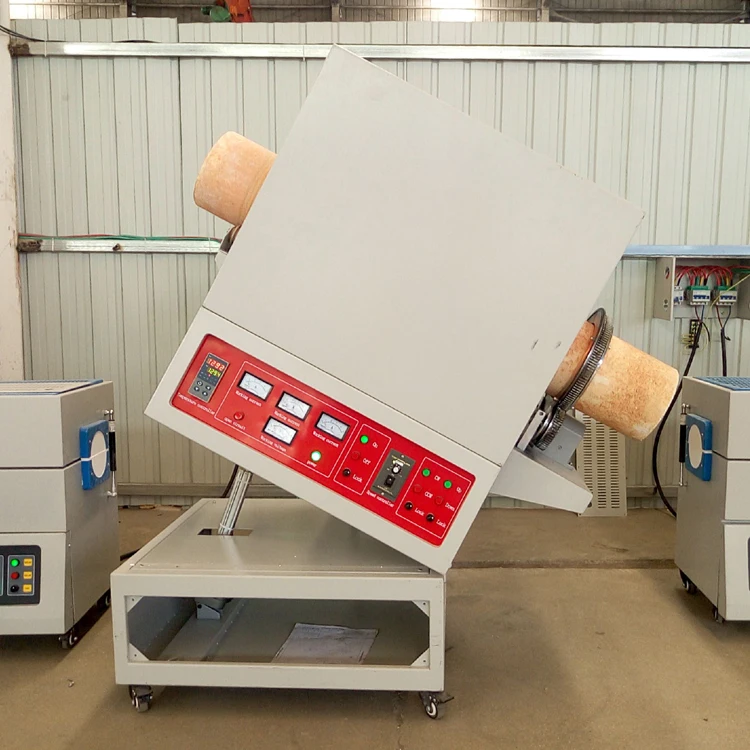

Tilting system | Maximum inclination: 0-30° (adjustable) ,Bar-driven ,Push button control switch |
Temperature control | Adopt international advanced temperature controller, with 30-50 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty. |
Max.vacuum | -0.1Mpa |
Inlet gas/Atmosphere | It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc |
| Vacuum system | Use Stainless steel vacuum flange with vacuum gauge,valve;Easy to unload, double seal |
Furnace shell structure | Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury. |

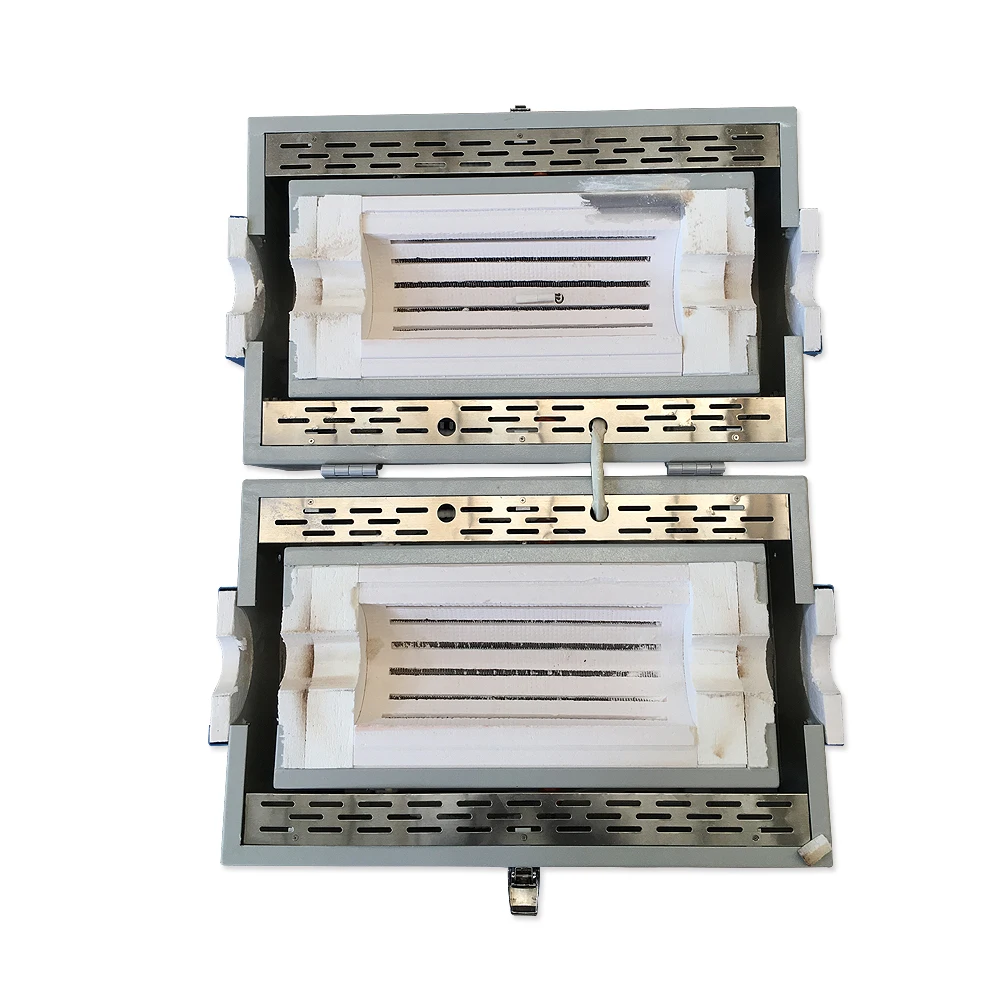

| Furnace Chamber material | Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. |
| Furnace chamber design | Double air cooled structure |
| Sandard accessories | Vacuum pump 1pc, Crucible tongs 1pc, Thermal gloves 1 pair,User manual 1 pc,other small tools for assembly furnace |
| Other temperature options | 1200C,1400C,1700C,1800C |
| Furnace standard Tube size | Tube diameter:40mm,60mm,80mm,100mm or other OEM size; Heating zone length:200mm,350mm,440mm or other OEM size. |
| Waranty | One year |
Detailed Images
1.Float flowmeter 2.Vacuum system
Clear and accurate measurement of airflowClear Adopt VP125/VP180
and accurate measurement of airflow monoblock pump

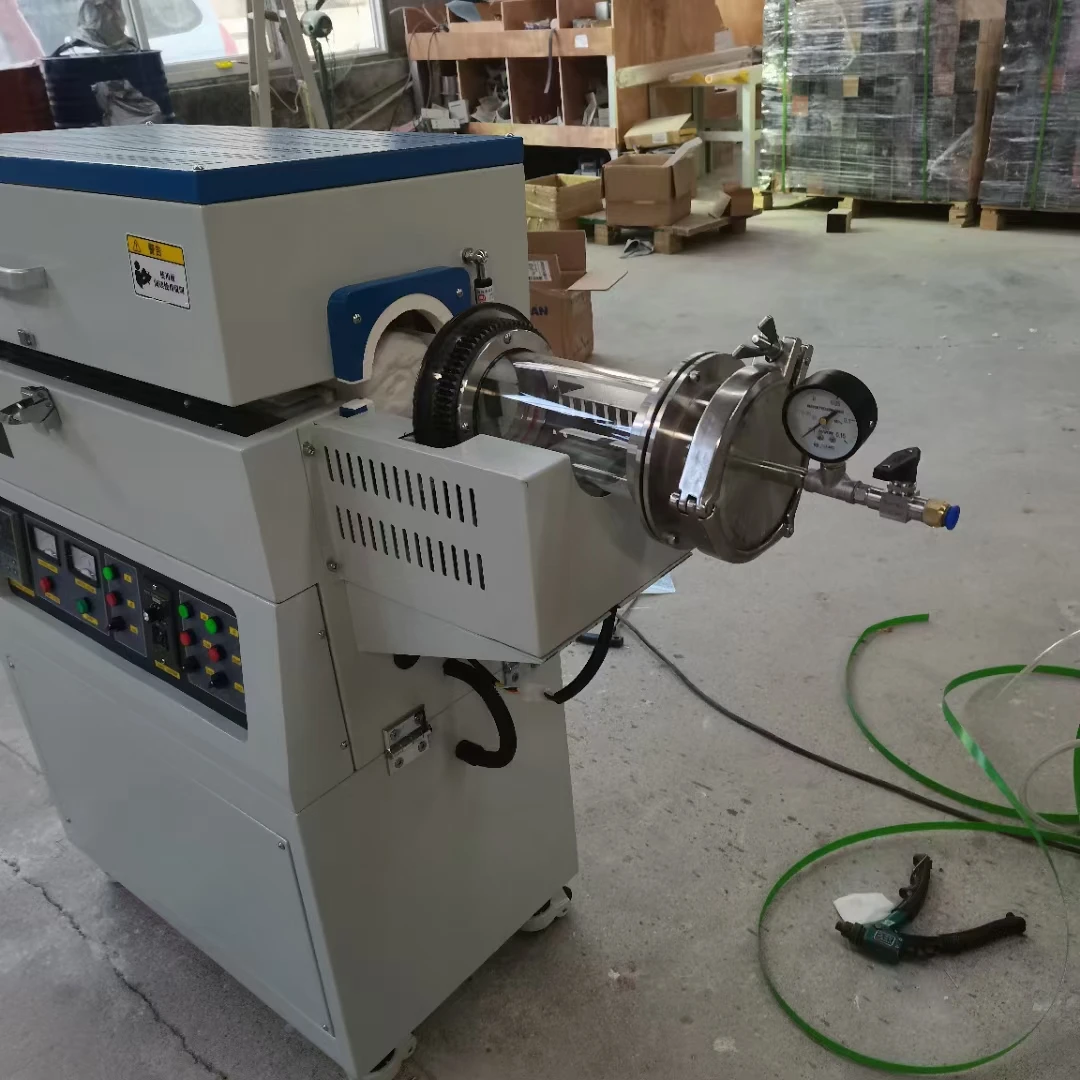

3.High quality quartz tube 4.Vacuum system
Resistance to high temperature and oxidation 314 High vacuum stainless steel flange with vacuum gauge and valve
High temperature furnace test area
Related products
Certifications
Our products have passed CE certification, SGS,UL,ISO9001 and other certificates.

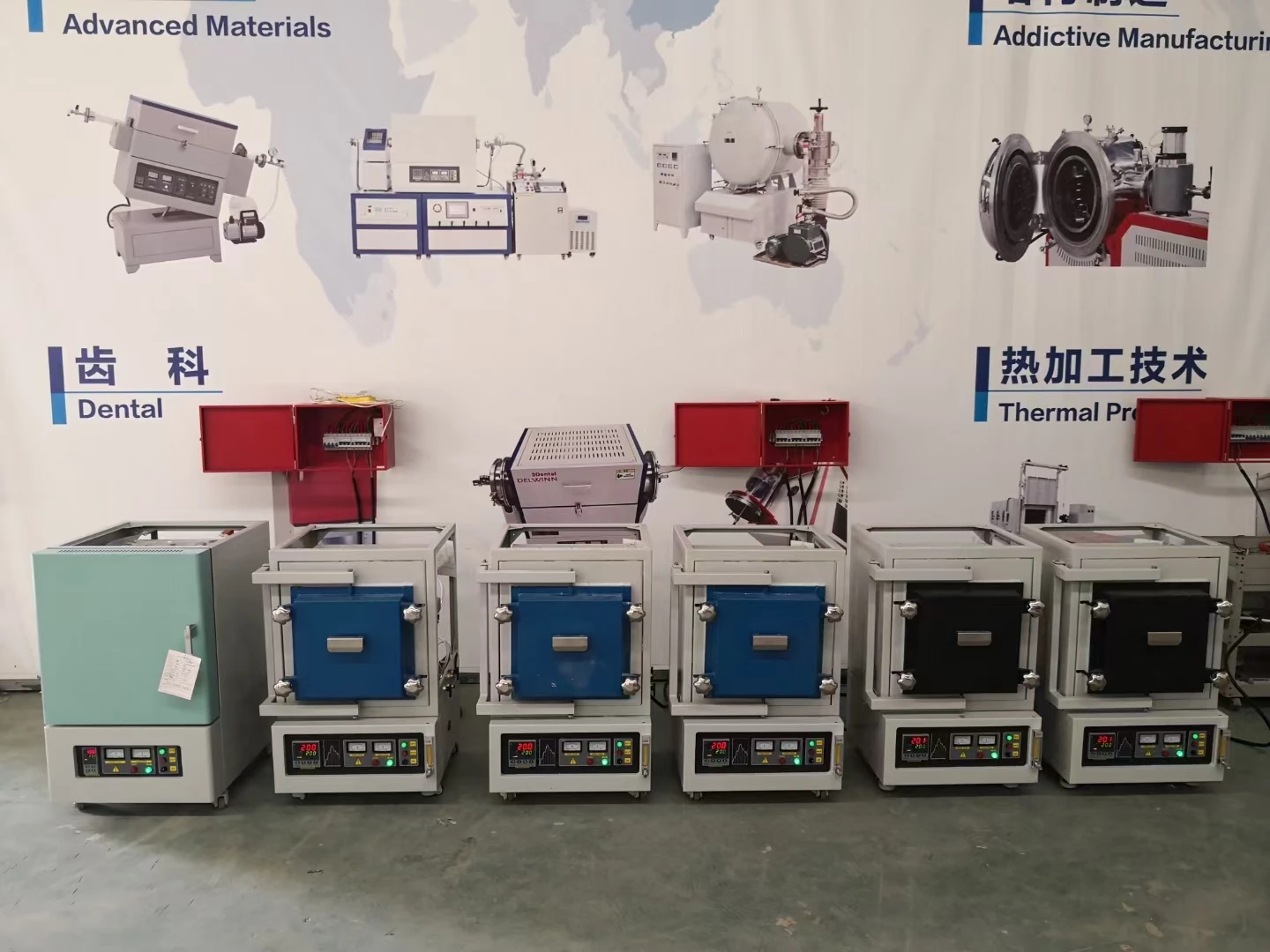

Company Information
