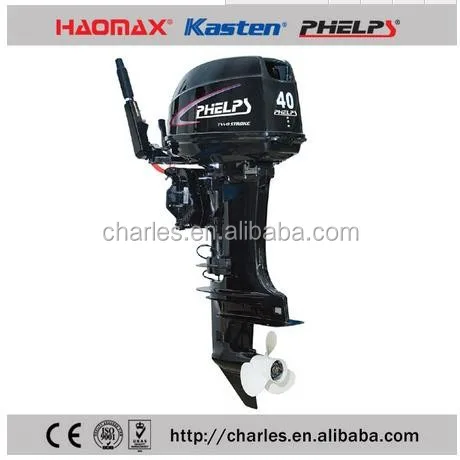

Yamabisi 40hp two stroke outboard engine with long or short shaft

Model

Unit

T40BMS

Overall length

mm(in.)

860(33.9)

Overall Width

mm(in.)

530(20.9)

Overall Height

mm(in.)

1490(58.7)

Transom Height

mm(in.)

L:533(21.8)

Weight

Kg

76

Full throttle Operating Range

r/min

4500~5500

Maximun Output

Kw(hp)@r/min

29.4(40)@5000

Idling Speed(neutral)

r/min

750~850

Engine Type

2-STROKE

Cylinders

L2

Displacement

cm3

702

Bore*Stroke

mm(in.)

80.0*70.0(3.15*2.76)

Ignition System

CDI

Control System

Tiller Control

Starting System

Manual Start

Gear Positions

Forward-Neutral-Reverse

Gear Ratio

1.85(24/13)

Trim and tilt system

Manual tilt

Fuel tank Capacity

L

24

Engine oil capacity

(without oil filter)

/

Gear oil Capacity

cm3

430

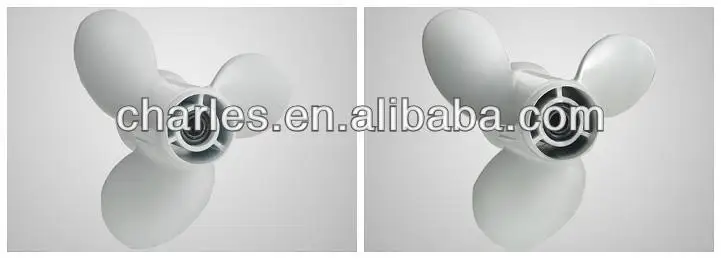

Propeller Spec.

In

3-11 1/8"×13"

Packing

L*W*H

1480*860*480

20GP

PCS

46

40HQ

PCS

113

Packed with soild foam, good strong carton, pallet for sample order

B=BACK CONTROL,M=MANUAL START,S=SHORT SHAFT,L=LONG SHAFT

Our Marine Engine Rang

Two stroke: 2.5HP ,4HP, 5HP, 8HP, 9.9HP, 15HP and 40HP motors

Four stroke, 2.5HP, 4HP, 5HP, 9.9HP, 15HP
