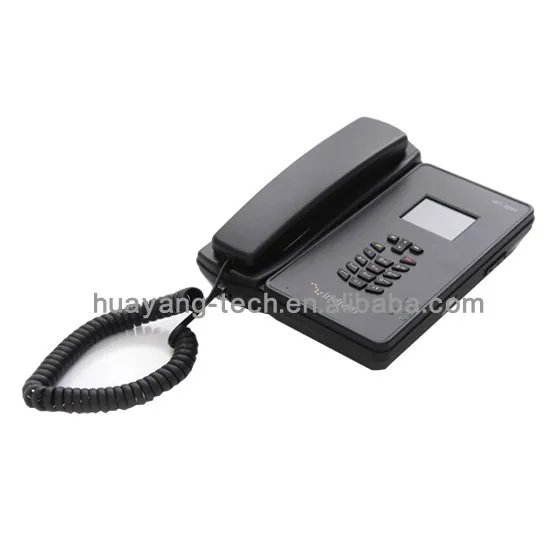

Iridium Fixed satellite phone with antenna

Iridium has 66 Low Earth Orbit satellites , meaning it can reach more places than other networks!  It is the only truly global network ... covering everywhere (including the North and South Poles).

Main Function:

The iridium IST-8000 is designed to operated with iridium satellite system service, support all iridium Voice, data, SMS and SBD service.

The IST-8000 is the ideal low cost satellite phone for various maritime, transport or fixed site applications.

Features

• Compact all-in-one design
• Easy installation and operate.
• High quality IP54 rated maritime enclosure
• In-built speakerphone
• In-built slimline active privacy handset, High stable and clear voice.
• Compressed Data : 10-12 kbps
• Voice/Data Modulation: 2.4 kbps

Technical Specifications

Main unit:

Power Specifications

Power input Voltage : 9-32V DC ,

Power consumption ( AMPS)

Stand-by:   66mA/ 0.8W

Transmit : 300mA/ 3.5W

Antenna port : TNC-Female .

Power port : 2 pin Aviation interface

Data Port : Micro USB

Dimension: 220x173x46mm

Weight: 657g

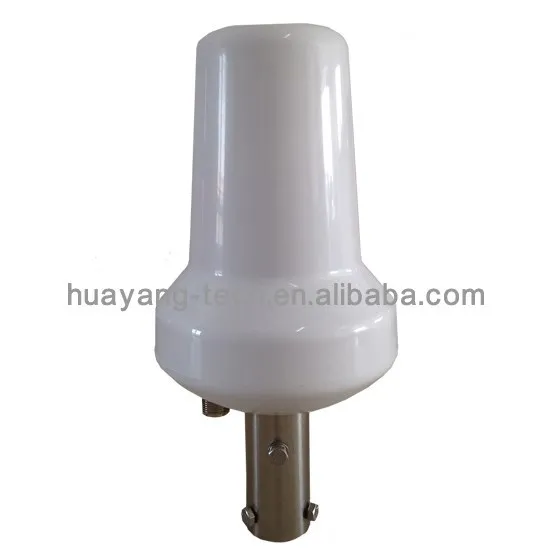

Antenna Specification

Frequency : 1610-1626.5MHz

Polarization: Right hand circular

VSWR : Less than 2:1

Working Temperature: -40c~ +70c

Storage Temperature :-55c ~ +85c

Humidity : 90%

Antenna dimension: 114x234mm

Weight: 0.41kg

Antenna gain : 4dB max

Connector type : N-K
