250W Infra red Ceramic Heating Elements For Vacuum Forming Machine

Product Overview

Description

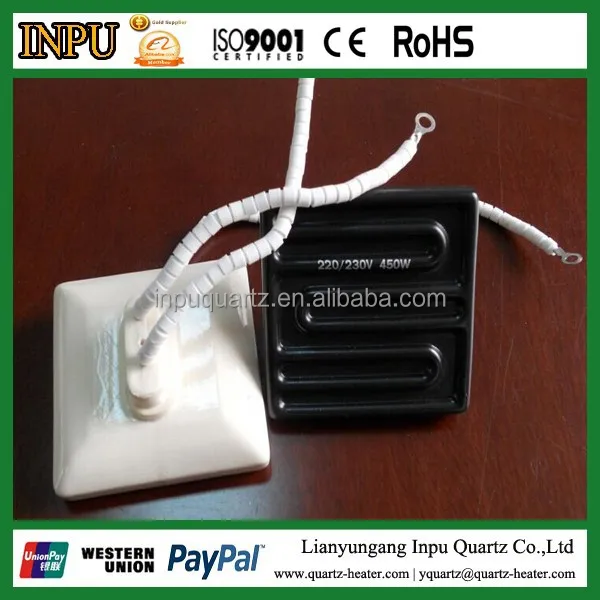

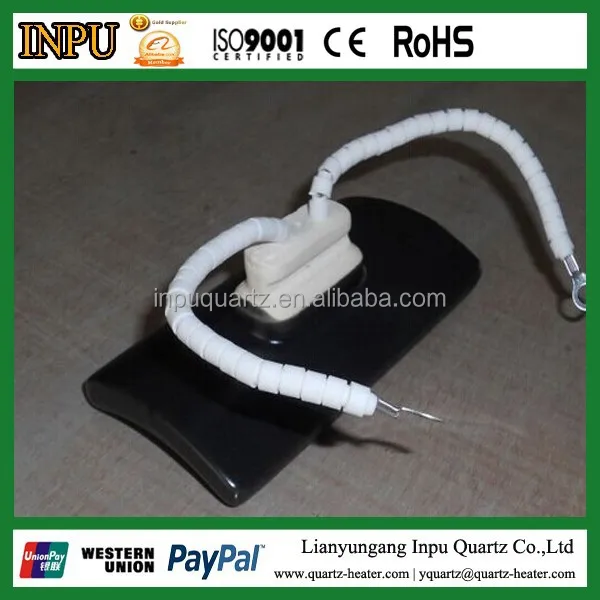

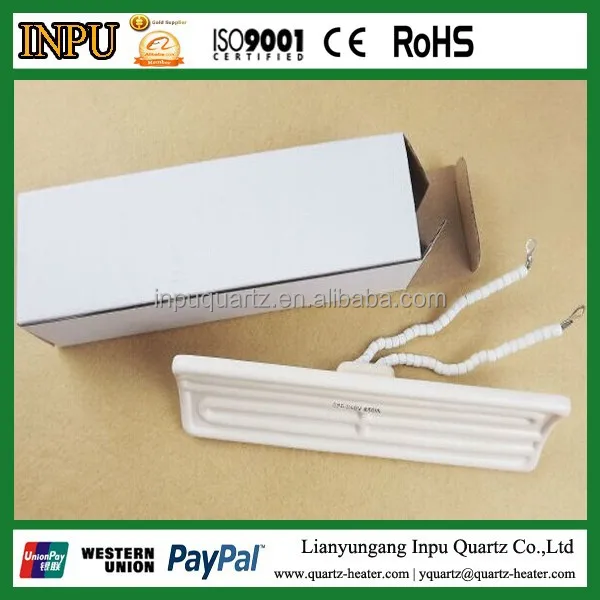

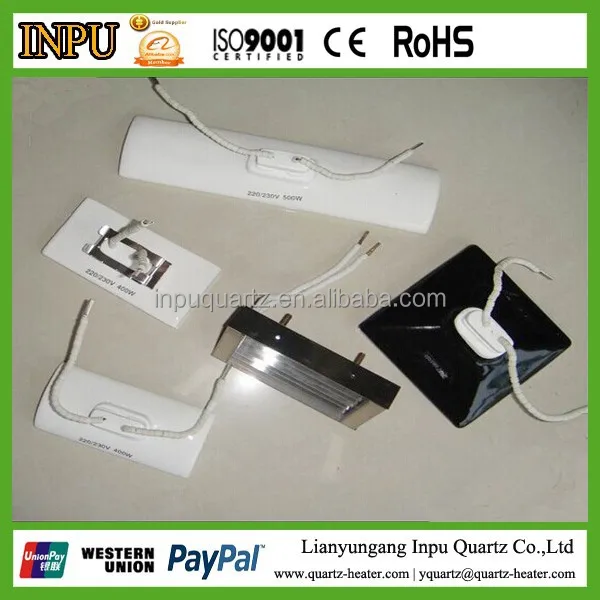

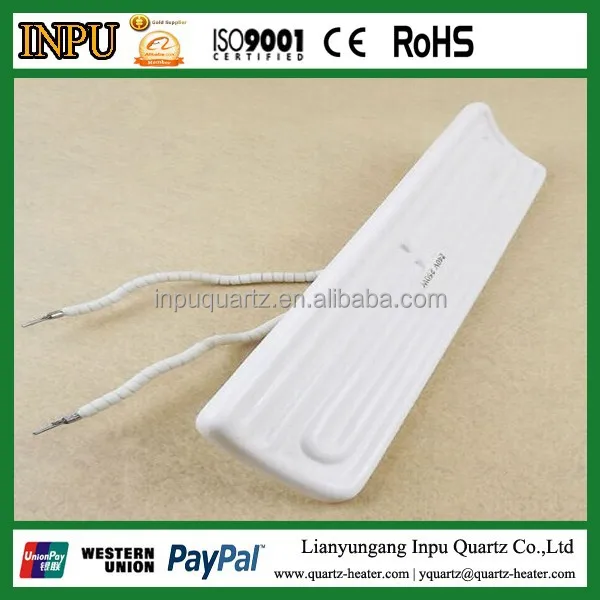

250W Infra-red Ceramic Heating Elements For Vacuum Forming Machine



Brief Introduction

1.We Inpu factory is a professional quarts heater manufacturer with more than 15 year’s
producing & sales experience , we prefer LONG-TERM COOPERATION WITH YOU!

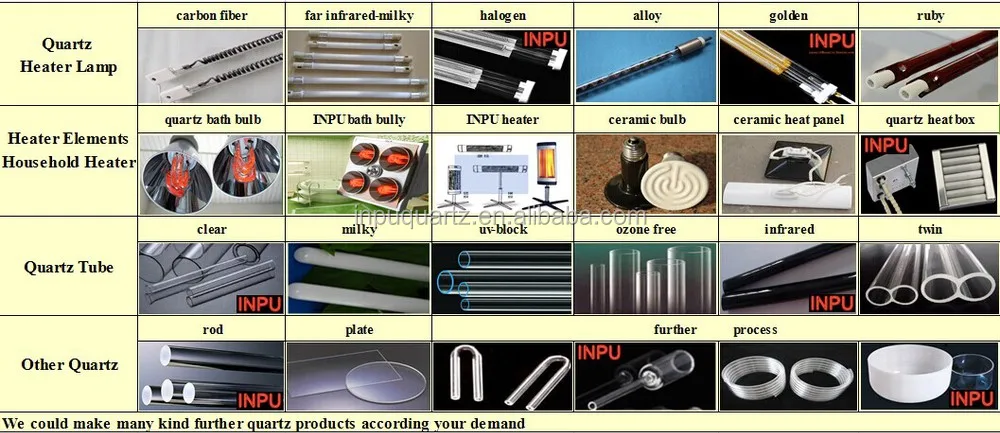

2.Main Product Lines :
1)Quartz tube :clear /milky/uv-block /ozone free /infrared /twin quartz tube & further process
2)Other Quartz :Quartz Rod ,Quartz Plate
3)Quartz Heater lamp :Carbon fiber heater lamp /infrared heater lamp /halogen heater lamp/alloy heater lamp/golden & ruby heater lamp

4)Heater element :Ceramic heater emitter /Quartz heater element
5)Bathroom Heater lamp (NEWEST PRODUCT)

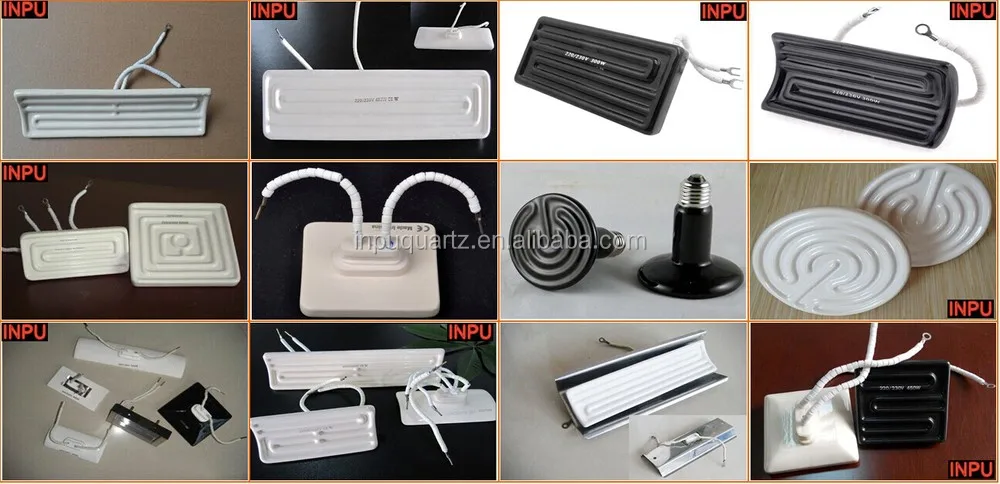

Description about the ceramic heater emitter

We are one of the leading manufacturers of infrared heating elements.
Our Ceramic Infrared Heaters are designed to produce maximum output in form of heat energy.
They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against much damage. We supply Custom Wattage Ceramic Infrared Heaters as per the requirement of our clients.

Electric ceramic elements are efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying.
They are also used very effectively in infrared outdoor heaters and infrared saunas. Most plastics and many other materials absorb infrared wave best in this range, which makes the ceramic heater the most efficient infrared radiant emitter on the market.

Technical Parameter

- Nickel chrome resistance wire(NiCr20/80)
- Type K thermocouple mounted internally in center heater. Type J is also available.
- Voltage: 120V 220V 230V 240V 380V
- Useful wavelength range: 2-10 microns
- Operating temperature is 300°C to 700°C (572°F - 1292°F)
- Average Operating Life-Up to 20,000 hrs depending on conditions.
- Recommended radiation distance from heater is 100 mm to 250 mm.
- It is heated up to 800C, put in cold water repeatly for ten times and no cracking.

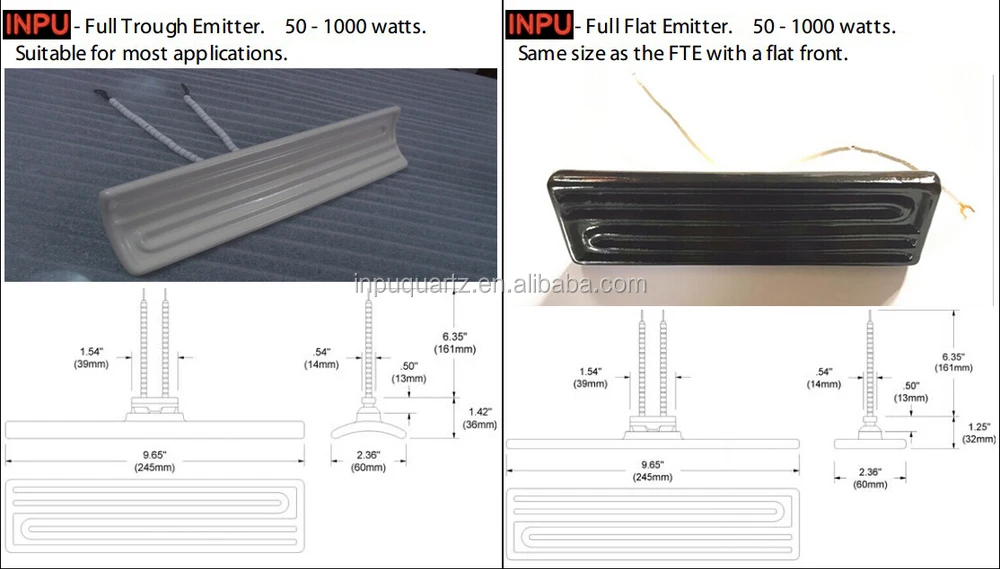

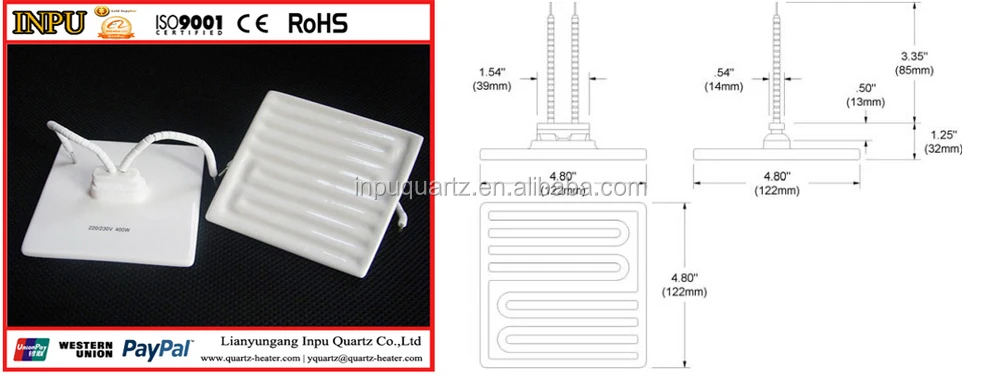

Specifications

Size(mm)	Type	Color	Power
60 x 60	Curved/ Flat/ Hollow	White/ Black/ Yellow	125w - 250w
122 x 60	Curved/ Flat/ Hollow	White/ Black/ Yellow	125w - 500w
122 x 122	Flat/ Hollow	White/ Black/ Yellow	150w - 750w
245 x 60	Curved/ Flat/ Hollow	White/ Black/ Yellow	150W - 1000w
245 x 80	Curved/ Flat/ Hollow	White/ Black/ Yellow	150w - 1000W

Application

drying, sauna, vacuum forming, solidify, medical treatment sanitation, BGA rework station, etc.

It has perfect saving energy effect in electron, textile, light industry, chemical, medicine, food industry etc, has obvious social profit and economy profit.

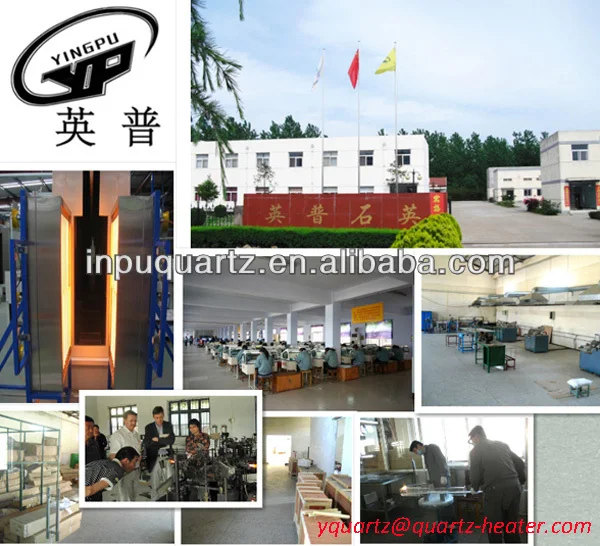

 INPU QUARTZ CO.,LTD







Packing & Shipping



INPU Certification

Why choose us? Because you can feel easy-going, like buying at your market.

• More than 15 years experience.Export 50 countries.
• Good quality control in production process.
• Excellent quality and Competitive price, OEM is available.
• Available in an extensive range of stock or custom size.
• The whole process from material to finished products can be traced.
FAQ:
1. Q: Are you a factory or trading company?
A: We are a professional factory.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Lianyungang City, Jiangsu Province, China, near Shanghai.You
can fly toLianyungang airport directly. Warmly welcome all the clients at home and broad
to visit us!
3. Q: What is the material of your products?
A: The material is quartz glass. Heating wire is tungsten or carbon fiber or alloy heating wire ,details ,please ask us.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A:"Quality is priority”.INPU people always attaches more importance to QC from the very
beginning to the very end. Our factory has gained CE, ISO9001, RoHS, SGS authentication.
