Concrete vibrator high frequency Electric engine concrete vibrator Internal concrete vibrator Introduction
- Category: Concrete Vibrator >>>
- Supplier: Taian Concrete Machinery Technology Co. Ltd. [Shandong China]Taian
Share on (60136655772):
Product Overview
Description
High-speed 220V European Type internal concrete Vibrator
Specification:
1. save labour cost
2. low noise
3 high frequency
ZDN42
Item | Unite | Data |
Series | 220V series | |
Model | ZDN42 | |
Diameter | mm | 42 |
Length | mm | 355 |
Vibration Frequency | vpm | 12000 |
Amplitude | mm | ≥1.5 |
Centrifugal Force | N | 3200 |
Voltage | V | 220 |
Power | KW | 1.2 |
Net weight | Kg | 11 |
ZDN52
Item | Unite | Data |
Series | 220V series | |
Model | ZDN52 | |
Diameter | mm | 52 |
Length | mm | 400 |
Vibration Frequency | vpm | 12000 |
Amplitude | mm | ≥1.5 |
Centrifugal Force | N | 4500 |
Voltage | V | 220 |
Power | KW | 2.2 |
Net weight | Kg | 13 |
Introduction
ZND series concrete vibrator is the newest motor-in-head high frequency vibrator with such features as:
- portable, only 11 Kg ,save 50% labor cost;
- long working life,5 times as long as the conventional ones;
- powerful centrifugal force:12000vpm,200HZ;
- low noise, only 70db.
ZDN 220v series use brushless permanent magnet motor featuring high torque and high efficiency.
Using 220v power, it is not only suitable to small and medium size projects, but also residence communities and rural areas without 380v power.
The converter of Model A connects the hose, workers can carry it on their shoulders with a strap. Since the switch is on the converter, it is easy to turn on and off.

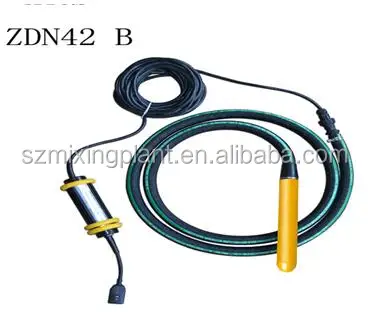

The converter of Model B is at the end of the cable, which can keep it away from the concrete mud.
It is easy to keep the converter clean, thus saving time in maintenance.

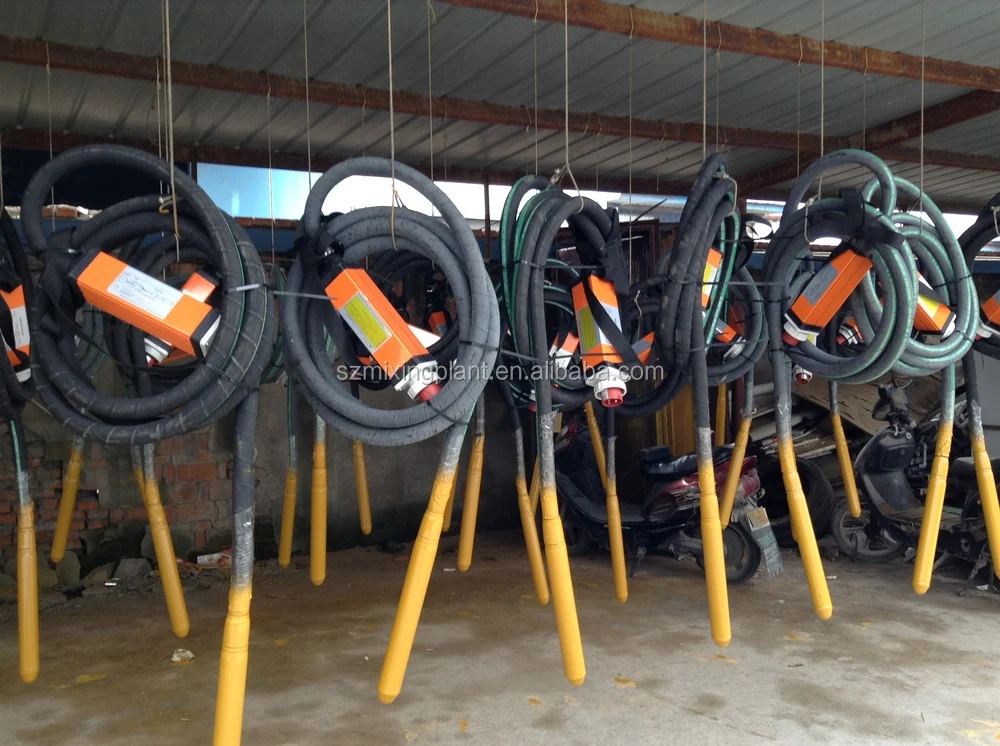

Details:
