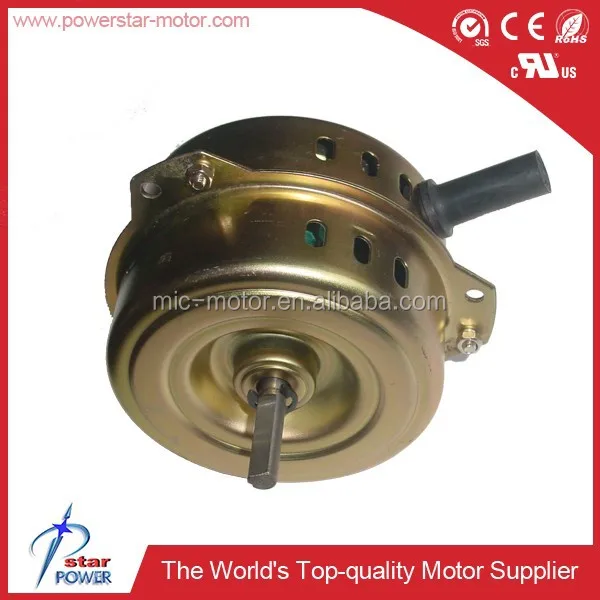

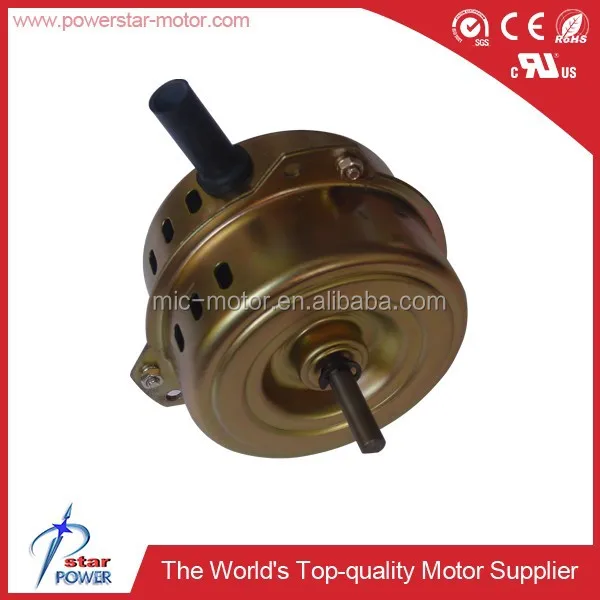

Three Speed Air Motor 70W 115/208 230V Electric Heating Air Curtain Fan Motor
Three Speed Air Motor 70W 115/208-230V Electric Heating Air Curtain Fan Motor
Three Speed Air Motor 70W 115/208-230V Electric Heating Air Curtain Fan Motor
Three Speed Air Motor 70W 115/208-230V Electric Heating Air Curtain Fan Motor

Three Speed Air Motor 70W 115/208 230V Electric Heating Air Curtain Fan Motor

Share on (60136663019):


Price:

Quantity:


Product Overview

Description





.jpg


Three speed air motor 70W 115/208-230V electric heating air curtain motor price






Product Description









































































Powerstar:Powerstar
Type:Asynchronous Moter
Rated Voltage115/208-230v
Frequency:50/60hz
Output Power:20-600W
Pole:4
Protect Feature:Open or enclosed
Speed:1350/1210/1100/1280/1000/800 ect
Shaft8/14
DIA(mm)94/120/140
Insulation ClassH
RotationCW/CCW
Phase:Single-phase
Bearing:Ball bearing
Place of Origin:Guangdong China (Mainland)
Certification:ROHS,CE
Features:

Reversible plug for easy rotation
Class F Insulation
Quick installation
Energy efficient
Quiet operation
Ball bearing
Dual voltage 115/208-230 voltage
Run capacitor pre-mounted on motor
Automatic overload
Operating temp -10-43 degree
High efficiency,High reliability,Little vibration,Low noise Thermal protection
Usage Air mover,Carpet Dryer,Turbo Dryer machine
Rated Frequency:50/60Hz
Power: 20-600W
Speed: 1100/1350 rpm
Number of Pole: 4 Pole
Shaft size:8/14mm
rotation: CW
copper wire






























































































































































































































Air Curtain Motors
Model      Power(W)Voltage(V)   Frequency(Hz)PoleSpeed(RPM)RotationShaftBearingDIA(mm)Protect FeatureInsulation Class
YSK-20-420115/208-230V50/6041350/1100CW8ball94enclosedH
YSK-30-430115/208-230V50/6041350/1100CW8ball94enclosedH
YSK-55-455115/208-230V50/6041350/1100CW8ball94enclosedH
YSK-70-470115/208-230V50/6041420/1320CW8ball94enclosedH
YSK-75-475115/208-230V50/6041430/1350/1280CW8ball94enclosedH
YSK-90-490115/208-230V50/6041400/1310CW8ball94openH
YSK-100-4100115/208-230V50/6041350/1100CW14ball120enclosedH
YSK-120-4120115/208-230V50/6041150/800CW14ball120openH
YSK-140-4140115/208-230V50/6041400/1280CW14ball120openH
YSK-150-4150115/208-230V50/6041150/1000/800CW14ball120openH
YSK-155-4155115/208-230V50/6041240/1150/1070/1000/820CW14ball120openH
YSK-180-4180115/208-230V50/6041350/1100CW14ball140enclosedH
YSK-310-4310115/208-230V50/6041300/1200/1100/1000/800CW14ball140openH
YSK-600-4600115/208-230V50/6041350/1210CW14ball140openH

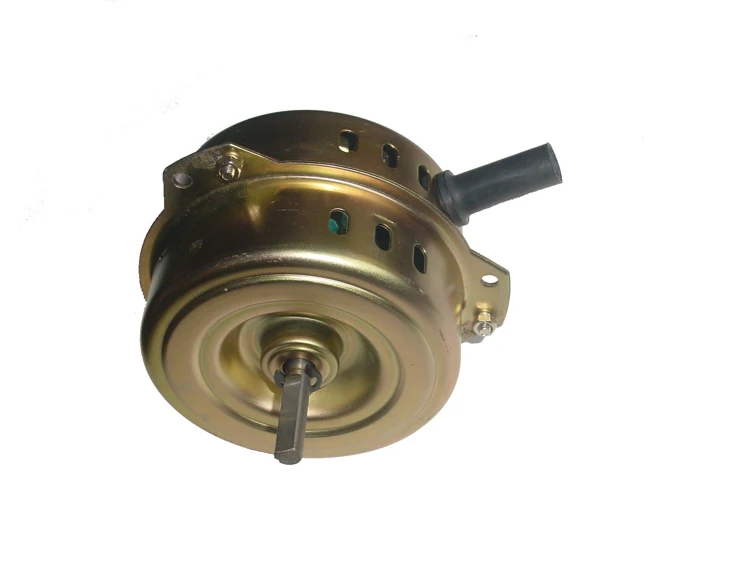

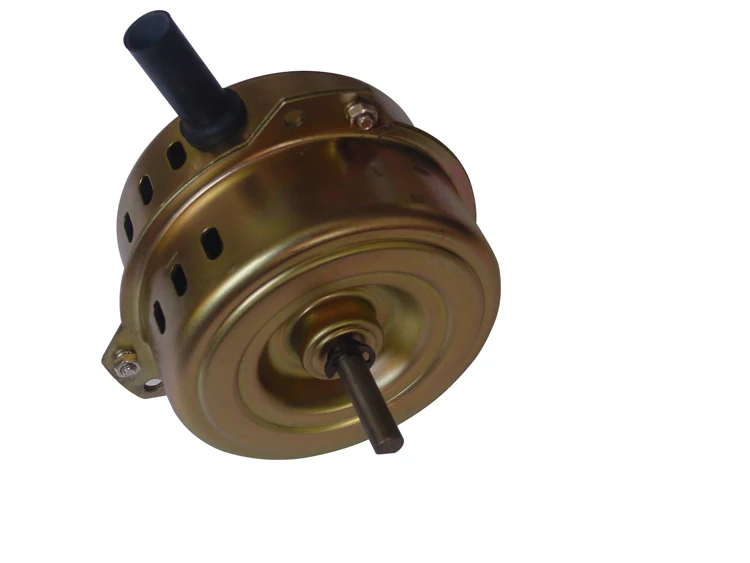

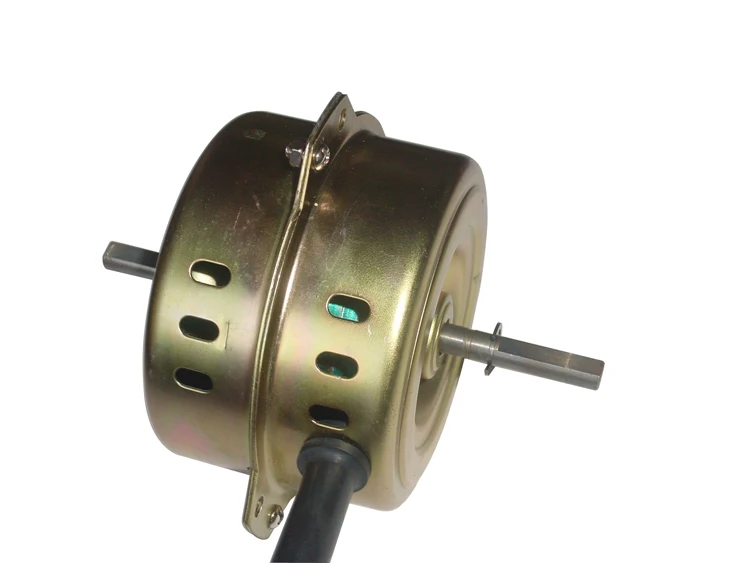

1 (3).jpg1 (5).jpg1 (9).jpg








Contact us


.jpg





hot




Company Information


.jpg


Zhongshan Powerstar Motor Manufacturing Co.,Ltd. is a professional motor;manufacturer with 15 years’


experience of designing and producing.





The main products are AC Induction gear motor, Fan Motor, Air conditioner motor, Household appliance 3.3 inches motor, Air mover motor, Air cooler motor, Pump Motor, Road barrier motor, Air inflatable blower motor.





We supply the core techniques service and professional guidance for customers. And our products are exported to Americas, Europe, Middle East and Asia. OEM or ODM is available. Welcome your business chat and visit.
