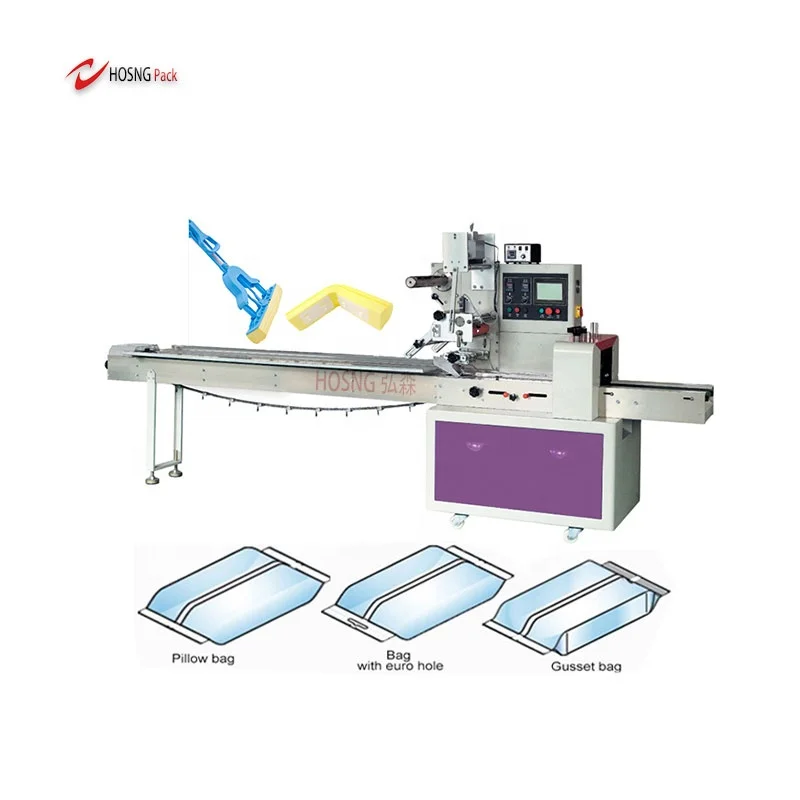

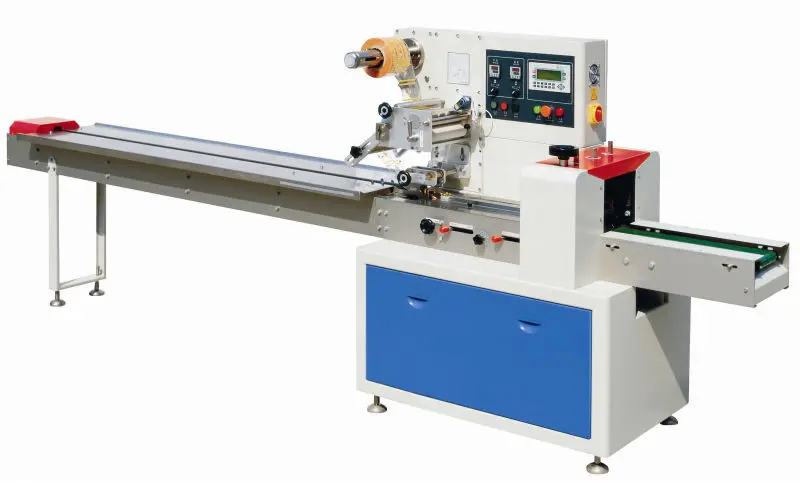

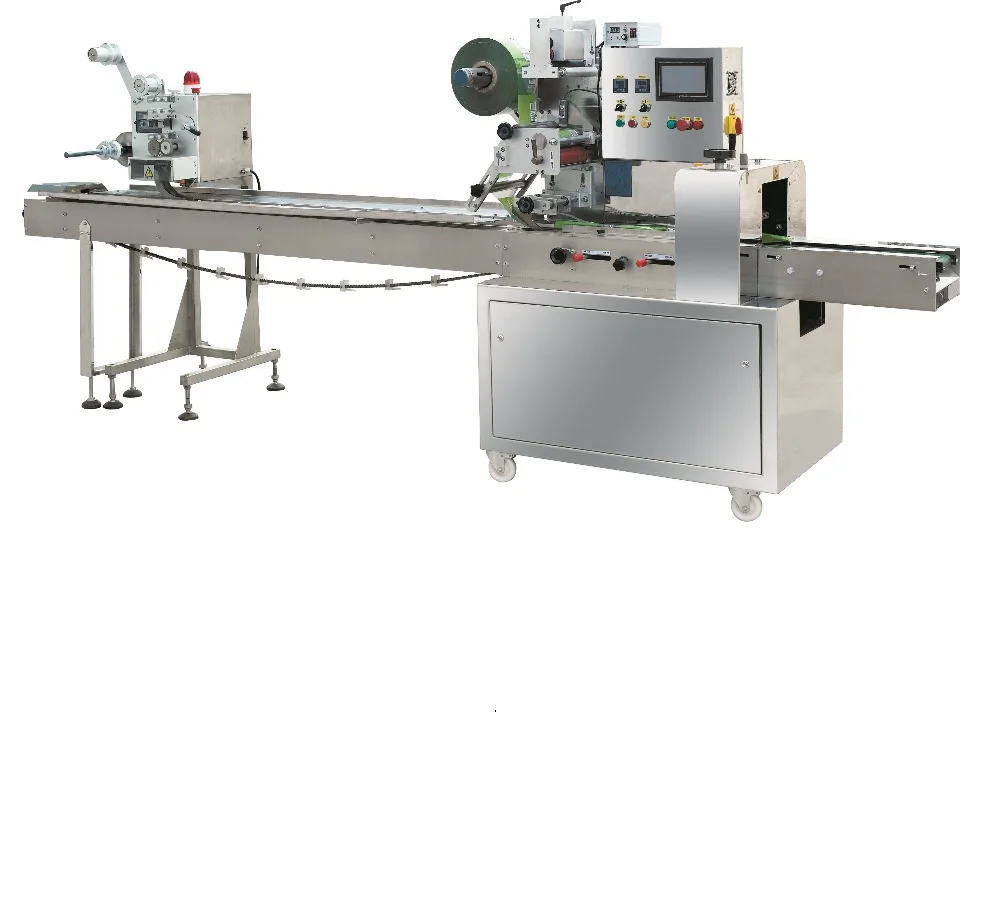

Full Automatic Foam Mop Pillow Bags Horizontal Packing Machine For Small business
- Category: >>>
- Supplier: Foshan Hosng Packaging Machinery Co. Ltd.
Share on (60136684502):
Product Overview
Description
Full Automatic Foam Mop Pillow Bags Horizontal Packing Machine For Small business
Product Description
| Product Parameters |
| Item | HS-350 | HS-350A |
| Bag making length | 65-190/120-280mm | 90-220/140-330mm |
| Production height | Max.40 | Max.60 |
| The maximum width of packing film | 350mm | |
| Film width | 60-350mm | |
| Packing speed | 40-230bags/min | |
| Bag making mode | Pillow-type bag/gusset bag/link-bag device | |
| Film material | OPP/PE/PVC,OPP/CPP,KOP/CPP,ALU-FOIL | |
| Thickness of film | 0.03-0.07mm | |
| Air consumption | 0.4m3/min 0.6MPa | |
| Main power/voltage | 3.4kw/220v,50/60Hz | |
| Dimension | (L)4020*(W)770*(H1450mm | |
| The weight of switchboard | 600kg | |
Main Performance And Structure Features
1. Using the famous brand PLC intelligent controller unit and inverter, the quality is more trustworthy.
2. 7 inch famous brand touch screen, the system is more intelligent and easy to operate.
3. Independent temperature control system, the temperature error is within ±1℃.
4. Photocell sensor, automatically compensate the length deviation of the film.
5. The interface of the system is simple and easy to understand, and the parameter setting is easy and simple.
6. Automatic fault detection function, safe operation, protecte equipment.
7. Flexible operation, high applicability, can be packed with a variety of materials, a machine for multi-purpose.
8. Automatically complete filling, bag making, sealing and date printing functions to realize industrialized rapid packaging.
9. It has high compatibility and can be matched with diversified equipment to meet diversified production requirements, such as punching, bagging, exhaust, aeration, QR code printing, etc.
10. The software operating system is stable. It also can customize the display of personalized logo and name in the boot screen of the system.

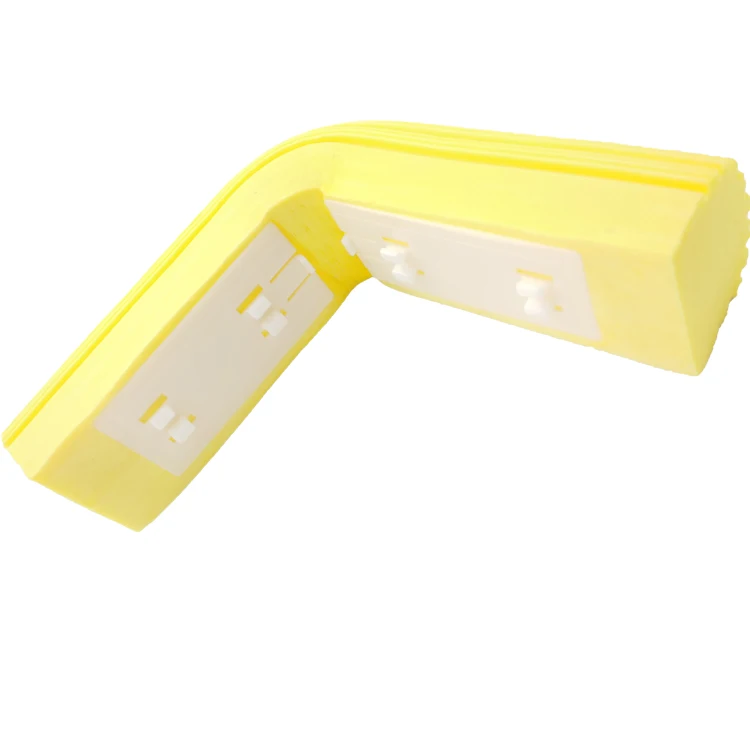

| Application and sample bag |
| Product Electrical Configuration |
The transducer also with the machine from Panasonic brand to keep machine work more stable.
Main performance and structural features
*It’s convenient in bag length control with advanced dual frequency conversion design;
*Reasonable complete machine design and stable performance; simple in operation with PLC full computerization;
*Precise sealing and cutting with high precision photoelectric tracking system;
*Positioned stop function without sticking to the reamer and wasting the roll film
| Product Structure Characteristics |
| Operation diagram |
* Hosng packaging Machinery can customize the suitable one for you according to your requiredment.
<<Just Tell us : Products,Bag Size required.>>
Advantages
Related Products
Company Information
Trade Shows
Buying Guides
Certifications
| FAQ |
Q1: When Hosng Pack was founded ?
A: It started in 2007, till now it around 13 years experience in Packaging Industry.
Q2: How about your delivery time?
A: Commonly it needs 30 days for production, but if there is anything urgent, can be finished within 15 days if spare parts in stock.
Q3: What’s the warranty?
A: Warranty is 1 year, not including easy damaged spare parts, such as heater, belts, etc.
Q4: How do you recommend to me the suitable packing machine?
A: You need to offer us detailed packing requirements, including packing products, bag size, packing weight, bag type,etc.
Q5: Can arrange technician to oversea for commissioning ?
A: Yes, we can if you need, but you need to pay the fees including: Visa charges, return ticket, accommodation and labor fees. We also accept you arrange technician to learn in our factory before shipping.
