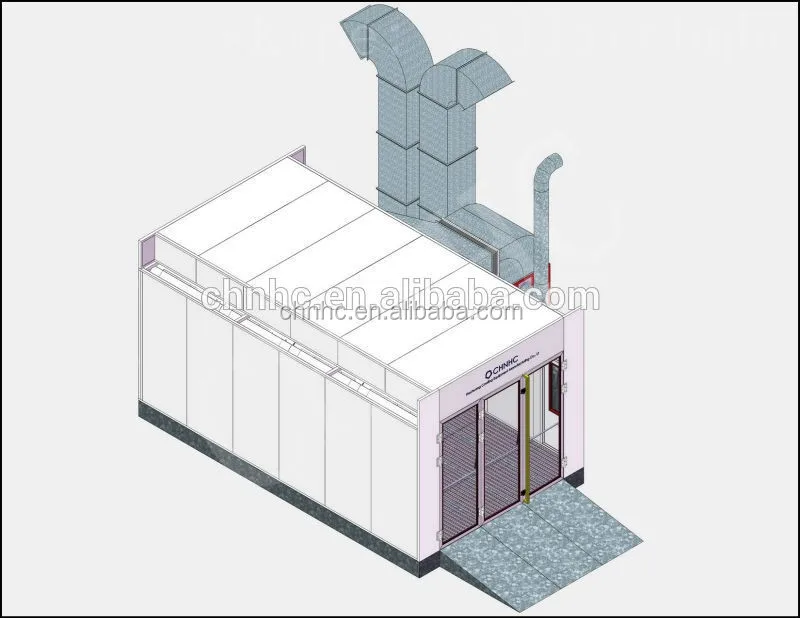

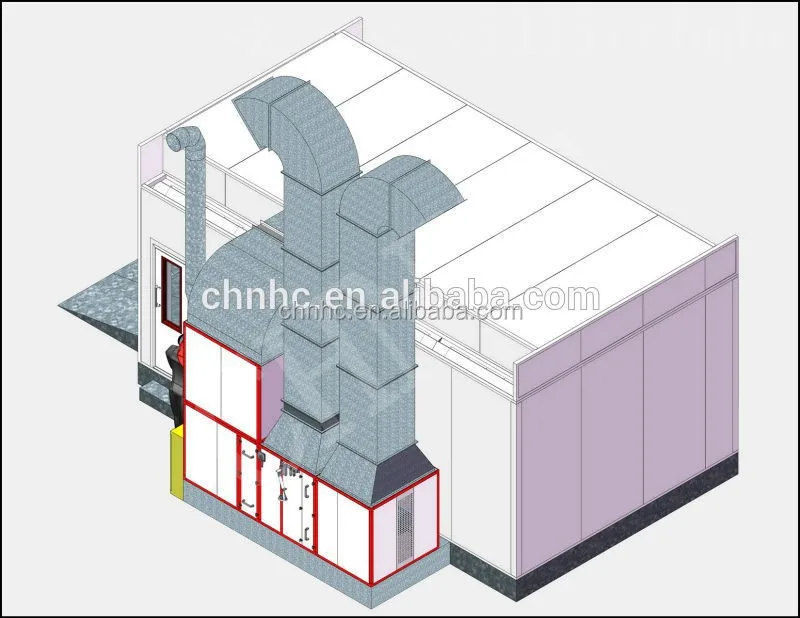

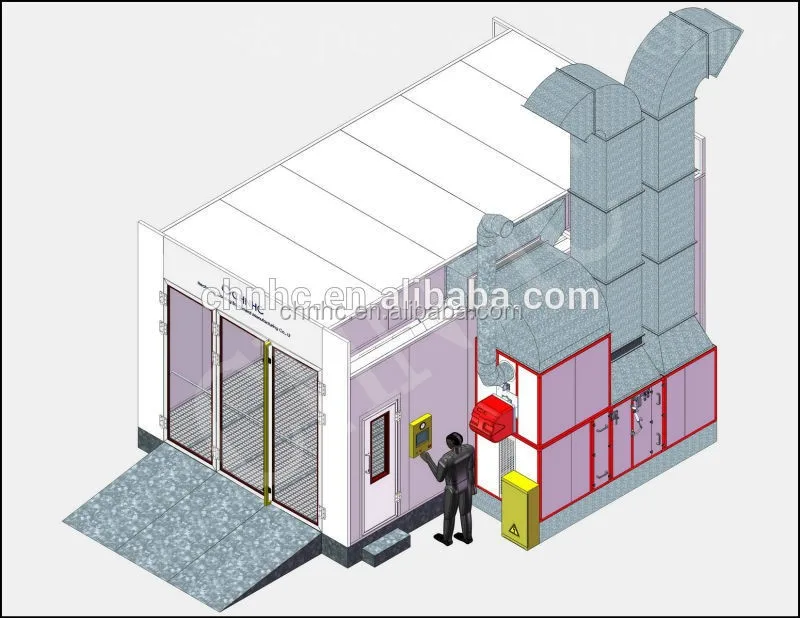

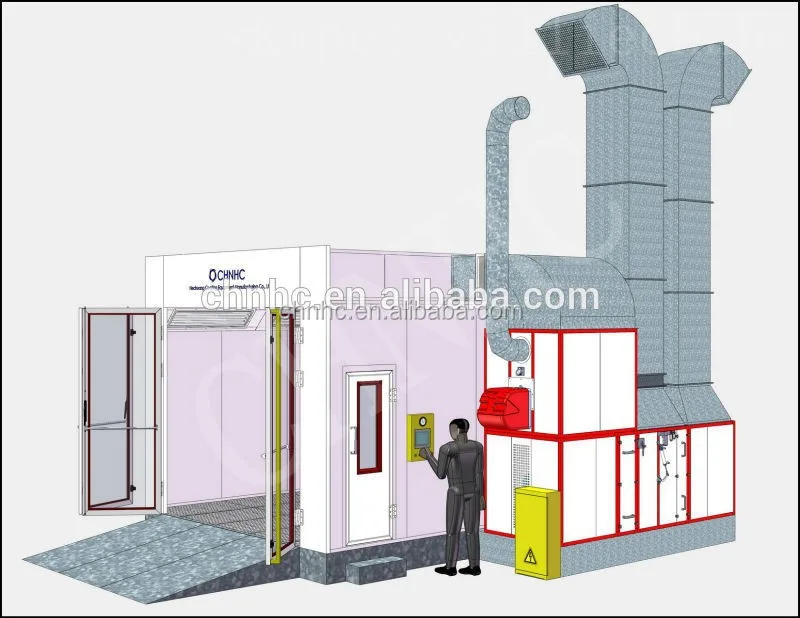

Cabins for painting cars/auto paint booth manufacturers
- Category: >>>
- Supplier: Guangzhou Hechuang Coating Equipment Manufacturing Co. Ltd.
Share on (60136825396):
Product Overview
Description
Product Description
Product descSpecification of Cabins for painting cars

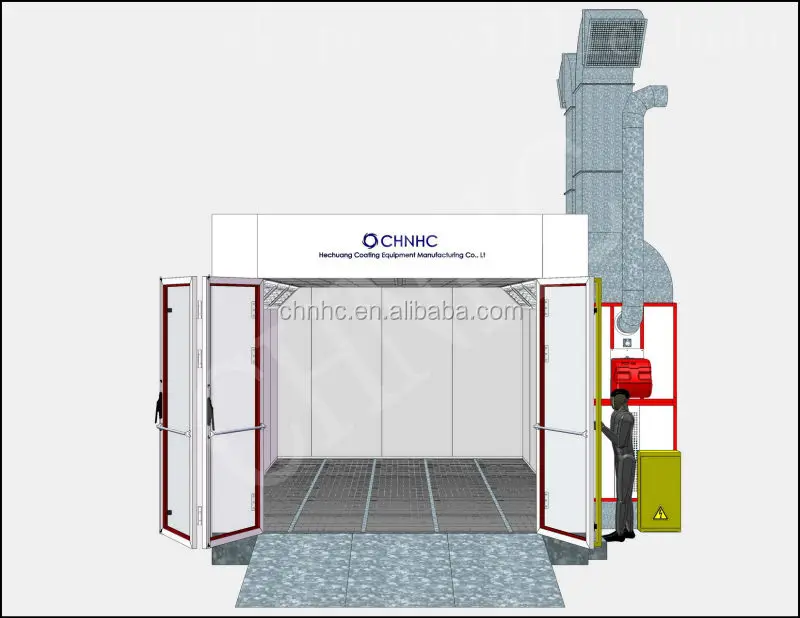

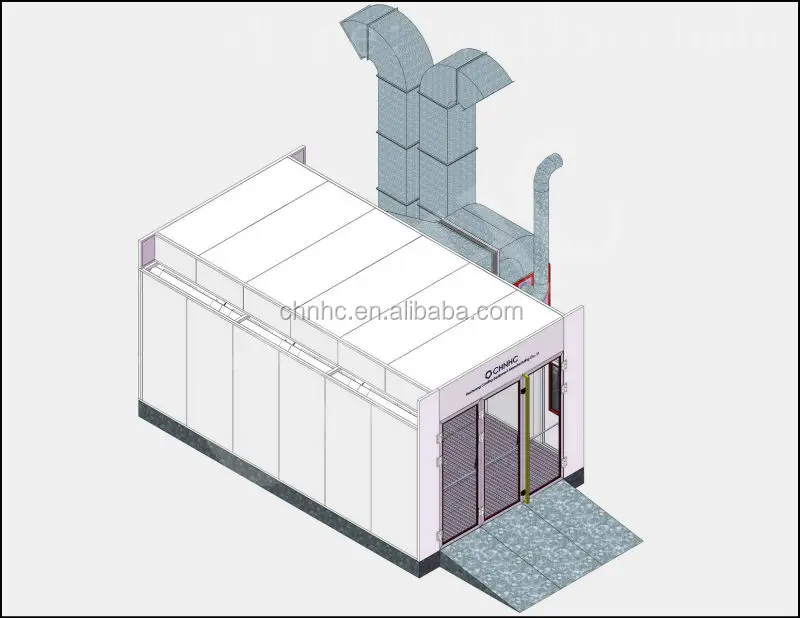

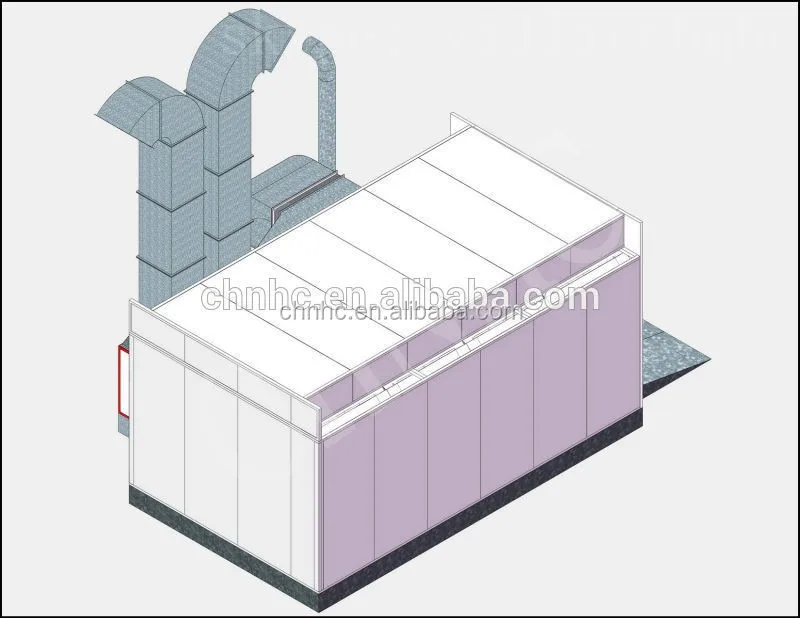

Specification of cabins for painting cars:
Outside Size: | 7010 x 5570 x 3810 mm (L x W x H) | Inside Size: | 6900 x 4000 x 2700 mm (L x W x H) |
Basement | Basement | Full metal foundation, full grids | |
Metal basement | 350mm height, the ventilation effect is better than traditional spray booth. | ||
Drive-in Ramps | 3Units, each size: 2000x1030mm, diamond plate construction | ||
Foundation and Floor | Wallboard and Roof Panel | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm | |
3-Folded Entrance Door With Safety Glass Window | 1 set, size: 3200x2700 mm(B x H), size is bigger than traditional spray booth | ||
-Operator’s Door With Safety Glass Window | Big opening:700x2000mm (B x H),hand-made, tempering glass observation window | ||
Light System | Ceiling Lighting | 8Units, each4×36w, total 1152W , adopt Germany OSRAM Lamp | |
Side Lighting | --- | ||
Brightness | ≥700 LUX | ||
Filtration System | Pre-filters | EU3 grade pocket filter system, filtration effect is much better | |
Ceiling Filters | EU5 grade high efficient filter | ||
Bottom filter & exhaust filter | Fibreglass paint-stop filter | ||
Ventilation System | Inlet fan (Direct Drive Motor) | Adopt big impeller turbo fan 7.5KW ,380V,50HZ,CE | |
Outlet fan (Direct Drive Motor) | Adopt big impeller turbo fan 7.5KW ,380V,50HZ,CE | ||
Painting and baking exchange system | Solenoid valve+ pressure adjustment control cylinder driven damper exchange | ||
Fan Capacity | 25.000m³/h | ||
Air Flow Speed | 0.23 m/s in empty booth, 0.25-0.35m/s in loaded booth | ||
Heating System | Heating Exchanger | Adopt high efficient heat-resistant stainless steel as cycling heat exchanger | |
Heating Exchange Capacity | 200KW(260.000Kcal/H) | ||
Burner Model | Adopt Italy RIELLO diesel burnerRG5S, (260.000kal/H), quicker heating and much better effect, more rest assure for quality | ||
Heating time | 3-5 minutes( from 20°C to 60°C) under baking status, the max baking temperature is 80°C | ||
Control board | Control system | Standard control system | |
PLC controller | Yes, PLC control, more reliable and lower breakdown rate | ||
Pressure testing | The pressure gauge indicate the pressure inside cabin | ||
Function | Painting, warm painting, baking, emergency stop switch, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection | ||
Total power | 17.5KW | ||

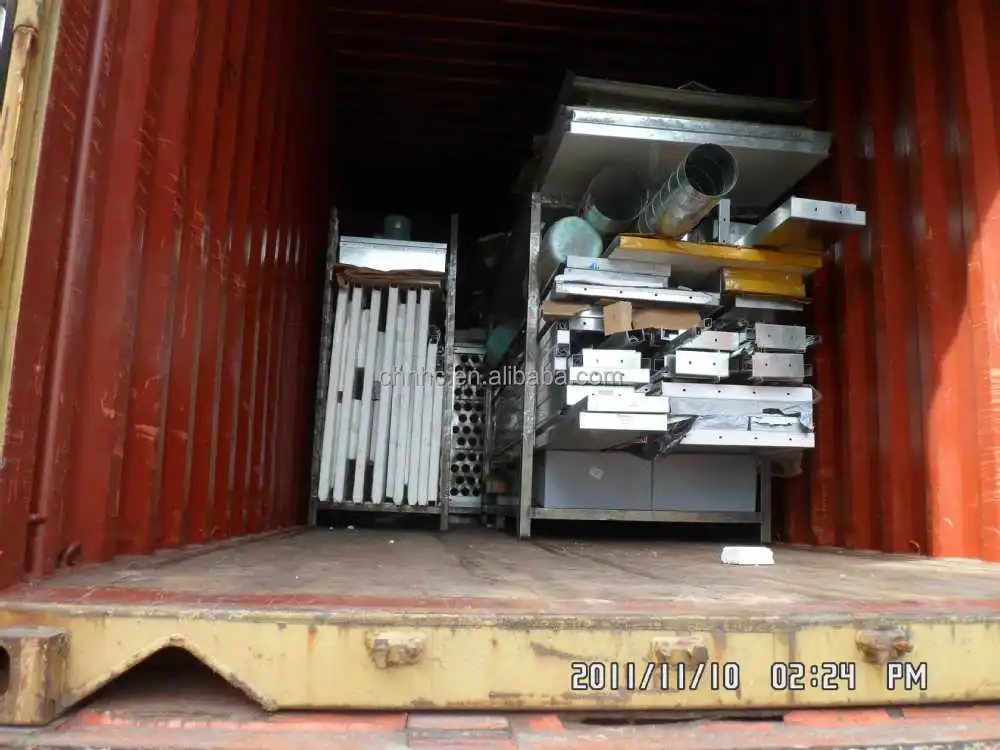

Packaging & Shipping

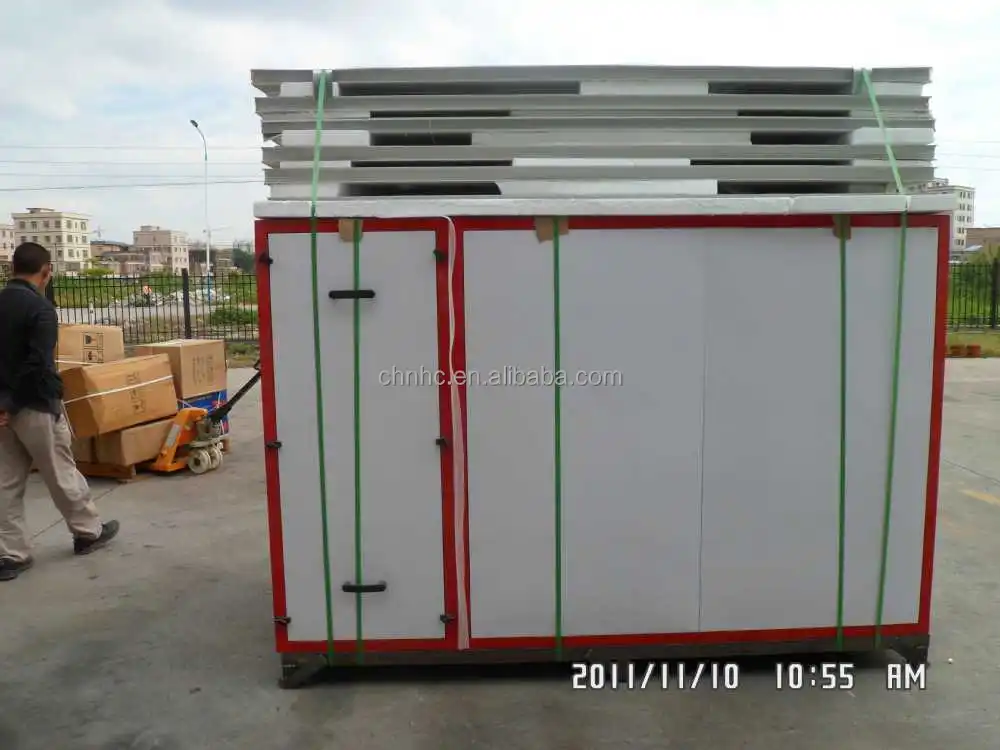

Packaging and shipping:
Our Services
Our services:
A. All of the machines in our factory can be customized. If you have any other requirements of the machine, please feel free to contact me. We can design it for you.
B: Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before
shipment.
C: Delivery time: To effect shipment within 7 days after the receipt of deposit.
D:Warranty time: 1 year. During the warranty time, any defective caused by product’s quality, CHNHC has responsibility to offer free spare parts to customers freely and bear the
delivery cost for DHL or TNT Carrier.
Company Information
Company information:
HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus/truck spray paint booth, preparation station, mixing room, brake lathe, car bench and so on. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.

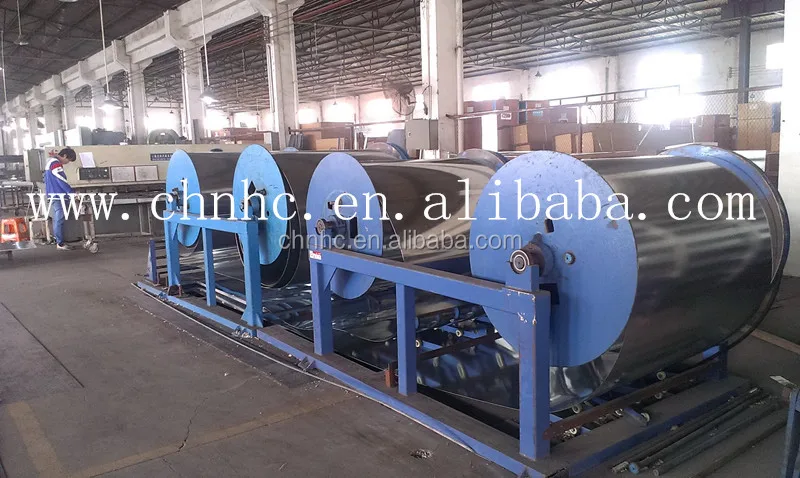

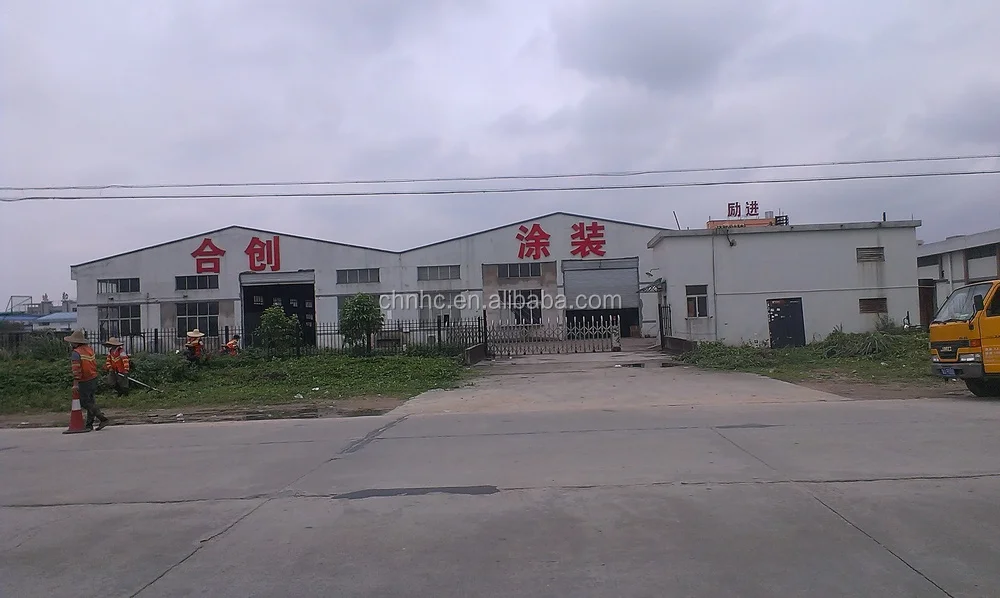

Our factory:
FAQ
FAQ:
Q: Are you a factory or a trading company?
A: We are a factory and all machines are produced at our own factory.
Q:Can I order special color which I like?
A: Yes, we can also produce machines with special color according to client's request.
Q: Can I order spray booth in any special size?
A: Yes,you can.
The size is customized.
Q: I don't know how to assemble your spray booth
A: The complex installation is already finished before delivery, what you need to
do is finishing the simple procedures according to the installation instructions.
Q:Where is your factory located? How can I visit there?
A:Our factory is located in Huadu District, Guangzhou City, Guangdong Province, China, about 10 minutes by car from Baiyun international Airport. We welcome customers from all over the world!
Q: Can you do OEM and ODM?
A: Yes, for both. We can make products according to your requirement of every aspect.
