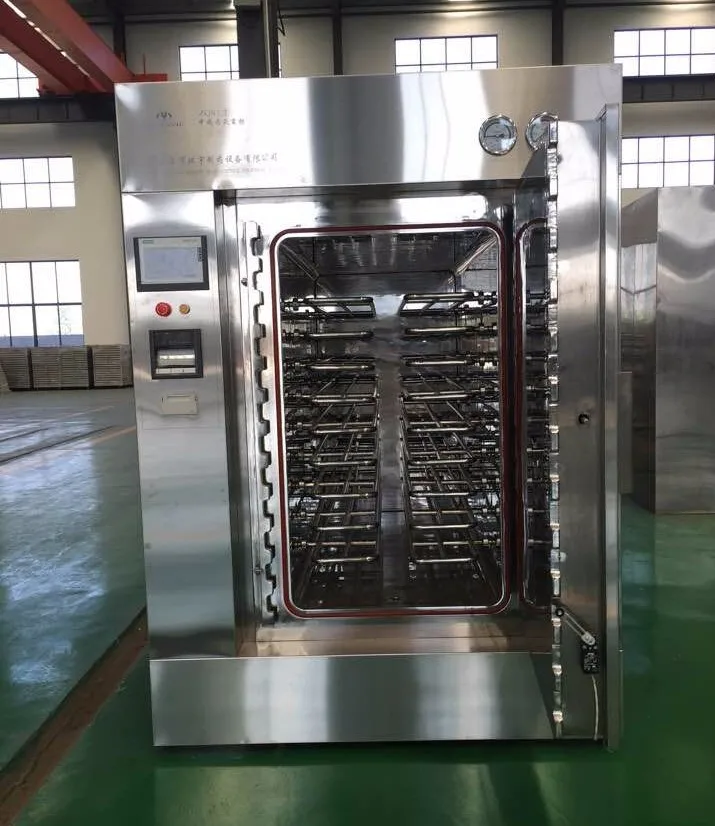

ZQS 600 liters medicine dryer autoclave
- Category: >>>
- Supplier: Zhangjiagang Huanyu Pharmaceutical Equipment Co. Ltd.
Share on (60136857560):
Product Overview
Description
Product Description
Model | Volume | Inner size（mm） | Outside size(mm) | steam | water | power | weight |
ZQS0.6 | 0.6m³ | 1240*650*750 | 1530*1350*1800 | 30kg | 100kg | 3kw | 1500kg |
ZQS1.2 | 1.2m³ | 1500*750*1050 | 1790*1450*1900 | 50kg | 200kg | 4kw | 2100kg |
ZQS1.5 | 1.5m³ | 1900*750*1050 | 2190*1450*1900 | 60kg | 200kg | 4kw | 2300kg |
ZQS2.0 | 2.0m³ | 1700*1000*1200 | 2000*1880*2200 | 70kg | 250kg | 4.5kw | 3000kg |
ZQS2.5 | 2.5m³ | 2100*1000*1200 | 2400*1880*2200 | 80kg | 300kg | 5kw | 2700kg |
Summary
This series of Chinese medicine sterilizer adopts clean steam as sterilization medium.Operated by special sterilization
process, it is specifically for the high temperature sterilization and drying for the Chinese herbal medicine, Chinese medicine powder products, and some kind of food such as spices. It eliminates the influence of cold air on the temperature by pulse vacuum, vacuum dehumidification combined with jacket heating for drying, and finally, the sterile air is exhausted to achieve pressure balance. For some products that have high drying effect requirement, the equipment can also be installed with heating coil.
process, it is specifically for the high temperature sterilization and drying for the Chinese herbal medicine, Chinese medicine powder products, and some kind of food such as spices. It eliminates the influence of cold air on the temperature by pulse vacuum, vacuum dehumidification combined with jacket heating for drying, and finally, the sterile air is exhausted to achieve pressure balance. For some products that have high drying effect requirement, the equipment can also be installed with heating coil.
Structure
This series of Chinese medicine sterilizer adopts double layer horizontal rectangular structure, 304 or 316L stainless steel
chamber, high-quality vessel plate or 304 stainless steel jacket, and covered by the external plate that is made by
draw-benched stainless steel. And the equipment is accessorized with standard GMP verification interface.
Industrial control system PLC + HMI is equipped with standard "user management, data storage, process
management" function, the sterilization process can be traced back, with independent data recording device and industrial
control system to ensure data accuracy. Temperature time and Fo dual control meet national pharmacopoeia requirements.
chamber, high-quality vessel plate or 304 stainless steel jacket, and covered by the external plate that is made by
draw-benched stainless steel. And the equipment is accessorized with standard GMP verification interface.
Industrial control system PLC + HMI is equipped with standard "user management, data storage, process
management" function, the sterilization process can be traced back, with independent data recording device and industrial
control system to ensure data accuracy. Temperature time and Fo dual control meet national pharmacopoeia requirements.
