CE Certificate Copeland Scroll Compressor Explosion proof Water Chiller for Oil Refinery Plant
- Category: >>>
- Supplier: Shenzhen Dannice Machinery Co. Ltd.
Share on (60137059459):
Product Overview
Description
CE Certificate Copeland Scroll Compressor Explosion-proof Water Chiller for Oil Refinery Plant
Product Description
1.Cooling capacity:66048kcal/h(76.8kw)
2.R22,R134a,R407c,R404a refrigerant are all available,our standard chiller refrigerant is R22,if
you need other environmental refrigerant R407c,134a,pls kindly let us know

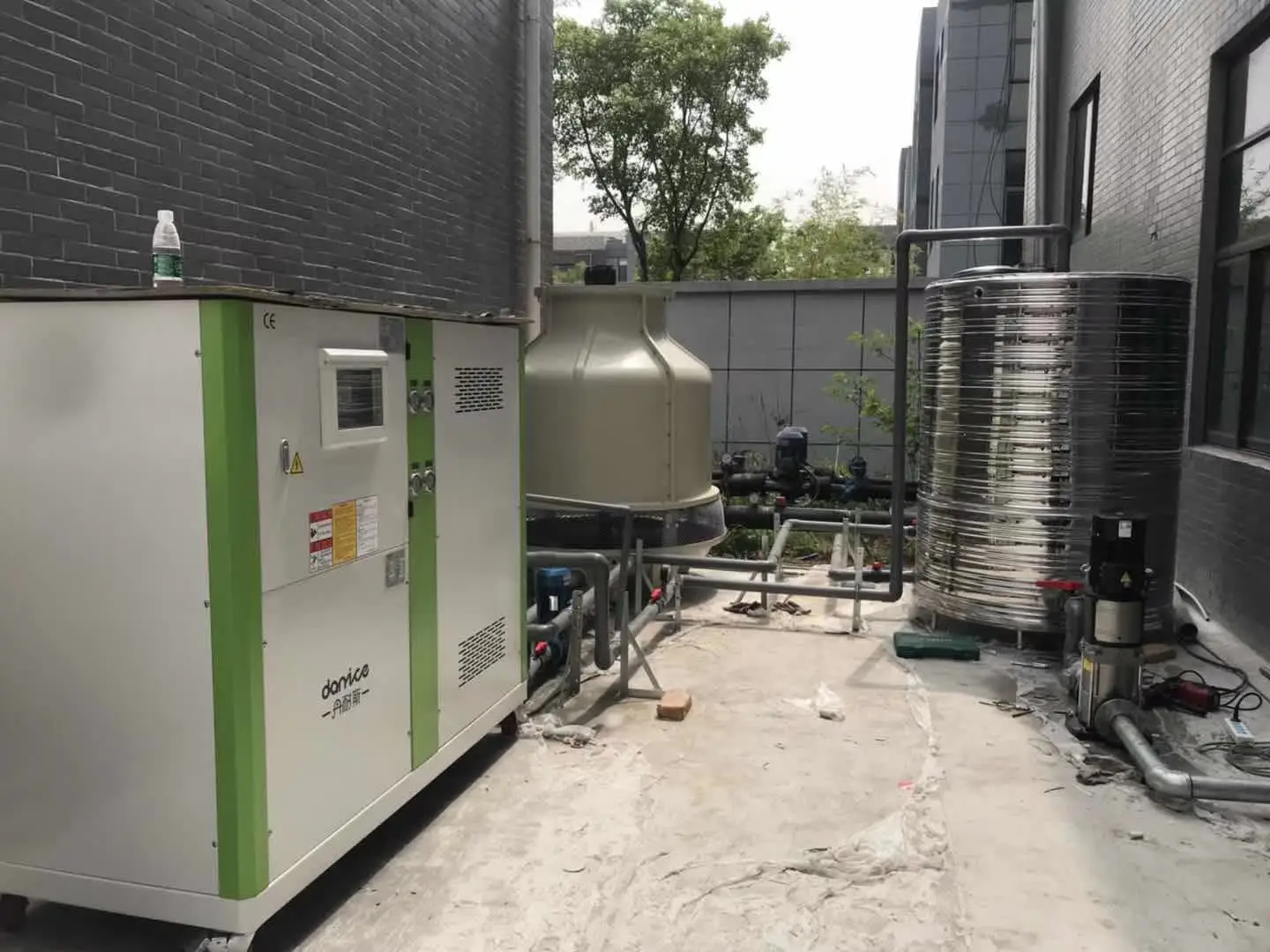

3.The water chiller shall be used with the cooling tower, no matter what the ambient temperature is ,the refrigeration efficiency could remain the best
4.SANYO,COPELAND,DANFOS famous hermeticscroll compressor,Refrigeration valves and
international brands
5.Our water cooled chillers can be made for 9KW to
197KW cooling capacity for different customers' requirements, the watercooled chiller with the cooling water tower for cooling.
6.We are industrial chillers manufacturer, but we also welcome OEM.
Model | DNC-25WD | |||
nominal cooling capacity | kcal/h 50HZ/60HZ | 66048/79258 | ||
Kw 50HZ/60HZ | 76.8/92.16 | |||
Max power consumption | kw | 23.8 | ||
Full load | Amp | 61.7 | ||
power source |
| 3PH - 380V/415V - 50HZ /60NZ 3PH - 200V/220V - 50HZ /60NZ | ||
refrigerant | type |
| R22/R407c/134a/404A/410A | |
control |
| Capillary/external balance of thermal expansion valve | ||
compressor | type |
| hermetic scroll | |
power | kw | 10.8×2 | ||
condenser | type |
| Shell and tube | |
Cooling water flow | m3/h | 17 | ||
Inlet & outlet diameter(BSP) | Inch | 2 | ||
evaporator | type |
| Tank coil/ Dry shell and tube /Stainless steel plate evaporate | |
Tank volume | L | 350 | ||
coolant flow | m3/h | 13.21 | ||
inlet and outlet connection(BSP) | inch | 2 | ||
Pump | Power | Kw | 2.2 | |
Max flow rate | m3/h | 25.2 | ||
Max head | M | 28 | ||
safety devices | Compressor overheating protection,over-current protection,high and low pressure protection,overtemperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection | |||
dimension | mm | 1950*850*1700 | ||
weight | kg | 680 | ||
Notes:1.Cooling capacity is based on:chiller water inlet and outlet water temperature of
12℃/7℃,the cooling water inlet and outlet water temperature of 30℃/35℃
2.Scope of work:chilled water temperature range:5℃to35℃;chiller water out of the water temperature:3℃to8℃
The cooling temperature is not higher than 35℃ environment
The above can be customized according to customer requirements to produce
