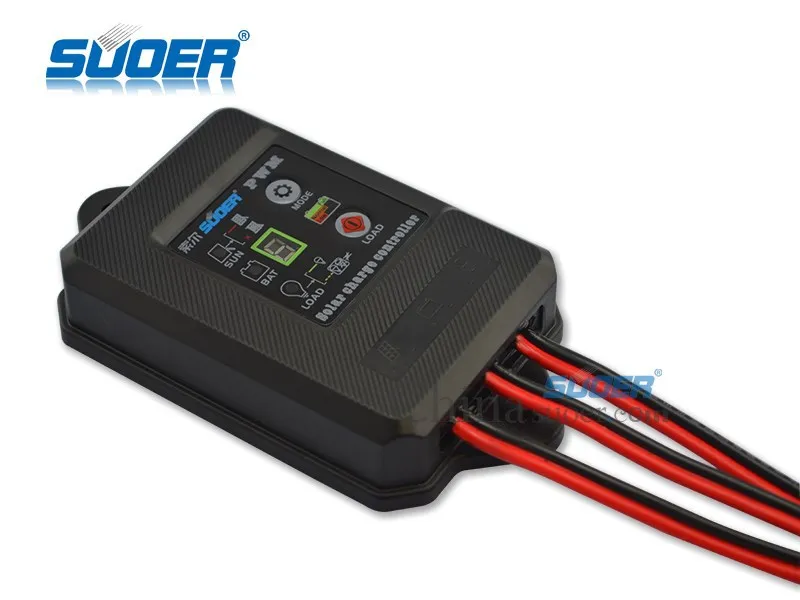

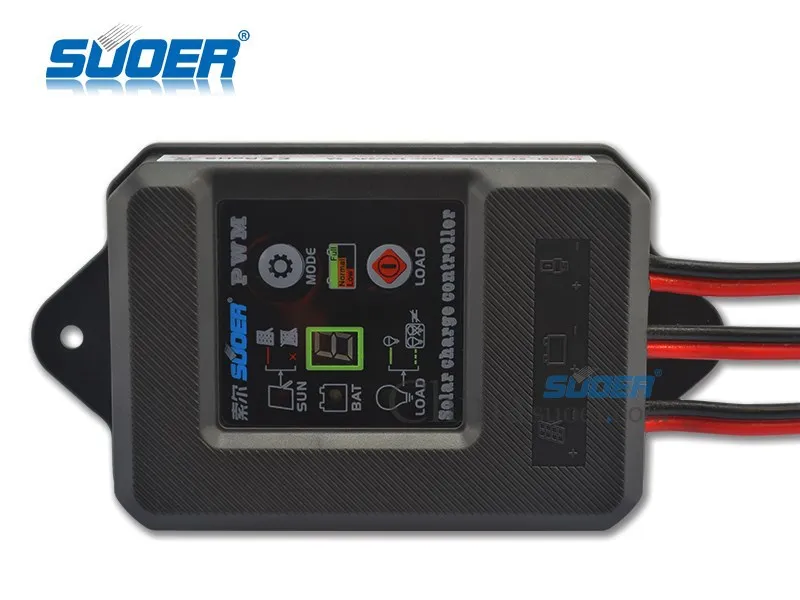

Suoer IP67 Grade Waterproof Controller 12V 24V PWM Solar Charge Controller 10A With Digital Display
- Category: Solar Charger Controllers >>>
- Supplier: Foshan Suoer Electronic Industry Co. Ltd.
Share on (60137072943):
Product Overview
Description
Suoer IP67 Grade Waterproof Controller 10A 12V 24V Digital Display Solar Charge Controller
Product Description
Features
1. MCU Control
2. PWM charging mode
3. Solar charging system
4. Light-control technology, applicable for streetlamps
5. digital tube displays working state
6. Water-proof, Moiseture-proof, Dust-proof (IP67 grade)
7. Automatically identify the battery voltage (12V/24V)
8. Multiple Protections:Solar panels reverse connection/Battery reverse/Overload/Charging backflow prevention
Technical parameter

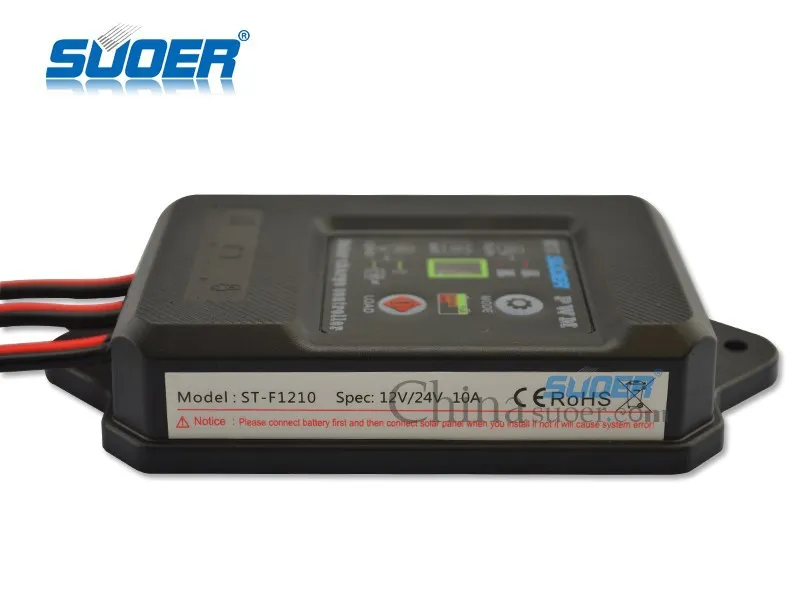

| Model | ST-F1205 | ST-F1210 | ||||||
| voltage range of solar panel | 15V-40V | |||||||
| Battery voltage | 12V-24V | |||||||
| Max output current | 5A | 10A | ||||||
| Max charging current | 5A | 10A | ||||||
| Recommended solar panel power | 12V(40W) 24V(80W) | 12V(80W) 24V(160W) | ||||||
| Overload current protection | 1.2times rated current,auto recovery in 15s | |||||||
| Low voltage recovery output | 12V system 12.5V/24V system 25V | |||||||
| Floating charge voltage | 12V system 13.9V/24V system 27.8V | |||||||
| Battery low voltage protection | 12V system 10.5V/24V system 21V | |||||||
| Battery over-voltage protection | 12V system 14.7V/24V system 29.4V | |||||||
| System standby power consumtion | <10mA | |||||||
| Size/CTN | 42*31.5*46cm | |||||||

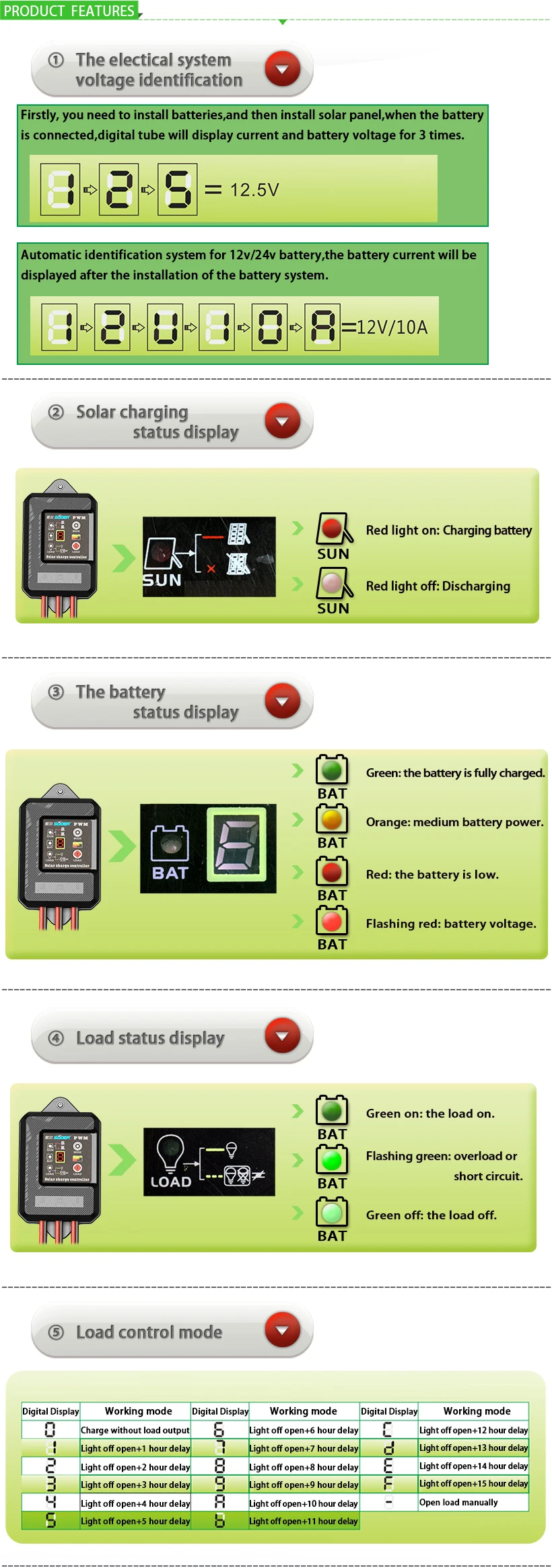

Product details
Method of Use

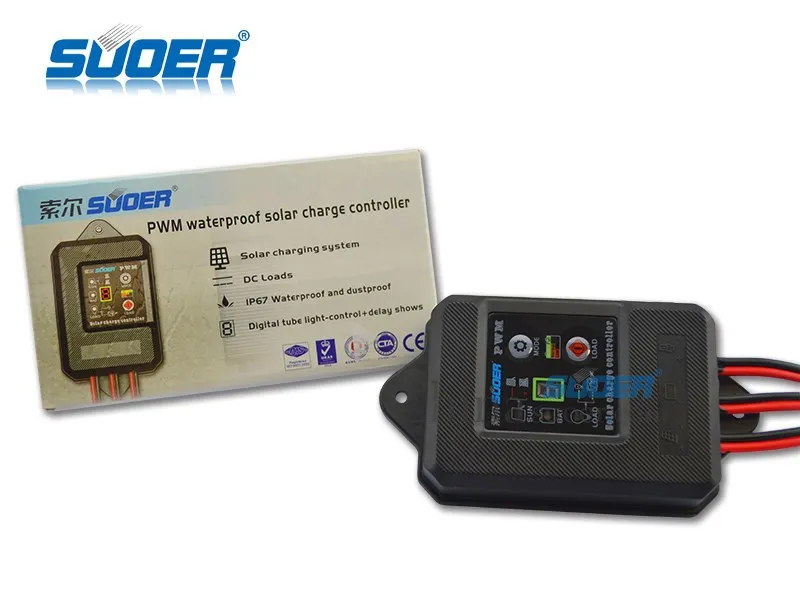

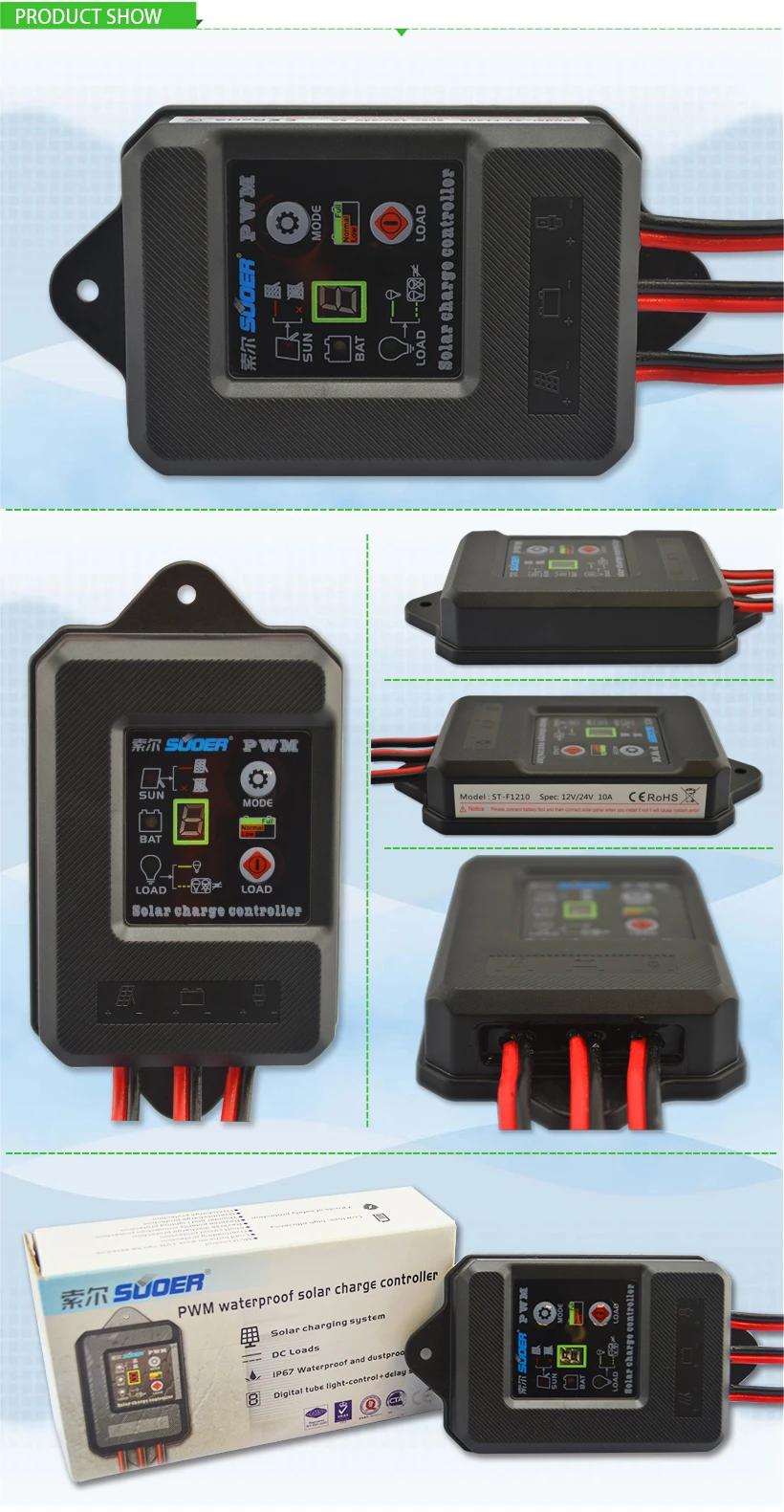

Product Show
Company Information
FAQ
1. May I take some samples to test before placing the order ?
Answer: Yes, but customers need to pay for the sample fees and express fees, and it will be returned when next order is confirmed.
2. How long can you offer the samples?
Answer: 1~5 days after the deposit payment is confirmed.
3. What's your payment terms for sample?
Answer: You can pay via T/T.
4. What’s the price terms can you offer for us?
Answer: We can accept EXW, FOB, CIF and so on.
5. Do you have any certifications for your products?
Answer: We have ISO9001:2000, CE, RoHS, certifications for all of our products.
6. Where is your main market for your products?
Answer: Most of our Suoer brand products are exported to Southeast Asia, Africa and Mid East.
