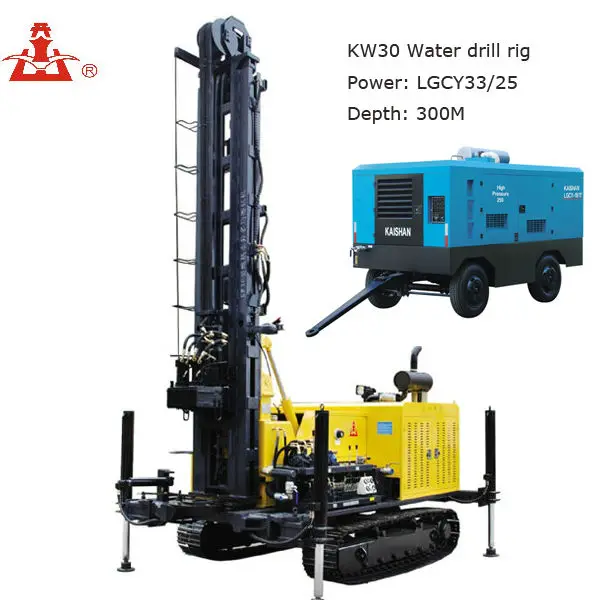

KaiShan KW30 hydraulic rock percussion mining drilling, geothermal water well drill machine rig
- Category: >>>
- Supplier: Shaanxi Kaishan Mechanical & Electrical Equipment Co. Ltd.
Share on (60137129718):
Product Overview
Description
KaiShan rock percussion drill,rock mining drilling machine
1. Main features and Specification Of KaiShan rock percussion drill,rock mining drilling machine
Portable well drilling equipment,water well Drilling Rig,drilling equipment for sale,KW30 water well drilling rigs | |||
Rock hardness | / | Ground clearance(mm) | 280 |
| 168-300mm | Walking speed(Km/h) | 0--2.5 |
Economic drilling deep(m) | 300 | Drill arm rising corner | / |
Pressure(MPa) | 1.05-2.46 | Drill arm swing angle | / |
Air consumption(m^3/min) | 16-40 | Slide angle | / |
Rotation speed(rpm) | 60/105 | Slide the pitch | / |
Lifting Power (KN) | 150 | Driving power (KN) | 50 |
Drill rod dimension(mm) | Φ79x3000/φ89x3000 | External dimension(mm) | 5200×2300×3200 |
Grade ability | 25° | Engine Model | YC 6B150Z-T21 |
Total power (kW) | 110kW | Pick up the bar way | AUTO |
2.Application of KaiShan rock percussion drill,rock mining drilling machine
KW series multi-function geothermal water wells drilling car is after market research and design of the drilling hole 300 meters of the equipment.
It is in the mature KW10 / KW20 geothermal Wells on the basis of the multi-function rig upgrade is a lightweight, high efficiency and multi-function of deep hole drilling equipment, it is mainly suitable for drilling Wells, geothermal air-conditioning hole hole and other USES.
Optimization of the hydraulic system, hydraulic control valve from the reliable manufacturer, guarantee the jumbo stable performance. To reasonable improvement of carriage parts, increase the wear plate, reduce the wear in the drilling and prolong service life.
Strong rotary motor with high torque and the two big bore the oil cylinder, ensure the use of the jumbo and reliable performance.
3. Working of KaiShan rock percussion drill,rock mining drilling machine machine
The main parameters of similar Water Well Drilling Rig:
Model | Dia. Of hole | Depth of hole | Push length | Working pressure | Air consumption | Max lifting capacity | Remark |
KW10 | 115-254 | 120 | 3 | 1.05-2.46 | 16-30 | 70 | WATER DRILL |
KW20 | 115-254 | 200 | 3 | 1.05-2.46 | 16-30 | 95 | WATER DRILL |
KW30 | 168-300 | 300 | 3/4 | 1.05-2.46 | 16-40 | 150 | WATER DRILL |
4.Recommended Air Compressor
| DMCY-33/25 Diesel portable air compressor
air deliver:33m³/min
Motor Power:298kW
>> Click to view data for details |
5.We also provide other Mining operations.

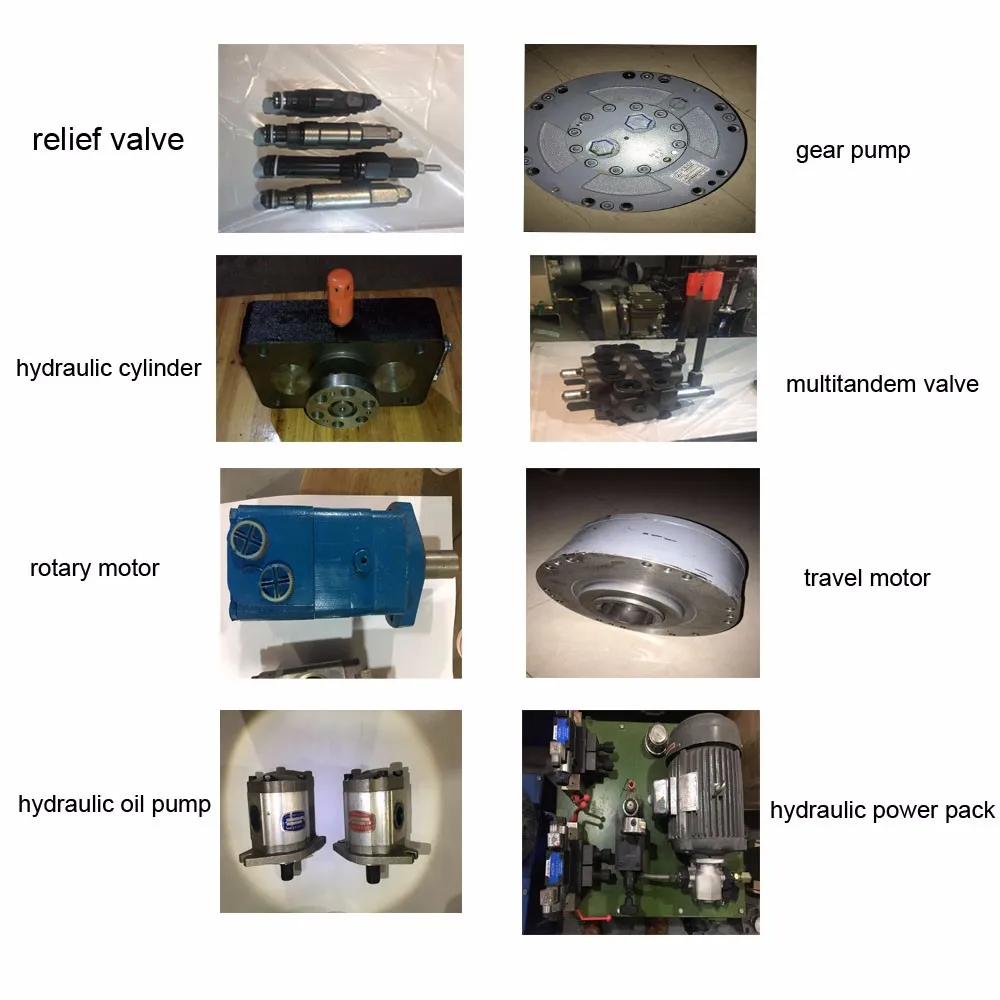

5.Spare parts supermarket
Packaging & Shipping
Packaging Detail: Container or according to your requirement
Delivery Detail:15-25 days after your payment
Our advantages
. Top techonology and guranty
One year warranty in overseas branch
D&R center ensure top advantages
Asian biggest drilling rig manufacturer with long history
World top-class heat treatment production line imported from Japan
Advanced automatic mloding production line from USA
Advanced NC machine
German TRUMPF flexible sheet metal processing system
Company info
Kaishan group Co., Ltd was founded in 1956.There are 31 members of the company, the company's total assets are 6 billion yuan, more than 6,000 employees and sales revenue is 4.5 billion yuan in 2011,Kaishan group Co., Ltd is the world's largest drilling machine manufacturing enterprises, the largest in Asia, the world's third air compressor manufacturing enterprises, and the largest drilling equipment manufacturers.Good Service, competitive price, high quality, fast shipping and perfect pre-sale and after-sale service.
Specialized in air compressor / pump/ rig/drill carriage/ project design
Through years development, Shaanxi kaishan had become a comprehensive form of complete equipments enterprise that combine sales,installation,repair &maintenance as one,and can provide all kinds and model of industrial screw ,piston , scroll air compressor rang from 1.1 kw to 335 kw to satisfy demand at the working condition of diverse customers and mobile compression air equipment in the blasting hole process.at same time,offer a complement Compression air purification equipment and spare parts,The company have long been cooperate with Zhejiang kaishan compressor Co.,Ltd. Which is exclusive distributor of kaishan brand equipments at northwest region.the company is now dedicate to provide a special compress air technique solution, ,top class products and perfection after-sales service,in line with customers demand-orientation ,and saving customers production efficiency as the object.
