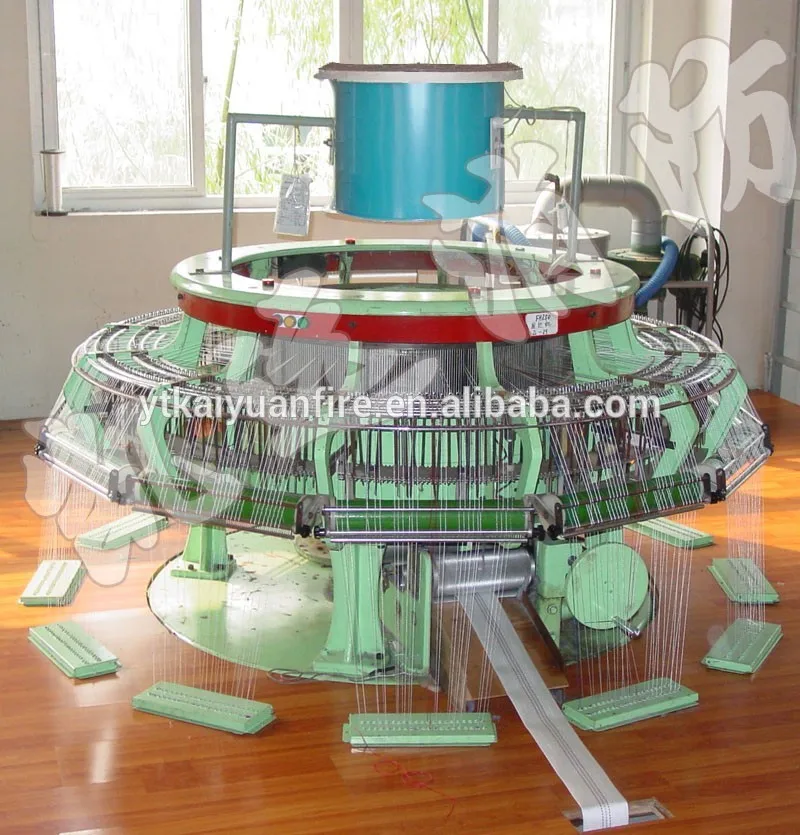

Fire Hose jacket Making Machine with 2 shuttle circular loom
- Category: Weaving Machines >>>
- Supplier: Yantai,Kaiyuan,Metals,And,Machinery,Co.,Ltd.,[Shandong,China]Yantai
Share on:
Product Overview
Description
DesignFeatures
Fire hose Making machine
Fire hose making machine is adopted Mandal 604 type Technology
Circular Loom is a kind of hose loom which is optimized and developed on the basis of introducing foreign similar equipment and combining with our own experience summarizing from long-term production practice as well.
Loom is developed from experience gained within our hose factory. It has become a “standard loom” for manufacturers of quality fire hose worldwide.
604 type typically runs 3-shift all year through. Its functionality is focused on zero fault production giving very productive weaving capacity.
loom has low maintenance cost and its lubrication is made through closed volumes giving a “dry loom”.
Plain and Twill weave patterns are standard and other weave patterns are available on request.
gained within our hose factory. It has become a “standard loom” for manufacturers of quality fire hose worldwide.
loom runs 3-shift all year through. Its functionality is focused on zero fault production giving very productive weaving capacity.
loom has low maintenance cost and its lubrication is made through closed volumes giving a “dry loom”.
Plain and Twill weave patterns are standard and other weave patterns are available on request.
1,The host regulates speed by variable frequency. It is convenient and flexible for operation, high security, reliability and high efficiency.
2, Equipped with automatic stop controls breakage of warp yarn and empty weft bobbins and the indication lights show where the breakage has occurred or if the weft bobbins are empty. This makes the products quality stable and reduces operators’ work .
3, Surface of the fabric is even and equal. More than 4 patterns of weave are available .
4,Hose diameter is from 20mm to 110mm and 250mm can be reached by adding accessories .
5,Compact structure and cover smaller area .
Descripion andSpecification
• Easy to control, high efficiency;
• Automatic to stop for defects warp & weft and the alar system can show the place for the out of line;
• Can weave 4 kinds of fabric with beautiful pattern;
• The fabric size is 20mm to 110mm, it can reach to the size 150mm, 200mm and 250mm after add accessories;
Characteristics
| Max shuttle speed | 150 rpm |
| No. of shuttles | 2 |
| Weft bobbin load | 2 kg |
| Total weft load | 4 kg |
| Diameter range | 20 – 110 mm |
| - with extra accessories | up to 260 mm |
| No. of warp openings | 478 |
| Footprint diameter | 1980 mm |
| Motor size | 7,5 kW, optional 5,5 kW |
| Noise level | 92 – 95 dB |
| Weight | 1600 kg |
APPLICATION
• Polyester Hose Jacket
ProducPicures

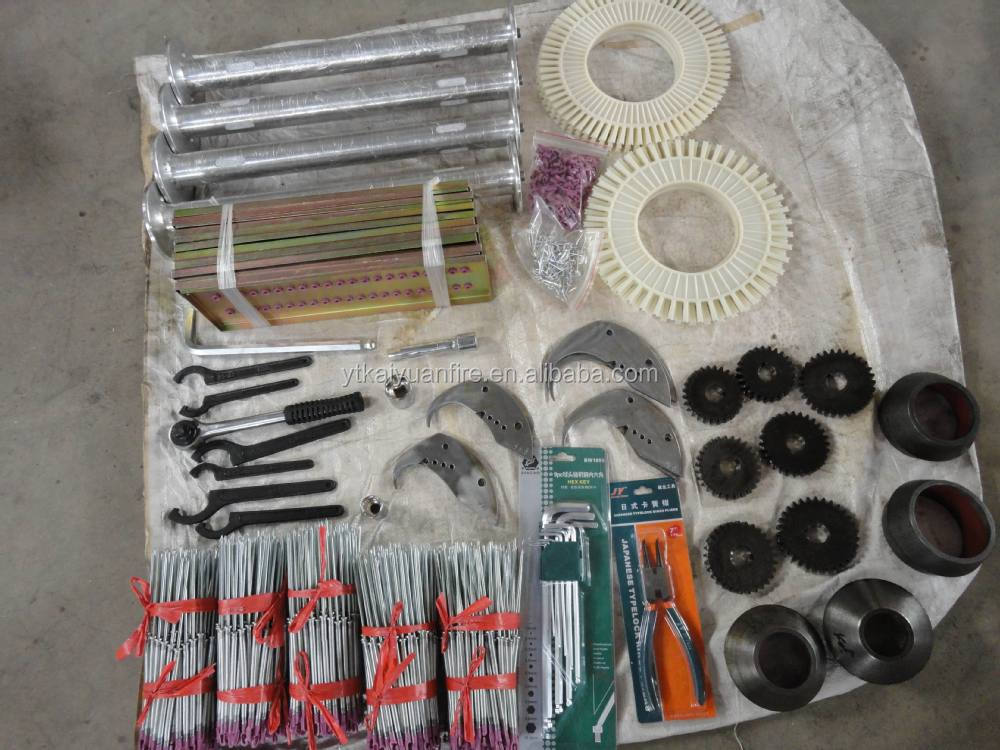

Loom Spareparts
Packing Picture
Strong Wooden Cartons But free Fumigation
LOOM SHIPMENT
LOOM Installaion at Customers factory
We recommend that the Circular Loom should be installed on a 10m2 platform of net height approx. 2500mm. By doing this the equal warp tension is obtained easily and site area of each Loom can be reduced. But it is not objected that installing the Circular Loom on the same level as the creel . the Loom is required to be horizontally
