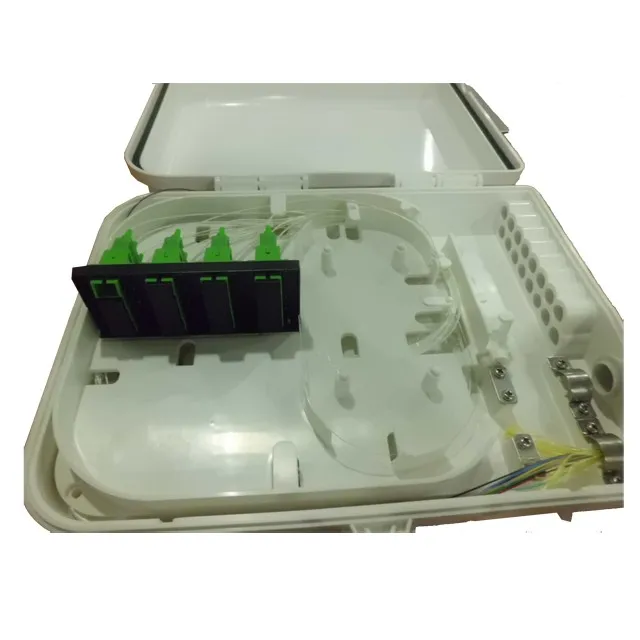

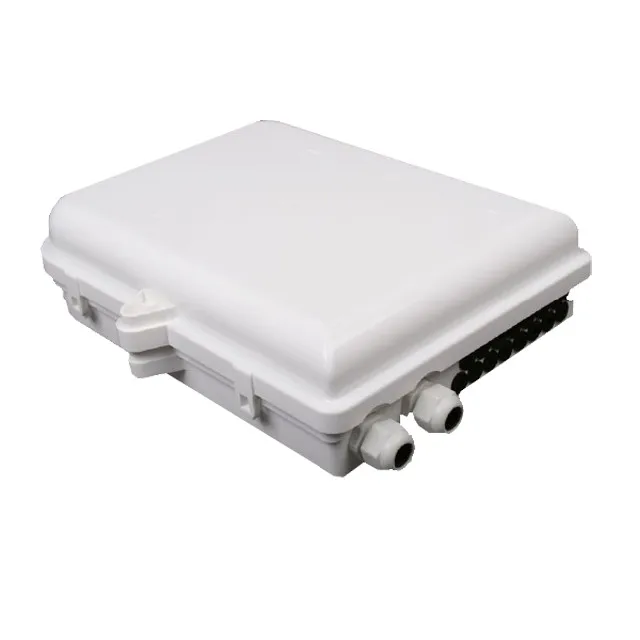

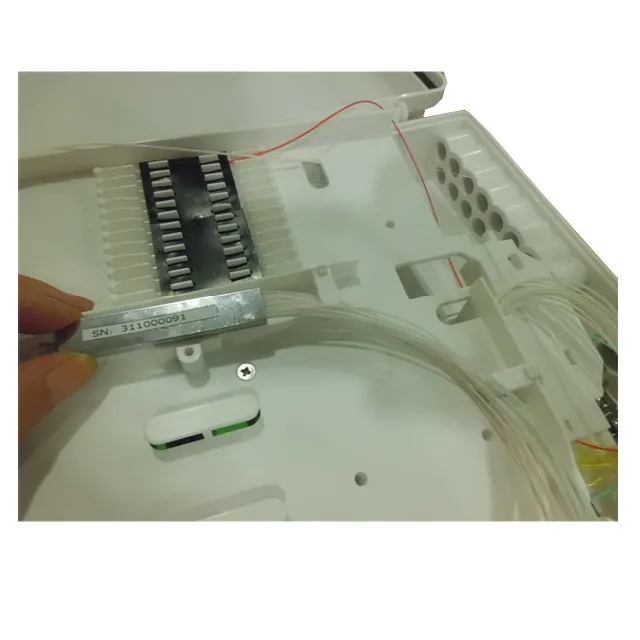

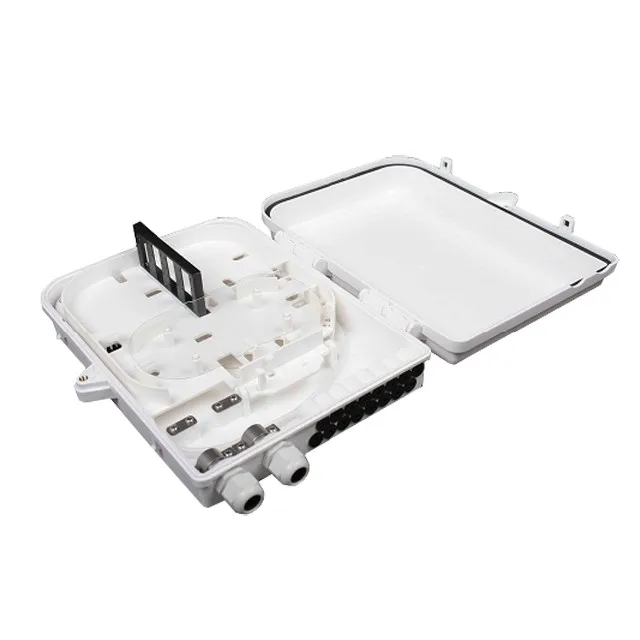

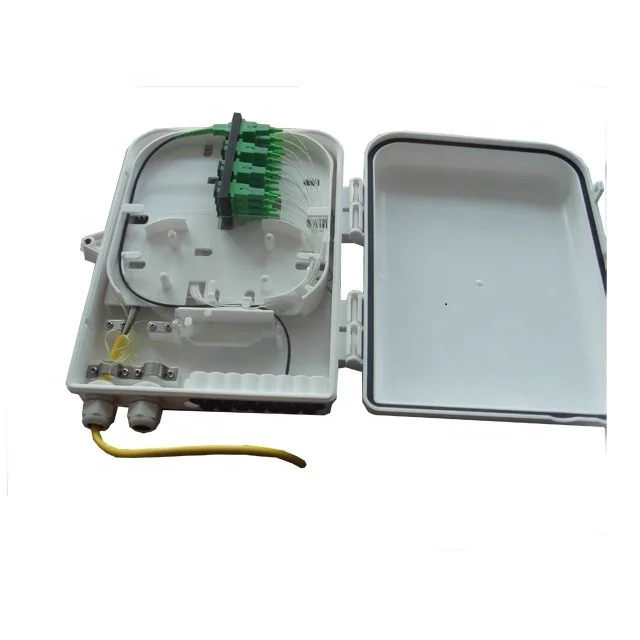

16 core fiber optic distribution box(optical splitter)
- Category: >>>
- Supplier: Hangzhou OpticTrans Communication Tech. Co. Ltd.
Share on (60137326496):
Product Overview
Description
Features
1) Designed for FTTH
2) Wall-mounted or pole installation
3) Hinge type design of the top cover, with screw lock, good safety
4) Hinge type design of splicing area, convenient for fiber distribution and splicing operation.
5) Fiber splicing tray has good Interchangeability access, providing 32 cores fiber splicing
including heat-shrink tube and mechanical splice
6) Optical cable goes out from button, Rubber end provides excellent protection and sealing
7) Rubber end can be removed
8) Distribution area can support 16 simplex SC adaptor or Duplex LC adaptor, other types of adaptor can be specified
9) Bend radius supports 30mm to circle the fiber
10) Two holes on button for optical cable in/out, allows optic cable with 16mm diameter can go in/out easily
Technical parameter
Splicing Tray | 1pcs | Max home-entry cable diameter | 3.2mm |
Max fiber capability | 32 cores | Max home-entry cable number | 32pcs |
Max input cable diameter | 16mm | Exterior size | |
Max number of cable in | 2 pcs | Working temp | -40~75°C |
Protection level | IP55 |
