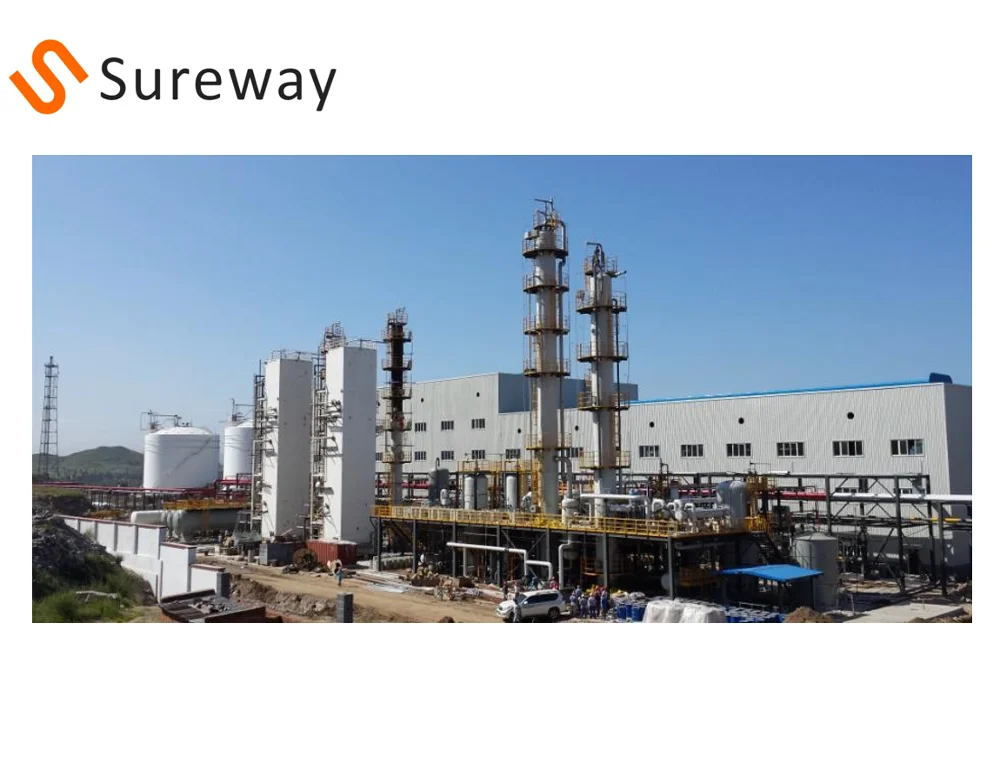

300,000Nm3/day LNG Plant/Natural gas liquefaction plant/natural gas plant
- Category: >>>
- Supplier: Shanghai Sureway Industrial Company Limited
Share on (60137336084):
Product Overview
Description
LNG Plant
Product Description
The general production process is using natural gas as material (contains about 90% of methane) , through dewatering, removal of acidic gas(H2S, CO2 etc.) and heavy hydrocarbon, and then enter refrigeration unit and is cooling to about -162 ℃ and became liquid. it's volume is reduce to 1/625 of its gas phase. The liquefied natural gas (LNG) is storage in the cryogenic LNG storage tank. And supply to users by transportation systems.
Technical Characteristic
Split skid mounted design, it has advantage of convenient installation and short construction period.
Standardized, modular plant design, the plant has advantage of compact structure, less land occupation, save investment, according to terrain and flexible layout, good stability and regional adaptability.
Use MDEA absorbing and removing acid gas (CO2).
Use molecular sieve and PSA dewatering process.
Removing mercury by activated carbon soaked in sulfur.
Liquefying natural gas with single level MRC refrigeration process.
The plant adopts DCS control system.
Main Equipment
The LNG plant is made of 4~6 skid blocks:
Raw natural gas metering and compression skid block
Raw natural gas decarburization & dehydration skid block
Raw natural gas mercury removal skid block
Refrigeration compressor skid block
Natural gas cryogenic liquefaction skid block
LNG storage tank system
Loading and Transportation Unit
Process Flow Diagrame
Our Services
We can provide Turn-key project, or EPC service. we can provide design, equipment manufacturing, equipment installation, technical support, and after-sale service.
Packaging & Shipping
The equipment is packing by wooden box.
Big size equipment delivery by bulk cargo.
FAQ
Please provide the following information when you inquiry.?
1) The LNG plant capacity?
2) Raw natural gas composition?
3) Raw natural gas inlet pressure and temperature?
4) Do you have cooling water system?
5) What the LNG outlet pressure do you need?
6) What's your Power condition? Voltage and frequency?
