Solid tungsten carbide saw discs/blade sharpening /circular saw blade disc

Product Overview

Description

Solid tungsten carbide saw discs/blade sharpening /circular saw blade disc

Solid tungsten carbide saw discs/blade sharpening /circular saw blade disc

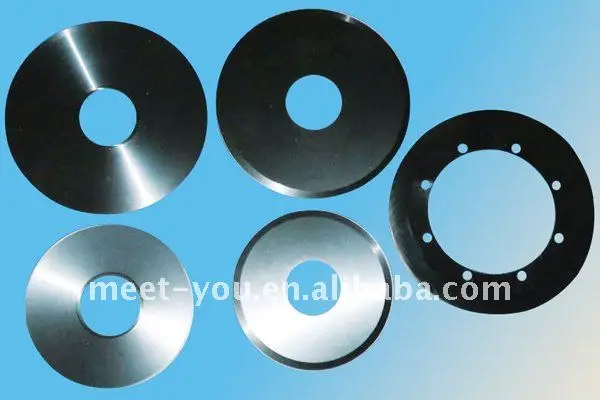

1/ General Introduction of Carbide Saw Blades



Our company supplys tungsten carbide circular blade ( blanks and finished ) to customers, such blades are widely used in electric PCB cutting,cartob cutting and printing industry cutting.





2/Specification and Grade of Tungsten Carbide Saw Blades

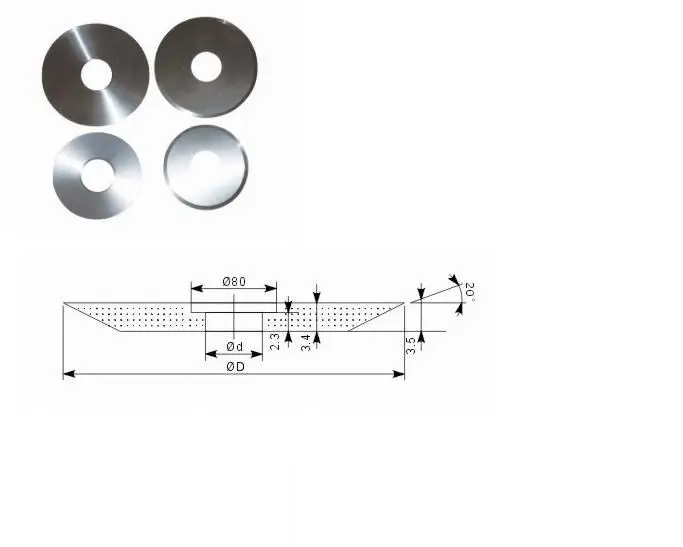

Types of discs				unit:mm
TYPE	D	d	S
Φ12×Φ6×S	12	6	0.6-4.5
Φ13×Φ6×S	13	6	0.6-4.5
Φ16×Φ6×S	16	6	0.6-4.5
Φ22×Φ10×S	22	10	0.6-4.5
Φ25×Φ12×S	25	12	0.6-5.5
Φ32×Φ10×S	32	10	0.8-5.5
Φ40×Φ10×S	40	10	0.8-6.0
Φ45×Φ13×S	45	13	0.8-6.0
Φ53×Φ13×S	53	13	0.8-6.0
Φ52×Φ24.5×S	52	24.5	0.8-6.0
Φ53×Φ24.5×S	53	24.5	0.8-6.0
Φ55×Φ16×S	55	16	0.8-6.0
Φ58×Φ22×S	58	22	0.8-6.0
Φ60×Φ19×S	60	19	0.8-7.0
Φ63×Φ17×S	63	17	0.8-7.0
Φ70×Φ22×S	70	22	0.8-7.0
Φ75×Φ22×S	75	22	0.8-7.0
Φ80×Φ22×S	80	22	0.8-7.0
Φ83×Φ21×S	83	21	0.8-7.0
Φ86.5×Φ21.5×S	86.5	21.5	1.0-7.0
Φ90×Φ22×S	90	22	1.0-7.0
Φ100×Φ22×S	100	22	1.0-7.0
Φ125×Φ22×S	125	22	1.0-7.0
Φ200×Φ70×S	200	70	3.0-4.5
Φ250×Φ70×S	250	70	3.0-4.5
Φ250×Φ95×S	250	95	3.0-4.5
Other types may be offered by customers' requirement







Recommend grade:YG6,YG6X,YG8,YS2T



 Details:



1. good english communication;



2. professional suggestion on product;



3. good traning export sales person;



4. skilled in tungsten carbide sell;



5. could issue the C/O(certificate of origin)to customer to reduce the tax;



6. could accept all payment terms of T/T(both in advanced and after shipment), D/P, D/A, L/C, western union, paypal and etc;



7. could offer free samples below 0.5kgs under the condition of freight paid by customer;



8.MOQ 5kgs for sintered blank;





outer diameter	inner diameter	thickness	outer diameter	inner diameter	thickness
260	168	3.5	280	130	4.2
260	158	2.1	280	95	4.2
260	140	2.5	280	70	4.2
260	140	2.1	235	150	2.5
250	70	4.2	235	105	3.5
250	130	4.2	200	70	4.2
250	95	4.2	235	22	2.0
250	105	3.5	250	31.75	1.8
185	32	5.0









There are many styles and grades , we can make  them as your demand.
