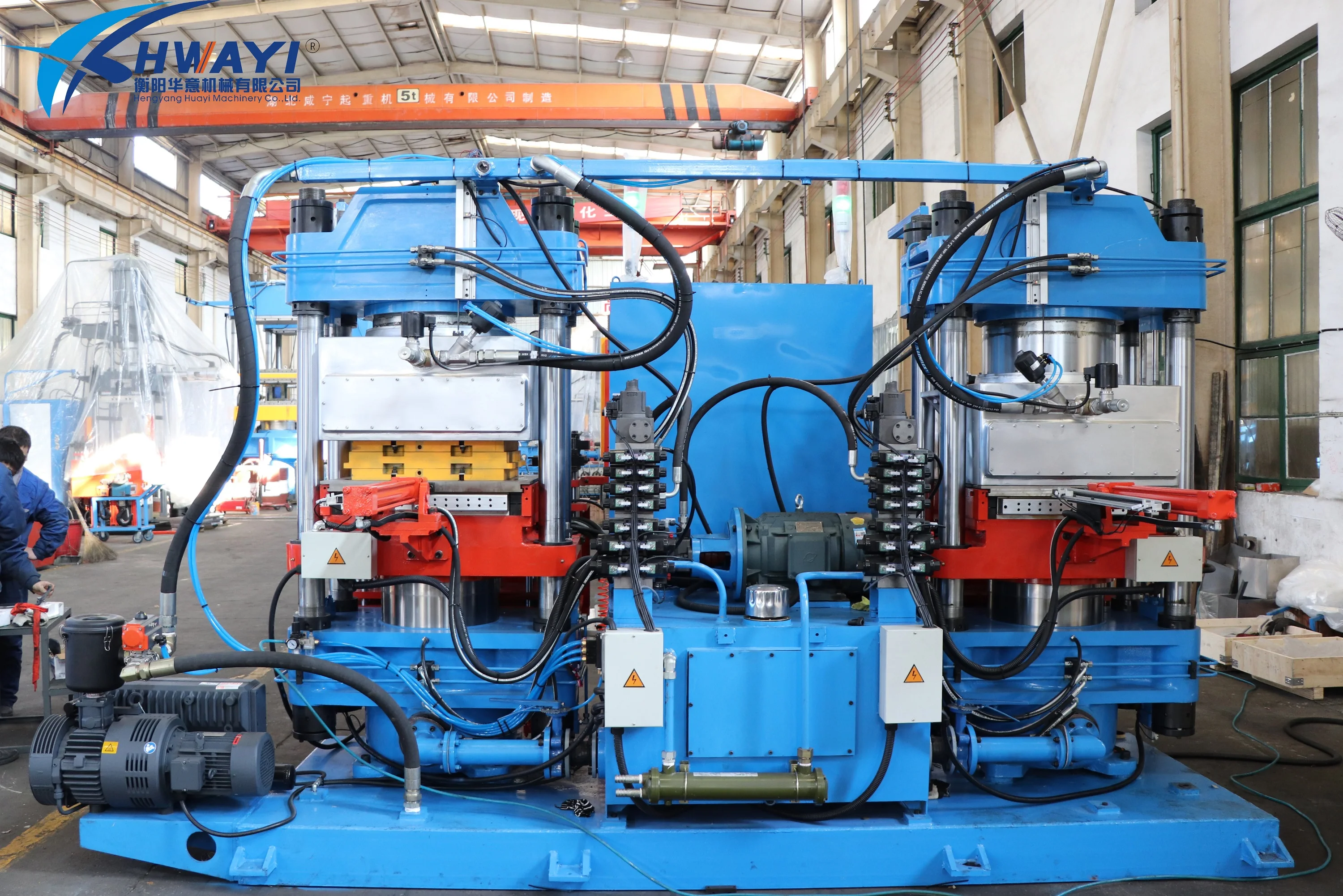

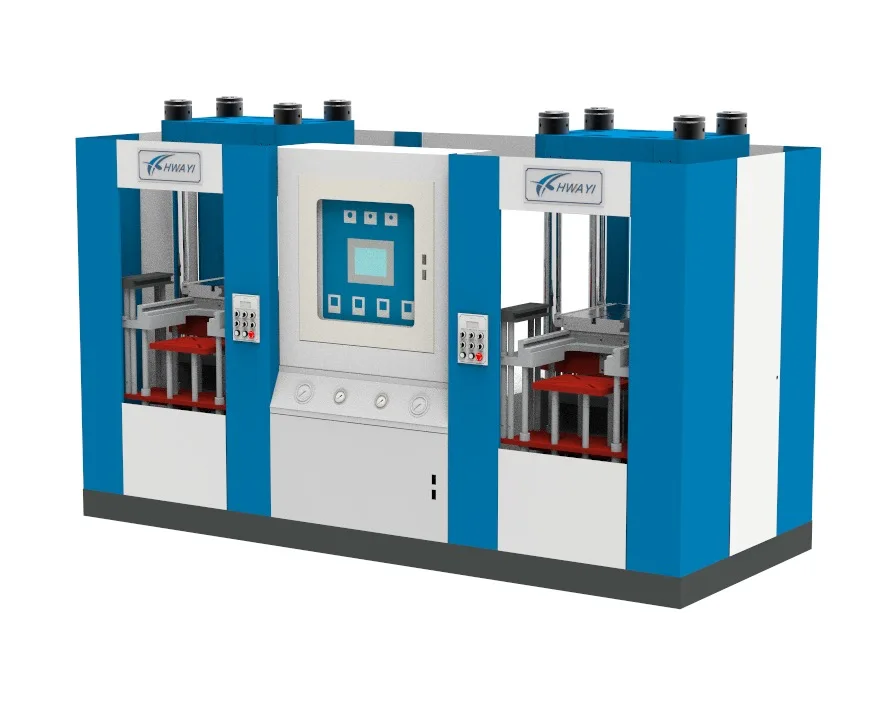

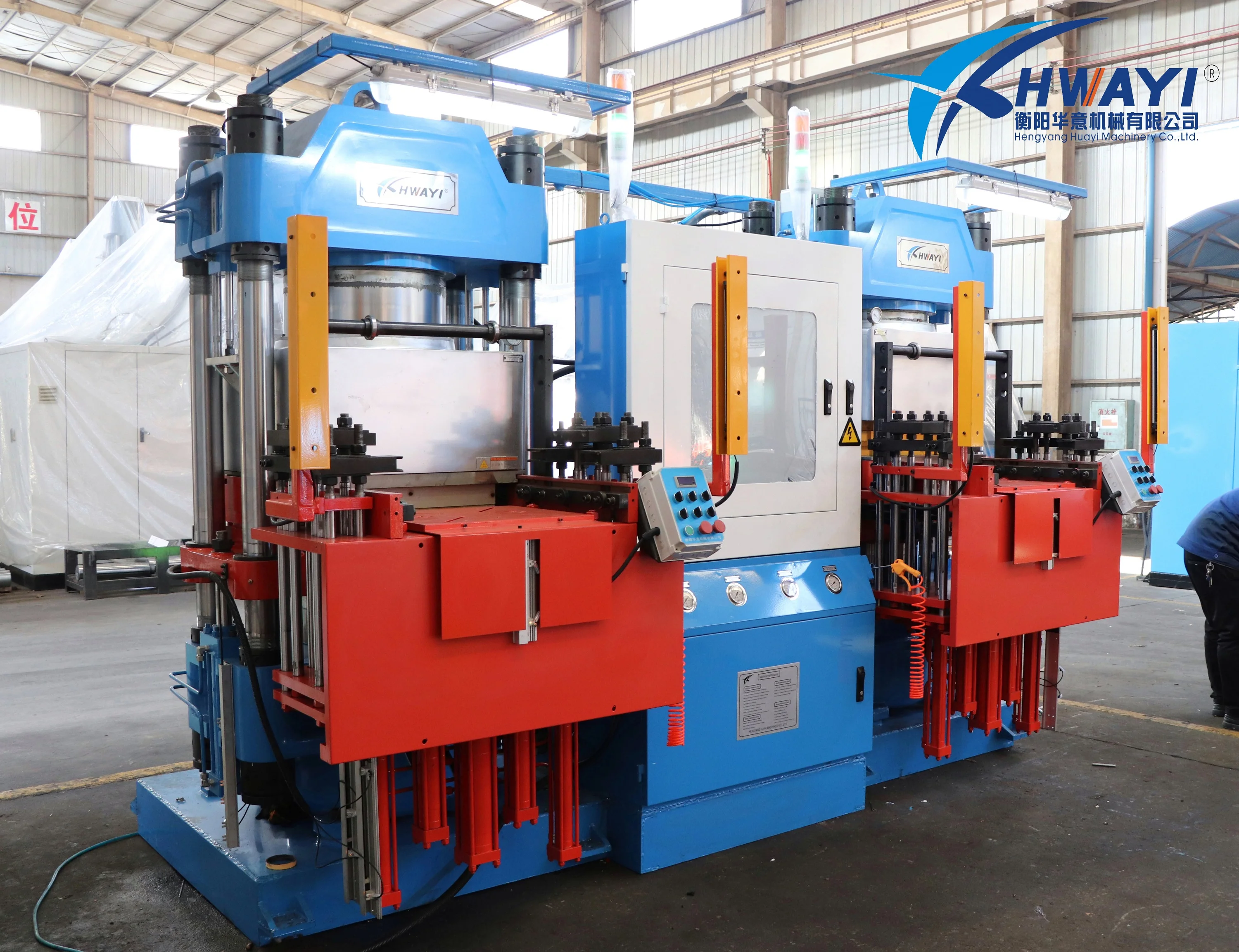

Adopt four-column structure. Front auxiliary unit seperated from the moving plate, can be equipped with multi de-moulding methods.
Suitable for O-ring, seal ring, keyboard, rotary drum, auto shock absorption part, dust-proof boot and medical butyl rubber stopper by the authority of state of GMP.
Parameter name/model
HYL-100V
HYL-200V
HYL-300V
HYL-400V
Clamping force(KN)
1000
2000
3000
4000
Platen size(mm)
450X450
510X510
600X600
700X700
Dimension btwn tiebar(mm)
610X225
690X290
790X340
860X490
Space of platens(mm)
350
350
350
350
Min.mold thickness(mm)
60
60
60
60
Heating power(KW)
24
36
36
36
Total power(KW)
38
55
55
55
Machine dimension(LxWxH)(m)
3.2X2.1X2.3
3.6X2.3X2.5
3.6X2.5X2.6
4.0X2.8X2.8
Reference weight(Ton)
10
12
18
22
Packaging & Shipping
Company Information
Hengyang Huayi machinery co.,ltd, a hongkong invested high-tech enterprise in Hunan province, was founded
in march 18,2001,covering an area of 32 acres, plant area of 50,000 squre meters.
We have passed ISO9001:2008 quality management system certification since 2002.By now, we are the biggest manufacturer of rubber
injection molding machine, vacuum vulcanizing press and mold in China with largest production scale and the most powerful R&D.
We have undertaken implementation on the national Torch Plan Project and the national innovation Fund project many times. The core
technology of our products gained a number of national invention patens and independent intellectual property rights. Now our products
are widely used in electrical power, high voltage power transmission,automotive rubber parts,railway infrasturcture and mechanical seal
