Chufa Shaped Pharmacy Tablet Candy Confection Sugar Coating Machine

Product Overview

Description

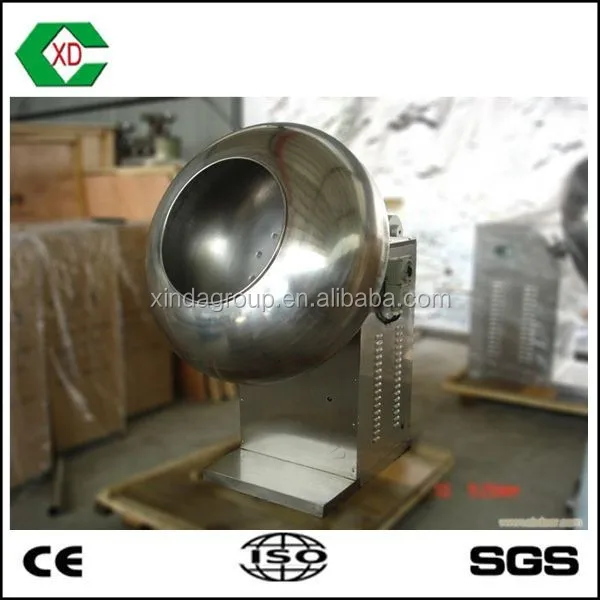

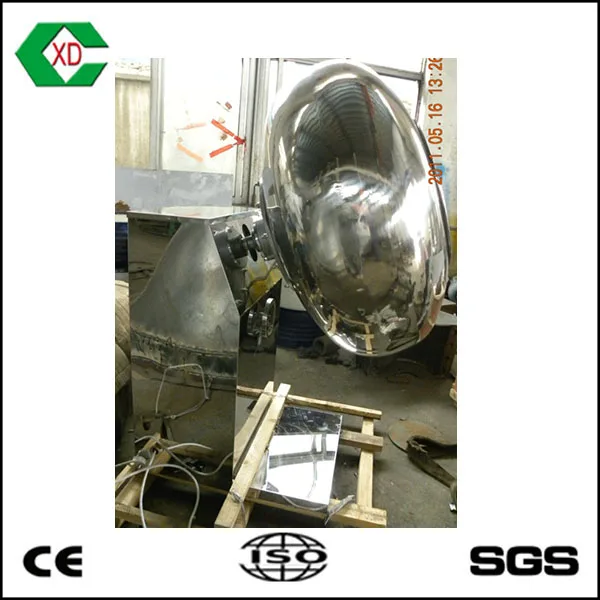

Stainless Steel Chufa Shaped Pharmacy Sugarcoating Machine

Main Application



It is specially used to sugarcoating pills and tablets in the lines of pharmacy, foodstuff, and chemical, as well as for the roll-making, mixing, and polishing of the sphericity granules materials by foodstuff and chemical industries etc.



Technical Data

Diameter (mm)	400	600	800	1000
Capacity(kg/h)	10-20	20-35	30-50	50-70
Drum rotate speed(r/min)	35	35	35	28
Motor power(kw)	0.55	0.75	1.1	1.1
Blower power(kw)	0.04	0.37	0.37	0.37
Electric heating power(kw)	1.2	2	3	3
Hot air temperature(º C)	50-60	50-60	50-60	50-60
Weight(kg)	70	150	180	200
Overall size(L*W*H)(mm)	550*500*850	750*700*1100	900*900*1400	1100*1100*1600
