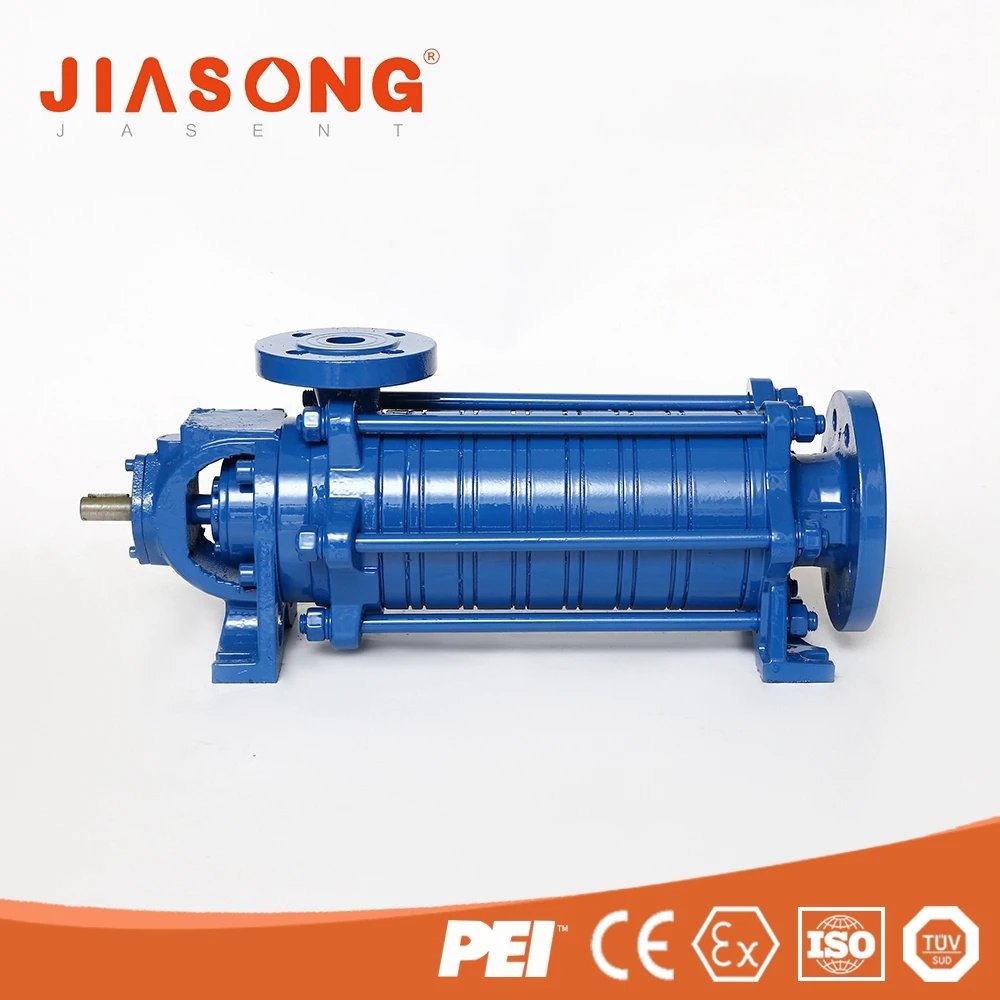

multistage pump / centrifugal fuel pump / DB 65 pump

Product Overview

Description

multistage pump / centrifugal fuel pump / DB-65 pump



The pump is used for transferring LPG, especially it is high differential pressure, low NPSH and the gas of LPG up to 50% when pumping LPG from underground tank.

Application
LPG tank filling
Pumping LPG from underground storage
Bulk filling operations
Loading/unloading of oil tank trucks
Vapor recuperation
Technical Specification

direction of rotation	anti-clockwise facing the end of of the pump drive shaft.
Max. pressure	40bars at 120°C
speed	1450rpm
power	380V,50Hz,4KW
ambient temperature	20°C-+60°C
class	6
connecting flanges	DIN2501,PN40
bearings	slip bearing at the pump end.ball bearing at the drive end
lubrication	The slip bearing at the pump end lubricated by the pump liquid drive the ball bearing to self lubricate.

Performance Data(Density = 1kg/1)

FLOW rate		DB-65	NPSH 1(m)	NPSH 2(m)
1.0m3/H	H(Kw)	6	1.35	0.17
	P(m)	243
1.5m3/H	H(Kw)	5.5	1.25	0.17
	P(m)	219
2.5m3/H	H(Kw)	4.35	1.1	0.17
	P(m)	169
3.5m3/H	H(Kw)	3.4	0.95	0.17
	P(m)	120
4.5m3/H	H(Kw)	2.65	0.95	0.18
	P(m)	76



Gallery





Packaging: wooden case



Shipping:



7-15 working days after recieving the payment

Products sent by sea, air or road( road only for the 5 centrial Asian countries)
