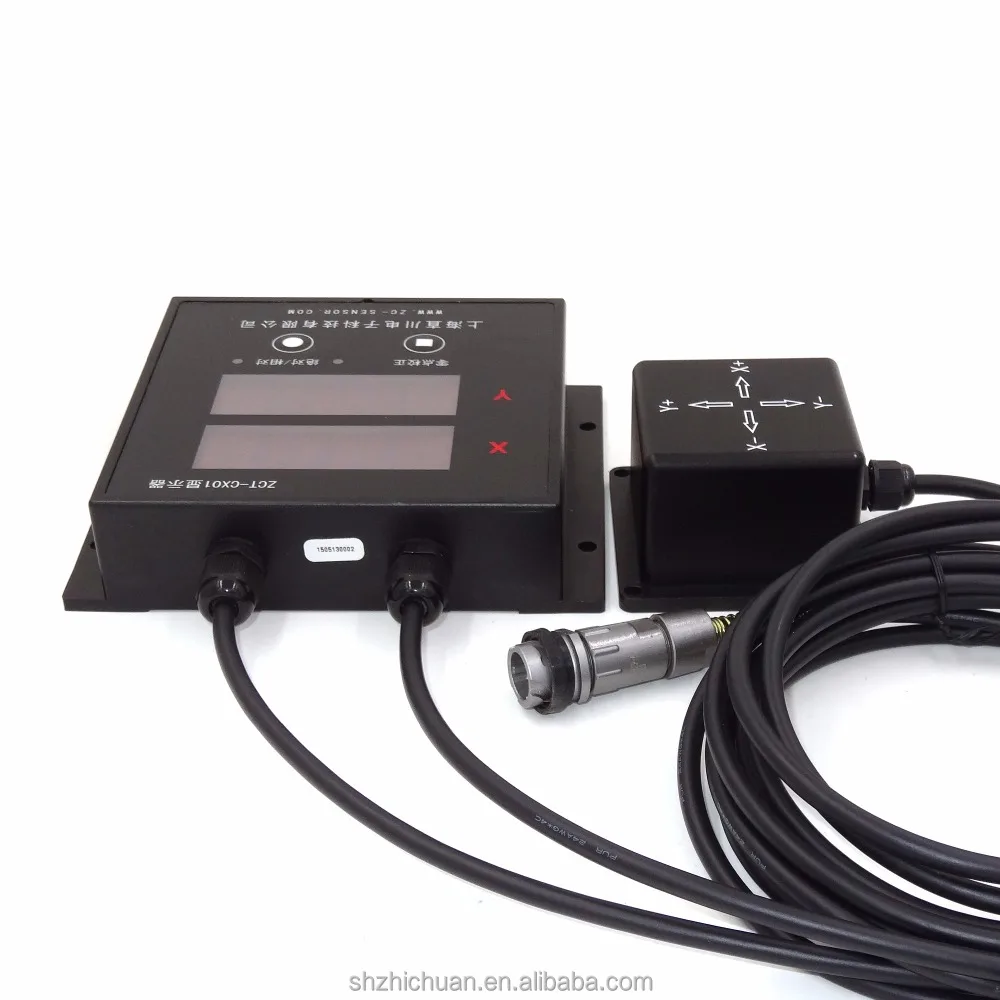

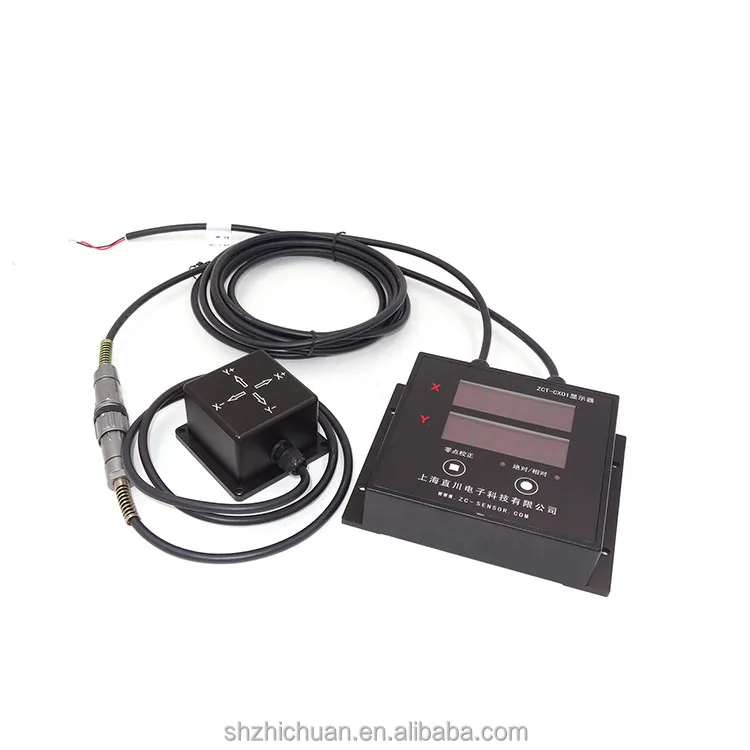

ZCT-CX01-C is applied in pipe jacking machine. It is high accuracy, stable performance and anti-shake. It is ableto output signal of 2-axis. Range is ±10 degrees.
Functions description:
display:display the angle information of which connects with the displayer currently and the current output mode(absolute/related output) of the sensor.(ZCT-CX01-C special sensor)
2. control:set the absolute zero of the sensor and shift from absolute/related angle output.

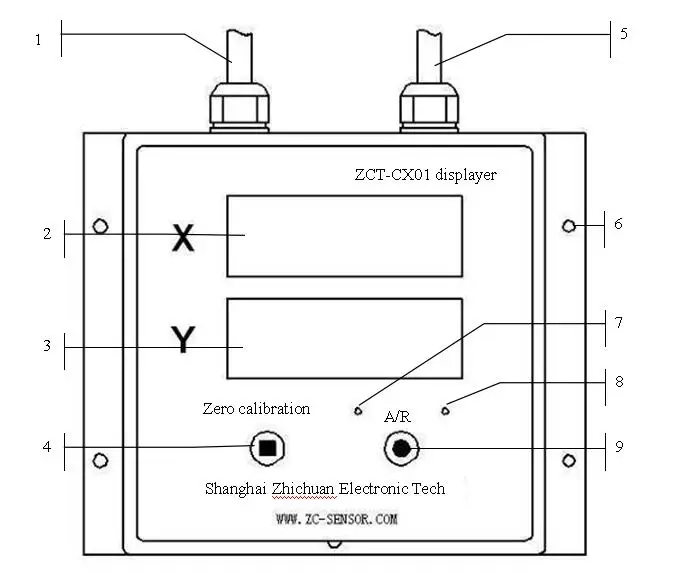

System name:
power cable: provide supply for ZCT-CX01-C (8~36V)
LED display screen of X axis:display the angle information of X axis which is measured by inclinometer ZCT-CX01-C.
LED display screen of Y axis:display the angle information of Y axis which is measured by inclinometer ZCT-CX01-C.
Zero calibration button: set absolute zero position of the connected inclinometer ZCT-CX01-C.
Cable connected with the probe: connect with the inclinometer
Mounting hole: to fix ZCT-CX01-C
Indicated lamp of absolute output: indicate the absolute output of the inclinometerZCT-CX01-C
Indicated lamp of related output: indicate the relative output of the inclinometerZCT-CX01-C
A/R button: shift the output mode between absolute output and related output

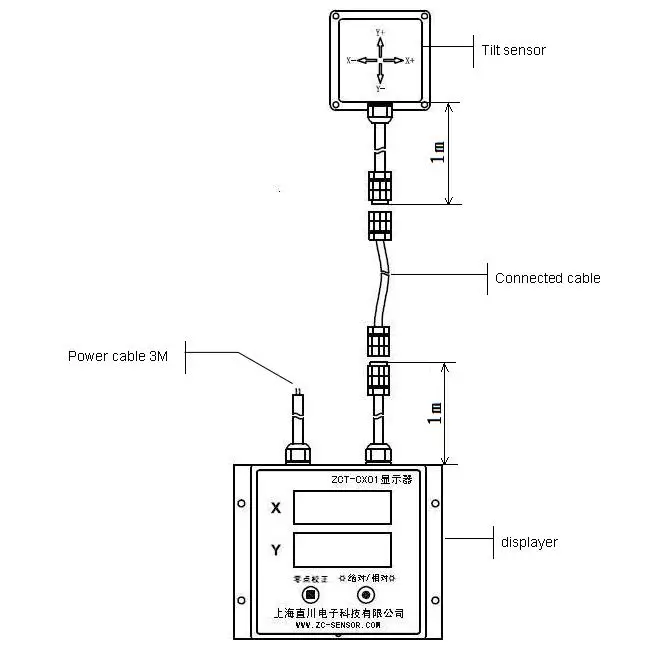

Connection:
