FR80 Popular Japan Style Best Quality Petrol Kids Motorcycle
- Category: >>>
- Supplier: Chongqing Pantera GroupChongqing Group
Share on (60138123409):
Product Overview
Description
FR80 Popular Japan Style Best Quality Petrol Kids Motorcycle
Specification
| Engine | |
| Engine Type: | Single cylinder,wind-cooled, four stroke, |
| Displacement (ml): | 107 |
| Bore X Stroke (mm): | 52.4x49.5 |
| Compression Ratio: | 9.1:1 |
| Max. Power (kw/r/min) | 5.2/8000 |
| Max. Torque (N.m/r/min): | 7.2/5000 |
| Max. Speed (Km/h): | ≥85 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: | E-start |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front Brake: | Disk brake |
| Rear Brake: | Drum brake |
| Front Tire: | 110/90-13 |
| Rear Tire: | 110/90-13 |
| Battery: | 12V/5Ah |
| DIMENSIONS | |
| L X W X H (mm): | 1800x720x1200 |
| Seat Height (mm): | 750 |
| Wheelbase (mm): | 1280 |
| Min. Ground Clearance (mm): | 100 |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 1 Person |
| Dry. Weigth (kg): | 100 |
| Engine Oil (L): | SAE15W/40 |
| Fuel Tank Capacity (L): | 3.5 |
| Others | |
| Packing Size (mm): | 1700×460×870 1700×770×870 |
| Packing Weight (kg): | 125 240 |
| Container Loading(40HQ): | Single package:105units Double package:126 units |

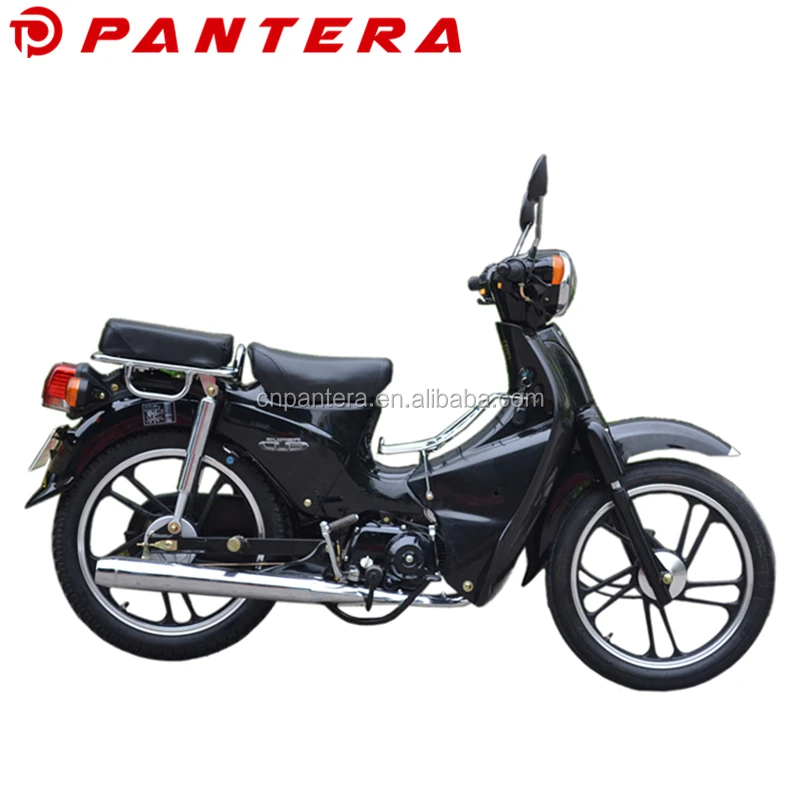

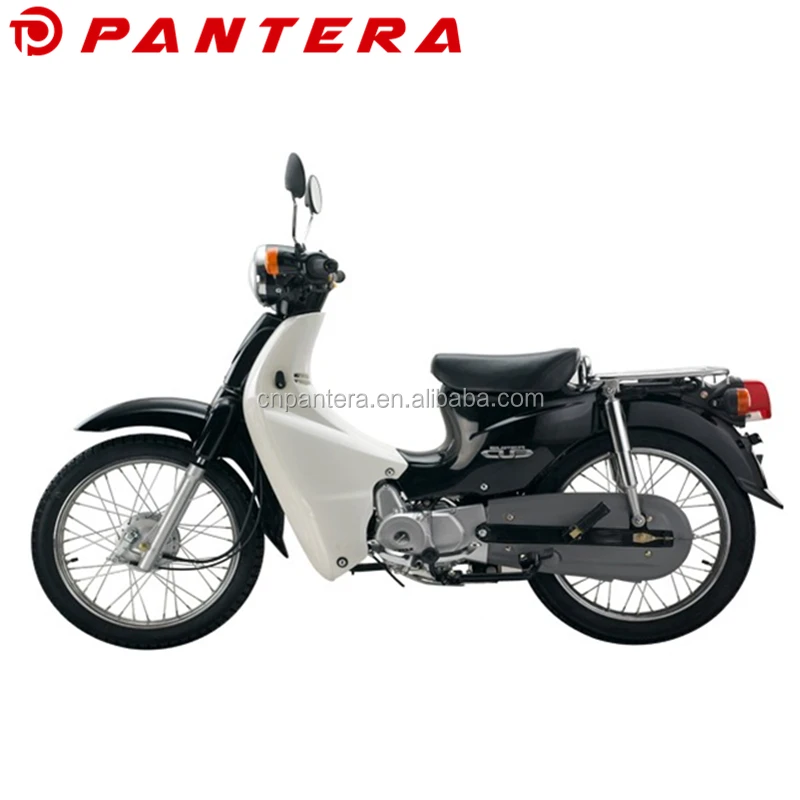

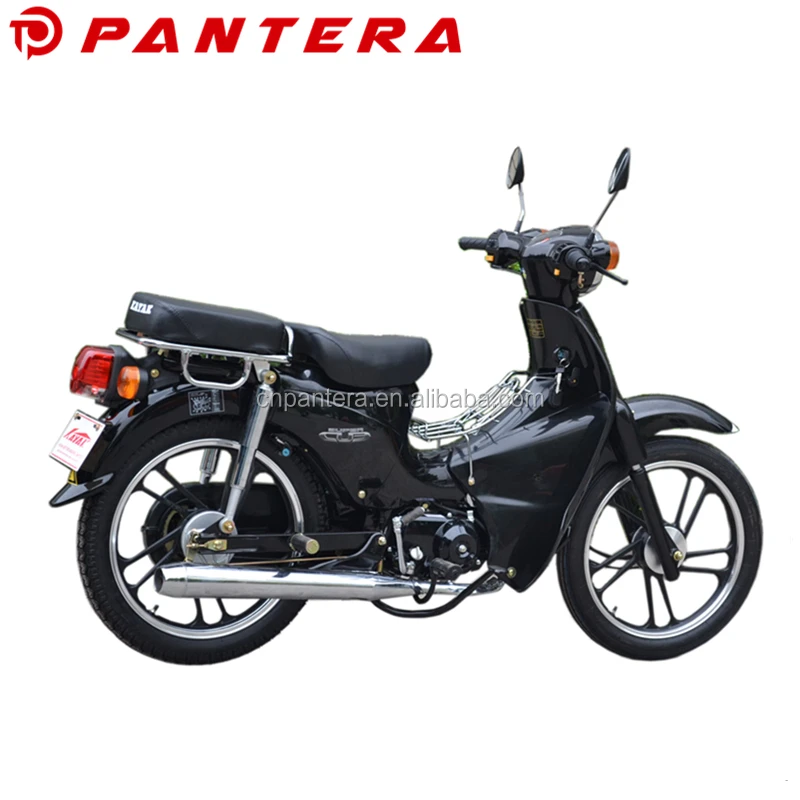

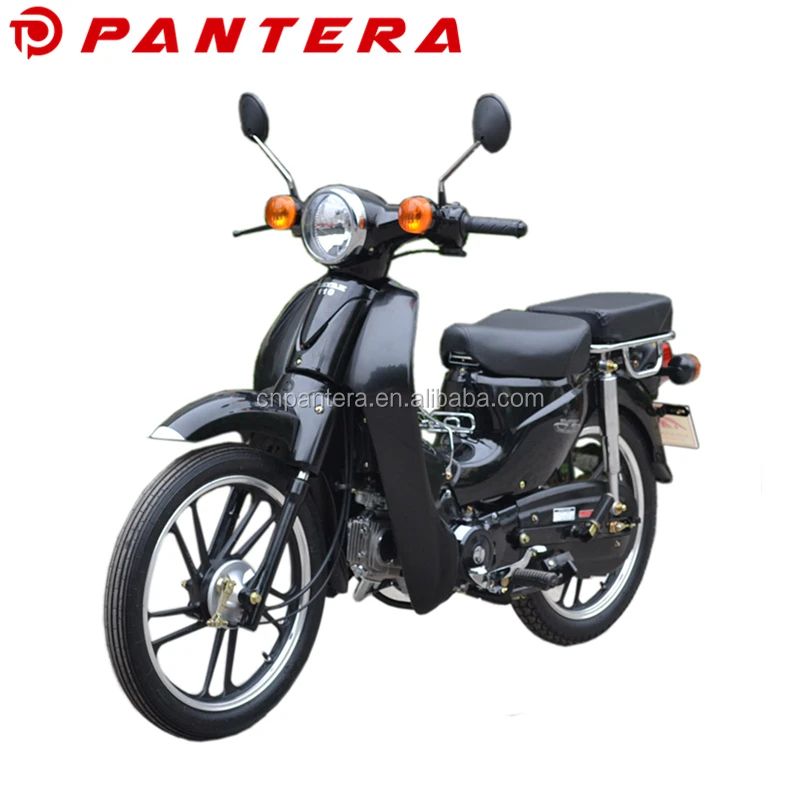

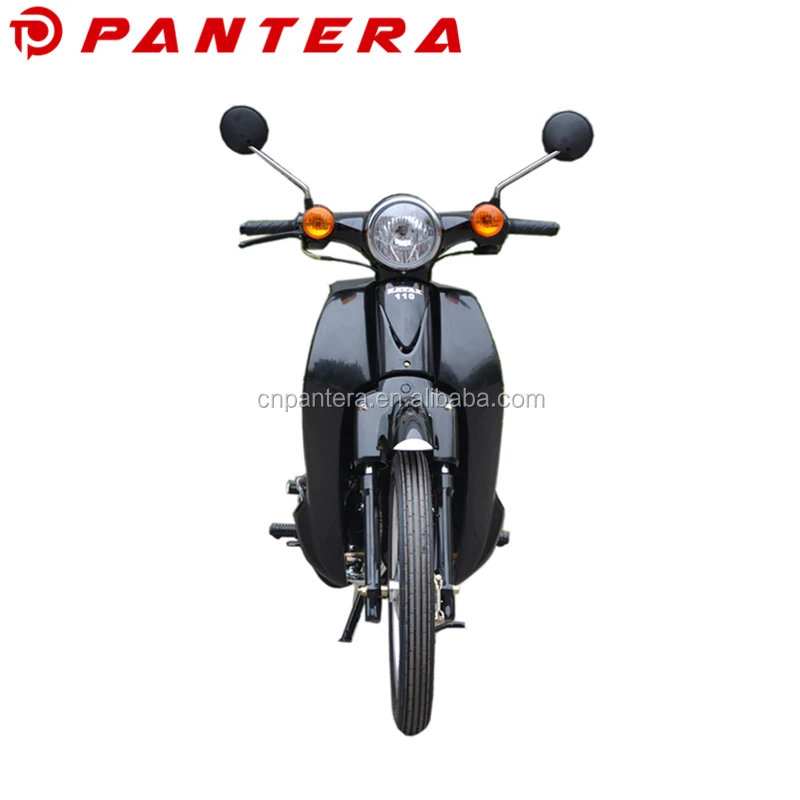

Detailed Images
Overview
Different Angles
Optional
Details
Our Services
Personal Customization:
1.Front brake:drum brake/disc brake
2.Wheel:spoke wheel/alloy wheel
3.Speedmeter:normal speedmeter/digital speedmeter
4.Displacement can be changed from 50cc to 125cc
5.All the models can be equiped with cargo shelf and control remote
6.Color is optional too
Warranty:
We can offer one year warranty or engine 6000kms. And 1% easy-damaging spare parts are provided for free
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor |
| 2 | electric parts |
| 3 | headlight assy |
| 4 | meter assy |
| 5 | L. front turning light |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
Note: the above spare parts packaged separately, carton packaging, standard mark | |
Packaging & Shipping
SKD steel frame + cartoon or wooden frame
CKD wooden case or cartoon
SKD means semiknocked down and CKD means complete knocked down. They are the different package ways. Both of them will take less import tariffs and frieight than finished product.
Company Information
Company Profile
1.Our company:We are a professional motorcycle manufacturer and dealer in Chongqing, China for 10 years.
2.Our product:cub motorcycle, street motorcycle, off road motorcycle, electric bicycle, tricycle, helmet and some spare parts for motorcycle.
3.Our market:Africa, South America, Middle East Asia, Europe and North America.
Market
Bussiness Terms
Certification
WMI and EEC
CQC and SGS
FAQ
Q:What's the packing method do you have?
A:We have two ways to pack the product.One is SKD and the other is CKD.
Q:Is the color of motorcycle optional?
A:Yes,the color is optional,we can print the motorcycle and make it unique just for you.
Q: What’s your payment term of transaction?
A:We accept T/T, and if it is necessary, L/C is considerable.
Q:What's the min order of this model?
A:The min order of this product is 105 unit.
