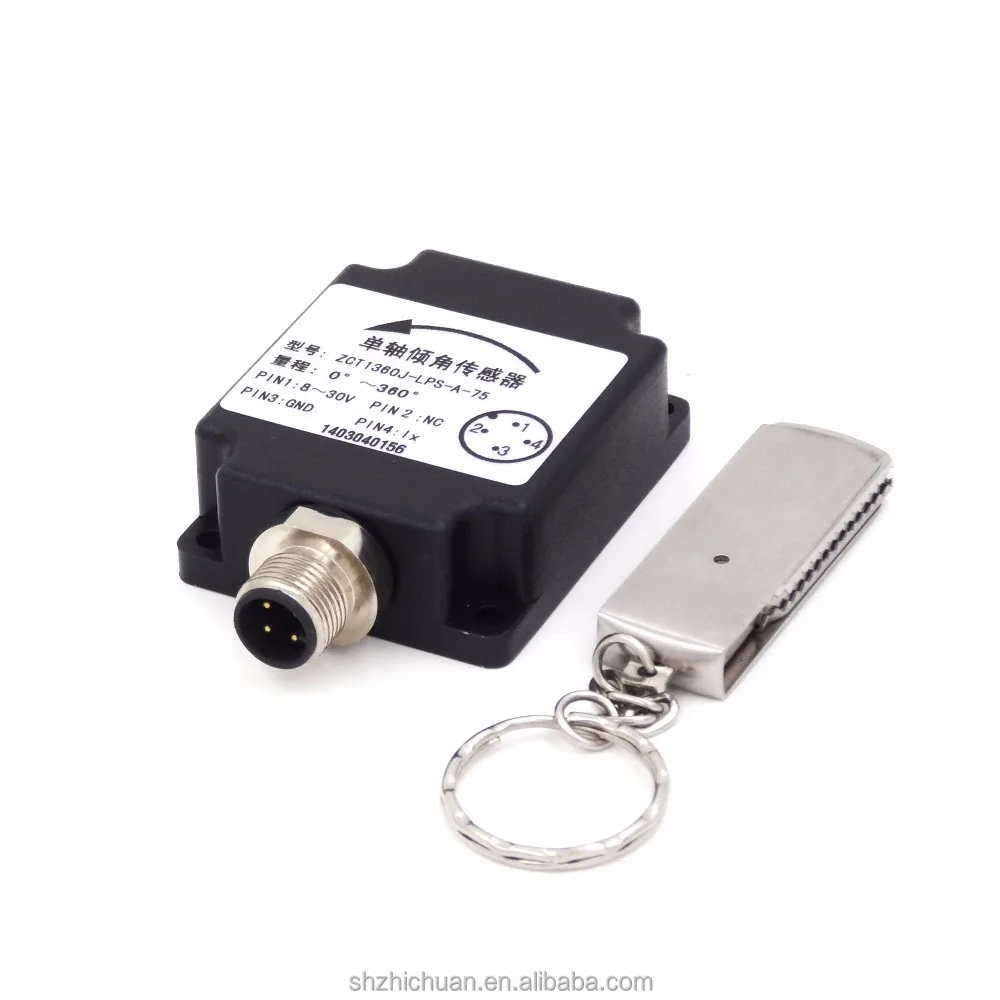

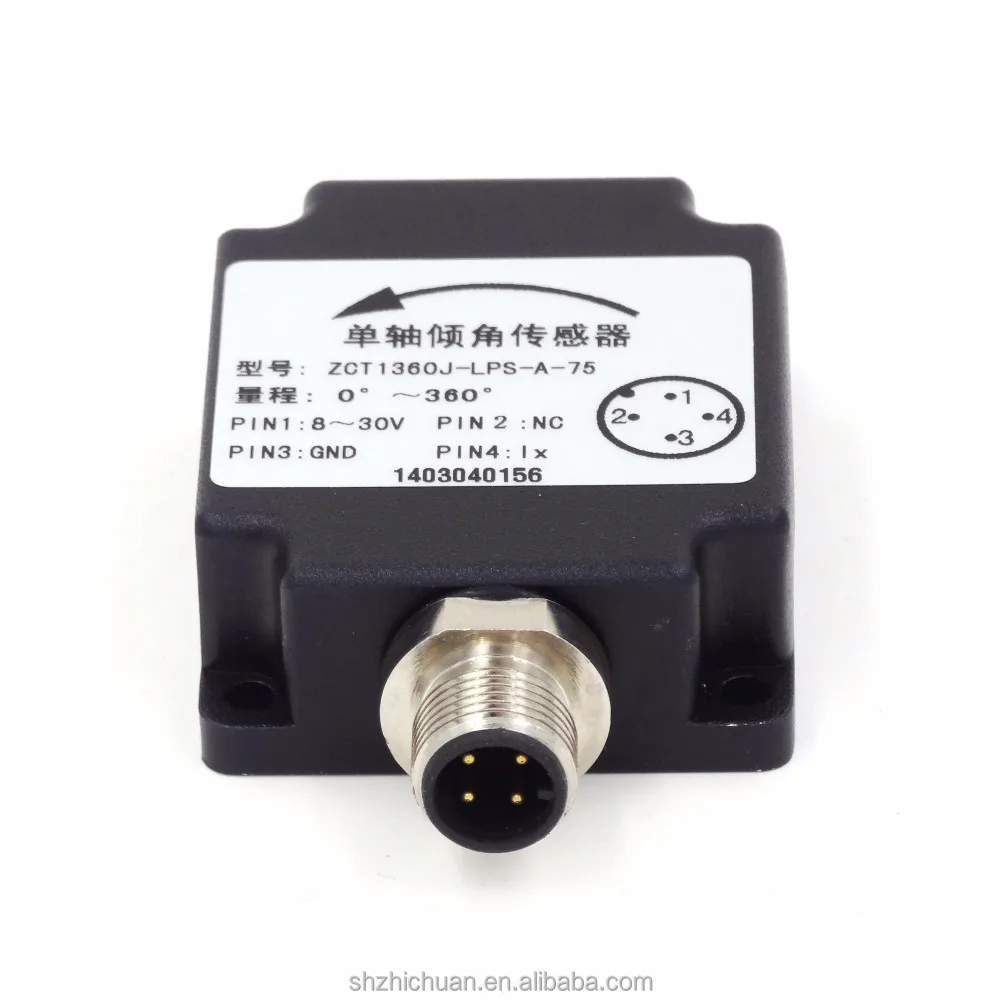

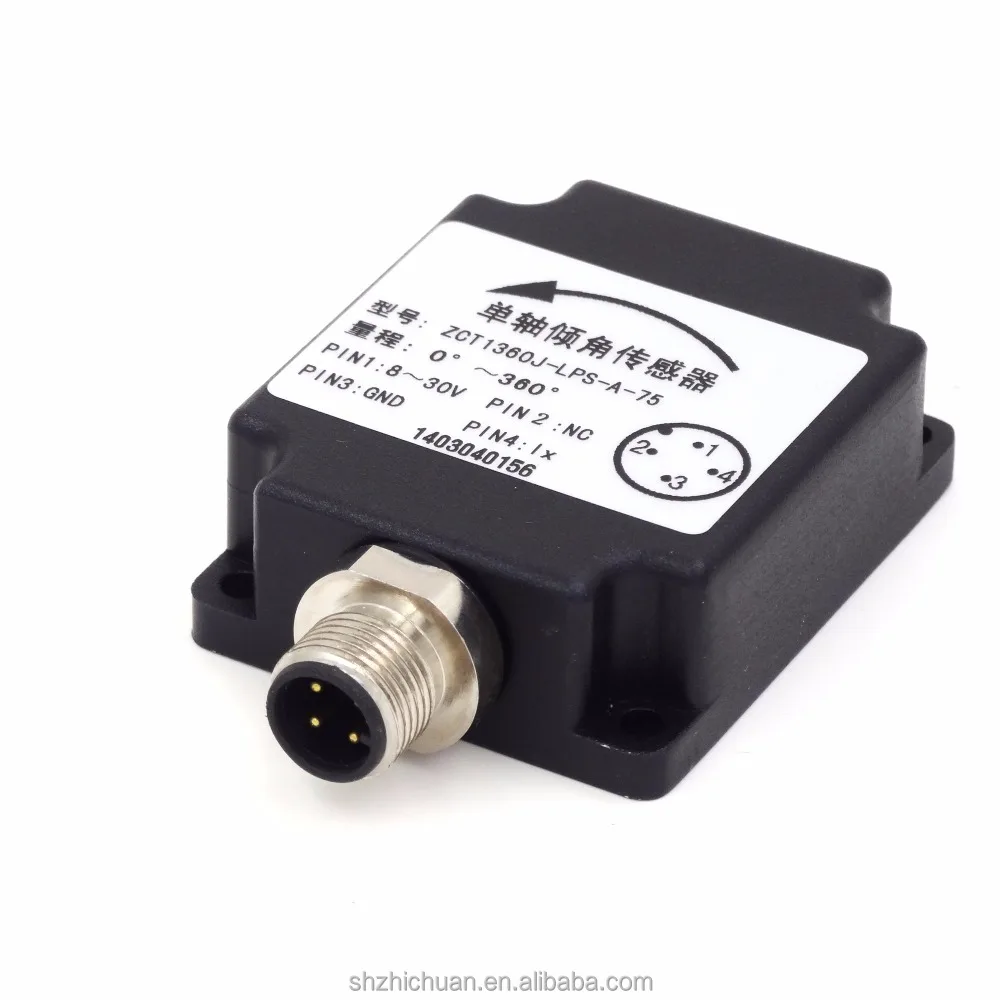

volume measuring sensor (ZCT1360J LPS A 75)

Item

Test condition

Min.

Typ.

Max.

Unit

Specification

Supply voltage

8

30

V(DC)

quiescent state current output

Vcc=24V,without

11

15

mA

Load resistance

VCC=24V

600

Ω

Operating temperature

-40

+85

°C

Waterproof

IP67

Response frequency

optional

0.5

2.5

20

Hz

Housing size

54*44*18

mm

Performance specification

Measuring range

Single axis

0

360

°

Zero current output

4

20

mA

Resolution

0.1

°

Non-linearity

method of the minimum squares

25°C

±0.15

±0.3

%/FS

-10°C~+60°C

±0.3

±0.6

-40°C~+85°C

±0.4

±0.7

Sensitivity

ZCT1180J-LPS-A-7X

87.89

88.89

89.89

uA/°

Zero current output

3.92

4

4.08

mA

Zero temperature drift

-10°C~+60°C

±0.5

±0.8

°

-40°C~+85°C

±0.8

±1

°
