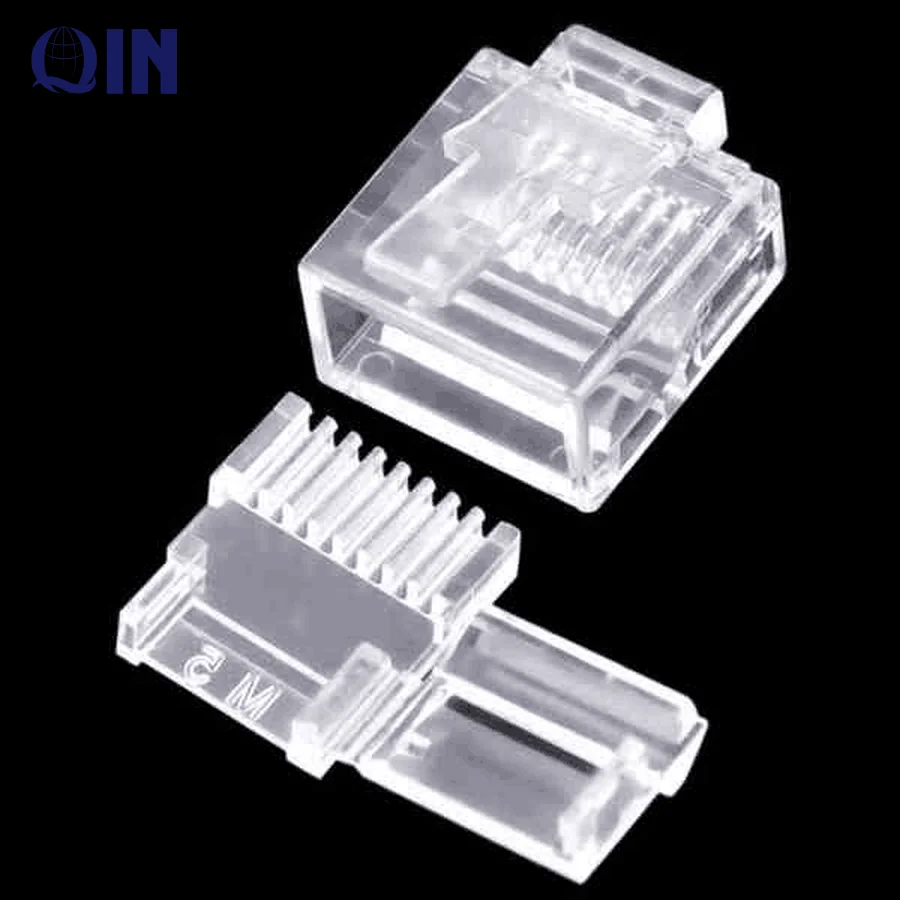

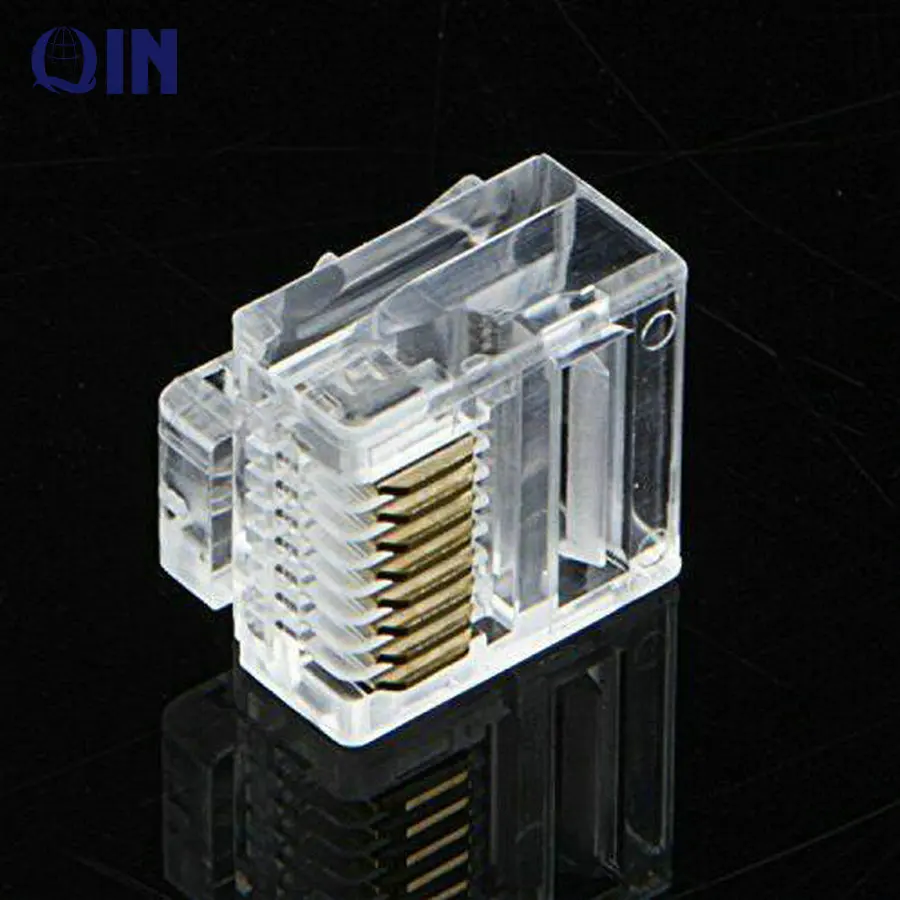

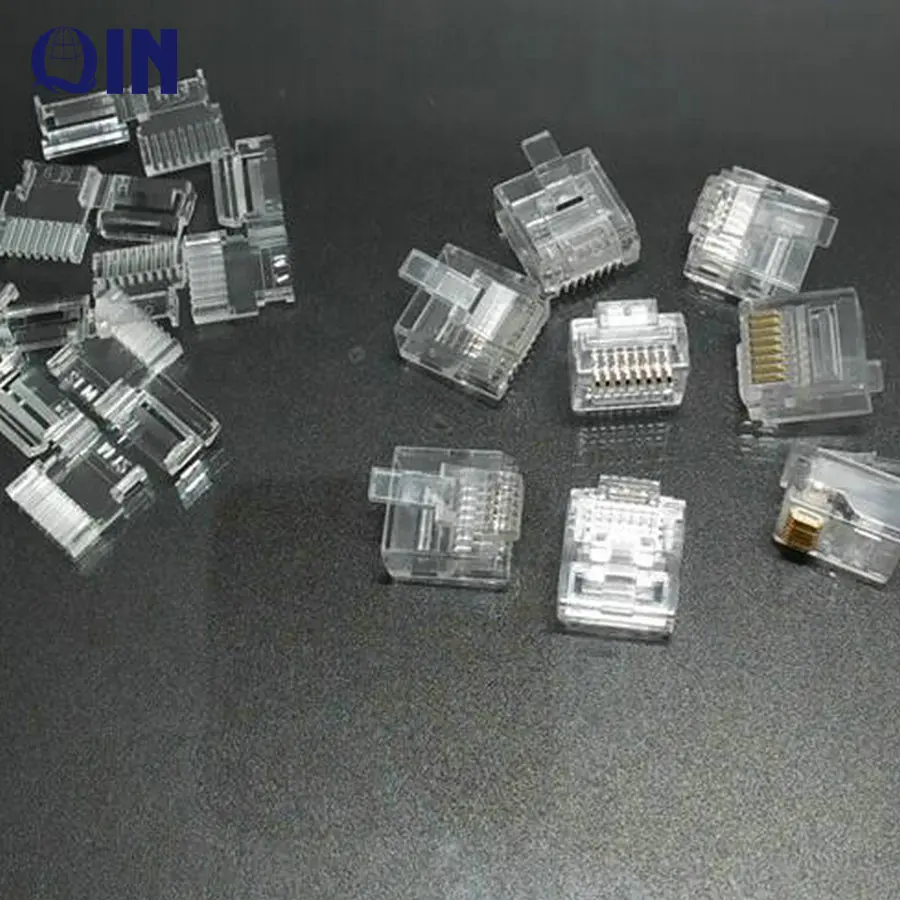

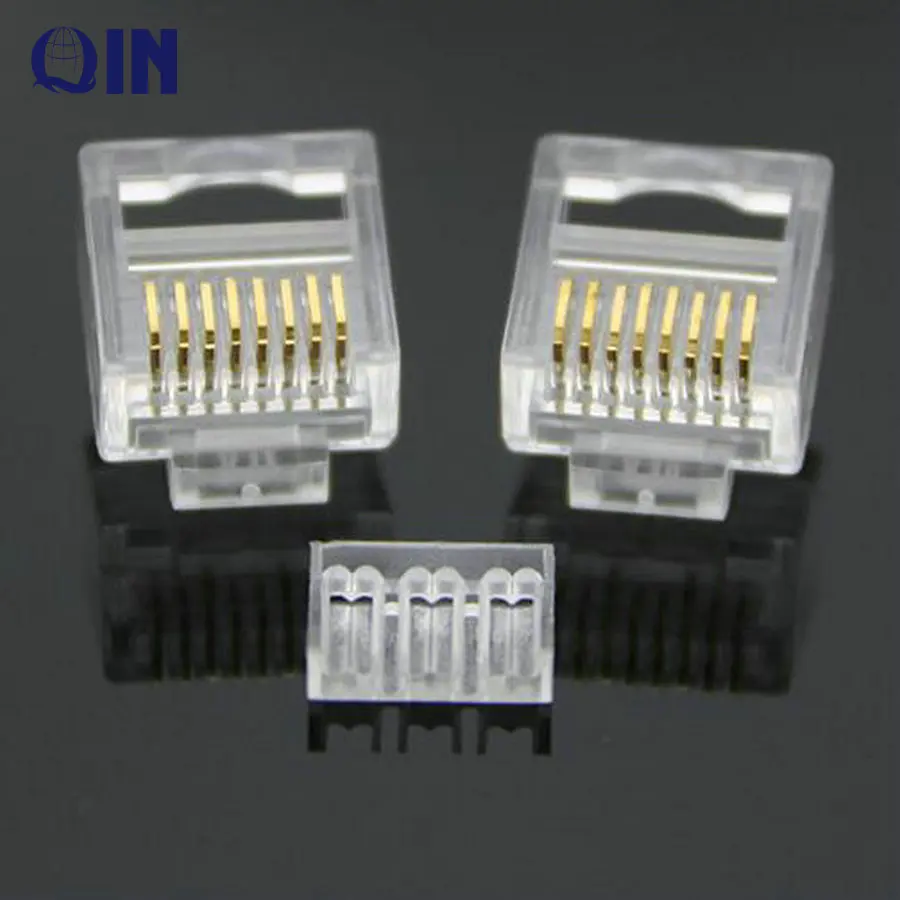

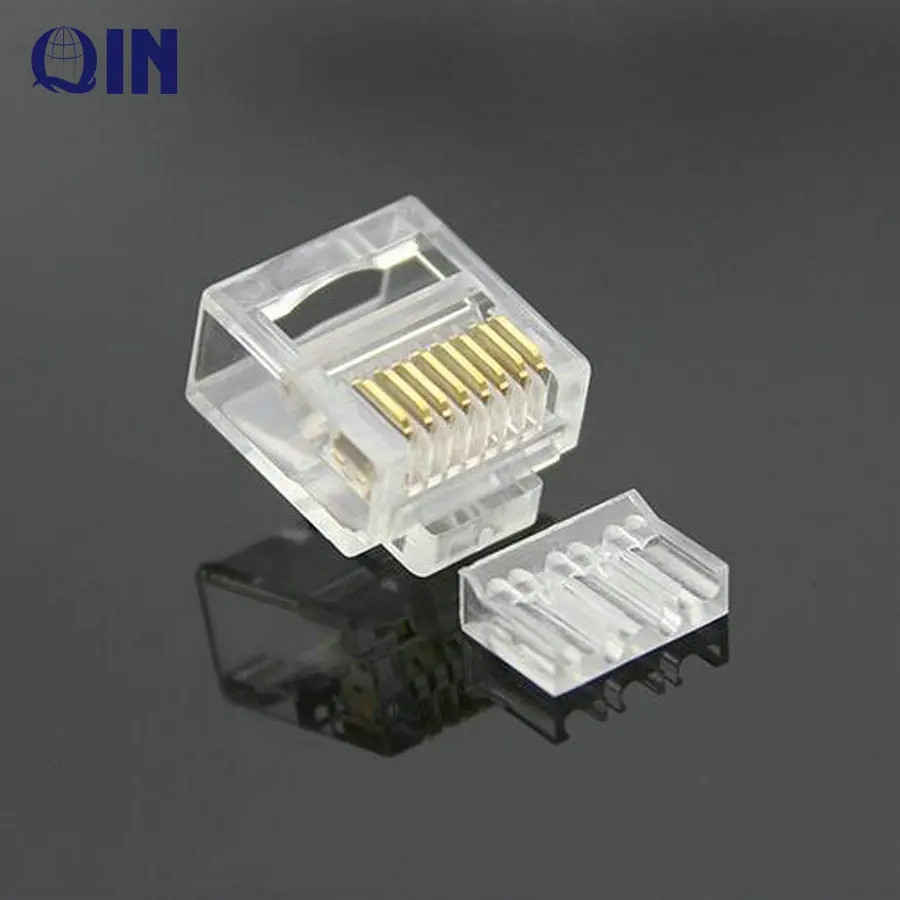

UTP cat6 RJ45 8P8C Short Body male Connector plug with insert

Product Overview

Description

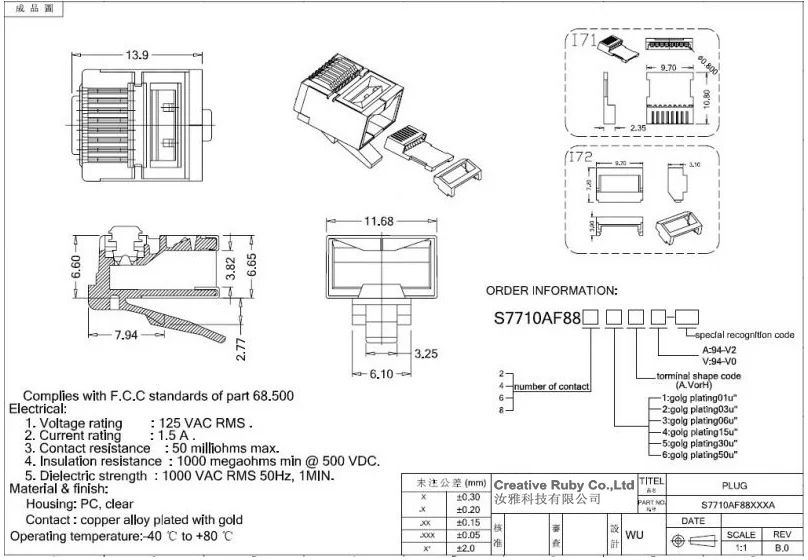

UTP cat6 RJ45 8P8C Short Body male Connector plug, RJ45 short body  8P8C modular plug

Part widely used in telecomunication, networking device and cabling system

1. Material

Housing: PC, UL94V-0or UL94V-2;

Contact: Copper Alloy, Hard Gold Plated Over Nickel;  Gold plating Thickness: Gold Flash,Fu'' , 3u'', 6u'', 15u'', 30u'', 50u''.





Electrical	1.  Insulation Resistance: 1000M Ohm Min
	2. Dielectric Strength: 1000V AC(50-60Hz) 0.5mA 1min
	3 .Contact Resistance: 30mohm Max
Mechanical	1. Retention Strength: Between plug and jack 7.79kg Min
	2 .Mating and un-mating force: 2.27kg Max
	3 .Durability: 750 mating cycles Min
Material	1 . Housing: Polycarbonate (PC) UL 94V-0 or UL 94V-2
	2 .Contacts: Phosphor bronze, Nickel plating followed with gold plating: 3u, 6u, 15u, 30u, or 50u micro-inch selectable
Ratings	1.Current Rating: 1.5AMPS
	2. Voltage Rating: 125V AC
	3. Operation Working Temperature Range: -40°C~80°C
	4. Preservation Range: -20~50C RH<65%
