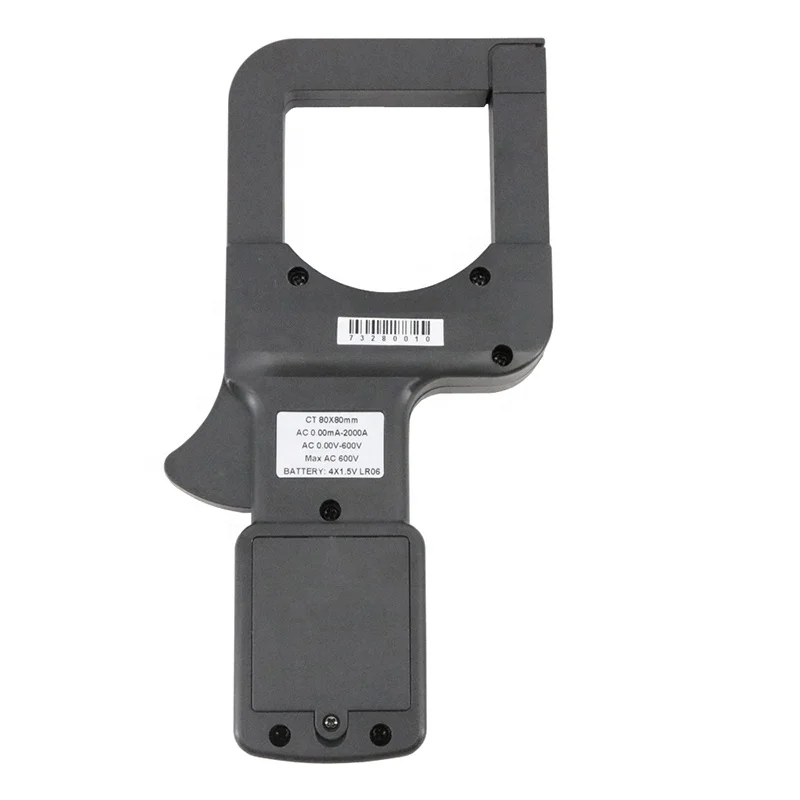

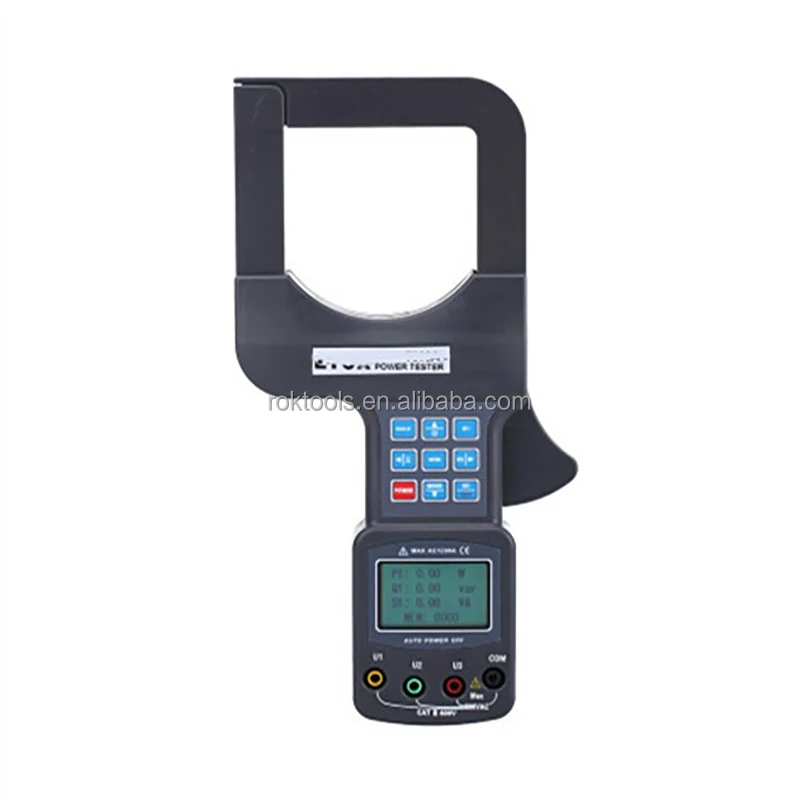

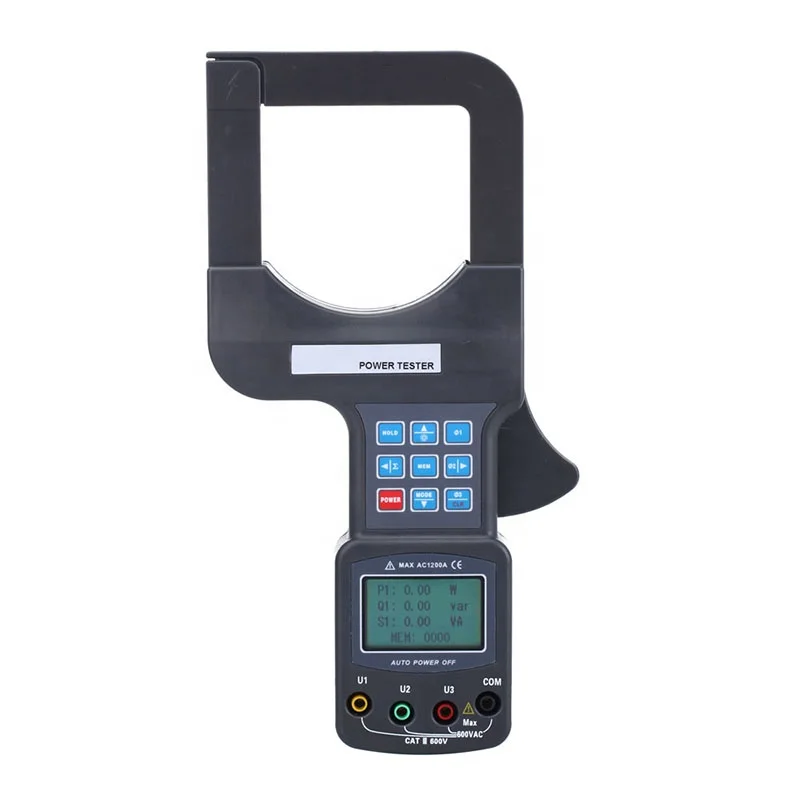

Roktools Digital Three Phase Power Clamp Meter AC 0.0A 2000A Tong Tester Current

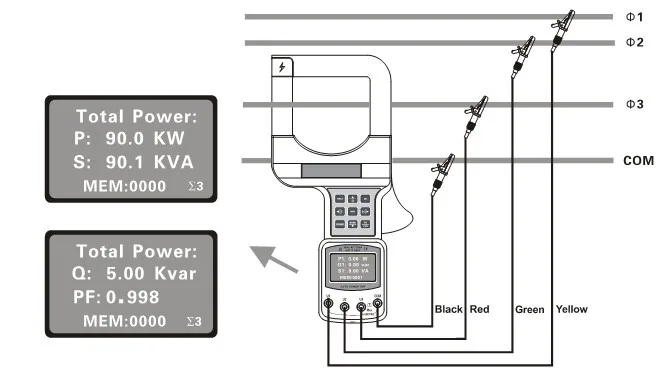

Measure three phase AC voltage, leakage current, current, active power, reactive power, apparent power, power, phase between current and voltage, phase between phase voltage, frequency, power energy, phase sequence

6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours)

Clamp CT, integral mode

80mm×80mm(can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires)

AC 0.0A-2000A, Resolution: 0.1A

AC 0.0KW-1200KW, Resolution: 0.1KW

AC 0-600V, Resolution: 0.01V

25Hz-100Hz, Resolution: 0.1Hz

0.0°-360.0°, Resolution: 0.1°

0.3-1.0(Capacitive or inductive) , Resolution: 0.001

0.0000KWh-72000KWh, Resolution: 0.0001KWh

Measured wire at approximately the geometric center of the clamp

200 sets,  “FULL the memory is full ” symbol indicate

With RS232 interface, download data to computer for analysis and management

RS232 communication wire, 1.8m

50Hz ,60Hz automatic identification

Automatic shift

About 2 times/second

Below AC 600V line measurement

LCD: 128dots×64dots; Display area: 43mm×29mm

Length 275mm × Width 145mm × Height 40mm

Controlled by “ * " key

"HOLD" symbol appears

"OL" symbol appears

Automatically shutdown about 15 minutes after power on to reduce battery consumption

Low battery symbol appears to remind the replacement of battery when the battery voltage drops below 5.2V.

1kg(with batteries and accessories)

50mA with enabled backlight; 25mA with disabled backlight

-10℃-40℃; 80%rh

-10℃-60℃; below 70%rh

AC 3700V/rms(between core and shell)

IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V)

Meter: 1 PC; Test Wires: 4 PCS (Yellow, Green, Red, Black), RS232 Data Wires: 1PC; Disk: 1 PC; Battery(LR6): 4PCS; Meter Box: 1 PC
