DUAL LENS Car Camera

Product Overview

Description

Model	JC-MC815
Image Sensor	Nextchip2431H+Sony IMX225LQR
TV System	PAL/NTSC
Horizontal Resolution	1280TVL
Lens optional	fixed 2.1mm & 2.8mm dual lens
Effective Pixel Arrey	1280(H) x 960(V)
Min illumination	0 Lux
S/N Ratio	More Than 72dB(AGC OFF)
WDR	N/A
IR &Infrared LED Range	10pcsΦ8 IR 940nm LED,5m
Audio fuction	Optional

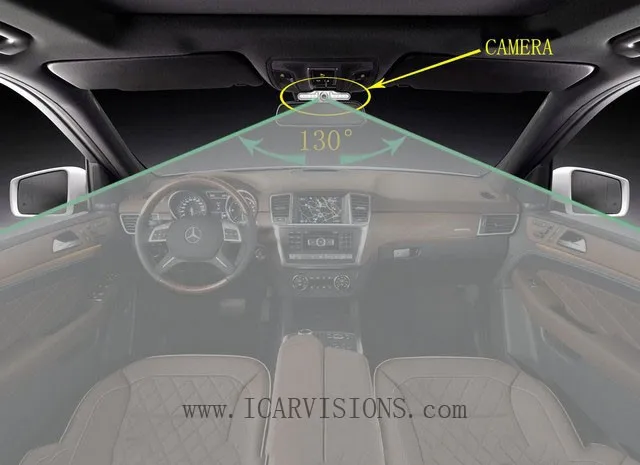

Horizontal angle of view	2.1mm (130°) & 2.8mm (92°)
Tilt Adjusting	N/A
Power Supply	12V DC ±10%
Dimensions	126x30x100mm
Net Weight	200 g
Weatherproof/Water Proof	N/A
Operational  Temperature	-20 ~ +50 ° C
Operational  humidity	<95%
vedio port	Aircraft Round Connector Plug
