Product Overview

Description


\t\t\t\t\t\t\t\t\tTechnical indicators \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tproduct details \t\t\t\t\t\t\t

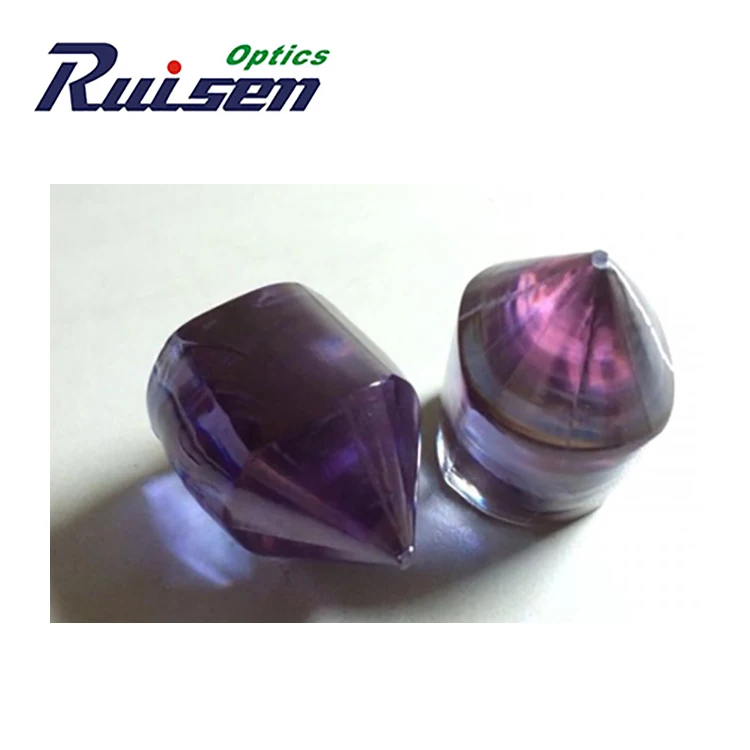

Nd:YVO4 crystal is one of the most efficient laser host crystal currently existing for diode laser pumped solid state lasers. Its large stimulated emission cross-section at lasing wavelength, high absorption coefficient and wide absorption bandwidth at pump wavelength, high laser induced damage threshold as well as good physical, optical and mechanical properties make Nd:YVO4 an excellent crystal for high power, stable and cost effective diode pumped solid-state lasers.

Main Features:

Low lasing threshold and high slope efficiency
Low dependency on pump wavelength
Large stimulated emission cross-section at lasing wavelength
High absorption over a wide pumping wavelength bandwidth
Optically uniaxial and large birefringence emits polarized laser

Application:

√ For Single-longitudinal-mode output and compact design

√ Diode laser-pumped Nd:YVO4 compact laser and its frequency-doubled green, red or blue laser will be the ideal laser tools of machining, material processing, spectroscopy, wafer inspection, light show, medical diagnostics, laser printing and other most widespread applications.
\t
Specifications
\t
Nd Dopant Level
\t
0.1 - 5.0 atm%
\t
Standard Dimensions
\t
3x3x3 mm3, 3x3x1 mm3, 3x3x0.5 mm3
\t
Wavefront Distortion
\t
λ/8@ 633nm
\t
Scattering
\t
Invisible, probed with a He-Ne laser
\t
Orientation Tolerance
\t
±0.5deg
\t
Dimensional Tolerance
\t
±0.1mm
\t
End-faces Configuration
\t
Plano/Plano
\t
Surface Flatness
\t
λ/10 at 633 nm
\t
Surface Quality
\t
10/5 Scratch and Dig
\t
Parallelism
\t
< 10 arc seconds
\t
Clear Aperture
\t
> Central 90%
\t
Intrinsic Loss
\t
< 0.1%cm-1
\t
Atomic Density
\t
~1.37x1020 atoms/cm3
\t

Crystal Structure
\t
Zircon Tetragonal, space group D4h
\t
a=b=7.12, c=6.29
\t
Density
\t
4.22 g/cm3
\t
Mohs Hardness
\t
Glass-like, ~5
