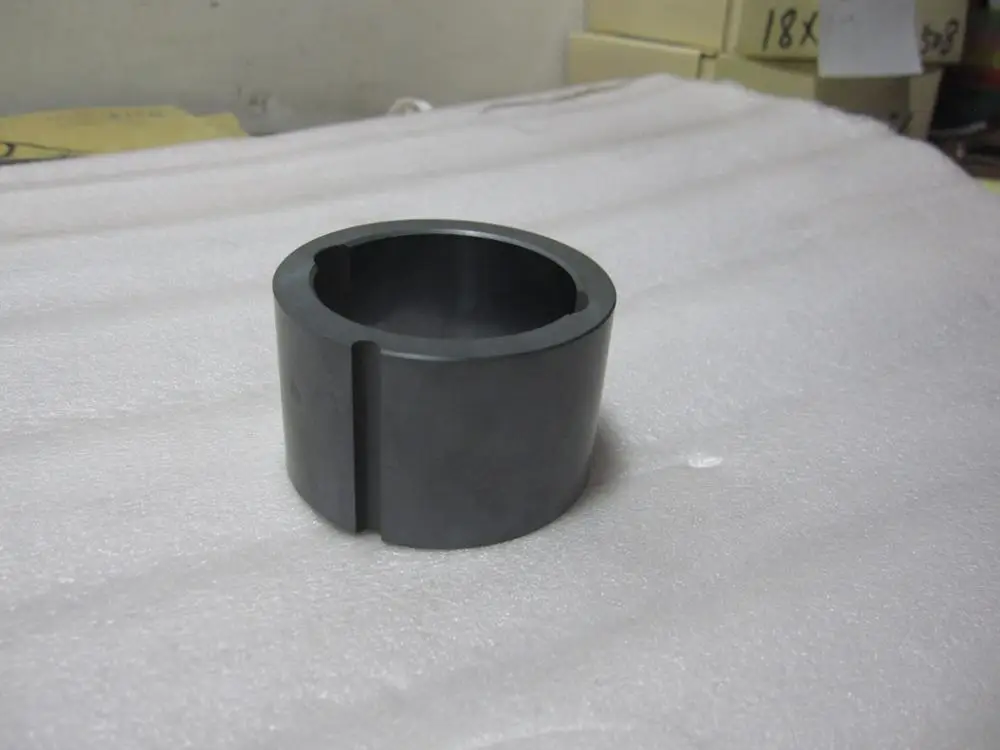

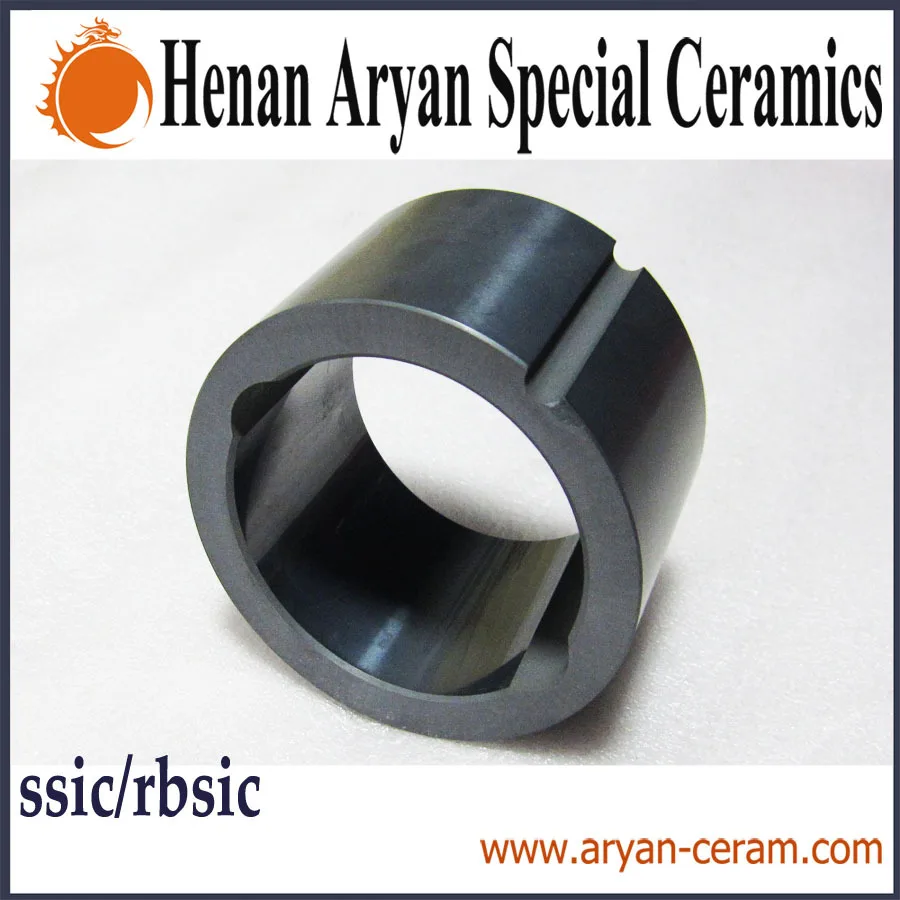

SiC/SSIC ceramic mechanical seal for pump
- Category: >>>
- Supplier: Henan Aryan New Materials Co. Ltd. [Henan China]Henan
Share on (60139383226):
Product Overview
Description
SiC/SSIC ceramic mechanical seal for pump
Excellent low density ,high hardness and also provide customized production.
| Parameter | SSiC | RBSiC |
| Purity( % ) | >98 | >90 |
| Hardness( HRA ) | ≥92 | ≥90 |
| Grain Size( um ) | 0.5~0.7 | 8~20 |
| Density( g/cm3 ) | 3.10~3.15 | 3.03~3.08 |
| Bend Strength( MPa ) | 400-580 | 350-450 |
| Compressive Strength(MPa) | >2200 | >2000 |
| Fracture Toughness( MPA ) | 3.05-4.6 | 4.3 |
| Elastic Modulus( GPa ) | >400 | >360 |
| Thermal Conductivity(W/M.K) | 100~120 | 50~100 |
| Coefficient of heat Expansion( L/°C ) | 4.02x10-6 | 4.3x10-6 |
| Poisson Ratio | 0.14 | 0.15 |
1. our products :
2.Features of ceramic mechnical seal pump spare parts :
1) Heat shock stablity
2) chemical corrosion-resistant( resistant to strong acid/strong alkali /salt / gas / deleterious )
3) High temper-endure(up to 1650°)
4) Wearing/corrosion/oxidation resistant
5) Highly performance of mechanical strength
6) Cleaning or etching the hardest sub-surfaces
7) long life high hardness resistant to wear; especially resistant to hydrofluoric acid
8) Used for grinding, lapping, and wire saw cutting as well as abrasive blasting
3.why chose us?
Our advantages
| High quality |
Competitive price | |
| Strict delivery time | |
| Good after-sales service | |
Professional producer for 10 years | |
Gold supplier 3th year | |
Strict quality control |
4.Applications of ceramic mechnical seal pump spare parts :
With silicon carbide ceramics the material properties remain constant up to temperatures above 1,400°C. The high Young’s modulus > 400 GPa ensures excellent dimensional stability. These material properties make silicon carbide predestined for use as a construction material. Silicon carbide masters corrosion, abrasion and erosion as skillfully as it stands up to frictional wear. Components are used in chemical plants, mills, expanders and extruders or as nozzles, for example.
“The variants SSiC (sintered silicon carbide) and SiSiC (silicon infiltrated silicon carbide) have established themselves. The latter is particularly suitable for the production of complex large-volume components.”
Silicon carbide is toxicologically safe and can be used in the food industry. Another typical application for silicon carbide components is dynamic sealing technology using friction bearings and mechanical seals, for instance in pumps and drive systems. Compared to metals, silicon carbide enables highly economical solutions with longer tool life when used with aggressive, high-temperature media. Silicon carbide ceramics are also ideal for use in demanding conditions in ballistics, chemical production, energy technology, paper manufacturing and as pipe system components.
5.production lines:
Granulation-compression moulding-sintering-grinding -finishing and fining
the inspection for each step of the production is conducted strictly.
6 Factory real landscape
7.contact us:
If you are interested in any producta, please send your detail request by email , by skype or QQ or Mobile. We will quote you the competitive price with the superior standard professional technology .
We specialize in ceramic mechnical seal pump spare parts .
If you are interested in our cooperation, please send us samples or drawing for further check.including Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and other specification are upon your requirements.
And we warmly welcome friends from all over the world to visit our factories for business.
