China Outdoor 4 Burners Free Standing Gas Stove
US $65.00-$70.00
Freestanding 2 years warranty 4 burner Gas Range cooker Kitchen Stove with oven
- Category: Ranges >>>
- Supplier: Guangdong Hyxion Smart Kitchen Co. Ltd
Share on (60139648334):
Product Overview
Description
For OEM / ODM only | RTS click here | |
Company information (Two production bases) | ||
5*Hydraulic Machine / 8*CNC Punch / 25*Punch / 30*CNC bending / 4*Laser beam welding / 4*Laser machine | ||
Number of assembly lines | 3 Lines (300% full inspection) | |
Special processing line | Sheet metal spraying line Enamel processing production line | |
Total Employees | 400-600 People | |
PROVINCIAL ENGINEERING TECHNOLOGY RESEARCH CENTER(R&D) | ||
R & D equipment | Safety Comprehensive Tester / Constant temperature and humidity box / Three-component gas distribution device / Oven door switch life tester / Anti-diagonal tester / Temperature Field / Temperature inspection instrument / Salt spray test chamber (large) / Infrared Flue Gas Analyzer and so on... | |
Laboratory accreditation | CSA / UL / CNAS | |
Certification / Patent | 9*Invention patent / 119*Utility model patents / 53*Design patent / CSA / UL / AGA / CE / RoHS / ISO 9001 / BSCI | |
R&D Staffs | 25-40 People | |
A Professional kitchen equipment supplier integrating design and production | ||
Verified Supplier Report download | ||
4.2 cu. ft. Professional Gas Range in Stainless Steel
This 30 in. Professional Style Gas Range will fulfill all your cooking desires. Main features include one 18,000 BTU Sealed Single Burners, two 12,000 BTU Sealed Single Burners along with one 15,000 BTU Sealed Dual Burners with a 650 BTU Simmer Function. The 4.2 cu. ft. 22,000 BTU oven contains a commercial convection fan along with 13,000 BTU Oven Broiler. Continuous grating to facilitate the movement of large cookware.
1* Natural Gas by Factory Default
2* Propane conversion kit (Part Number LPKHRG3080U) Can be Purchased as an Accessory.
3 * 1 x 15,000 BTU sealed dual burner with a 650 BTU simmer function to cook delicate sauces with gentle, even heat
4* 1 x 18,000 BTU Sealed Single Burner emits high heat for larger cookware
5* 2 x sealed single burner x 12,000 BTU for medium heat
6* Automatic re-ignition if the burner flame extinguishes to prevent gas leaks
7* No scratch black porcelain drip pans are smooth to the touch and easy to clean

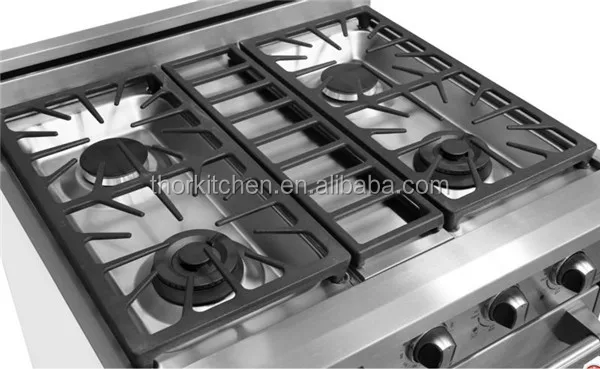

8* 3 x continuous flat cast-iron cooking grates to slide larger cookware with ease

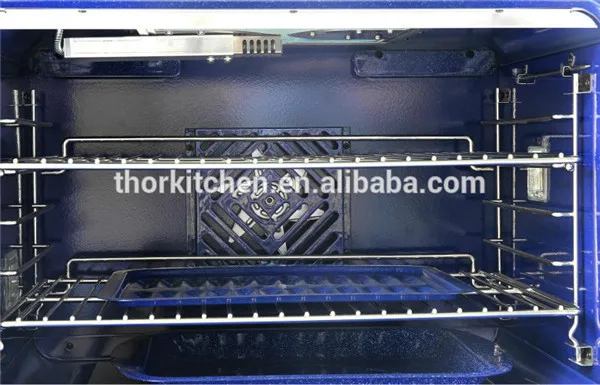

9* 4.2 cu. ft. oven capacity with 2 oven racks and 5 rack positions

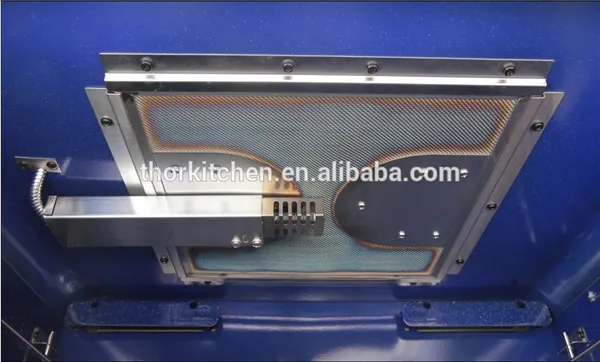

10* Oven broiler: 1 x 13,000 BTU
11* U shape stove burner: 1 x 22,000 BTU
12* Easy to clean blue porcelain oven interior
13 * Commercial convection fan circulates heat for even distribution
14* 2 Halogen Lights increase visibility for the oven interior
15* Easy to Remove burner parts to facilitate cleaning
16* 4 x Metallic Knobs
17* Blue LED Lights illuminate the control panel and knobs
18* REQUIRED CUT-OUT (W x D x H): 30.13 in. x 24.84 in. x 35.57(+1) in.
1* Natural Gas by Factory Default
2* Propane conversion kit (Part Number LPKHRG3080U) Can be Purchased as an Accessory.
3 * 1 x 15,000 BTU sealed dual burner with a 650 BTU simmer function to cook delicate sauces with gentle, even heat
4* 1 x 18,000 BTU Sealed Single Burner emits high heat for larger cookware
5* 2 x sealed single burner x 12,000 BTU for medium heat
6* Automatic re-ignition if the burner flame extinguishes to prevent gas leaks
7* No scratch black porcelain drip pans are smooth to the touch and easy to clean
8* 3 x continuous flat cast-iron cooking grates to slide larger cookware with ease
9* 4.2 cu. ft. oven capacity with 2 oven racks and 5 rack positions
10* Oven broiler: 1 x 13,000 BTU
11* U shape stove burner: 1 x 22,000 BTU
12* Easy to clean blue porcelain oven interior
13 * Commercial convection fan circulates heat for even distribution
14* 2 Halogen Lights increase visibility for the oven interior
15* Easy to Remove burner parts to facilitate cleaning
16* 4 x Metallic Knobs
17* Blue LED Lights illuminate the control panel and knobs
18* REQUIRED CUT-OUT (W x D x H): 30.13 in. x 24.84 in. x 35.57(+1) in.
DIMENSIONS | ||||||
Depth With Door(s) Open 90 Degrees (In.) | 44.5 | Product Depth (in.) | 27.9 in | |||
Oven Interior Depth (in) | 18 | Product Height (in.) | 39.4 in | |||
Oven Interior Height (in) | 15.25 | Product Width (in.) | 30 in | |||
Oven Interior Width (in) | 24 | Range Size | 30 in. | |||
DETAILS | ||||||
Appliance Category | Range | Cooking Process | Convection | |||
Appliance Type | Gas Range | Cooktop Features | Continuous Grates,LP Convertible,Sealed Burners | |||
Broiler Location | Oven | Cooktop Surface Type | Smooth Top | |||
Burner Grate Material | Cast Iron | Drawer Type | No Drawer | |||
Burner No.1 BTU | 18000 | Fuel Type | Gas | |||
Burner No.2 BTU | 15000 | Ignition Type | Continuous Spark | |||
Burner No.3 BTU | 12000 | Included | Power Cord | |||
Burner No.4 BTU | 12000 | Number of Burners | 4 burner | |||
Capacity of Oven (cu. ft.) | 4.2 | Number of Oven Racks | 2 | |||
Cleaning Type | Manual Clean | Number of Rack Positions | 5 | |||
Color of Cooktop | Black | Oven Cleaning Options | Manual Clean | |||
Color/Finish | Stainless Steel | Oven Features | Broiler in Oven | |||
Color/Finish Family | Stainless Steel | Oven Settings | No Specialty Settings | |||
Commercial/Residential | Residential | Product Weight (lb.) | 200 lb | |||
Control Type | Manual | Range Type | Slide-In | |||
Controls Location | Front Control | Certifications and Listings | CSA Certified | |||
Dongguan Hyxion Metal Technology Co., Ltd.
Dongguan Hyxion Metal Technology Co., Ltd. was established in July 2011, The company covers an area of about 100,000 square meters,It has set up branches in Hong Kong, Shenzhen, Los Angeles and Chicago. The main products are range, baking utensils, range hood and integrated smart kitchen appliances,Outdoor kitchen, tool cabinet, BBQ grill, which are the world's leading kitchen solution provider.
In addition, the company has introduced advanced production lines and special equipment from Japan, Switzerland and other countries. It has a large number of advanced high-precision processing equipment such as Japan AMADA CNC punching machine and CNC folding bed. At the same time, it also introduces advanced product assembly lines and safety testing instruments. It is equipped with enamel wire and powder spray line, equipped with Swiss imported Golden Horse spray gun, and has established a gas product testing laboratory approved by CNAS National Laboratory.
We are one of the few factories in China that have established a global CSA accredited laboratory and have obtained the CSA official authorization certificate.
The company's production line has the capacity to export 6,000 container oven products annually. With the laboratory accredited by China's CNAS National Laboratory, it successfully passed the North American market gas product access certificate CSA, which laid a good foundation for the company's product export sales.
In addition, the company has introduced advanced production lines and special equipment from Japan, Switzerland and other countries. It has a large number of advanced high-precision processing equipment such as Japan AMADA CNC punching machine and CNC folding bed. At the same time, it also introduces advanced product assembly lines and safety testing instruments. It is equipped with enamel wire and powder spray line, equipped with Swiss imported Golden Horse spray gun, and has established a gas product testing laboratory approved by CNAS National Laboratory.
We are one of the few factories in China that have established a global CSA accredited laboratory and have obtained the CSA official authorization certificate.
The company's production line has the capacity to export 6,000 container oven products annually. With the laboratory accredited by China's CNAS National Laboratory, it successfully passed the North American market gas product access certificate CSA, which laid a good foundation for the company's product export sales.

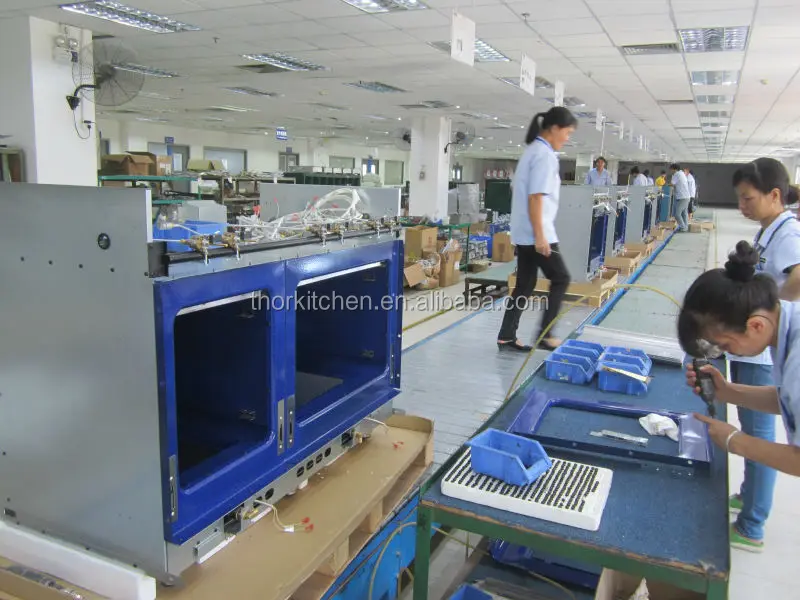

Assembly lines
The company has three finished product assembly lines with an annual output of 6,000 containers.
The assembly line is well-equipped, and each station is equipped with a display to show their operating specifications. The most important thing is our gas testing equipment. All of our gas products will go through three inspection procedures. The first is to use a gas tightness tester to detect gas leakage at various locations individually. The second is to use a comprehensive safety testing instrument to conduct a comprehensive test and generate a list of test items. The third is the final manual inspection by QC inspectors.
The assembly line is well-equipped, and each station is equipped with a display to show their operating specifications. The most important thing is our gas testing equipment. All of our gas products will go through three inspection procedures. The first is to use a gas tightness tester to detect gas leakage at various locations individually. The second is to use a comprehensive safety testing instrument to conduct a comprehensive test and generate a list of test items. The third is the final manual inspection by QC inspectors.
Enamel wire and powder spray line
It is equipped with enamel wire and powder spray line, equipped with Swiss imported Golden Horse spray gun. Full-automatic spray pre-treatment, plus full-automatic reciprocating machine automatic spraying, to achieve basically unmanned spraying process, using natural gas heating, thermal energy balance, good curing effect, can handle 1.9 * 0.92 * Large box workpieces with a width of 0.6 meters, whether they are flat pieces, complex boxes, or cabinets, can meet the spraying processing of products of different sizes.
Enamel processing production line
1. 800KW fully automatic firing furnace, capable of processing large workpieces with length of 1.2 * width 0.7 * height 0.8m
2, using imported equipment, streamlined powder room and powder room wall.
3. Reciprocating machine plus mechanical arm or manual spraying to realize unmanned operation.
4. The firing furnace uses electric heating as the energy source, the temperature difference between the upper and lower sides is small, and the firing zone in the furnace is 14 meters long.
2, using imported equipment, streamlined powder room and powder room wall.
3. Reciprocating machine plus mechanical arm or manual spraying to realize unmanned operation.
4. The firing furnace uses electric heating as the energy source, the temperature difference between the upper and lower sides is small, and the firing zone in the furnace is 14 meters long.
PROVINCIAL ENGINEERING TECHNOLOGY RESEARCH CENTER(R&D)
The company's technology sources mainly include the following channels: independent research and development, industry-university-research cooperation, and external expert research and development.
The company hires the dean of the School of Computer and Information Technology of Mudanjiang Normal University, the dean, the vice president, and a professor of the School of Mechanical Engineering of Mudanjiang University, and directs the company's independent technology research and development.Our company has jointly established Huazhong University of Science and Technology and Dongguan Institute of Technology to jointly develop the "Key Technology and Industrialization of Intelligent and Efficient Interactive Kitchen Electric System" project.
Our company has also joined forces with the University of Victoria in Switzerland to jointly develop the "Oven Indicator Circuit" project.
In addition, the company has established a gas product testing laboratory approved by CNAS National Laboratory. With the laboratory accredited by China's CNAS National Laboratory, it successfully passed the North American market gas product access certificate CSA, which laid a good foundation for the company's product export sales.
Enterprises mainly involved in the field of kitchen appliances, especially high-end integrated smart kitchen appliances.
The company hires the dean of the School of Computer and Information Technology of Mudanjiang Normal University, the dean, the vice president, and a professor of the School of Mechanical Engineering of Mudanjiang University, and directs the company's independent technology research and development.Our company has jointly established Huazhong University of Science and Technology and Dongguan Institute of Technology to jointly develop the "Key Technology and Industrialization of Intelligent and Efficient Interactive Kitchen Electric System" project.
Our company has also joined forces with the University of Victoria in Switzerland to jointly develop the "Oven Indicator Circuit" project.
In addition, the company has established a gas product testing laboratory approved by CNAS National Laboratory. With the laboratory accredited by China's CNAS National Laboratory, it successfully passed the North American market gas product access certificate CSA, which laid a good foundation for the company's product export sales.
Enterprises mainly involved in the field of kitchen appliances, especially high-end integrated smart kitchen appliances.

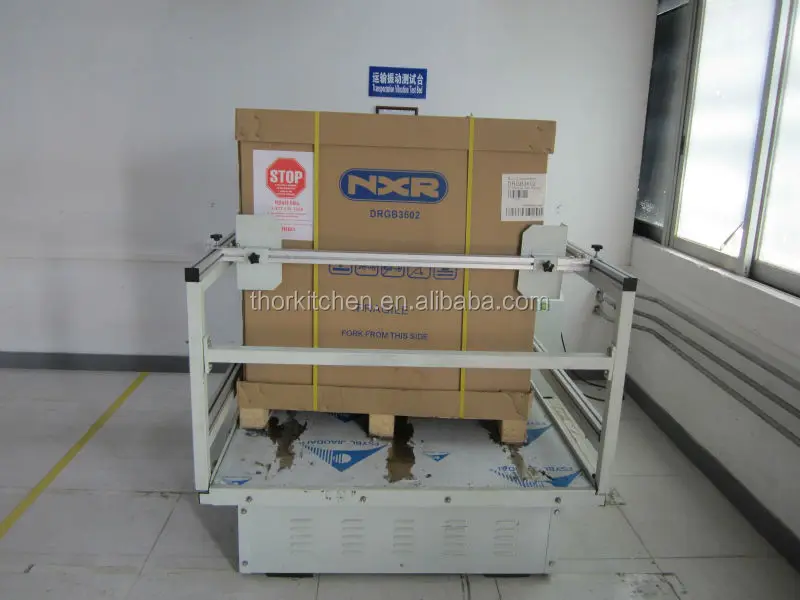

Transportation laboratory
Our company is equipped with a professional transportation laboratory, which can test the strength of the goods during transportation, so as to adjust the firmness of the outer packaging. It includes a series of testing instruments such as crash test, drop test, clamping test, compressive strength test and so on.
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. You also can arrange to inspection before shipped out.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 30 - 60 days after receiving deposit. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we have professional enginner team over 50peoples, OEM/ODM are welcomed.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q7:What is Trade Assurance?
Click for details:https://tradeassurance.alibaba.com/bao/buyer_advertise.htm
Q8:How can I place an order through Trade Assurance?
Click for details:https://activities.alibaba.com/alibaba/ordering/tradeassurance.php?spm=5386
OR Contact us for assistance
If there are other questions, please Chat Now or Send Inquiry
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. You also can arrange to inspection before shipped out.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 30 - 60 days after receiving deposit. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we have professional enginner team over 50peoples, OEM/ODM are welcomed.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q7:What is Trade Assurance?
Click for details:https://tradeassurance.alibaba.com/bao/buyer_advertise.htm
Q8:How can I place an order through Trade Assurance?
Click for details:https://activities.alibaba.com/alibaba/ordering/tradeassurance.php?spm=5386
OR Contact us for assistance
If there are other questions, please Chat Now or Send Inquiry
