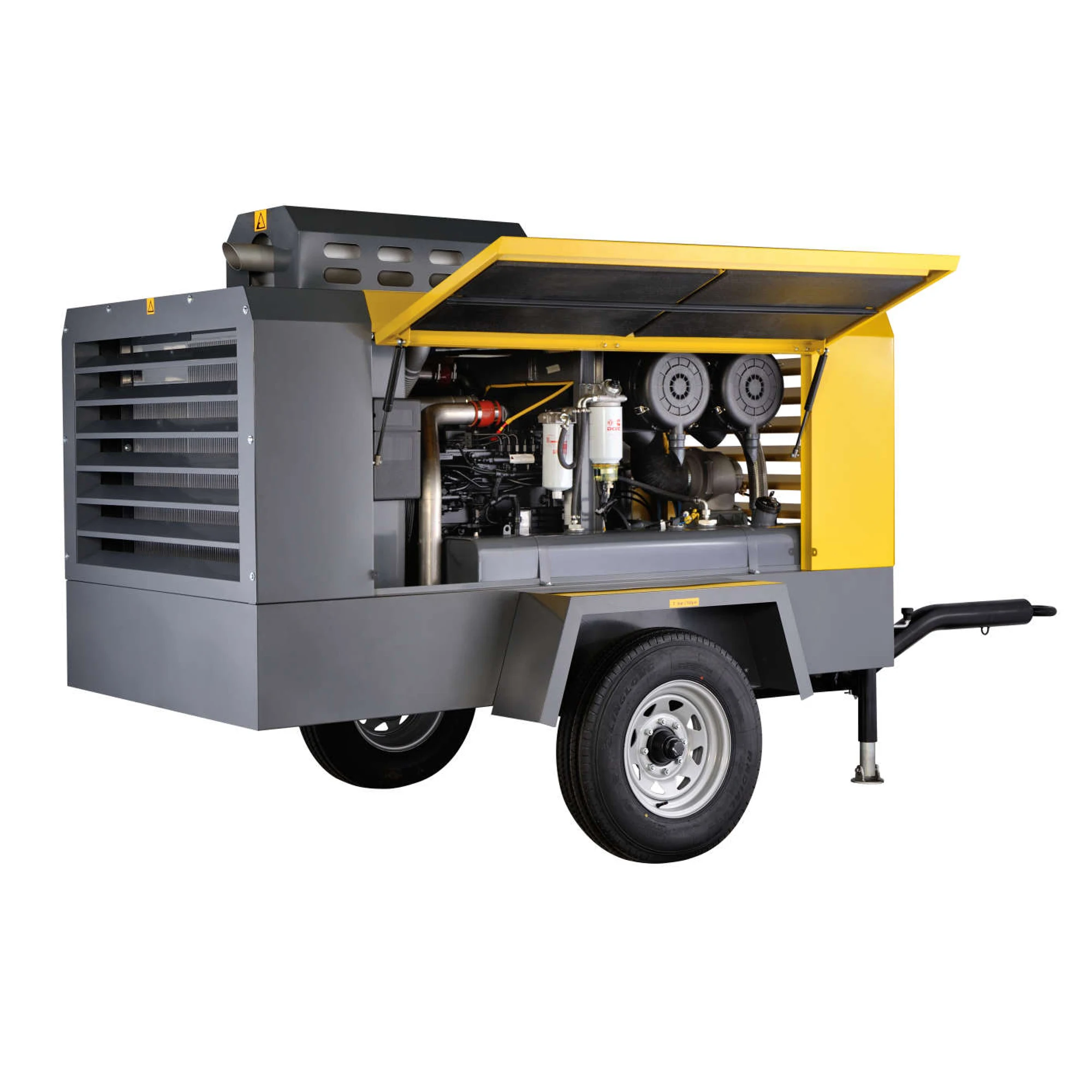

Diesel Compressor with Deutz engine

Compressor Data

XAS137 Dd (XAS300Dd)

Free Air Delivery @ Normal Working Pressure

125 L/S  (7.5 m³/min )

Normal Working Pressure

7 bar

Minimum / Maximum Unloading Pressure

4 / 8.5 bar

Compression Stages

1

Air Receiver Capacity

42L

Compressor Oil Capacity

14.5 L

Approximate Air Outlet Temperature

90°C (Standard)

Typical oil content of compressed air

<5 mg/m³

Fuel Tank Capacity

175 L

Outlet Valve Configuration

3 x 3/4” G, 1 x 1.5” G

Nominal working condition

Inlet pressure 1bar,Humidity0%,Temp20 °C

Sound Pressure Level (ISO2125)

73 dB(A) +/- 3

Maximum Ambient Temperature at sea level

50 °C

Maximum Altitude

3000 m

Minimum Starting Temperature

-10 °C / -25 °C (with assist)

Diesel Engine Data

DEUTZ BF4M2011

Horsepower Developed @ Rated Speed

56.5 kW

Cylinders

4 in line

Cooling System

Oil

Engine Coolant Capacity

--

Engine Oil Capacity

11 Liter

Unloaded Speed / Maximum Loaded Speed

1700 / 2300RPM

Fuel Consumption @ 0% Load / 100% Load

6.4 / 11.7 kg/h

Dimensions

Standard Towing Speed 20 km/h

Length

3941 mm ( within towbar )

Width

1716 mm

Height

1661 mm

Weight ( filled with oil & coolant , Initial fuel )

1800 kg
